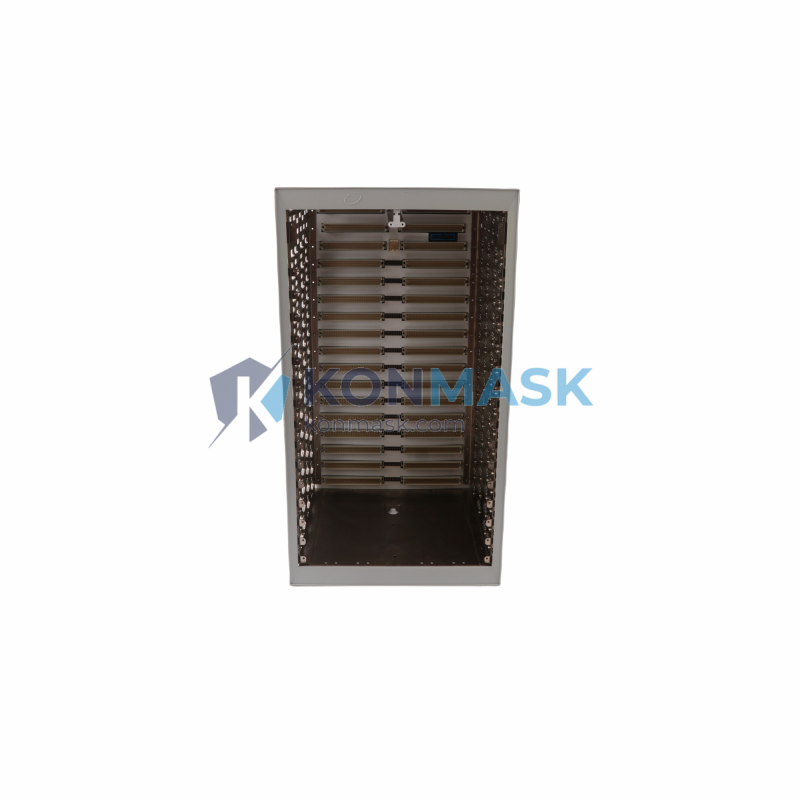

Bently Nevada 3500/05-01-01-00-00-01 System Rack Module | Replacement, Equivalent & Selection Guide
The Bently Nevada 3500/05-01-01-00-00-01 is a System Rack Module designed for use within the Bently Nevada 3500 Series Machinery Protection System. It serves as the backbone infrastructure component that houses and interconnects all functional monitor modules within a 3500 rack assembly. This guide covers technical specifications, compatible replacements, equivalent models, and selection criteria to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number / SKU: 3500/05-01-01-00-00-01
- Series: 3500 Machinery Protection System
- Module Type: System Rack Module
- Rack Slots: Supports up to 14 monitor modules
- Backplane Communication: Internal proprietary bus
- Power Input: Accepts dual AC/DC power modules (3500/15)
- Dimensions: Standard 19-inch rack-mount form factor
- Weight: Approx. 6.44 kg (chassis only)
- Operating Temperature: 0°C to 65°C
- Certifications: CE, CSA, FM (refer to OEM datasheet for full listing)
- Communication Options: Compatible with 3500/92 communication gateway modules
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 3500/05-01-01-00-00-01. Compatibility depends on firmware version, slot configuration, and system architecture — always verify before substitution:
- 3500/05-01-02-00-00-01 – Variant with alternate I/O configuration; functionally equivalent chassis
- 3500/05-01-01-00-00-00 – Earlier revision; compatible in most 3500 system configurations
- 3500/05-01-02-00-00-00 – Alternate suffix variant; verify backplane revision before use
- 3500/05 (generic) – Base rack chassis without specific option codes; confirm option string match
- Emerson / GE Bently Nevada OEM equivalents – Post-acquisition rebranded units; same hardware, updated labeling
Note: Konmask.com recommends confirming the full option string (all 6 segments) before ordering a replacement to ensure exact compatibility.
Why Choose the Original Model
- Guaranteed OEM Compatibility: The 3500/05-01-01-00-00-01 is the factory-specified chassis for 3500 Series systems — no firmware or backplane conflicts.
- Validated Reliability: Designed and tested to Bently Nevada’s machinery protection standards for continuous industrial operation.
- Full Warranty Support: OEM units sourced through authorized channels carry manufacturer warranty coverage.
- Regulatory Compliance: Maintains system-level certifications (SIL, FM, CSA) that may be voided with non-OEM substitutions.
- Long-Term Support: Spare parts, firmware updates, and technical support remain available through the OEM ecosystem.
Typical Applications
- Gas turbine and steam turbine vibration monitoring systems
- Compressor and pump machinery protection panels
- Petrochemical and refinery critical rotating equipment monitoring
- Power generation plant machinery health systems
- Offshore platform and LNG facility protection systems
- Industrial OEM skid-mounted monitoring assemblies
System Compatibility
The 3500/05-01-01-00-00-01 rack chassis is compatible with the following 3500 Series modules:
- 3500/15 – Power Supply Module (AC/DC)
- 3500/20 – Keyphasor Module
- 3500/22M – Transient Data Interface
- 3500/25 – Enhanced Keyphasor Module
- 3500/40M – Proximitor / Seismic Monitor
- 3500/42M – Proximitor / Seismic Monitor (enhanced)
- 3500/45 – Position Monitor
- 3500/50M – Tachometer Module
- 3500/60 – Temperature Monitor
- 3500/92 – Communication Gateway Module
- 3500/93 – TMR Communication Gateway
Selection Guide
Use the following criteria to select the correct 3500/05 variant for your application:
- Option Segment 1 (Rack Size): 01 = Standard 14-slot rack
- Option Segment 2 (Backplane Type): 01 = Standard backplane; 02 = Enhanced backplane
- Option Segment 3 (Termination): 00 = Internal termination; 01 = External I/O termination
- Option Segment 4 (Approval): 00 = Standard; 01 = FM/CSA hazardous area approved
- Option Segment 5 (Special): 00 = None; 01 = Special configuration (consult factory)
- Option Segment 6 (Revision): 01 = Current production revision
If you are unsure which option string matches your existing system, contact [email protected] with your rack serial number and we will assist with identification.
Quality Assurance & Sourcing
- Source: Konmask.com sources 3500/05-01-01-00-00-01 units from verified industrial surplus, OEM-authorized distributors, and factory-refurbished stock.
- Inspection: All units undergo visual inspection, functional verification, and cleaning prior to shipment.
- Documentation: Certificate of conformance and test reports available upon request.
- Packaging: Anti-static packaging with foam protection for safe international shipping.
- Lead Time: In-stock units ship within 1–3 business days; sourced units within 7–14 business days.
How to Order
- Online: Add to cart directly on this page at Konmask.com
- Email RFQ: Send your part number, quantity, and required delivery to [email protected]
- Phone / WhatsApp: +0086 19859288691
- Bulk / Project Orders: Contact us for volume pricing and project-based procurement support.
- Export & International Shipping: We ship worldwide with full export documentation (commercial invoice, packing list, COO).
Replacement & Compatibility FAQ
Q: Can I use a 3500/05-01-02-00-00-01 as a direct replacement for the 3500/05-01-01-00-00-01?
A: In most cases yes, but the backplane option (segment 2) differs. Verify your existing module configuration before substituting.
Q: Is the 3500/05-01-01-00-00-00 (revision 00) compatible with revision 01 modules?
A: Generally compatible. Revision differences are typically minor hardware updates. Confirm with your system integrator or contact us.
Q: Does Konmask.com provide a warranty on used or refurbished units?
A: Yes. All refurbished units carry a 90-day functional warranty. New OEM units carry the manufacturer’s standard warranty.
Q: Can I mix 3500/05 rack revisions in a multi-rack system?
A: Yes, 3500 racks operate independently. Different rack revisions can coexist in the same system without conflict.
Q: What is the lead time for a new OEM unit?
A: New OEM units typically have a 4–8 week lead time. Konmask.com maintains surplus stock for faster delivery — contact us for current availability.
