Vibration Monitoring Solution – Bently Nevada BA21504-00-08-10-02 | 3300 XL Series Standard Mount Proximity Probe
Where This Product Is Used

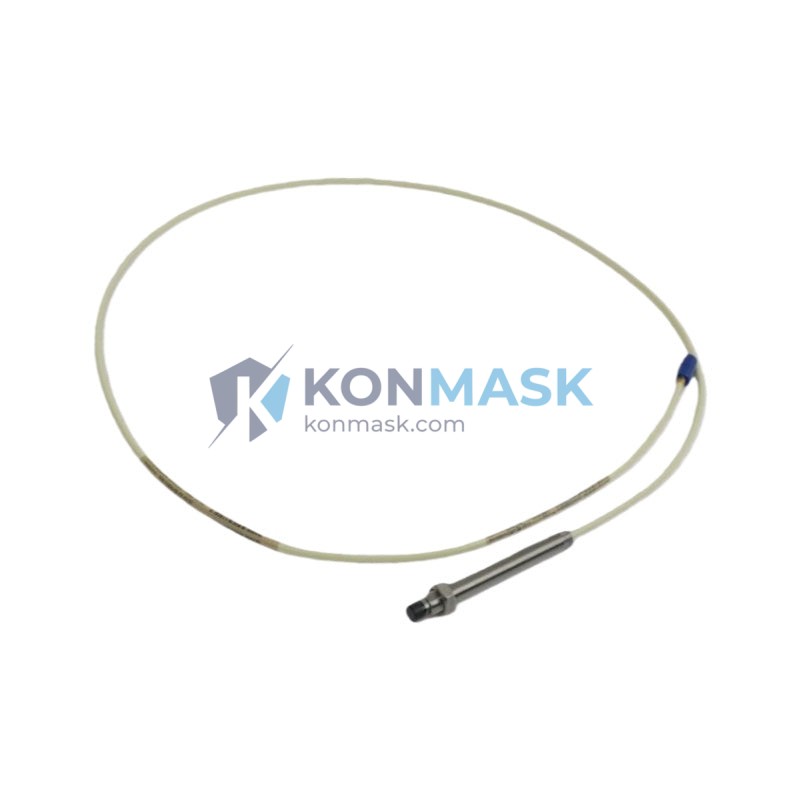

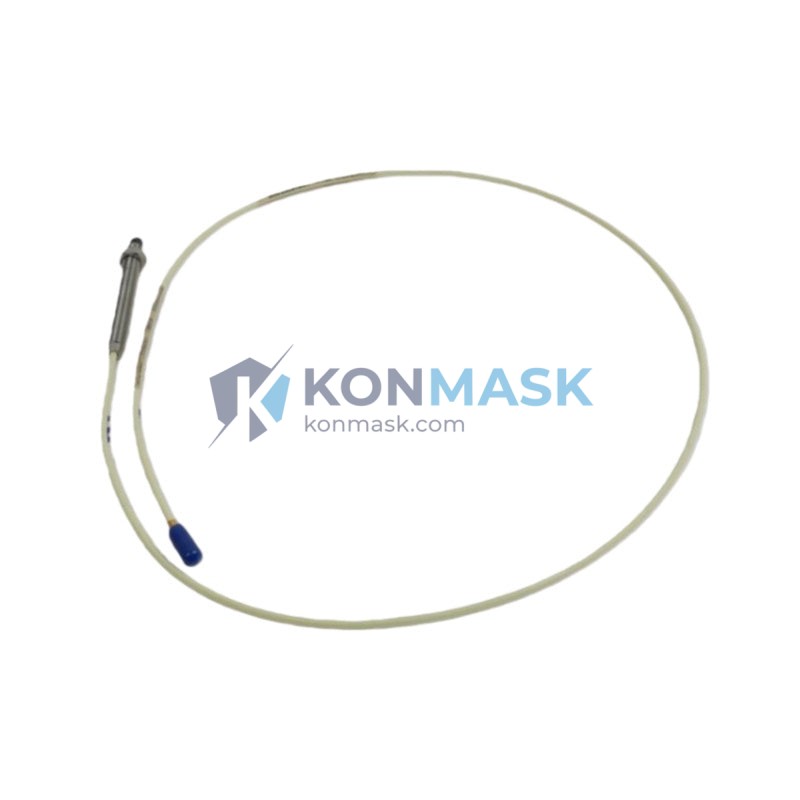

The Bently Nevada BA21504-00-08-10-02 is a standard mount eddy-current proximity probe engineered for continuous, non-contact measurement of shaft vibration, axial position, and differential expansion in rotating machinery. It is widely deployed in:
- Steam & Gas Turbines – radial shaft vibration and thrust position monitoring on high-speed rotors
- Centrifugal Compressors – real-time orbit and gap measurement to detect rotor instability
- Pumps & Fans – bearing journal monitoring in petrochemical and power-generation facilities
- Gearboxes – gear mesh frequency analysis and shaft eccentricity detection
- Marine Propulsion Systems – shaft alignment verification and vibration surveillance
- Paper & Steel Mills – roll position and vibration monitoring in continuous-process machinery
Wherever API 670 compliance is mandated, the BA21504-00-08-10-02 is the field-proven choice for OEM and retrofit installations alike.
Technical Specifications
| Part Number | BA21504-00-08-10-02 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL 8mm Proximity Transducer System |
| Probe Type | Standard Mount (Threaded Body) |
| Tip Diameter | 8 mm |
| Linear Range | 10 mm (0.4 in) |
| Nominal Gap | 1.0 mm (40 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Operating Temperature | –35 °C to +177 °C (–31 °F to +350 °F) |
| Cable Length | Integral (see extension cable for total system length) |
| Connector | Standard 2-pin MIL-C-5015 style |
| Housing Material | Stainless Steel |
| Thread | M10 × 1 (standard mount) |
| Weight | Approx. 150 g |
| Compatible Driver/Monitor | Bently Nevada 3300 XL Series monitors |
Why Engineers Specify This Model
- API 670 Compliant – meets the industry standard for machinery protection systems in oil & gas and power generation
- Matched System Accuracy – factory-calibrated as part of the 3300 XL transducer system (probe + extension cable + driver) for ±1% linearity
- Non-Contact Measurement – zero mechanical wear; ideal for continuous 24/7 operation on critical rotating assets
- Wide Temperature Range – performs reliably in hot, humid, and chemically aggressive environments
- Drop-in Replacement – standard M10 thread and connector ensure direct interchangeability with existing 3300 XL installations
- Proven Field Reliability – Bently Nevada proximity probes are the global benchmark for turbomachinery protection
Complete System Bill of Materials
The 3300 XL proximity transducer system requires three matched components. A typical configuration for this probe:
- Probe: BA21504-00-08-10-02 (this item) – 8 mm standard mount probe
- Extension Cable: 330130-XX-XX – 3300 XL extension cable (specify length: 5 m or 9 m)
- Proximitor® Driver: 3300 XL 8mm Proximitor® Sensor (e.g., 330180-X1-05) – mounts in junction box or monitor rack
- Monitor: Bently Nevada 3500/40M or 3500/42M Proximitor®/Seismic Monitor (for rack-based protection systems)
Contact us to source the complete matched system or individual replacement components.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- IEC 61511 – Functional Safety for Process Industry
- ATEX / IECEx – available in certified variants for hazardous area installations
- CE Marking – European conformity
- RoHS Compliant
Quality Assurance & Sourcing
All Bently Nevada components supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes incoming inspection including:
- Visual and dimensional verification against OEM datasheet
- Label and part number authentication
- Packaging integrity check
- Traceability documentation available on request
We specialize in obsolete, long-lead, and hard-to-source automation components for MRO and capital project procurement teams.
How to Source This Part
Ready to order or need a formal quotation? Here’s how to proceed:
- Add to Cart – for immediate purchase at the listed price
- Request a Quote – for volume orders, project BOM pricing, or lead-time confirmation: support@konmask.com
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Datasheet & Drawings: available upon request for engineering review
Application-Specific FAQ
Q: Is the BA21504-00-08-10-02 compatible with the older 3300 series monitors?
A: The 3300 XL system is backward-compatible with most 3300 series monitors when used with the correct Proximitor® driver. Confirm your monitor model before ordering.
Q: What target material is this probe calibrated for?
A: Factory calibration is performed on AISI 4140 steel. For non-standard target materials (e.g., titanium, Inconel), a field recalibration or material correction factor is required.
Q: Can this probe be used in a hazardous (Ex) area?
A: The standard BA21504-00-08-10-02 is not ATEX-certified. For Zone 1/Zone 2 installations, specify the appropriate Bently Nevada Ex-rated variant and consult your safety engineer.
Q: What is the recommended replacement interval?
A: Bently Nevada proximity probes have no mechanical wear parts. Replacement is typically triggered by calibration drift, physical damage, or as part of a scheduled major overhaul (T&I).
Q: Do you supply the full 3300 XL system (probe + cable + driver)?
A: Yes. Contact us with your complete BOM and we will provide a consolidated quotation for the matched system.
