Rotating Machinery Vibration Monitoring Solution — Bently Nevada 330905-00-10-10-02-05 | 3300 NSv Series
Where This Product Is Used

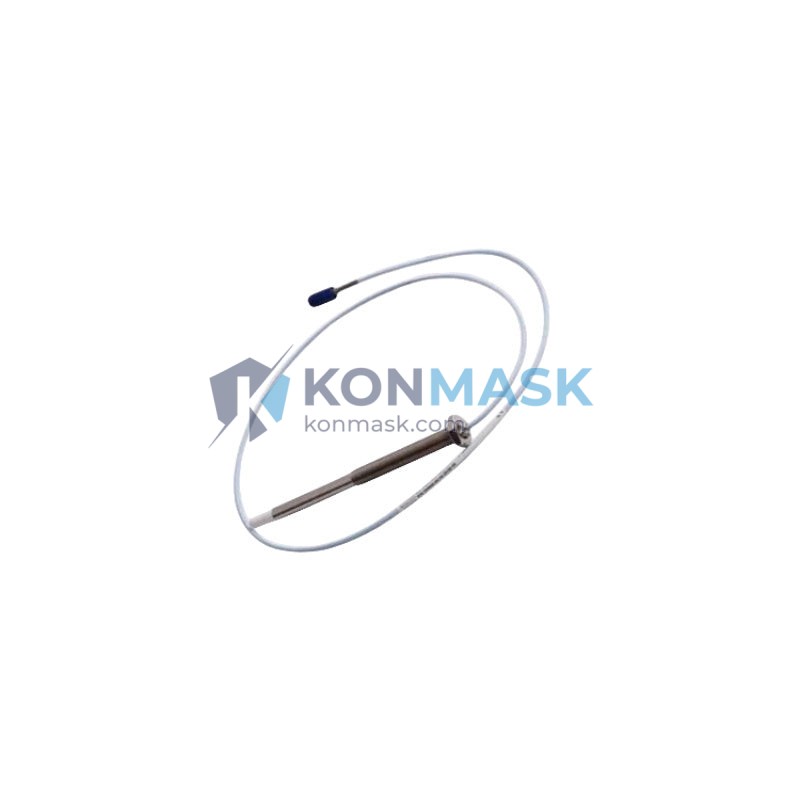

The Bently Nevada 330905-00-10-10-02-05 is a high-precision eddy-current proximity probe from the 3300 NSv (Non-Standard Voltage) series, engineered for continuous shaft vibration and position monitoring on critical rotating equipment. Typical deployment environments include:
- Steam & Gas Turbines — radial shaft vibration measurement on HP/LP turbine stages
- Centrifugal Compressors — real-time rotor orbit and eccentricity monitoring in petrochemical and LNG plants
- Pumps & Fans — bearing journal displacement tracking in power generation and water treatment facilities
- Gearboxes — axial thrust and radial vibration surveillance in heavy industrial drivetrains
- Electric Motors (>1 MW) — shaft centerline monitoring in steel mills and mining operations
- Marine Propulsion Systems — continuous condition monitoring on vessel main shafts
This probe is fully compatible with Bently Nevada 3300 series monitoring systems and is a direct fit for installations requiring NSv-rated signal conditioning.
Technical Specifications
| Part Number | 330905-00-10-10-02-05 |
| Series | 3300 NSv (Non-Standard Voltage) |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Probe Type | Eddy-Current Proximity Probe |
| Probe Tip Diameter | Ø 10 mm (standard) |
| Cable Length | 1.0 m integral armored cable |
| Extension Cable Length | 1.0 m (matched system) |
| Linear Range | 0.25 mm – 2.25 mm (10 mil – 90 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) nominal |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Operating Temperature | –35 °C to +177 °C (–31 °F to +350 °F) |
| Supply Voltage | –24 VDC (via Proximitor® driver) |
| Output Voltage Range | –2 VDC to –18 VDC |
| Target Material | AISI 4140 steel (standard); other alloys with calibration |
| Ingress Protection | IP67 |
| Weight | 420 g (probe + cable assembly) |
| Connector | MIL-C-5015 style, 2-pin |
Why Engineers Specify This Model
- NSv Signal Compatibility — Designed for systems requiring non-standard voltage output, ensuring direct interoperability with legacy and current 3300-series Proximitor® drivers without signal conditioning adapters.
- Wide Thermal Envelope — Rated to +177 °C, making it suitable for hot-section turbine bearing pedestals where standard probes fail prematurely.
- High Frequency Bandwidth — DC–10 kHz response captures both slow-roll runout and high-frequency subsynchronous instabilities critical for compressor surge detection.
- Matched System Calibration — Factory-calibrated as a probe + extension + Proximitor® set, eliminating field calibration errors that compromise API 670 compliance.
- Armored Cable Construction — Stainless steel braid over PTFE insulation resists oil, steam, and chemical exposure in harsh plant environments.
- Drop-in Replacement — Identical mechanical envelope and connector to predecessor models; no bracket modification required during maintenance turnarounds.
Complete System Bill of Materials
A fully functional 3300 NSv proximity measurement chain requires the following matched components:
| Component | Typical Part Number | Function |
|---|---|---|
| Proximity Probe | 330905-00-10-10-02-05 | Eddy-current sensing element (this item) |
| Extension Cable | 330130-080-00-00 | Signal transmission, 8 m (matched to probe) |
| Proximitor® Driver | 330180-X1-05 | Signal conditioning, –24 VDC powered |
| Mounting Bracket | 02-262XXX | Radial or axial probe holder (machine-specific) |
| Monitor Module | 3300/16 or 3500/42M | Vibration monitor card (rack-mounted) |
Contact Konmask for complete matched-set sourcing and system integration support.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition): probe system meets gap voltage, scale factor, and frequency response requirements for radial vibration channels.
- ISO 10816 / ISO 20816 — Mechanical vibration evaluation of machines; probe output compatible with all major vibration analyzers.
- IEC 60079 — Suitable for use in associated apparatus configurations for Zone 1/Zone 2 hazardous areas (verify Proximitor® ATEX/IECEx certification for complete loop).
- CE Marking — Compliant with applicable EU directives for industrial instrumentation.
- RoHS — Materials comply with EU Directive 2011/65/EU on restriction of hazardous substances.
Quality Assurance & Sourcing
Konmask.com sources Bently Nevada components through verified industrial distribution channels. Every unit offered is subject to the following quality controls:
- Visual and dimensional inspection against OEM datasheet tolerances
- Connector integrity and cable continuity verification
- Serialization and traceability documentation retained on file
- Original manufacturer packaging preserved where available
- 30-day inspection warranty on all stocked units
We do not sell counterfeit, refurbished-as-new, or unverified grey-market parts. Authenticity concerns? Request our sourcing documentation before purchase.
How to Source This Part
- Add to Cart — Place your order directly on this page for in-stock units.
- Request a Quote — For bulk orders (>3 units), OEM replacement programs, or matched-set procurement, email support@konmask.com.
- Urgent Requirement — Call or WhatsApp +0086 19859288691 for same-day response on critical plant shutdowns.
- Cross-Reference Check — If you are unsure whether this part number matches your installed system, share your existing probe label photo and we will confirm compatibility.
Application-Specific FAQ
Q: Can this probe be used with a 3500-series monitor?
A: Yes. The 330905-00-10-10-02-05 is electrically compatible with 3500-series monitors when paired with the correct Proximitor® driver. Verify the gap voltage window matches your monitor card configuration.
Q: What is the difference between NSv and standard 3300 probes?
A: NSv (Non-Standard Voltage) probes are calibrated for a different output voltage range compared to standard 3300 probes. They must be used with NSv-rated Proximitor® drivers. Mixing standard and NSv components will result in incorrect scale factor and false alarms.
Q: Is field recalibration required after replacement?
A: Factory-matched probe/extension/Proximitor® sets do not require field recalibration if all three components are replaced as a set. If only the probe is replaced, a gap voltage verification and scale factor check per API 670 Annex D is recommended.
Q: What shaft materials are compatible?
A: The probe is factory-calibrated for AISI 4140 steel. For stainless steel, Inconel, or titanium shafts, a material-specific calibration curve must be applied. Contact us for calibration data sheets for non-standard target materials.
Q: Can this probe operate in a hydrogen-cooled generator environment?
A: The probe itself is rated for the temperature range, but the complete measurement loop (including Proximitor® and cabling) must be assessed for hydrogen atmosphere compatibility. Consult your safety engineer and the applicable IEC 60079 zone classification.
Q: Do you offer exchange/repair services?
A: We currently offer new-unit supply only. For repair or recertification of existing probes, contact Bently Nevada’s authorized service network directly.
