BOSCH D-64711 DC102/MK – Terminating Module | DC102/MK Series Platform
Engineering Background

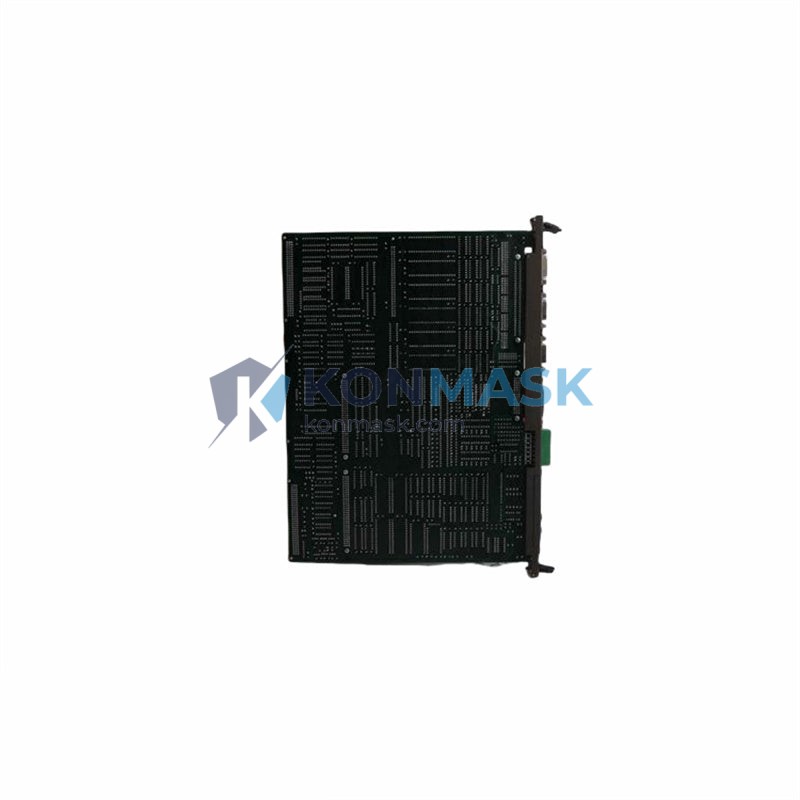

The BOSCH D-64711 is a precision-engineered terminating module designed for the DC102/MK drive and control platform — a cornerstone of Bosch Rexroth’s industrial automation architecture. Terminating modules in this series serve a critical bus-integrity function: they provide the correct impedance termination at the end of the backplane or communication bus, preventing signal reflection and ensuring stable, noise-free data transmission across all connected modules.
Product Positioning
Targeted at procurement engineers and MRO specialists maintaining Bosch Rexroth DC102/MK-based control systems in CNC machining centers, press lines, injection molding machines, and automated assembly cells. This module is a mandatory system component — without proper termination, the entire control bus is susceptible to communication faults, spurious errors, and unplanned downtime. Sourced directly from verified OEM channels and rigorously inspected before dispatch.
Complete Technical Specifications
| Manufacturer | BOSCH Rexroth (Indramat) |
| Part Number (Primary) | D-64711 |
| Part Number (Secondary) | 1070081815-101 |
| SKU / Order Code | 1070068007-102 |
| Module Type | Terminating Module |
| Compatible Platform | DC102/MK Series |
| Bus Function | Signal termination / impedance matching for backplane bus |
| Mounting | DIN rail / rack-mount (DC102/MK chassis) |
| Weight | 1,030 g |
| Country of Origin | Germany |
| Condition | New / Refurbished OEM (specify on inquiry) |
| Warranty | 12 months from date of shipment |
Proven Application Environments
- CNC Machining Centers — Axis control systems using DC102/MK servo drives requiring stable bus termination
- Hydraulic Press Lines — High-cycle industrial presses with Bosch Rexroth motion control platforms
- Injection Molding Machines — Precision closed-loop control systems dependent on error-free bus communication
- Automated Assembly Cells — Multi-axis robotic and gantry systems with DC102/MK backplane architecture
- MRO / Spare Parts Inventory — Critical replacement module for facilities maintaining legacy Bosch Rexroth installations
Engineering Advantages
- Bus Signal Integrity — Eliminates signal reflection at bus terminus, ensuring clean data transmission across all modules
- Plug-and-Play Replacement — Direct OEM form-factor compatibility; no firmware modification required
- Reduced Downtime Risk — Stocking this module eliminates the most common cause of unexplained bus communication faults
- OEM-Grade Reliability — Manufactured to Bosch Rexroth’s original design specifications and quality standards
- Long Service Life — Passive termination design with no active components subject to wear or thermal degradation
System Architecture & Signal Flow
In the DC102/MK modular rack system, the backplane bus carries both power distribution and high-speed serial communication signals between the CPU module, I/O modules, and drive interface cards. The D-64711 terminating module is installed at the physical end of the rack to provide the correct characteristic impedance load. Without this termination:
- Bus signals reflect back from the open end, causing data corruption
- The CPU may log intermittent communication errors or enter fault state
- Drive response latency increases, degrading motion control precision
Installation is straightforward: insert the D-64711 into the last available slot of the DC102/MK rack and secure with the standard module locking mechanism. No configuration or parameterization is required.
Sourcing & Quality Verification
- All units sourced from authorized Bosch Rexroth distribution channels or verified OEM surplus
- Pre-shipment inspection includes visual examination, connector integrity check, and part number verification against Bosch Rexroth documentation
- Serialization and date codes verified and documented for traceability
- Packaging: anti-static ESD bag + foam-lined carton for safe international transit
- Certificate of conformity available on request
Procurement Process
- Confirm Compatibility — Verify your DC102/MK rack model and existing module configuration against the D-64711 datasheet
- Request Quote — Contact [email protected] with your required quantity and delivery timeline
- Order Confirmation — Receive proforma invoice with lead time, shipping options, and payment terms
- Shipment & Tracking — DHL / FedEx express shipping with full tracking; typical transit 3–7 business days
- Incoming Inspection — Use provided documentation to verify part numbers and condition on receipt
Technical FAQ
Q: Is the D-64711 compatible with all DC102/MK rack sizes?
A: Yes. The terminating module is designed for use with all standard DC102/MK rack configurations regardless of the number of populated slots.
Q: Can I operate the DC102/MK system without a terminating module?
A: Not recommended. Operating without proper bus termination will result in signal integrity issues and is likely to cause intermittent or persistent communication faults.
Q: What is the difference between part numbers 1070081815-101 and 1070068007-102?
A: 1070081815-101 is the Bosch Rexroth assembly drawing/revision reference, while 1070068007-102 is the orderable SKU used for procurement. Both refer to the same physical module.
Q: Do you offer exchange or repair services?
A: Yes. Contact us to discuss exchange programs for faulty units or repair assessment for modules with physical damage.
Q: What warranty is provided?
A: 12 months from date of shipment, covering manufacturing defects and functional failure under normal operating conditions.
