CNC & Multi-Axis Servo Solution — Bosch Rexroth XM2100.01-01-31-31-301-NN-100N3NN | IndraMotion MLC/MTX Series
SKU: XM2100.01-01-31-31-301-NN-100N3NN | Part No.: R911345644 | Brand: Bosch Rexroth | Series: IndraMotion MLC / MTX

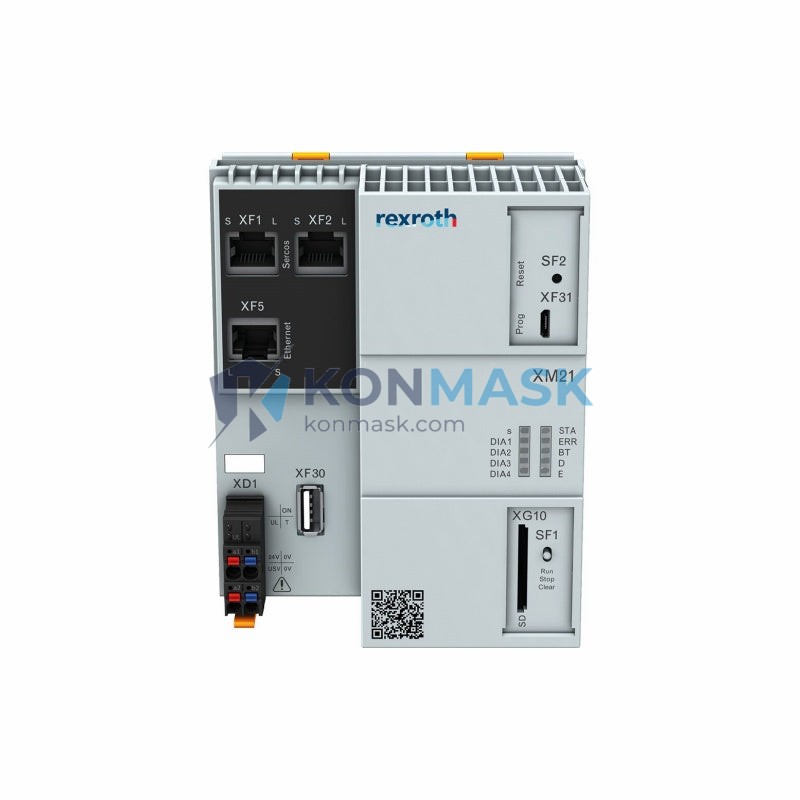

The Bosch Rexroth XM2100.01-01-31-31-301-NN-100N3NN (R911345644) is a high-performance motion control module from the IndraMotion platform, engineered for demanding multi-axis CNC and servo automation environments. It delivers deterministic real-time control, seamless integration with IndraDrive servo drives, and robust fieldbus connectivity — making it the preferred choice for machine builders and system integrators worldwide.
Where This Product Is Used
This module is specified across a broad range of industrial motion-critical applications:
- CNC Machine Tools — Milling centers, turning lathes, grinding machines requiring synchronized multi-axis interpolation
- Robotics & Handling Systems — Cartesian gantries, SCARA arms, and pick-and-place cells demanding sub-millisecond cycle times
- Printing & Packaging Machinery — Register control, web tension management, and high-speed indexing lines
- Plastics & Injection Molding — Clamp force profiling, injection velocity control, and ejector sequencing
- Semiconductor & Electronics Assembly — Precision positioning stages with micron-level repeatability
- Automotive Body & Powertrain Lines — Transfer lines, welding positioners, and press automation
- Textile & Converting Equipment — Multi-axis winding, slitting, and tension control
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | R911345644 |
| Model / Order Code | XM2100.01-01-31-31-301-NN-100N3NN |
| Product Series | IndraMotion MLC / MTX |
| Product Type | Motion Control Module |
| Brand | Bosch Rexroth |
| Control Architecture | PC-based / IEC 61131-3 soft PLC + CNC kernel |
| Communication Interface | SERCOS III / EtherCAT / PROFIBUS (per variant) |
| Programming Standard | IEC 61131-3 (LD, FBD, ST, IL, SFC) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −25 °C to +70 °C |
| Protection Class | IP20 (panel-mount) |
| Weight | 300 g (approx.) |
| Condition | New / Surplus / Refurbished (specify on inquiry) |
Note: Full electrical ratings, axis count, and I/O configuration are encoded in the order code. Contact us to decode your specific variant requirements.
Why Engineers Specify This Model
- Deterministic Real-Time Performance — Hard real-time kernel ensures cycle-accurate motion synchronization across all axes, eliminating jitter in high-speed applications
- Scalable Multi-Axis Architecture — Supports expansion from 2 to 64+ axes within a single control topology without hardware redesign
- Unified Engineering Environment — IndraWorks software integrates motion programming, PLC logic, HMI configuration, and diagnostics in one platform
- Seamless IndraDrive Integration — Native SERCOS III / EtherCAT communication eliminates third-party gateway complexity and reduces commissioning time
- Proven Reliability — Bosch Rexroth’s MTBF-rated hardware is field-proven in 24/7 production environments across automotive, aerospace, and heavy industry
- Long-Term Availability — Rexroth’s lifecycle management program ensures spare parts and firmware support for 10+ years post-production
Complete System Bill of Materials
For a fully operational IndraMotion control system, the following components are typically required alongside the XM2100 module:
- IndraDrive Cs / Mi / M servo drive (matched axis count)
- IndraDyn servo motor (MSK / MSE / MAD series)
- SERCOS III or EtherCAT fiber/copper communication cable
- Rexroth control cabinet power supply (24 VDC)
- IndraControl L / XM operator panel or third-party HMI
- Rexroth I/O modules (R-IB IL series) for digital/analog I/O expansion
- Engineering PC with IndraWorks DS / MLD software license
Konmask.com stocks complementary Bosch Rexroth components. Contact us for a complete BOM quotation.
Compliance & Industry Standards
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL / cUL Listed (where applicable per variant)
- IEC 61131-3 Programming Standard Compliant
- RoHS 2 Compliant (Directive 2011/65/EU)
- ISO 13849 / IEC 62061 Safety Function Support (SIL 2 / PLd capable variants)
- REACH Regulation Compliant
Quality Assurance & Sourcing
Every unit offered by Konmask.com undergoes a structured verification process:
- Authenticity Verification — Serial number and R-number cross-referenced against Bosch Rexroth manufacturer records
- Visual & Functional Inspection — Physical inspection for connector integrity, label authenticity, and firmware version confirmation
- Traceability Documentation — Full supply chain traceability available on request (COC, test reports)
- Packaging Integrity — ESD-safe packaging with anti-static bags and foam inserts for safe international shipping
- Warranty — 12-month warranty against manufacturing defects on all verified units
How to Source This Part
- Submit an RFQ — Email [email protected] with your required quantity, delivery timeline, and condition preference (new / surplus / exchange)
- Receive a Quotation — Our team responds within 24 business hours with pricing, lead time, and availability confirmation
- Order Confirmation — Secure payment via T/T bank transfer, PayPal, or trade assurance; proforma invoice issued immediately
- Shipping & Tracking — DHL / FedEx / UPS express worldwide; tracking number provided within 24 hours of dispatch
- After-Sales Support — Technical support and warranty claims handled directly by our engineering team
Application-Specific FAQ
Q: Is the XM2100.01-01-31-31-301-NN-100N3NN compatible with older IndraMotion MLC systems?
A: Yes. The XM2100 series maintains backward compatibility with existing IndraMotion MLC hardware generations. Firmware migration support is available — contact us for version-specific guidance.
Q: Can this module control third-party servo drives via EtherCAT?
A: The XM2100 supports EtherCAT master functionality. Third-party CoE (CANopen over EtherCAT) drives can be integrated, though full feature sets are optimized with IndraDrive systems.
Q: What is the maximum number of axes this module can coordinate?
A: Axis count depends on the specific order code variant and firmware license. The XM2100 platform scales from 4 to 64 axes. Please share your full order code for a precise answer.
Q: Do you offer exchange / repair services for faulty XM2100 units?
A: Yes. Konmask.com offers board-level repair and exchange programs. Send your defective unit details to [email protected] for an evaluation quote.
Q: What software is required to program this module?
A: Bosch Rexroth IndraWorks DS (for drive configuration) and IndraWorks MLD (for motion/PLC programming). Konmask.com can advise on software licensing procurement.
