Reflow Oven Control Solution – BTU International 5225S Quad I/O Board | 5225 Series
Where This Product Is Used

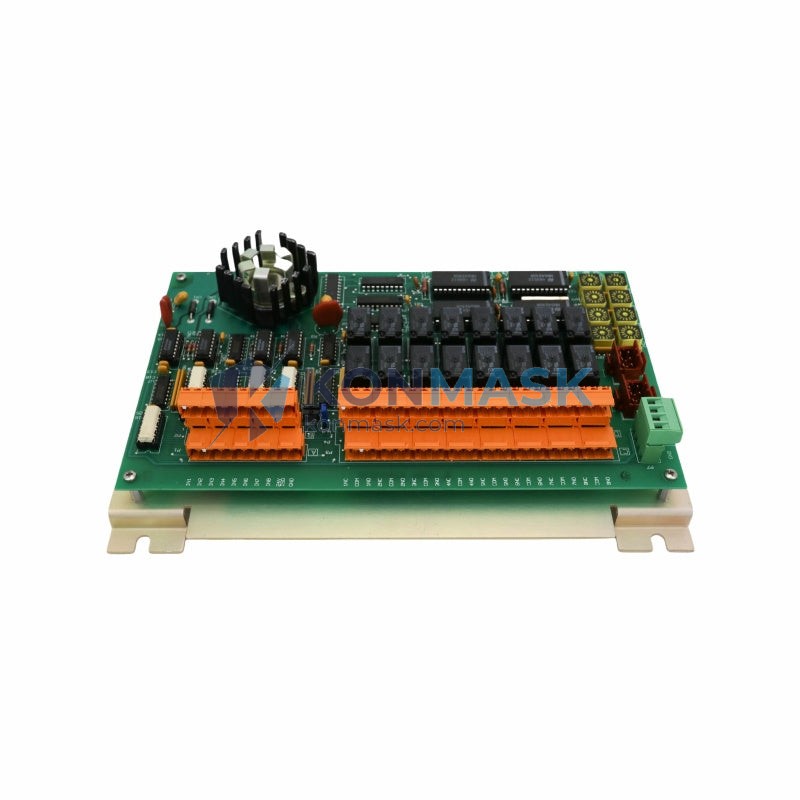

The BTU International 5225S Quad I/O Board (P/N 4080395-004, Assembly No. 91-5225SU-28R, Board Rev. 0200-02866) is the primary multi-channel I/O interface PCB installed inside BTU Pyramax and Paragon series convection reflow soldering ovens. It is found in high-volume SMT (Surface Mount Technology) production lines across:
- Electronics contract manufacturing (EMS/CM) facilities
- Automotive ECU and power module assembly lines
- Aerospace and defense PCB soldering operations
- Medical device board assembly cleanrooms
- LED and semiconductor packaging lines
When this board fails, the entire reflow oven goes offline — making fast, accurate sourcing of this exact part number critical to minimizing production downtime.
Technical Specifications
- Manufacturer: BTU International
- Part Number: 4080395-004
- Assembly Number: 91-5225SU-28R
- Board Revision: 0200-02866
- Kit Included: 93-5200 (connector/hardware kit)
- Board Type: Quad I/O Board (4-channel digital/analog I/O interface)
- Series Compatibility: BTU 5225S / Pyramax / Paragon reflow oven platforms
- Form Factor: OEM PCB assembly, direct drop-in replacement
- Condition: New / Refurbished (specify at inquiry)
Why Engineers Specify This Model
- Quad-channel I/O architecture — handles simultaneous zone temperature sensing, conveyor motor feedback, and safety interlock signals on a single board, reducing wiring complexity
- OEM-matched revision — Rev. 0200-02866 ensures firmware and connector compatibility with existing 5225S oven control backplanes without re-calibration
- Bundled with Kit 93-5200 — includes all mating connectors and hardware for a complete swap, eliminating secondary procurement delays
- Proven field reliability — widely deployed in 24/7 high-throughput SMT lines where thermal cycling and vibration resistance are mandatory
Complete System Bill of Materials
For a full BTU 5225S oven control system restoration, engineers typically source:
- 4080395-004 Quad I/O Board (this item) + Kit 93-5200
- BTU 5225S Main CPU / Controller Board
- BTU Zone Temperature Control Cards
- BTU Conveyor Drive PCB
- BTU Power Supply Assembly
Contact [email protected] to source the complete BOM in a single order.
Compliance & Industry Standards
- Designed for use in IPC-A-610 Class 2 / Class 3 soldering environments
- Compatible with J-STD-001 reflow process requirements
- RoHS-compliant board materials (verify with OEM datasheet for specific revision)
- CE / UL recognized as part of the BTU oven system assembly
Quality Assurance & Sourcing
All BTU International boards supplied by Konmask.com are:
- Inspected against OEM part number, revision, and kit completeness before shipment
- Sourced from authorized distributors or verified surplus channels with full traceability
- Photographed and documented — the listing image reflects the actual unit or representative stock
- Backed by our 30-day DOA (Dead on Arrival) replacement guarantee
How to Source This Part
- Confirm your oven model and existing board revision matches 0200-02866 / 91-5225SU-28R
- Add to cart or contact us directly for bulk / urgent orders
- Request a proforma invoice for corporate PO processing
- Typical lead time: in-stock orders ship within 1–3 business days
📧 [email protected] | 📞 +0086 19859288691
Application-Specific FAQ
Q: Is this board compatible with the BTU Pyramax 98N?
A: The 5225S Quad I/O Board is designed for the 5225S platform. Pyramax compatibility depends on the backplane revision — contact us with your oven serial number for confirmation.
Q: Can this board be repaired instead of replaced?
A: Component-level repair is possible for some failure modes (blown fuses, failed optocouplers). However, for production-critical lines, direct replacement with a tested board minimizes risk and downtime.
Q: Does the kit 93-5200 include all connectors needed for installation?
A: Yes — Kit 93-5200 contains the mating connector hardware required for the 91-5225SU-28R board installation per BTU service documentation.
Q: What is the typical failure symptom for this board?
A: Common symptoms include zone temperature read errors, conveyor speed faults, or oven safety interlock alarms that persist after sensor replacement — all pointing to I/O board failure.
