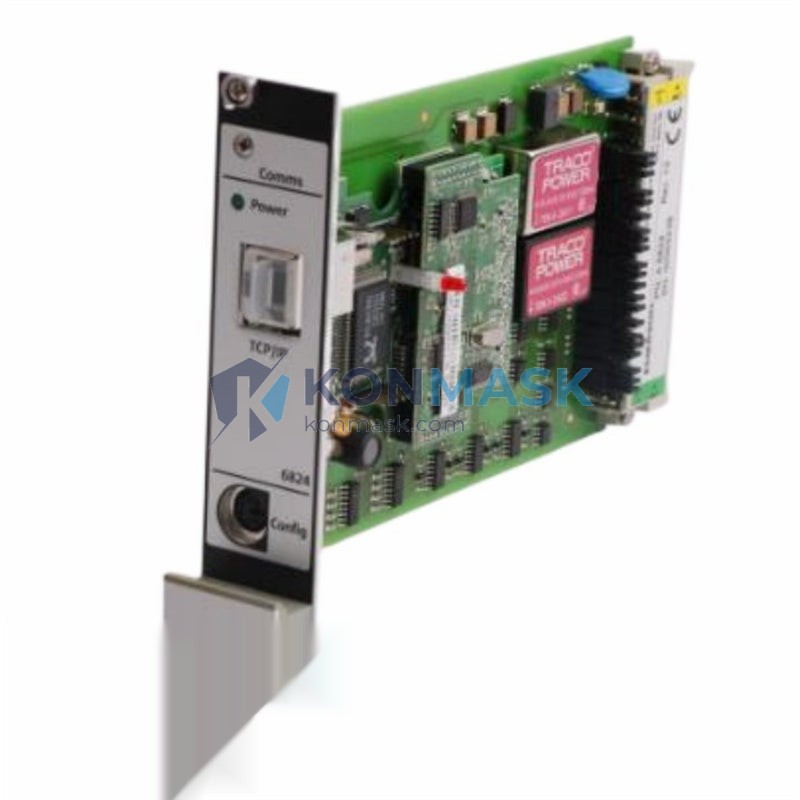

EMERSON A6824 – Frame Interface Module | DeltaV DCS Platform
Engineering Background
The EMERSON A6824 is a Frame Interface Module designed for use within the DeltaV Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, chemical, power generation, and life sciences industries. The A6824 serves as the critical communication bridge between the DeltaV controller chassis and field I/O subsystems, ensuring deterministic, high-integrity data exchange across the control network.
Product Positioning
Engineered for mission-critical process environments where signal integrity and system uptime are non-negotiable, the A6824 is the preferred choice for procurement engineers sourcing replacement or expansion modules for existing DeltaV installations. Its plug-and-play compatibility with standard DeltaV carrier assemblies minimizes commissioning time and reduces total cost of ownership.
Complete Technical Specifications
- Part Number: A6824
- Manufacturer: EMERSON (Fisher-Rosemount / DeltaV Series)
- Module Type: Frame Interface Module (FIM)
- Platform Compatibility: DeltaV DCS — MD, MD Plus, SD, SD Plus Controllers
- Communication Protocol: DeltaV proprietary backplane bus
- Power Supply: Supplied via carrier/backplane (no external power required)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Weight: Approx. 240 g
- Mounting: DeltaV standard carrier rail (2-wide slot)
- Certifications: CE, UL/cUL (refer to original datasheet for full listing)
- Firmware: Auto-detected and managed by DeltaV system software
Proven Application Environments
- Petroleum refining and upstream oil & gas production facilities
- Chemical and petrochemical batch/continuous process plants
- Power generation (thermal, nuclear auxiliary systems)
- Pharmaceutical and biotech manufacturing (FDA-regulated environments)
- Pulp, paper, and water treatment operations
- LNG terminals and pipeline SCADA integration nodes
Engineering Advantages
- Deterministic Backplane Communication: Guarantees scan-cycle-aligned data transfer between controller and I/O subsystems, eliminating jitter-induced process deviations.
- Hot-Swap Capable: Supports live insertion and removal without requiring controller shutdown, enabling zero-downtime maintenance in continuous process environments.
- Automatic Configuration Download: Upon insertion, DeltaV automatically pushes module configuration — no manual parameterization required.
- Redundancy Support: Compatible with DeltaV redundant controller architectures for SIL-rated and high-availability loops.
- Compact Form Factor: 2-slot carrier footprint minimizes rack space consumption in dense I/O marshalling cabinets.
System Architecture & Signal Flow
Within a DeltaV node, the A6824 Frame Interface Module occupies a dedicated carrier slot and interfaces directly with the DeltaV controller via the high-speed backplane bus. Field I/O modules (AI, AO, DI, DO, HART) installed in adjacent carrier slots communicate through the A6824 to the controller, which executes control strategies in the DeltaV Operate environment. The A6824 manages address arbitration, data packetization, and error detection across all connected I/O channels, providing a single point of diagnostic visibility for the entire node.
Typical Node Architecture:
- DeltaV Controller (MD/SD) → Backplane Bus → A6824 FIM → I/O Carrier Assembly → Field Instruments
Sourcing & Quality Verification
- Origin: Genuine EMERSON-manufactured module; sourced from authorized distribution channels and verified surplus inventory.
- Inspection Protocol: Each unit undergoes visual inspection, firmware version verification, and functional bench test prior to shipment.
- Traceability: Serial number and firmware revision documented and provided with shipment.
- Packaging: ESD-safe anti-static bag, foam-lined carton; conforms to IEC 61340-5-1 handling standards.
- Warranty: 12-month replacement warranty against manufacturing defects.
Procurement Process
- Submit RFQ: Contact support@konmask.com with your required quantity, delivery timeline, and site location.
- Quotation & Lead Time: Receive a formal quotation within 1 business day, including stock availability and estimated delivery.
- Order Confirmation: Issue PO against confirmed quotation; payment terms available for qualified B2B accounts.
- Quality Documentation: Receive inspection report, serial number log, and packing list with shipment.
- Technical Support: Post-delivery engineering support available via email or phone for installation and commissioning queries.
Technical FAQ
Q: Is the A6824 compatible with DeltaV S-series controllers?
A: Yes. The A6824 is compatible with DeltaV MD, MD Plus, SD, and SD Plus controller families. Verify your specific system revision with our technical team before ordering.
Q: Can the A6824 be used in a SIL 2 safety loop?
A: The A6824 itself is a standard process control module. For SIL-rated applications, it must be used in conjunction with DeltaV SIS (Safety Instrumented System) architecture and certified I/O modules. Consult your functional safety engineer.
Q: What is the typical lead time for in-stock units?
A: In-stock units ship within 3–5 business days internationally. Express delivery options are available upon request.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC and inspection report are included with every shipment at no additional charge.
Q: What if the module fails after installation?
A: Our 12-month warranty covers replacement. Contact support@konmask.com with the serial number and failure description for expedited RMA processing.
