Emerson KJ2002X1-BA1-12P1442X062 – DeltaV M3 Controller Module | DeltaV Platform
Engineering Background
The Emerson DeltaV distributed control system (DCS) is one of the most widely deployed process automation platforms in the world, trusted across oil & gas, chemical, pharmaceutical, and power generation industries. The M3 Controller series represents Emerson’s mid-range controller tier within the DeltaV architecture, engineered to deliver deterministic real-time control with high availability and seamless integration into DeltaV node networks.
Product Positioning

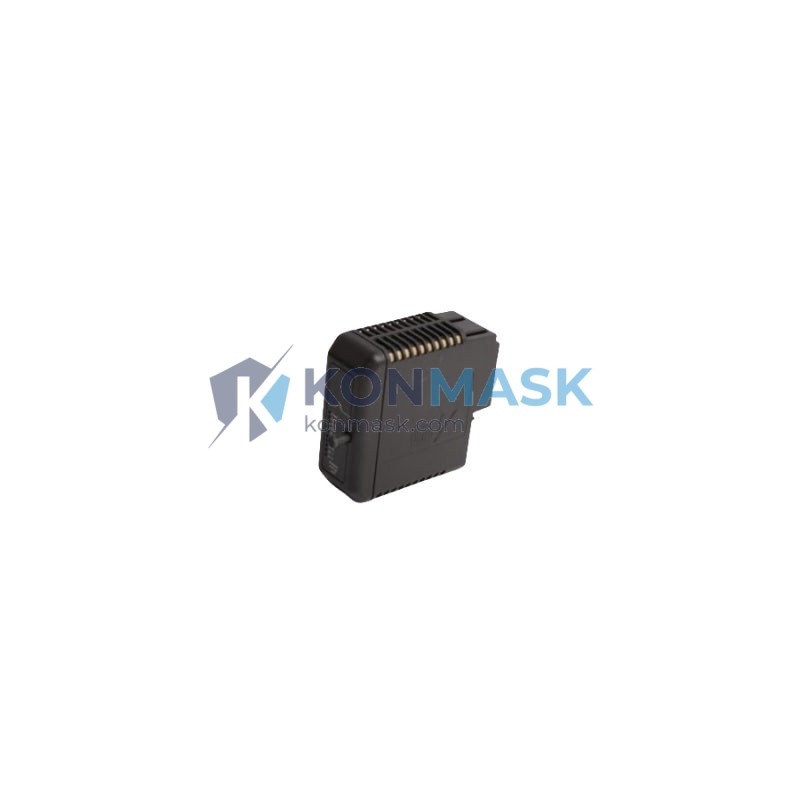

The KJ2002X1-BA1 / 12P1442X062 is a genuine Emerson DeltaV M3 Controller Module designed for procurement engineers and automation specialists who require a verified, drop-in replacement or expansion unit for existing DeltaV control networks. This module is sourced through established industrial supply channels and undergoes pre-shipment functional verification at Konmask.com.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Emerson Electric / Fisher-Rosemount |
| Part Number (Primary) | KJ2002X1-BA1 |
| Part Number (Secondary) | 12P1442X062 |
| Series / Platform | DeltaV M3 Controller |
| Controller Class | Mid-Range DCS Controller |
| Communication Bus | DeltaV Control Network (proprietary Ethernet-based) |
| Redundancy Support | Supports controller redundancy pairing |
| Operating Voltage | 24 VDC (supplied via DeltaV carrier/power bus) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Form Factor | DeltaV standard module (card-style, DIN-rail carrier mount) |
| Weight | Approx. 320 g |
| Certifications | CE, UL, FM (refer to Emerson datasheet for full listing) |
| Firmware | Compatible with DeltaV v7.x and above (verify with site version) |
| Country of Origin | United States |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA integration, downstream refinery DCS loops
- Chemical & Petrochemical: Batch reactor sequencing, continuous distillation column control, safety interlock coordination
- Pharmaceutical / Life Sciences: FDA 21 CFR Part 11 compliant process control, clean-room HVAC automation, bioreactor management
- Power Generation: Boiler combustion control, turbine governor interface, auxiliary system monitoring
- Pulp & Paper / Food & Beverage: Multi-loop PID control, recipe management, CIP sequence automation
Engineering Advantages
- Deterministic Scan Cycle: Guarantees consistent loop execution timing critical for tight process control
- Hot-Swap Capability: Supports online module replacement in redundant configurations without process interruption
- Integrated Diagnostics: Built-in self-test and health monitoring visible through DeltaV Diagnostics Explorer
- Scalable I/O: Interfaces with the full range of DeltaV I/O subsystems — traditional, CHARM, and wireless
- Cybersecurity Posture: Compatible with Emerson’s DeltaV Secure Architecture guidelines and IEC 62443 frameworks
- Long Service Life: Designed for 10+ year operational lifespan in continuous industrial environments
System Architecture & Signal Flow
Within the DeltaV architecture, the M3 Controller occupies the controller node tier, sitting between the operator workstation layer (DeltaV Operate) and the I/O subsystem layer (DeltaV I/O cards or CHARM baseplates). The controller executes control modules downloaded from DeltaV Explorer, communicates with I/O via the local controller bus, and exchanges data with the DeltaV control network at the node level. In redundant configurations, a primary and secondary M3 controller pair synchronize state continuously, enabling bumpless failover in under 100 ms.
Signal Flow: Field Instruments → DeltaV I/O Cards → M3 Controller (KJ2002X1-BA1) → DeltaV Control Network → Operator Workstation / Historian
Sourcing & Quality Verification
- All units sourced from verified industrial distributors and decommissioned plant inventories with documented chain of custody
- Pre-shipment inspection includes visual examination, connector integrity check, and firmware version confirmation
- Original Emerson labeling and part markings preserved and verified against Emerson part number cross-reference database
- Anti-static packaging with humidity indicator card for safe international transit
- Certificate of conformance available upon request for regulated industries
Procurement Process
- Inquiry: Contact Konmask.com with your DeltaV system version and site requirements for compatibility confirmation
- Quotation: Receive itemized quotation with lead time, warranty terms, and shipping options within 24 hours
- Order Confirmation: Purchase order accepted via Shopify checkout, bank transfer, or corporate PO arrangement
- Inspection & Dispatch: Unit inspected, photographed, and dispatched with tracking within 1–3 business days
- After-Sales Support: Technical support available via email and phone for installation and commissioning queries
Technical FAQ
Q: Is this module compatible with DeltaV v14 / v15?
A: The KJ2002X1-BA1 hardware is compatible with DeltaV v7.x through v14.x. Compatibility with v15 and above should be verified against Emerson’s controller compatibility matrix for your specific site configuration.
Q: Can this controller be used in a redundant pair?
A: Yes. The M3 Controller supports controller redundancy. Two KJ2002X1-BA1 units can be configured as a primary/secondary redundant pair using the standard DeltaV redundancy carrier.
Q: What is the warranty on this unit?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options are available upon request.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoice, packing list, and certificate of origin. ECCN classification and export license guidance available for controlled destinations.
Q: What if the unit fails on arrival?
A: DOA (Dead on Arrival) claims are accepted within 7 days of receipt. Contact [email protected] with photos and test results for immediate resolution.
