EMERSON KJ3208X1-BA2 – DeltaV DCS Controller Module | DeltaV Series Platform
工程背景 / Engineering Background

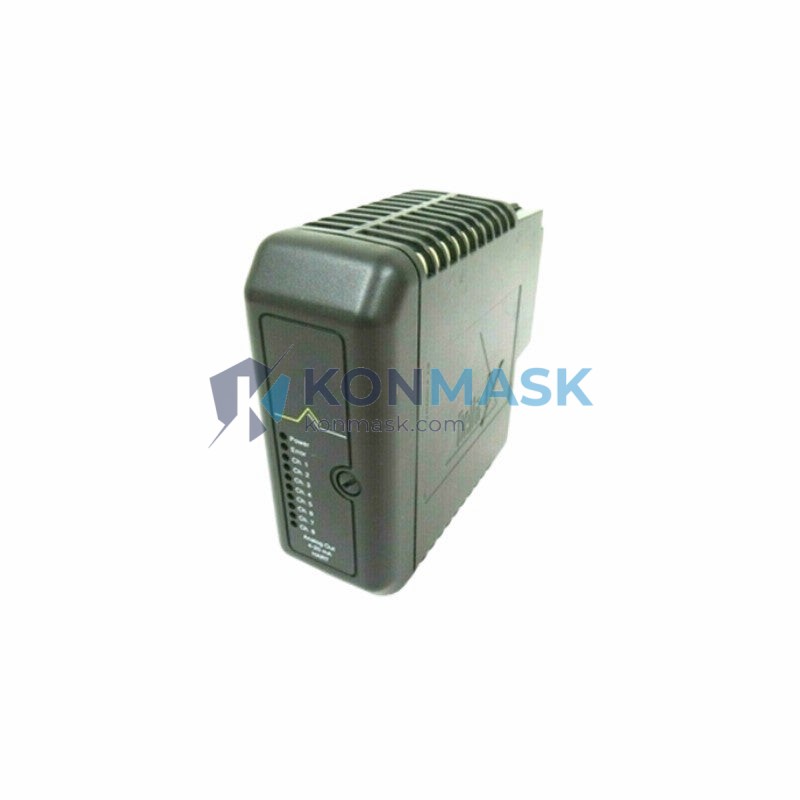

The EMERSON KJ3208X1-BA2 (Part No. 13P0105X012) is a dedicated controller module designed for the Emerson DeltaV Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, chemical, pharmaceutical, and power generation industries. This module serves as the computational core of a DeltaV controller node, executing control strategies, managing I/O communication, and maintaining real-time process data integrity across the entire DCS network.
产品定位 / Product Positioning
Engineered for mission-critical continuous process environments where unplanned downtime carries significant operational and safety consequences. The KJ3208X1-BA2 is the preferred replacement and spare module for facilities running DeltaV MD, MD Plus, or SD controller families. Konmask.com supplies this module as verified OEM hardware — sourced from authorized channels and subjected to functional inspection prior to dispatch.
Complete Technical Specifications
| Manufacturer | Emerson Electric / Fisher-Rosemount |
| Part Number | KJ3208X1-BA2 |
| Reference Part No. | 13P0105X012 |
| Module Type | DCS Controller Module |
| Platform | Emerson DeltaV Series (MD / MD Plus / SD) |
| Communication Bus | DeltaV Controller Bus (proprietary high-speed backplane) |
| Processor Architecture | Embedded real-time processor with deterministic scan cycle |
| Memory | Non-volatile flash + SDRAM for control database and runtime |
| I/O Capacity | Supports up to 100 DST (DeltaV Smart Terminals) per controller node (platform-dependent) |
| Redundancy Support | Compatible with DeltaV controller redundancy pairing (requires matching redundant module) |
| Power Supply | Supplied via DeltaV carrier/backplane (no external power connector) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | DeltaV 2-wide or 4-wide carrier (horizontal DIN rail) |
| Certifications | CE, UL, FM (Class I Div 2 compatible platform) |
| Weight | Approx. 200 g |
| Firmware | DeltaV v7.x – v14.x compatible (version-specific validation recommended) |
| Condition Available | New OEM / Refurbished / Tested Surplus |
Proven Application Environments
- Oil & Gas Refining — Crude distillation unit (CDU) and hydrocracker DCS controller replacement
- Petrochemical Plants — Continuous reactor loop control and safety interlock coordination
- Pharmaceutical Manufacturing — FDA 21 CFR Part 11 compliant batch process control
- Power Generation — Boiler management and turbine governor interface via DeltaV network
- Pulp & Paper — Multi-loop process control with high I/O density requirements
- Water Treatment — SCADA-integrated DeltaV controller nodes for distributed pump and valve control
- Spare Parts Inventory — Critical spare for facilities with existing DeltaV MD/SD infrastructure
Engineering Advantages
- Hot-Swap Capable — Module can be replaced online in redundant configurations without process interruption
- Deterministic Execution — Real-time OS ensures consistent scan cycle performance under full I/O load
- Integrated Diagnostics — Self-monitoring with LED status indicators and DeltaV Diagnostics Explorer integration
- Scalable Architecture — Single controller node scales from small skid applications to plant-wide DCS networks
- Backward Compatibility — Supports legacy DeltaV configurations while enabling migration to newer firmware versions
- Cybersecurity Posture — Operates within DeltaV’s defense-in-depth architecture; no direct internet exposure required
System Architecture & Signal Flow
The KJ3208X1-BA2 installs into a DeltaV controller carrier and communicates with I/O subsystems via the DeltaV Controller Bus. Control strategies (function blocks, sequential function charts, or cause-and-effect matrices) are downloaded from the DeltaV Workstation and executed locally on the module’s embedded processor. Process values are scanned from connected I/O cards, processed through configured control algorithms, and output signals are written back to field devices — all within a deterministic, configurable scan period (typically 100ms to 1000ms).
In redundant configurations, the primary and secondary KJ3208X1-BA2 modules synchronize state continuously. Upon primary failure, bumpless transfer to the secondary occurs within one scan cycle, maintaining process continuity without operator intervention.
Sourcing & Quality Verification
- OEM Traceability — All units carry original Emerson part markings (KJ3208X1-BA2 / 13P0105X012) with visible revision labels
- Pre-Shipment Inspection — Visual inspection for physical damage, connector integrity, and firmware label verification
- Functional Testing — Available on request; tested units powered-on and communication-verified against DeltaV test bench
- Packaging — ESD-safe anti-static bag + foam-lined carton; humidity indicator card included for long-haul shipments
- Documentation — Certificate of conformance (CoC) available; original Emerson datasheet provided on request
- Warranty — 12-month warranty against manufacturing defects on verified OEM stock
Procurement Process
- Submit Inquiry — Email support@konmask.com with your required quantity, delivery timeline, and destination country
- Quotation & Lead Time — We respond within 1 business day with pricing (HKD/USD), stock status, and estimated lead time
- Order Confirmation — Purchase order or proforma invoice issued; payment via T/T bank transfer or secure online checkout
- Export & Shipping — Shipped from Hong Kong / Mainland China via DHL Express, FedEx, or freight forwarder; export documentation (commercial invoice, packing list, CO) provided
- After-Sales Support — Technical support available post-delivery; RMA process available for warranty claims
Technical FAQ
Q: Is KJ3208X1-BA2 compatible with DeltaV v13 and v14?
A: Yes, the module is hardware-compatible with DeltaV v7.x through v14.x. We recommend validating firmware version compatibility with your site’s DeltaV system version before installation.
Q: Can this module be used as a redundant pair?
A: Yes. Two KJ3208X1-BA2 modules installed in adjacent carrier slots form a redundant controller pair. Both modules must be the same hardware revision for redundancy to function correctly.
Q: What is the difference between KJ3208X1-BA2 and 13P0105X012?
A: These are the same physical module. KJ3208X1-BA2 is the Emerson catalog/ordering part number; 13P0105X012 is the internal manufacturing reference number. Both appear on the module label.
Q: Do you provide functional test reports?
A: Functional test reports are available for units designated as “Tested Surplus.” Please specify this requirement at the time of inquiry.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing is available for orders of 3 units or more.
Q: Can you supply the matching DeltaV carrier for this module?
A: Yes. Please contact us with your carrier type requirement (2-wide or 4-wide) and we will quote accordingly.
