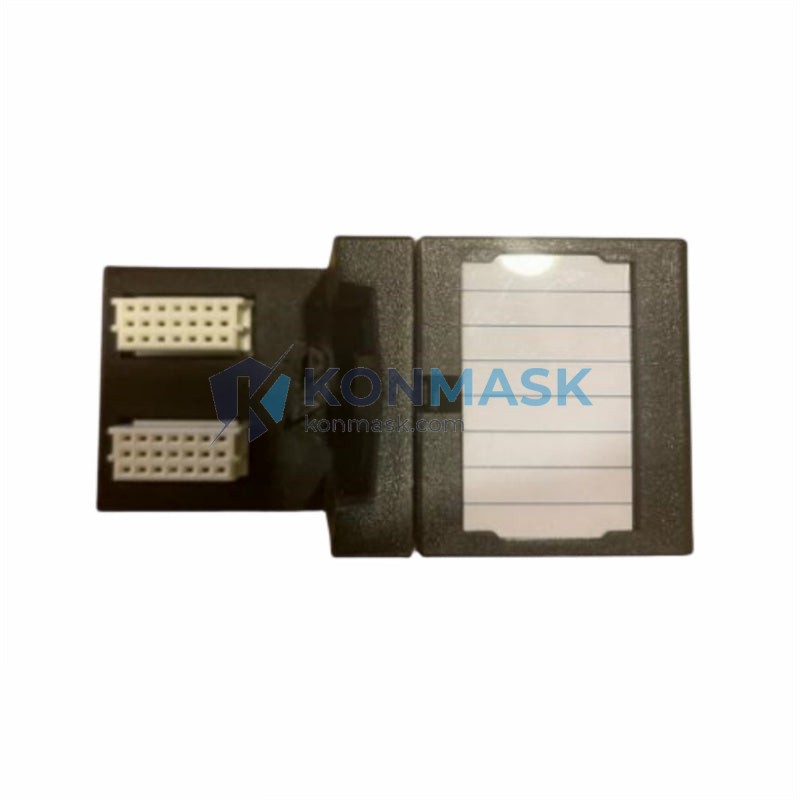

EMERSON KJ4006X1-BP1 Terminal Block | Replacement, Equivalent & Selection Guide
The EMERSON KJ4006X1-BP1 is a field-wiring terminal block designed for use within the DeltaV™ distributed control system platform. It provides a reliable, structured interface between field instrumentation and DeltaV I/O subsystem cards, ensuring signal integrity and ease of maintenance in demanding industrial environments. This page covers technical specifications, compatible replacements, selection criteria, and sourcing guidance.
Technical Specifications
- Part Number: KJ4006X1-BP1
- Manufacturer: EMERSON (Fisher-Rosemount / DeltaV)
- Type: Terminal Block / Field Wiring Termination Assembly
- Compatible Platform: DeltaV™ DCS
- Weight: 320 g (approx.)
- Mounting: DIN rail / panel mount (DeltaV carrier)
- Signal Type: Analog / Digital I/O field wiring termination
- Operating Temperature: 0 °C to 60 °C (standard DeltaV range)
- Ingress Protection: IP20 (panel-mounted)
- Compliance: CE, UL listed (per DeltaV system certification)
Compatible Replacement & Equivalent Models
When the KJ4006X1-BP1 is unavailable or end-of-life, the following models may serve as functional equivalents depending on your I/O card type and wiring configuration. Always verify compatibility with your specific DeltaV I/O module before substitution.
- KJ4006X1-BA1 – Earlier revision of the same terminal block family; verify revision compatibility with your I/O card.
- KJ4006X1-BC1 – Alternate suffix variant; confirm pin-out and connector type match.
- KJ3002X1-BA1 – Compatible with select DeltaV analog input cards; cross-reference I/O module datasheet.
- Third-party DIN terminal blocks – Phoenix Contact, Weidmüller, or Wago equivalents may be adapted with custom wiring harnesses; engineering review required.
Note: Konmask.com recommends using OEM EMERSON parts wherever possible to maintain system certification and warranty.
Why Choose the Original Model
- Guaranteed compatibility with DeltaV I/O subsystem cards — no re-engineering required.
- Maintains system certification (UL, CE, SIL) without additional validation effort.
- Plug-and-play replacement — identical connector footprint and wiring layout.
- Reduced commissioning risk — eliminates field wiring errors caused by pin-out differences.
- Long-term support — EMERSON spare parts ecosystem with documented revision history.
Typical Applications
- Oil & gas upstream/downstream process control panels
- Chemical and petrochemical plant DCS cabinets
- Power generation control rooms
- Pharmaceutical batch process automation
- Water treatment and utilities SCADA/DCS integration
- Pulp & paper and mining process control systems
System Compatibility
The KJ4006X1-BP1 is designed for integration within the EMERSON DeltaV™ DCS platform. Confirm compatibility with the following before ordering:
- DeltaV S-series and M-series I/O subsystems
- DeltaV SIS (Safety Instrumented System) — verify SIL rating requirements separately
- DeltaV CHARM I/O — not compatible; CHARM uses a different termination architecture
- Legacy DeltaV MD/MD Plus controllers — check I/O card revision against terminal block suffix
Selection Guide
Use the following criteria to confirm the KJ4006X1-BP1 is the correct part for your application:
- Step 1 – Identify your I/O card: Locate the DeltaV I/O module part number (e.g., KJ3002X1-BA1 for AI, KJ3222X1-BA1 for DI). Cross-reference the terminal block compatibility table in the DeltaV Hardware Reference Manual.
- Step 2 – Check suffix revision: The suffix (BP1, BA1, BC1) indicates hardware revision. Match the suffix to your I/O card’s required terminal block revision.
- Step 3 – Verify wiring type: Confirm whether your field wiring uses screw terminals or spring-clamp termination. KJ4006X1-BP1 uses screw-type termination.
- Step 4 – Count termination points: Ensure the terminal block channel count matches your I/O card’s channel density.
- Step 5 – Confirm quantity: Each I/O card typically requires one terminal block assembly. Multi-card marshalling panels may require multiple units.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels with full traceability.
- Pre-shipment inspection: visual, label verification, and functional check where applicable.
- Anti-counterfeit measures: holographic labels, OEM packaging verification, and serial number cross-check.
- Warranty: 12 months from date of shipment against manufacturing defects.
- Export compliance: ECCN classification and export license review conducted prior to international shipment.
How to Order
- Online: Add to cart directly on this page. Bulk pricing available — contact us for orders of 5+ units.
- Email: support@konmask.com — include part number, quantity, and required delivery date.
- Phone/WhatsApp: +0086 19859288691 — available Mon–Fri, 09:00–18:00 CST.
- Lead time: In-stock units ship within 1–3 business days. Out-of-stock items: 2–6 weeks depending on sourcing channel.
- Payment: T/T (wire transfer), PayPal, credit card via Shopify Payments.
Replacement & Compatibility FAQ
Q: Can I use KJ4006X1-BA1 instead of KJ4006X1-BP1?
A: In most cases yes, but verify the revision suffix is accepted by your specific DeltaV I/O card. Consult the DeltaV Hardware Reference Manual or contact Konmask for a compatibility check.
Q: Is the KJ4006X1-BP1 compatible with DeltaV CHARM I/O?
A: No. CHARM I/O uses a fundamentally different termination architecture (CHARacterization Module). A separate CHARM terminal block is required.
Q: Can I use a third-party terminal block as a replacement?
A: Third-party alternatives may be adapted with custom wiring harnesses, but this requires engineering review and may void system certifications. OEM parts are strongly recommended.
Q: Do you offer expedited shipping for urgent plant shutdowns?
A: Yes. Contact us directly at support@konmask.com or +0086 19859288691 to discuss expedited sourcing and shipping options.
Q: What is the minimum order quantity?
A: MOQ is 1 unit. Volume discounts apply for orders of 5 units or more.
