FUJI NP1BS-06 PLC Base Board | Replacement, Equivalent & Selection Guide

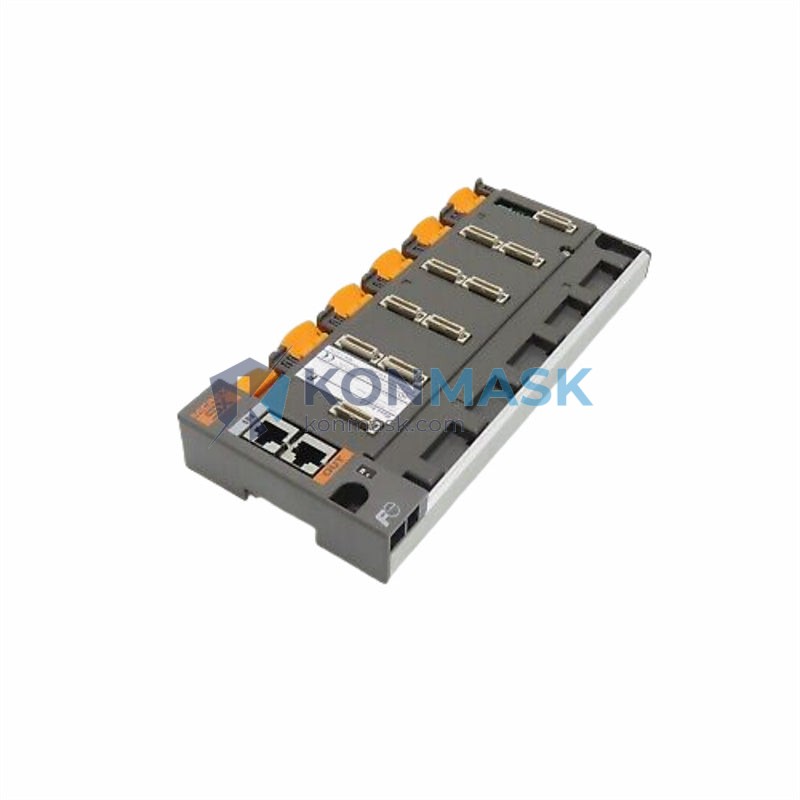

The FUJI NP1BS-06 is a 6-slot base board (backplane) designed for the FUJI NP1 series programmable logic controller (PLC) system. It provides the physical and electrical backbone for mounting CPU, I/O, and communication modules in industrial automation applications. Konmask.com supplies genuine and compatible NP1BS-06 units with full traceability for B2B buyers worldwide.
Technical Specifications
- Model: NP1BS-06
- Brand: FUJI Electric
- Series: NP1 PLC Series
- Type: Base Board / Backplane
- Slots: 6 expansion slots
- Weight: 4,460 g (approx.)
- Mounting: DIN rail / panel mount compatible
- Application: Module carrier for NP1 series CPU and I/O modules
- Compliance: CE, RoHS (verify with datasheet for specific revision)
Compatible Replacement & Equivalent Models
When the NP1BS-06 is unavailable or end-of-life, the following models may serve as functional replacements or equivalents depending on your system configuration:
- FUJI NP1BS-04 – 4-slot base board (reduced capacity, same NP1 series)
- FUJI NP1BS-08 – 8-slot base board (expanded capacity, same NP1 series)
- FUJI NP1BS-12 – 12-slot base board (high-density NP1 applications)
- FUJI NP1L-RS1 – Remote I/O base for distributed NP1 architectures
Note: Always verify slot count, power bus rating, and module compatibility before substituting base boards. Contact Konmask.com for cross-reference validation.
Why Choose the Original NP1BS-06
- Guaranteed electrical and mechanical compatibility with all NP1 series modules
- Factory-tested bus integrity for reliable high-speed data exchange
- Supports full FUJI NP1 system diagnostics and hot-swap features (where applicable)
- Backed by FUJI Electric’s industrial-grade quality standards
- Reduces integration risk in safety-critical or continuous-process environments
Typical Applications
- Machine tool and CNC control panels
- Conveyor and material handling automation
- Packaging line PLC cabinets
- Water treatment and utility control systems
- Semiconductor and electronics manufacturing equipment
- Building automation and HVAC control
System Compatibility
The NP1BS-06 is compatible with the following FUJI NP1 series components:
- CPU Modules: NP1PS-08, NP1PS-16, NP1PS-32 and related variants
- Digital I/O Modules: NP1X16, NP1Y16, NP1X32, NP1Y32 series
- Analog Modules: NP1AX, NP1AY series
- Communication Modules: NP1L-RS1, NP1L-ET1 (Ethernet), NP1L-DP1 (PROFIBUS)
- Power Supply: NP1PS series (24 VDC / 100–240 VAC input)
Selection Guide
Use the following criteria to select the correct NP1 base board for your application:
- Step 1 – Count required slots: Add CPU (1 slot) + I/O modules + communication modules. Choose a base board with at least 1–2 spare slots for future expansion.
- Step 2 – Verify power budget: Confirm total module current draw does not exceed the base board’s bus power rating.
- Step 3 – Check mounting space: NP1BS-06 requires a standard panel depth; confirm cabinet dimensions.
- Step 4 – Confirm firmware compatibility: Ensure CPU firmware version supports all installed modules.
- Step 5 – Contact Konmask: Send your existing BOM or system drawing for a free compatibility review.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each unit inspected for physical integrity, connector condition, and label authenticity
- Serialized traceability records available on request
- Secure anti-static packaging for international shipment
- Export documentation (commercial invoice, packing list, COO) provided as standard
How to Order
- Add FUJI NP1BS-06 to cart and proceed to checkout, or
- Email support@konmask.com with your required quantity and delivery timeline
- For bulk / project orders, request a formal quotation with lead time confirmation
- Payment: T/T, PayPal, credit card, and trade-term options (EXW, FOB, CIF) available
Replacement & Compatibility FAQ
Q: Can I use NP1BS-04 instead of NP1BS-06?
A: Yes, if your system uses 4 or fewer modules. The NP1BS-04 is electrically identical but provides fewer slots.
Q: Is the NP1BS-06 compatible with FUJI MICREX-SX series?
A: No. The NP1BS-06 is specific to the NP1 series. MICREX-SX uses a different backplane architecture.
Q: Can I expand an NP1BS-06 system with a remote I/O base?
A: Yes. Use the NP1L-RS1 remote I/O base connected via the NP1 expansion bus for distributed I/O.
Q: Do you supply new, refurbished, or surplus units?
A: Konmask.com supplies new-in-box and tested surplus units. Condition is clearly stated on each listing.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items are sourced within 2–4 weeks depending on availability.
