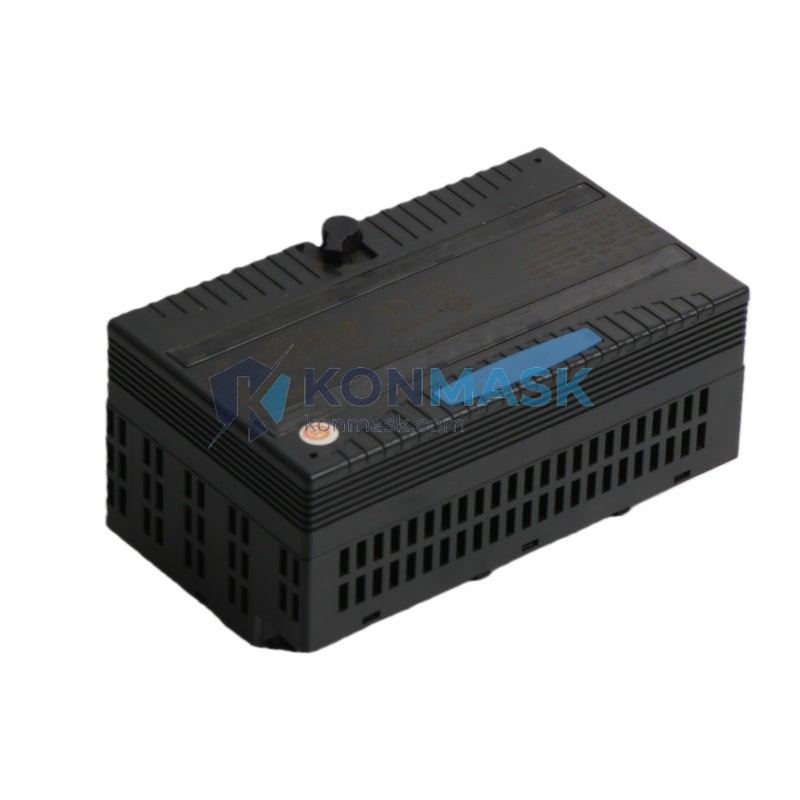

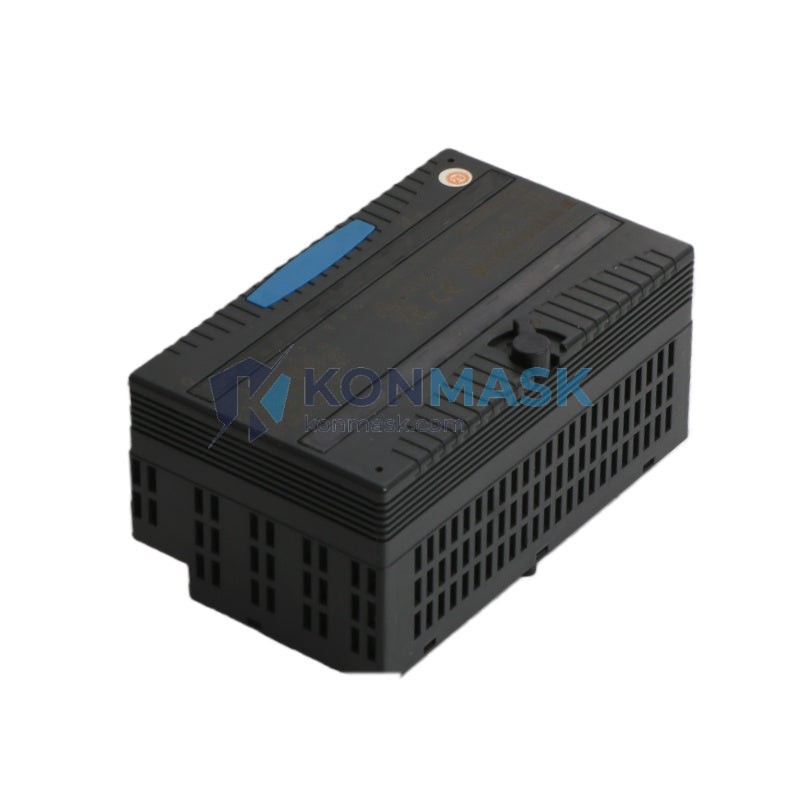

GE Fanuc IC200MDL740E – 16-Point 12/24VDC Discrete Output Module | VersaMax Micro Series
Engineering Background: The IC200MDL740E is a discrete output module engineered for GE Fanuc’s VersaMax Micro PLC platform — a compact, modular automation architecture widely deployed in machine control, process automation, and OEM equipment across industrial sectors. Designed to interface directly with the VersaMax Micro CPU carrier, this module delivers reliable 12/24VDC sourcing output capability in a space-efficient form factor.
Product Positioning: Targeted at procurement engineers and system integrators requiring a verified, drop-in replacement or expansion module for existing VersaMax Micro installations. The IC200MDL740E is the preferred choice where 16 discrete output points are needed with solid-state reliability, low wiring overhead, and seamless integration into GE Fanuc’s IC200 series ecosystem.
Complete Technical Specifications
- Part Number: IC200MDL740E
- Series / Platform: VersaMax Micro (IC200 Series)
- Manufacturer: GE Fanuc Automation (General Electric)
- Module Type: Discrete Output Module
- Number of Output Points: 16
- Output Voltage Range: 12/24VDC
- Output Type: Sourcing (positive logic)
- Output Current per Point: 0.5A (typical)
- Total Module Current: Refer to GE Fanuc IC200MDL740 datasheet for derating curves
- Isolation: Optical isolation between field and logic side
- Backplane Interface: VersaMax Micro CPU carrier slot
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions: Compact DIN-rail compatible form factor
- Weight: Approx. 100g
- Certifications: UL Listed, CE Marked
- Revision: E (latest production revision)
Proven Application Environments
- Machine tool control and CNC auxiliary I/O
- Conveyor and material handling systems
- Packaging line actuator control
- HVAC and building automation relay driving
- Water/wastewater pump station control
- OEM equipment with compact PLC footprint requirements
- Retrofit and modernization of legacy GE Series 90 Micro installations
Engineering Advantages
- 16 points in one slot: Maximizes I/O density on the VersaMax Micro carrier, reducing panel space and wiring cost.
- Solid-state outputs: No mechanical wear, faster switching, and longer service life vs. relay output alternatives.
- Optical isolation: Protects CPU logic from field-side transients and ground loops.
- Revision E: Latest production revision incorporating GE Fanuc’s accumulated field reliability improvements.
- Direct drop-in compatibility: Pin-for-pin and firmware-transparent replacement for earlier IC200MDL740 revisions.
System Architecture & Signal Flow
The IC200MDL740E occupies one I/O slot on the VersaMax Micro CPU carrier (e.g., IC200UDR005, IC200UDR020 series). The CPU writes output data to the module via the backplane bus. Each of the 16 output channels is individually optically isolated before driving the field-side transistor. Field wiring connects to the module’s removable terminal block. Load power (12/24VDC) is supplied externally to the module’s field power terminals, independent of the backplane logic supply — ensuring clean separation between control and field power domains.
Typical wiring topology: External 24VDC field supply → Module V+ terminal → Internal sourcing transistors → Output terminals → Field loads (solenoids, indicator lamps, relay coils) → Common (0V) return.
Sourcing & Quality Verification
- Source: Procured from authorized distributors and verified surplus channels with full traceability documentation.

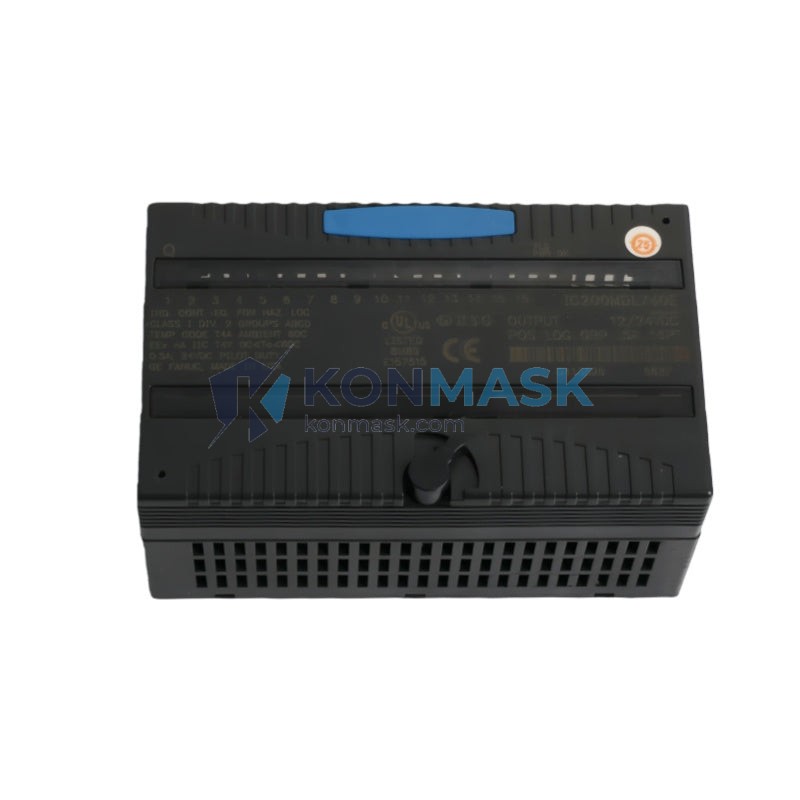

- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, date code), and functional power-on verification prior to shipment.
- Packaging: Anti-static bag + foam-lined carton. Original GE Fanuc packaging preserved where available.
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and functional failure under normal operating conditions.
- Counterfeit mitigation: All units verified against GE Fanuc authentic label specifications. Suspect units are quarantined and not listed.
Procurement Process
- Confirm part number IC200MDL740E and required quantity with your engineering team.
- Add to cart and proceed to checkout — or contact us for volume pricing and lead time on larger orders.
- Receive order confirmation with tracking within 1 business day.
- Units ship from our warehouse with full inspection documentation.
- Post-delivery technical support available via email or phone.
Technical FAQ
Q: Is the IC200MDL740E compatible with IC200MDL740 (without revision suffix)?
A: Yes. Revision E is backward-compatible and is a direct functional replacement for all prior revisions of IC200MDL740.
Q: What CPU carriers support this module?
A: All VersaMax Micro CPU carriers in the IC200 series, including IC200UDR005, IC200UDR020, IC200UDR040, and IC200CPUE05 expansion configurations.
Q: Can this module be used with VersaMax (non-Micro) systems?
A: No. The IC200MDL740E is designed specifically for the VersaMax Micro carrier form factor and is not compatible with the standard VersaMax (IC200) rack-based system.
Q: What is the maximum load current per output point?
A: 0.5A per point. Consult the GE Fanuc IC200MDL740 User Manual for full derating curves at elevated temperatures.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes, available upon request for orders of 5 units or more. Contact support@konmask.com.
