GE IS220PTCCH1A – Thermocouple Input Module | Mark VIe DCS Control Platform

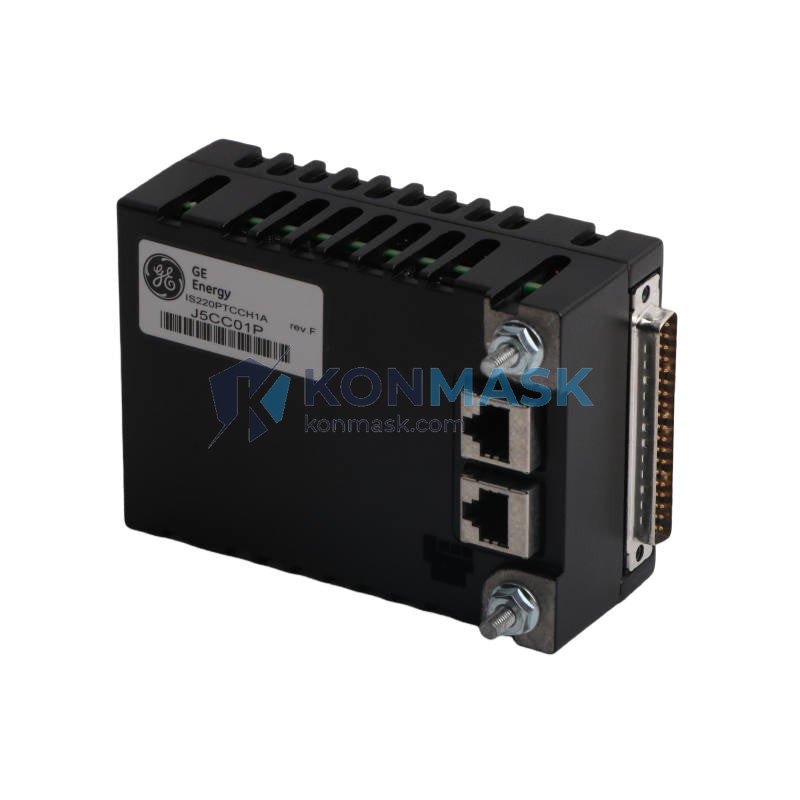

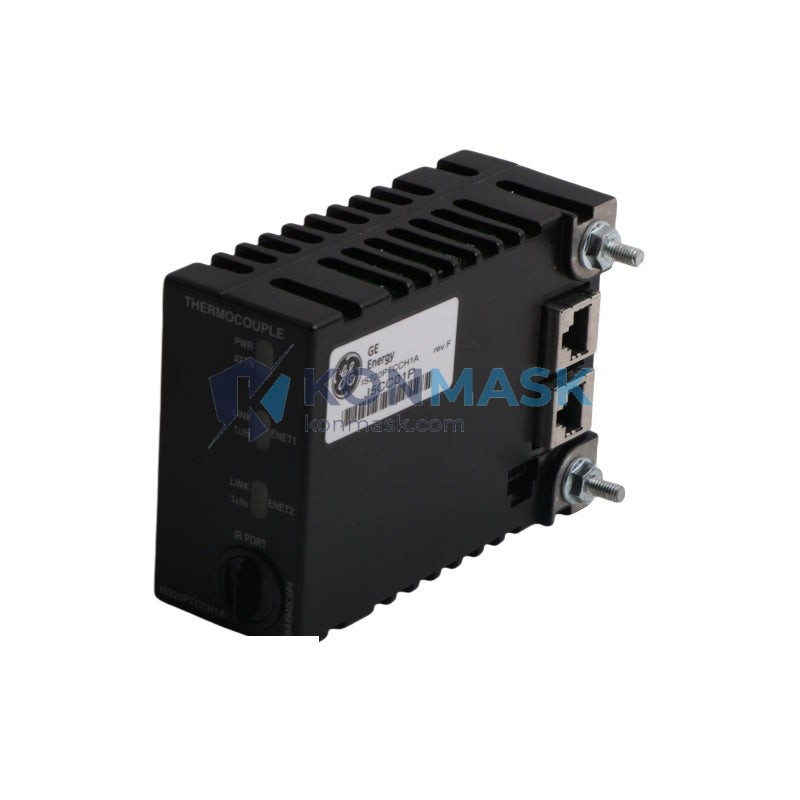

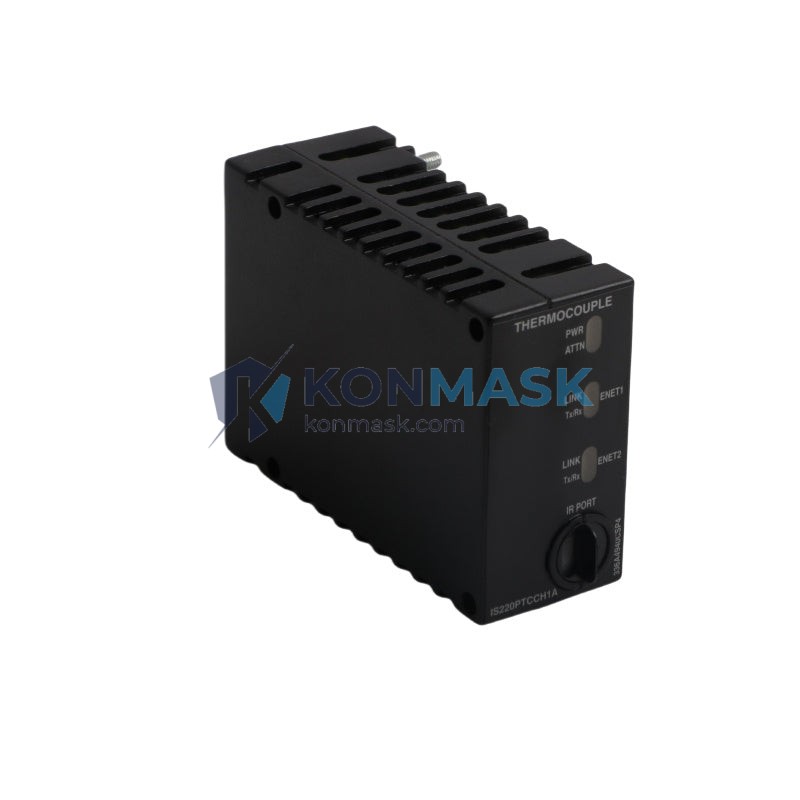

Engineering Background: The IS220PTCCH1A is a high-precision thermocouple input module designed for GE’s Mark VIe Distributed Control System (DCS) — the industry-standard turbine and process control platform deployed across power generation, oil & gas, and heavy industrial facilities worldwide. This module serves as the critical thermal sensing interface between field instrumentation and the Mark VIe controller backbone.
Product Positioning: Engineered for mission-critical environments where temperature measurement accuracy directly impacts process safety and efficiency. The IS220PTCCH1A delivers multi-channel thermocouple signal conditioning with cold junction compensation, making it the preferred choice for procurement engineers sourcing replacement or expansion modules for existing Mark VIe installations.
Complete Technical Specifications
- Part Number: IS220PTCCH1A
- Manufacturer: GE (General Electric) / Baker Hughes
- Platform: Mark VIe DCS
- Module Type: Thermocouple (TC) Input Module
- Input Channels: Multi-channel thermocouple inputs
- Thermocouple Types Supported: J, K, T, E, R, S, B (IEC/NIST standard)
- Cold Junction Compensation: Integrated on-board CJC
- Signal Isolation: Channel-to-channel and channel-to-bus isolation
- Communication Bus: Mark VIe IONet (Ethernet-based I/O network)
- Power Supply: Supplied via Mark VIe I/O pack backplane
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% RH, non-condensing
- Weight: 380 g
- Form Factor: Mark VIe standard I/O module (DIN-rail / rack mount compatible)
- Compliance: CE, UL, IEC 61131-2
- Country of Origin: USA
Proven Application Environments
- Power Generation: Gas turbine, steam turbine, and combined-cycle plant temperature monitoring
- Oil & Gas: Upstream/downstream process temperature control loops
- Petrochemical: Reactor and heat exchanger temperature measurement
- Pulp & Paper / Steel: High-temperature process zone monitoring
- Marine & Offshore: Platform control systems with Mark VIe architecture
- Renewable Energy: Biomass and waste-to-energy plant DCS integration
Engineering Advantages
- ✔ High Accuracy CJC: On-board cold junction compensation eliminates external reference junction errors
- ✔ Multi-Type TC Support: Single module handles J/K/T/E/R/S/B types — reduces spare parts inventory complexity
- ✔ Hot-Swap Capable: Supports live replacement within Mark VIe redundant I/O configurations
- ✔ Noise Immunity: Differential input design with hardware filtering for high-EMI industrial environments
- ✔ Seamless Integration: Plug-and-play replacement within existing Mark VIe I/O packs — no firmware re-flashing required
- ✔ Diagnostic Reporting: Built-in open-circuit and out-of-range detection with IONet fault reporting
System Architecture & Signal Flow
The IS220PTCCH1A installs into a Mark VIe I/O pack terminal board assembly. Field thermocouple wiring connects to the terminal board; the module performs analog-to-digital conversion with CJC correction and transmits engineering-unit values over IONet to the Mark VIe controller (VCMI/VCRC). The controller then executes configured control blocks (e.g., TCQA, TCQB) using the conditioned temperature data. In TMR (Triple Modular Redundant) configurations, three IS220PTCCH1A modules operate in parallel with voted outputs for SIL-rated safety loops.
Sourcing & Quality Verification
- Inventory Status: In stock — ready for immediate dispatch
- Condition: Genuine OEM hardware; each unit undergoes functional power-on verification prior to shipment
- Traceability: Serial number and firmware revision documented per order
- Packaging: ESD-safe anti-static bag + foam-lined export carton
- Warranty: 12-month operational warranty from ship date
- Certifications on File: Available upon request for regulated procurement processes
Procurement Process
- Confirm Part Number: Verify IS220PTCCH1A matches your Mark VIe I/O pack assembly drawing
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation
- Order Placement: Purchase order accepted via email or online checkout
- Shipping: DHL / FedEx Express international; EXW Xiamen or DAP destination available
- Documentation: Commercial invoice, packing list, and COO certificate provided with every shipment
Technical FAQ
Q: Is IS220PTCCH1A compatible with Mark VI (non-VIe) systems?
A: No. The IS220PTCCH1A is designed exclusively for the Mark VIe IONet architecture. Mark VI systems use a different I/O pack form factor and communication protocol.
Q: Can this module be used in a simplex (non-redundant) Mark VIe configuration?
A: Yes. The IS220PTCCH1A operates in simplex, dual (DMR), and triple (TMR) redundancy configurations depending on the I/O pack assembly.
Q: What is the difference between IS220PTCCH1A and IS220PTCCH1B?
A: The suffix revision (A vs B) typically denotes a hardware ECO revision. Functionally interchangeable in most applications — confirm with your Mark VIe system revision documentation or contact our technical team.
Q: Do you provide a test report with the module?
A: Yes. A functional test record is available upon request. Please specify at time of order.
Q: What is the lead time for urgent orders?
A: In-stock units ship within 1–2 business days. Express delivery to most destinations within 3–5 business days via DHL Express.
