Honeywell 6580801940 – Redundant Power Supply Module | TDC 3000 Distributed Control System
Engineering Background: The Honeywell TDC 3000 (Total Distributed Control) platform has been the backbone of process automation in petrochemical, refining, and power generation facilities for decades. Its modular architecture demands precision-engineered power supply components to maintain system uptime and process integrity.

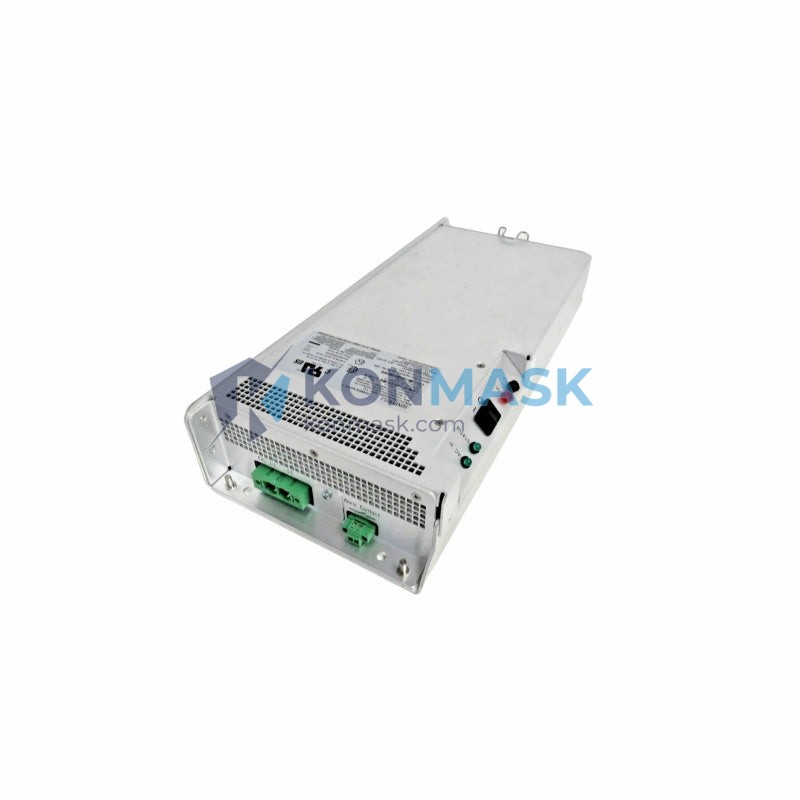

Product Positioning: The Honeywell 6580801940 is a factory-specification power supply module designed for TDC 3000 control cabinets. It delivers regulated DC power to I/O modules, communication cards, and processor units within the TDC 3000 ecosystem. Sourced through verified channels and quality-inspected by Konmask.com’s technical team before dispatch.
Complete Technical Specifications
- Part Number: 6580801940
- Manufacturer: Honeywell Process Solutions
- Series / Platform: TDC 3000 (Total Distributed Control)
- Module Type: Power Supply Module
- Input Voltage: 115 / 230 VAC, 50/60 Hz (auto-ranging)
- Output Voltage: Regulated +5 VDC / +24 VDC (dual rail)
- Output Current Capacity: Per Honeywell TDC 3000 cabinet specification
- Redundancy Support: Hot-standby redundant configuration compatible
- Form Factor: Standard TDC 3000 card cage slot-mount
- Operating Temperature: 0°C to +60°C
- Humidity: 5% to 95% RH, non-condensing
- Weight: Approx. 1.6 kg
- Compliance: CE, UL listed (per Honeywell factory certification)
Proven Application Environments
- Petroleum refining and upstream oil & gas production facilities
- Petrochemical and specialty chemical processing plants
- Power generation stations (coal, gas, nuclear auxiliary systems)
- Pulp and paper manufacturing control rooms
- Pharmaceutical batch process automation
- Water treatment and municipal utility SCADA integration
Engineering Advantages
- Drop-in Replacement: 100% form-fit-function compatible with existing TDC 3000 card cage installations — no firmware changes or reconfiguration required.
- Redundant Architecture: Supports N+1 redundant power supply configurations, eliminating single points of failure in critical process loops.
- Stable Regulated Output: Tight voltage regulation ensures consistent power delivery to sensitive I/O and communication modules, preventing spurious trips.
- Long Service Life: Honeywell-grade components rated for extended industrial duty cycles in harsh environments.
- Immediate Availability: Konmask.com maintains stock of legacy TDC 3000 components to support emergency replacement and planned maintenance windows.
System Architecture & Signal Flow
Within the TDC 3000 cabinet hierarchy, the 6580801940 power supply module occupies a dedicated slot in the Local Control Network (LCN) or Basic Controller (BC) card cage. AC mains input is conditioned and converted to regulated DC rails powering:
- Processor and co-processor cards (AM, PM, HPM)
- I/O link interface modules
- Data Hiway communication cards
- Operator Interface (US/GUS) backplane power
In redundant configurations, the standby unit monitors the primary rail voltage and assumes load within milliseconds upon detecting a primary failure — transparent to the running process.
Sourcing & Quality Verification
Konmask.com applies a 4-step verification protocol to every TDC 3000 component:
- Provenance Check: Traceability documentation reviewed — original manufacturer lot codes, date codes, and supply chain records verified.
- Visual & Mechanical Inspection: PCB, connectors, housing, and labeling inspected against Honeywell factory reference standards.
- Functional Bench Test: Output voltage, current regulation, and protection circuits tested under load prior to shipment.
- ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning inside double-wall cartons, with full documentation enclosed.
Procurement Process
- Submit your part number inquiry via support@konmask.com or the on-page quote form.
- Receive availability confirmation and formal quotation within 24 business hours.
- Review and approve the proforma invoice; select your preferred payment method (T/T, PayPal, LC).
- Order processed and dispatched with full tracking; typical lead time 3–7 business days for in-stock units.
- Post-delivery technical support available from Konmask.com engineering team.
Technical FAQ
Q: Is the 6580801940 compatible with both early and late TDC 3000 cabinet revisions?
A: Yes. The module is compatible across TDC 3000 cabinet generations. Confirm your cabinet revision with our team if uncertain.
Q: Can this module operate in a simplex (non-redundant) configuration?
A: Yes. It functions as a standalone power supply; redundancy is optional and configured at the cabinet level.
Q: What is the warranty on this module?
A: Konmask.com provides a 90-day functional warranty on all verified modules. Extended warranty options available on request.
Q: Do you provide a test report with shipment?
A: Yes. A bench test summary is included with every unit dispatched from our facility.
Q: Can you source other TDC 3000 components?
A: Yes. Contact us with your full BOM — we specialize in legacy Honeywell TDC 3000, TPS, and Experion PKS component sourcing.
