Honeywell 900J10-0001 Terminal Board Jumper | Replacement, Equivalent & Selection Guide

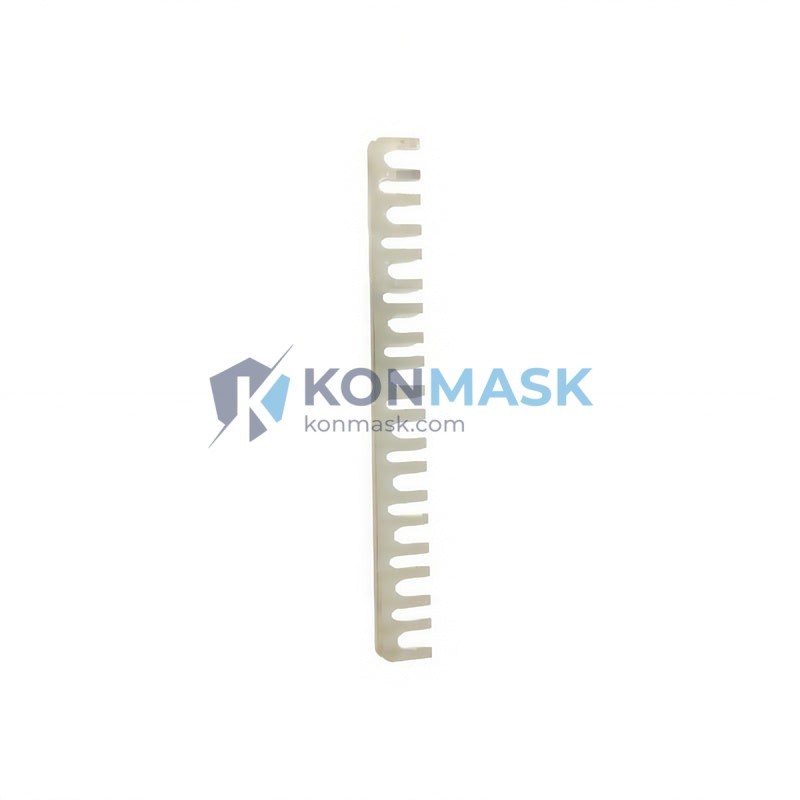

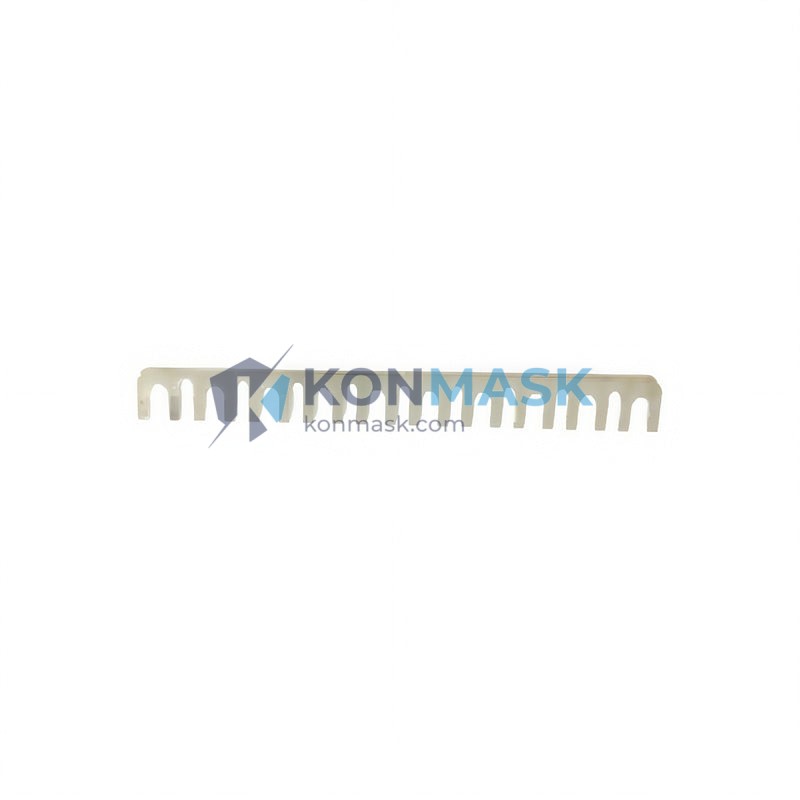

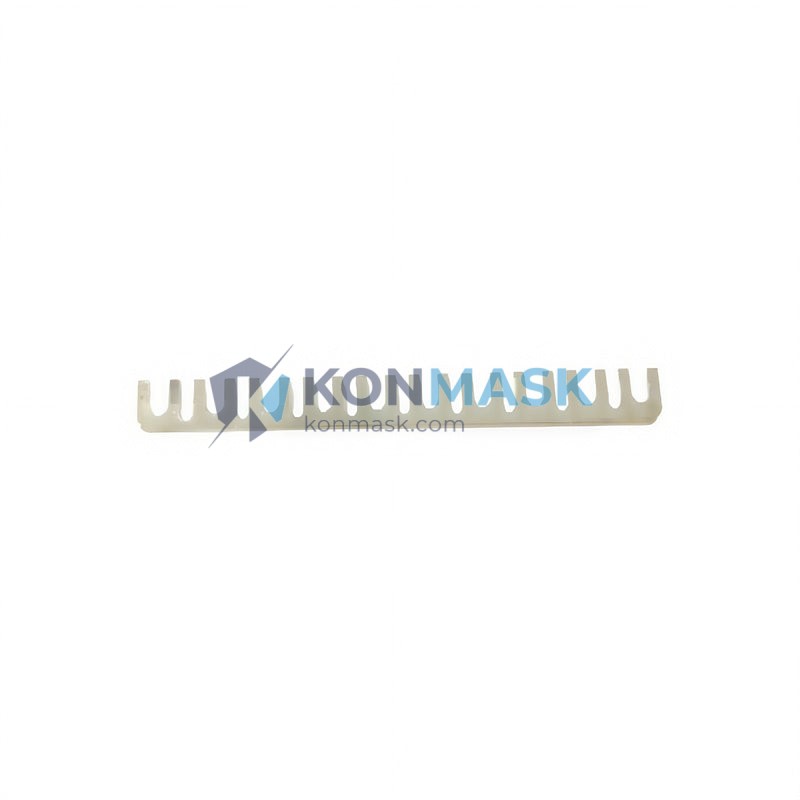

The Honeywell 900J10-0001 is a Terminal Board Jumper designed for use in Honeywell’s Series 900 DCS (Distributed Control System) platform, including Experion PKS and TDC 3000 control architectures. This jumper provides reliable electrical bridging between terminal board positions, ensuring stable signal routing and system integrity in process automation environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 900J10-0001 |
| Manufacturer | Honeywell Process Solutions |
| Series | Honeywell 900 Series |
| Component Type | Terminal Board Jumper |
| Compatible Platform | Experion PKS, TDC 3000, PlantScape |
| Weight | 110 g |
| Condition | New / Refurbished Available |
| Warranty | 12 Months |
Compatible Replacement & Equivalent Models
When the 900J10-0001 is unavailable or discontinued, the following alternatives may be considered based on your system configuration:
- 900J10-0001-R – Honeywell OEM replacement variant (verify revision compatibility)
- 51304485-100 – Honeywell generic terminal jumper used across multiple 900-series boards
- 51109288-225 – Compatible jumper for TDC 3000 terminal assemblies
- Third-party equivalents – Must match pin pitch, contact rating, and insulation class; consult Konmask engineering team for validation
Note: Always verify firmware revision and hardware revision compatibility before substituting components in a live DCS environment.
Why Choose the Original 900J10-0001
- ✅ OEM-certified – Manufactured to Honeywell’s exact tolerances for Series 900 terminal boards
- ✅ Zero-compromise reliability – Eliminates signal noise and contact resistance issues common with non-OEM jumpers
- ✅ Drop-in installation – No modification required; plug-and-play with existing terminal board assemblies
- ✅ Long service life – Rated for industrial environments with high vibration and temperature cycling
- ✅ Traceability – Full lot traceability and documentation available upon request
Typical Applications
- Petrochemical and refinery DCS control loops
- Power generation plant I/O terminal assemblies
- Pharmaceutical process control systems
- Pulp & paper and water treatment automation
- Honeywell Experion PKS C300 / C200 controller cabinets
- TDC 3000 High-Performance Process Manager (HPM) racks
System Compatibility
- Honeywell Experion PKS – R400 and above
- Honeywell TDC 3000 – LCN and UCN architectures
- Honeywell PlantScape – Legacy installations
- Series 900 I/O Modules – 900 Series analog and digital terminal boards
If you are unsure whether the 900J10-0001 is compatible with your specific rack or cabinet revision, contact our technical team with your system model and firmware version.
Selection Guide
Use the following criteria to confirm the 900J10-0001 is the correct jumper for your application:
- Step 1 – Identify your terminal board model: Confirm the board part number (e.g., 900T01-0001, 900T02-0001) from your system documentation or cabinet label.
- Step 2 – Check jumper position: Refer to the Honeywell Series 900 I/O Installation Guide for jumper position maps (JP1–JP10).
- Step 3 – Verify revision: Cross-reference the hardware revision on the board with the jumper compatibility matrix in the Honeywell product bulletin.
- Step 4 – Quantity planning: Each terminal board typically requires 1–4 jumpers depending on configuration. Order spares for maintenance stock.
- Step 5 – Contact Konmask: If your board model is not listed, send us the board part number and we will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or certified surplus channels
- Pre-shipment inspection: visual, dimensional, and continuity testing
- Anti-static packaging with humidity indicator cards
- Certificate of Conformance (CoC) available upon request
- RoHS compliance documentation available
- Counterfeit-prevention: all parts verified against Honeywell OEM markings and date codes
How to Order
- Click Add to Cart and proceed to checkout, or
- Email support@konmask.com with your PO and required quantity
- For bulk orders (>10 units), request a volume discount quote
- Lead time: In-stock orders ship within 1–3 business days; special orders within 7–14 days
- Payment: T/T, PayPal, credit card accepted; Net-30 available for qualified accounts
Replacement & Compatibility FAQ
Q: Can I use a generic jumper instead of the 900J10-0001?
A: Technically possible, but not recommended in safety-critical DCS environments. Generic jumpers may not meet Honeywell’s contact resistance or insulation specifications, risking signal integrity issues.
Q: Is the 900J10-0001 still in production?
A: Honeywell periodically revises its Series 900 accessory catalog. Contact Konmask to confirm current availability and lead time for new or refurbished stock.
Q: What is the difference between 900J10-0001 and 900J10-0002?
A: The suffix typically denotes a revision or configuration variant. Please provide your terminal board model number so we can confirm the correct jumper suffix for your application.
Q: Do you provide installation support?
A: Yes. Our technical team can provide installation guidance and reference documentation. Contact us at support@konmask.com.
Q: Can I return the part if it is not compatible?
A: Yes, within 30 days of receipt, subject to our return policy. Parts must be unused and in original packaging.
