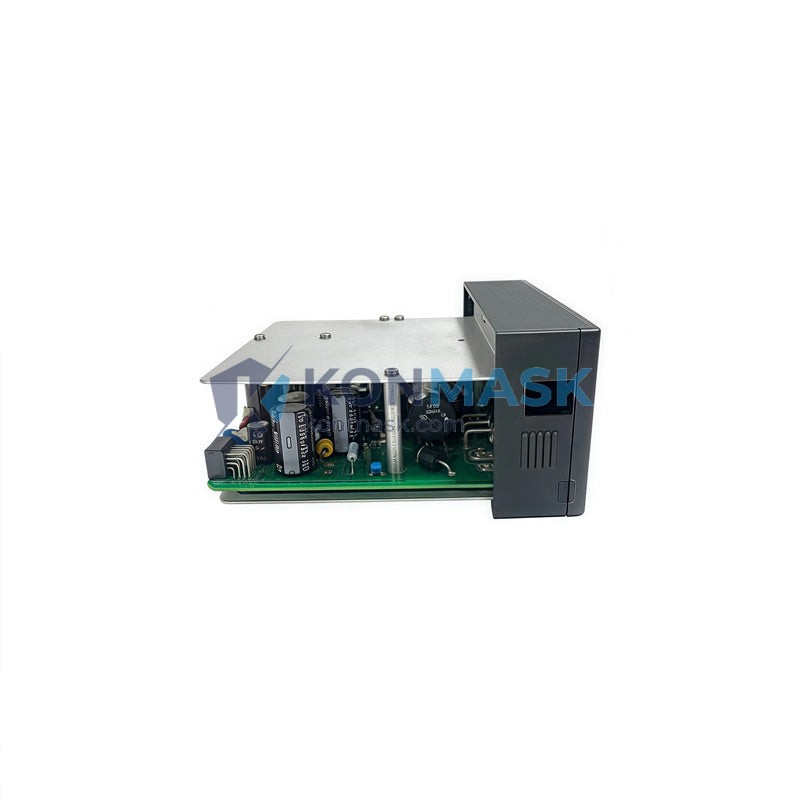

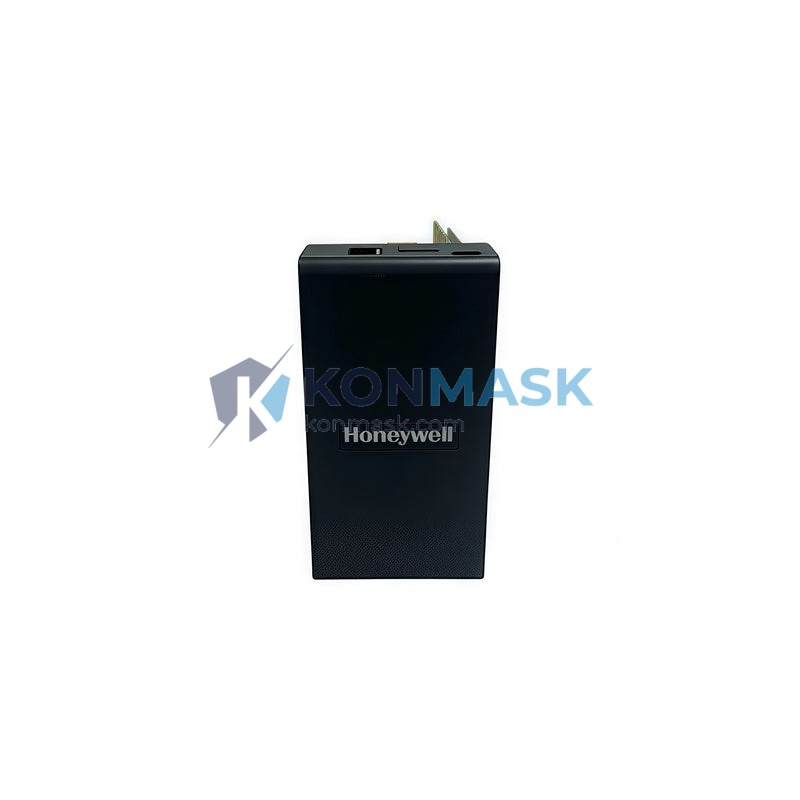

Honeywell 900RPE-0300 – Redundant Power Rack Extension Kit | HC900 Process Controller Platform
Engineering Background
The Honeywell HC900 is a proven hybrid process controller platform widely deployed in refining, chemical, power generation, and advanced manufacturing environments. Designed for applications where continuous uptime is non-negotiable, the HC900 architecture supports full redundancy at the controller, I/O, and power supply levels. The 900RPE-0300 Redundant Power Rack Extension Kit is a factory-engineered assembly that enables dual-power-supply operation within the HC900 rack, eliminating single-point-of-failure risk at the power distribution layer.
Product Positioning
The 900RPE-0300 is the OEM-specified solution for engineers upgrading existing HC900 racks to redundant power configurations or commissioning new high-availability control loops. It integrates directly with Honeywell’s standard rack backplane without field modification, ensuring full compatibility with HC900 firmware and hardware revisions. Procurement engineers sourcing this kit from Konmask.com receive a genuine, serialized unit with full traceability documentation.
Complete Technical Specifications
| Part Number | 900RPE-0300 |
| Manufacturer | Honeywell Process Solutions |
| Product Series | HC900 Hybrid Controller |
| Description | Redundant Power Rack Extension Kit |
| Function | Enables dual redundant power supply operation in HC900 rack |
| Compatible Rack | HC900 Standard & Expanded I/O Racks |
| Power Supply Slots | 2 (Primary + Redundant) |
| Redundancy Type | Hot-standby, bumpless switchover |
| Input Voltage Range | 85–264 VAC / 100–300 VDC (per compatible PSU) |
| Backplane Interface | Direct plug-in, no field wiring modification required |
| Mounting | DIN rail / panel mount (rack-integrated) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Approvals | CE, UL, cUL |
| Unit Weight | 6.17 kg (as shipped) |
| Country of Origin | United States |
Proven Application Environments
- Petroleum Refining & Petrochemical: Continuous process loops requiring 24/7 uptime with zero-tolerance for power interruption.
- Power Generation: Turbine control and boiler management systems where redundant power is a safety-critical requirement.
- Specialty Chemical Manufacturing: Batch and continuous processes with SIL-rated control architectures.
- Pharmaceutical & Life Sciences: GMP-compliant automation lines requiring validated, traceable hardware.
- Pulp & Paper / Water Treatment: Remote and unmanned stations where field service response time is high.
Engineering Advantages
- Zero-Downtime Switchover: Hot-standby redundancy ensures bumpless transfer to the backup supply on primary failure — no process interruption, no controller reset.
- OEM Factory Assembly: Shipped as a complete, pre-tested kit — eliminates field assembly errors and reduces commissioning time.
- Full HC900 Ecosystem Compatibility: Designed and validated by Honeywell for use with all HC900 rack variants; no firmware patches or hardware modifications required.
- Simplified Maintenance: Individual power supply modules can be replaced under power (hot-swap capable), reducing planned maintenance windows.
- Long Service Life: Industrial-grade components rated for extended MTBF in harsh process environments.
System Architecture & Signal Flow
The 900RPE-0300 kit installs into the dedicated power supply bay of the HC900 rack. Both the primary and redundant power supply modules connect to the shared backplane bus through the extension kit’s internal distribution board. The kit’s onboard monitoring circuit continuously compares output voltages from both supplies; upon detecting a primary supply fault (undervoltage, overcurrent, or thermal trip), it executes an automatic, bumpless transfer to the standby supply within milliseconds. Status signals are fed back to the HC900 controller via the rack backplane, enabling fault annunciation and remote diagnostics through Honeywell’s HC Designer or third-party SCADA systems via Modbus/OPC-DA.
Sourcing & Quality Verification
- All units sourced directly from Honeywell-authorized distribution channels or verified surplus with full chain-of-custody documentation.
- Each unit undergoes incoming inspection: visual, label verification, and functional power-on test prior to dispatch.
- Serial number and date code recorded at intake — available upon request for traceability audits.
- Shipped in original or equivalent ESD-safe packaging with desiccant.
- Certificate of Conformance (CoC) available for regulated industries.
Procurement Process
- Confirm Compatibility: Verify your HC900 rack model and existing power supply part numbers against the 900RPE-0300 compatibility matrix (available on request).
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and export documentation.
- Place Order: Purchase directly via this listing or submit a formal PO — we accept T/T, L/C, and major credit cards.
- Shipping & Documentation: Standard dispatch within 1–3 business days. Commercial invoice, packing list, and CoC included. DDP/DAP terms available for international buyers.
- After-Sales Support: 12-month warranty. Technical support available via email for installation and integration queries.
Technical FAQ
Q: Can the 900RPE-0300 be retrofitted to an existing HC900 rack already in service?
A: Yes. The kit is designed for both new installations and field retrofits. The rack does not need to be powered down during installation if the process allows a brief maintenance window; however, Honeywell recommends a controlled shutdown for first-time installations.
Q: Which power supply modules are compatible with this extension kit?
A: The 900RPE-0300 is compatible with Honeywell HC900 series power supply modules including the 900PWR-0001 and 900PWR-0002. Consult the HC900 Hardware Manual (document 51-52-25-107) for the full compatibility matrix.
Q: Does the redundant power kit require any configuration changes in HC Designer?
A: No software configuration is required. The kit operates transparently at the hardware level. HC Designer will automatically detect and display the redundant power status in the rack health view.
Q: What is the typical switchover time on primary supply failure?
A: Switchover is completed in <20 ms, well within the HC900 controller's scan cycle tolerance, ensuring no process data loss or controller fault.
Q: Is export documentation available for international procurement?
A: Yes. We provide ECCN classification, HS code documentation, and Certificate of Origin for all international shipments. Contact us for specific country requirements.
