Honeywell C40HF-30PB-1 – 30-Pin Field Wiring Connection Cable | HC900 Controller Series
Engineering Background: The HC900 Process & Safety Controller platform from Honeywell is a cornerstone of mid-range DCS architecture, deployed across refining, chemical processing, power generation, and pharmaceutical manufacturing. Reliable field wiring is the backbone of any HC900 installation — signal integrity between I/O modules and field instruments directly determines loop accuracy, alarm reliability, and safety system response time.

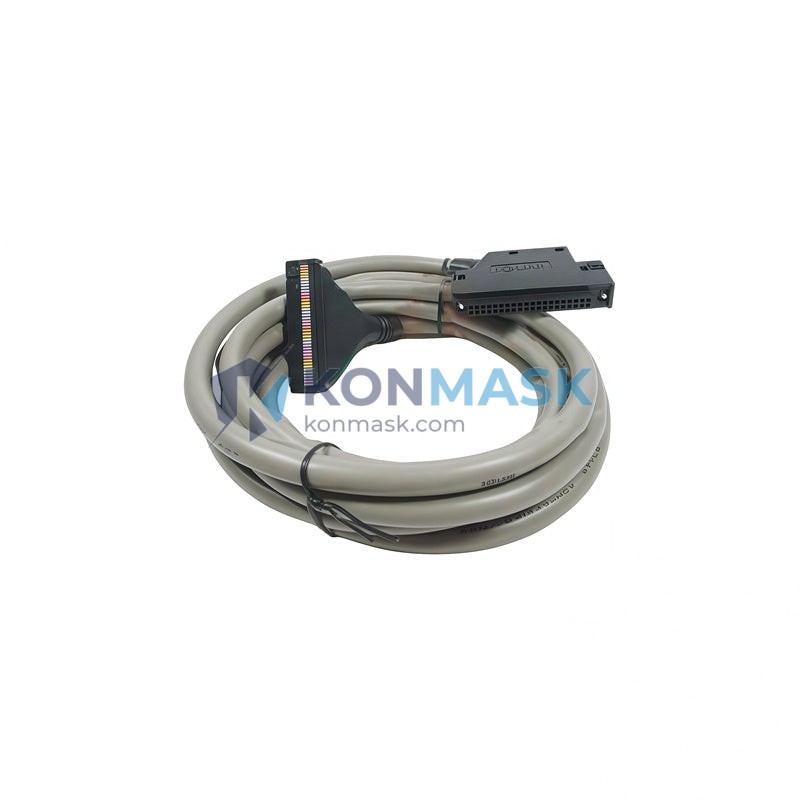

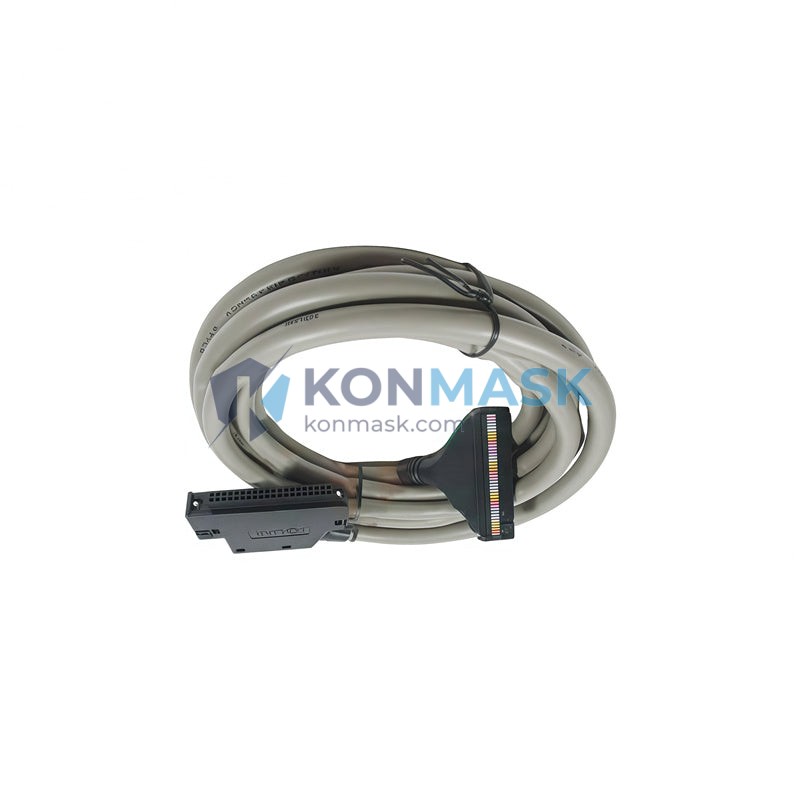

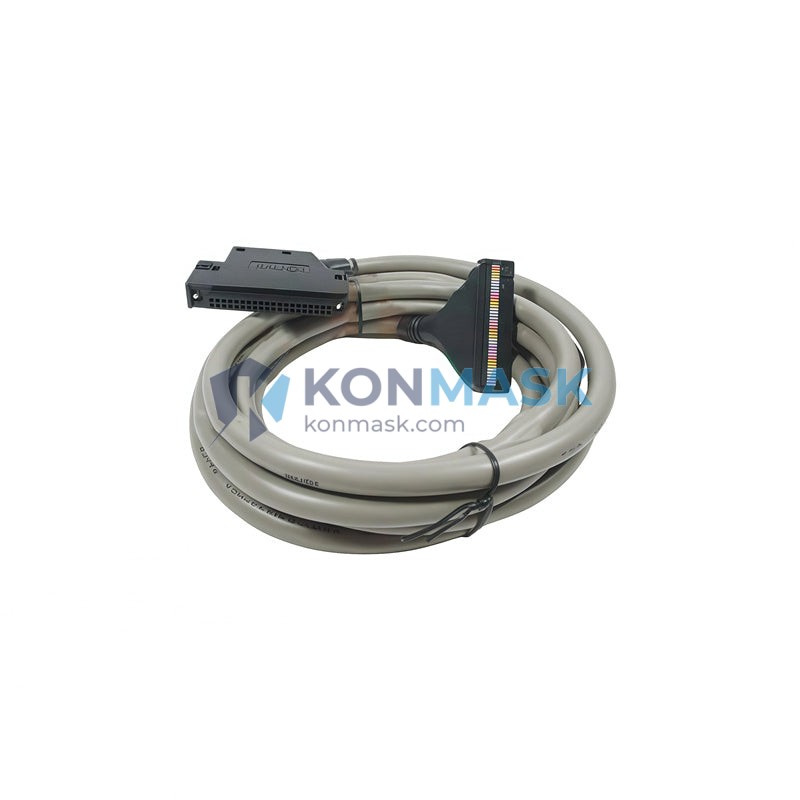

Product Positioning: The C40HF-30PB-1 is Honeywell’s factory-engineered 30-pin connection cable designed specifically for HC900 I/O module field termination. It eliminates improvised wiring, reduces installation time, and ensures pin-for-pin compatibility with Honeywell’s certified I/O rack architecture. For procurement engineers specifying a complete HC900 BOM, this cable is a mandatory line item — not an afterthought.
Complete Technical Specifications
- Part Number: C40HF-30PB-1
- Manufacturer: Honeywell Process Solutions
- Series / Platform: HC900 Hybrid Controller
- Connector Type: 30-Pin (C40HF interface)
- Cable Length: 1 metre (standard)
- Cable Weight: 160 g
- Application: Field wiring termination for HC900 I/O modules
- Termination Style: Pre-wired plug-and-play connector, both ends
- Compatibility: HC900 I/O modules with C40HF-series termination blocks
- Country of Origin: United States
- Certifications: CE, UL (per HC900 platform compliance)
- Operating Temperature: 0 °C to +60 °C (standard industrial range)
- Storage Temperature: –20 °C to +70 °C
- Ingress Protection: IP20 (panel-mount environment)
Proven Application Environments
- Refinery & Petrochemical Plants: HC900 controllers managing distillation column temperature loops, pressure control, and safety interlock systems — C40HF-30PB-1 provides the certified field connection between I/O cards and junction boxes.
- Pharmaceutical Manufacturing (GMP): Batch reactor temperature and flow control under 21 CFR Part 11 environments where validated, OEM-sourced cabling is required for audit compliance.
- Power Generation: Boiler combustion control and turbine auxiliary systems using HC900 hybrid controllers — field cable integrity is critical for millisecond-level response.
- Water & Wastewater Treatment: SCADA-integrated HC900 nodes controlling pump stations and dosing systems, where pre-terminated cables reduce commissioning time in wet environments.
- Food & Beverage Processing: CIP (Clean-in-Place) cycle automation and pasteurisation temperature control with HC900 I/O modules requiring reliable, repeatable field connections.
- Building Automation & HVAC: Large-scale HVAC control panels using HC900 for chiller plant optimisation and air handling unit sequencing.
Engineering Advantages
- OEM Pin Compatibility: Factory-wired to Honeywell’s exact 30-pin C40HF specification — eliminates field wiring errors that cause I/O channel faults or ground loops.
- Reduced Commissioning Time: Plug-and-play termination cuts field wiring labour by up to 60% versus discrete wire termination on screw terminals.
- Signal Integrity: Matched impedance and shielding maintain signal quality for analogue I/O channels (4–20 mA, RTD, thermocouple inputs).
- Audit-Ready Sourcing: OEM part number traceable to Honeywell’s product documentation — essential for IEC 61511 functional safety audits and FAT/SAT documentation packages.
- Standardised Spare Parts: Single cable model covers all HC900 I/O modules using C40HF termination, simplifying warehouse spare parts management.
- Mechanical Durability: Robust connector housing rated for repeated mating cycles — suitable for modules that are hot-swapped during maintenance windows.
System Architecture & Signal Flow
In a typical HC900 rack installation, the C40HF-30PB-1 connects the I/O module’s front-face 30-pin C40HF connector to a field termination assembly (FTA) or marshalling panel. Signal flow is as follows:
- Field Instrument → Marshalling Panel / Junction Box → C40HF-30PB-1 Cable → HC900 I/O Module → HC900 Controller Backplane → Ethernet/Modbus to SCADA/DCS Host
The 1-metre length is optimised for standard 19-inch rack-to-marshalling-panel distances. For longer runs, Honeywell offers extended-length variants; consult Konmask for availability.
Sourcing & Quality Verification
- Authentic OEM Parts: All Honeywell cables at Konmask.com are sourced through authorised distribution channels with full traceability to Honeywell’s manufacturing records.
- Inspection Protocol: Each unit undergoes visual inspection of connector housing, pin alignment, and cable jacket integrity prior to dispatch.
- Documentation Package: Certificate of Conformance (CoC) available on request for GMP and functional safety projects.
- Anti-Counterfeit Assurance: Honeywell holographic labels and part number markings verified at intake — no grey-market or refurbished units.
Procurement Process
- Confirm Compatibility: Verify your HC900 I/O module model uses C40HF-series termination (refer to HC900 I/O Module Installation Guide, document 51-52-25-107).
- Determine Quantity: One cable per I/O module. Calculate total based on your rack I/O count.
- Request a Quote: Contact support@konmask.com for volume pricing, lead time confirmation, and CoC documentation.
- Place Order: Add to cart or submit a purchase order via email. We support T/T bank transfer, PayPal, and major credit cards.
- Shipping: DHL / FedEx express worldwide. Typical lead time: 3–7 business days from stock. Expedited options available.
Technical FAQ
Q: Is C40HF-30PB-1 compatible with all HC900 I/O modules?
A: It is compatible with all HC900 I/O modules that use the C40HF 30-pin front-face connector. Verify your module’s termination type in the HC900 I/O Module datasheet before ordering.
Q: Can this cable be used with Honeywell Experion PKS or other DCS platforms?
A: The C40HF-30PB-1 is specifically designed for HC900 I/O module termination. It is not directly interchangeable with Experion PKS C300 or other platform I/O termination assemblies.
Q: Is a 2-metre or longer version available?
A: Honeywell offers extended-length variants. Contact Konmask at support@konmask.com to check current stock and lead times for non-standard lengths.
Q: Do you provide a Certificate of Conformance for this cable?
A: Yes. CoC documentation is available on request at no additional charge. Please specify your project requirements when placing your order.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume discounts apply for orders of 10 units or more. Contact us for a tiered pricing schedule.
Q: How do I verify the cable is genuine Honeywell?
A: All units ship with Honeywell OEM packaging, part number labels, and holographic authenticity markings. CoC with Honeywell traceability is available on request.
