Honeywell CC-PAIL51 51454487-175 Analog Input Module | Replacement, Equivalent & Selection Guide

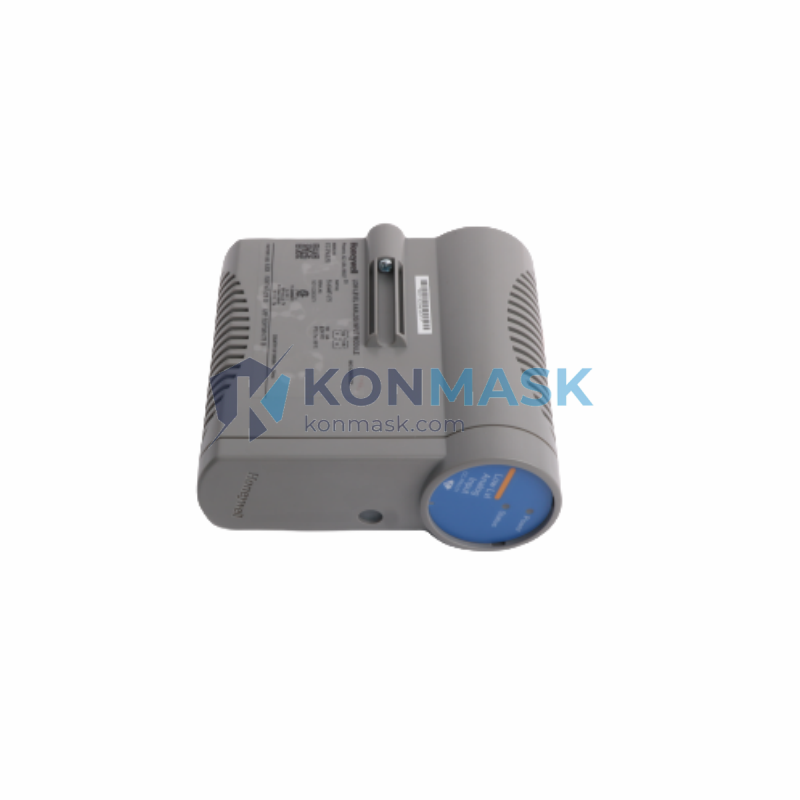

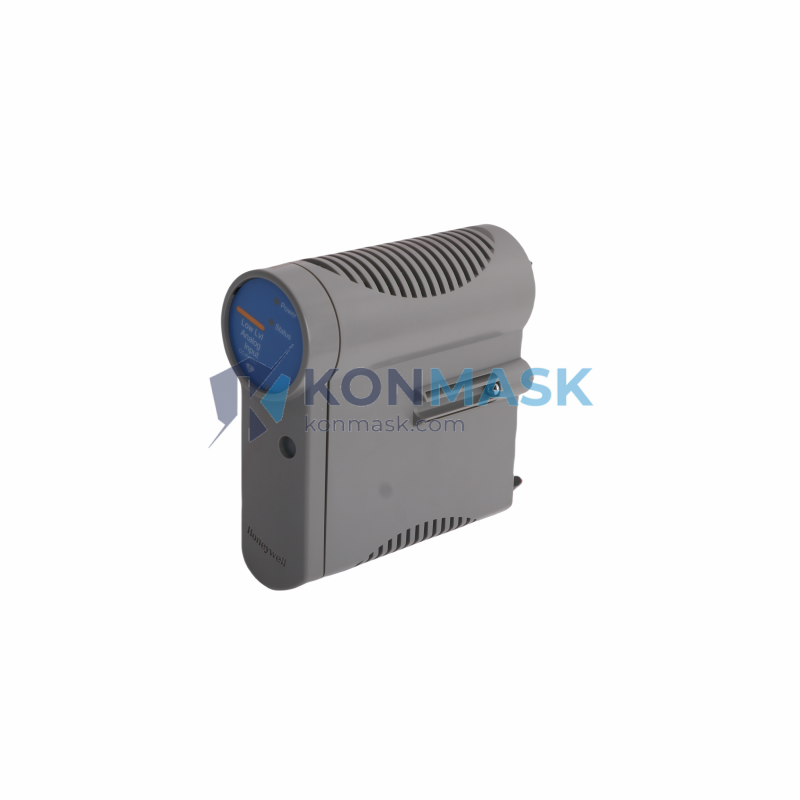

The Honeywell CC-PAIL51 (Part No. 51454487-175) is a high-density Analog Input Module designed for the Honeywell Experion PKS C300 DCS platform. It provides reliable, high-accuracy analog signal acquisition for process control applications in oil & gas, refining, chemical, and power generation industries. Konmask.com supplies genuine, tested, and certified CC-PAIL51 modules with full traceability for B2B procurement engineers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | CC-PAIL51 / 51454487-175 |
| Manufacturer | Honeywell Process Solutions |
| Platform | Experion PKS C300 DCS |
| Module Type | Analog Input (AI) |
| Channel Count | 16 channels (single-ended) / 8 channels (differential) |
| Input Signal Range | 4–20 mA, 0–5 V, 0–10 V, ±10 V (configurable per channel) |
| Resolution | 16-bit ADC |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Communication Bus | C300 FIM backplane bus |
| Power Consumption | ≤ 3.5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W×H×D) | Fits standard C300 I/O chassis slot |
| Weight | 380 g |
| Certifications | CE, UL, FM, ATEX (zone 2 barrier required) |
| Firmware | Compatible with Experion PKS R400 and above |
Compatible Replacement & Equivalent Models
When the CC-PAIL51 is unavailable or end-of-life, the following models may serve as functional replacements depending on system configuration. Always verify firmware compatibility and channel mapping before substitution.
| Model | Part Number | Compatibility Notes |
|---|---|---|
| CC-PAIL51 | 51454487-175 | Original — primary recommendation |
| CC-PAIL01 | 51304453-175 | 8-channel AI; earlier revision, same bus |
| CC-PAIH01 | 51304453-150 | High-density AI variant; verify chassis slot |
| CC-PAIX02 | 51454452-175 | Universal AI; supports HART, wider signal range |
| CC-PAIH02 | 51454452-150 | High-density HART AI; drop-in for most C300 racks |
Note: Cross-referencing requires validation against your Experion PKS project database. Contact Konmask engineering support for substitution confirmation.
Why Choose the Original Model
- Guaranteed firmware compatibility — no re-engineering of control strategies required
- Validated channel mapping — preserves existing I/O assignment in Experion Builder
- Regulatory compliance — maintains SIL/functional safety ratings without re-validation
- Reduced commissioning risk — plug-and-play replacement in live C300 chassis
- OEM traceability — full documentation chain for audits and insurance requirements
Typical Applications
- Oil & gas upstream/downstream process monitoring (pressure, flow, temperature transmitters)
- Refinery distillation column analog signal acquisition
- Chemical plant reactor temperature and pressure loops
- Power generation boiler and turbine analog instrumentation
- Pharmaceutical batch process analog data collection
- Water treatment plant sensor signal integration
System Compatibility
- DCS Platform: Honeywell Experion PKS (C300 Controller)
- Chassis: CC-PCF901 / CC-PCF902 C300 I/O chassis
- FIM: CC-FIM (Field Interface Module) required for bus communication
- Experion PKS Version: R400, R410, R430, R500 and above
- HART Support: Not native on CC-PAIL51; use CC-PAIX02 for HART-enabled loops
- Redundancy: Supports 1:1 redundant I/O configuration with CC-PAIL51 pair
Selection Guide
| Requirement | Recommended Model |
|---|---|
| Standard 4–20 mA, 16-channel, no HART | CC-PAIL51 (51454487-175) ✓ |
| HART-enabled analog inputs required | CC-PAIX02 (51454452-175) |
| 8-channel only, legacy system | CC-PAIL01 (51304453-175) |
| High-density HART, 32-channel | CC-PAIH02 (51454452-150) |
| Universal signal type (mA/V/RTD/TC) | CC-PUIO31 (51454220-176) |
Quality Assurance & Sourcing
- Source: Authorized distributors, OEM surplus, and certified refurbished stock
- Inspection: Every unit undergoes visual inspection, functional power-on test, and firmware version verification
- Packaging: Anti-static ESD bag + foam-lined carton; humidity indicator included
- Documentation: Certificate of conformance, test report, and original Honeywell datasheet provided on request
- Warranty: 12-month replacement warranty against manufacturing defects
- Lead Time: In-stock units ship within 3–5 business days; ex-stock DHL/FedEx worldwide
How to Order
- Confirm part number: CC-PAIL51 / 51454487-175
- Specify quantity and required delivery date
- Provide project name or PO number for documentation
- Request datasheet, test report, or CoC if required for your procurement process
- Contact: support@konmask.com | +0086 19859288691
- Or place order directly via konmask.com
Replacement & Compatibility FAQ
Q: Can CC-PAIL01 directly replace CC-PAIL51?
A: CC-PAIL01 is an 8-channel module vs. 16-channel on CC-PAIL51. It occupies the same chassis slot but requires re-mapping of channels 9–16 in Experion Builder. Not a transparent drop-in replacement.
Q: Does CC-PAIL51 support HART communication?
A: No. CC-PAIL51 is a standard analog input module without HART pass-through. For HART-enabled loops, specify CC-PAIX02 or CC-PAIH02.
Q: Is CC-PAIL51 compatible with Experion PKS R500?
A: Yes, CC-PAIL51 is compatible with Experion PKS R400 through R500 and later releases. Verify firmware revision against your system’s compatibility matrix.
Q: Can I use CC-PAIL51 in a Safety Instrumented System (SIS)?
A: CC-PAIL51 is a standard process control module, not SIL-rated for SIS use. For safety loops, use Honeywell Safety Manager or FSC platform modules.
Q: What is the lead time for CC-PAIL51?
A: In-stock units ship within 3–5 business days. Contact Konmask for real-time stock availability.
