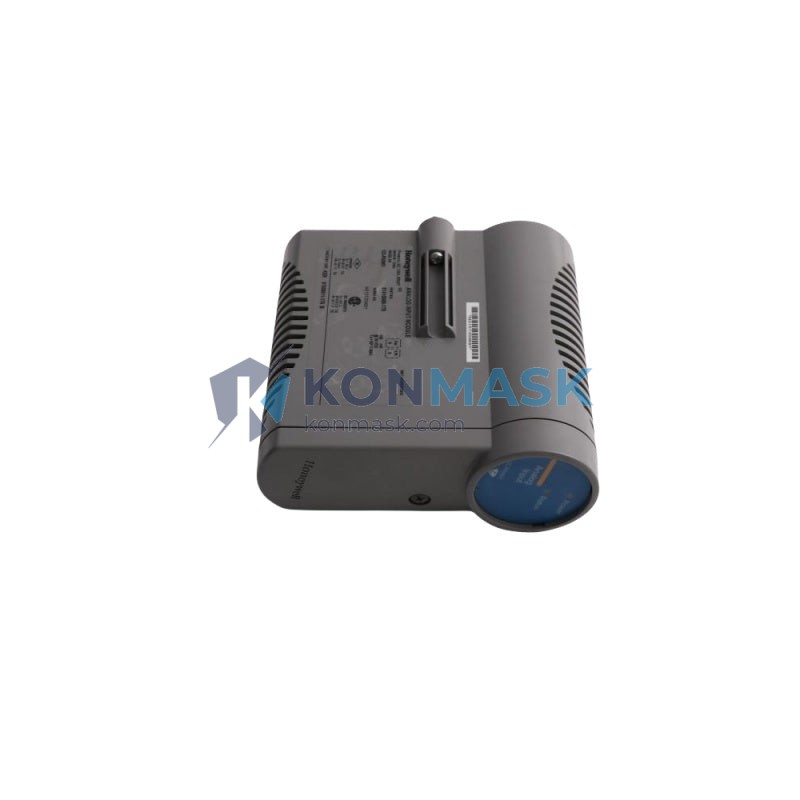

Honeywell CC-PCNT01 (51405046-175) – Process Controller Module | Experion PKS Platform
Engineering Background
The Honeywell CC-PCNT01 (part number 51405046-175) is a high-performance process controller module designed for the Experion PKS (Process Knowledge System) distributed control architecture. Engineered to meet the demanding requirements of continuous process industries, this module serves as the computational core for real-time control execution, I/O coordination, and peer-to-peer communication within the C300 controller family.
Product Positioning
Targeted at procurement engineers and automation integrators managing brownfield upgrades or greenfield DCS deployments, the CC-PCNT01 delivers deterministic scan-cycle performance with built-in redundancy support. It is the preferred choice for facilities requiring IEC 61511 functional safety alignment and seamless integration with Honeywell’s FIM (Field Interface Module) ecosystem.
Complete Technical Specifications
| Manufacturer | Honeywell Process Solutions |
| Part Number | CC-PCNT01 |
| Catalog / Order Number | 51405046-175 |
| Platform / Series | Experion PKS – C300 Controller Family |
| Module Type | Process Controller Module (PCM) |
| Processor | Dual-core embedded RISC processor |
| Control Execution Environment | CEE (Control Execution Environment) – IEC 61131-3 compliant |
| Communication Ports | FTE (Fault Tolerant Ethernet) dual-port; IOLINK to FIM modules |
| Redundancy | Hot-standby redundancy supported (requires CC-PCNT01 pair) |
| Scan Cycle | Configurable: 50 ms – 1000 ms |
| Memory | 256 MB SDRAM; 128 MB Flash |
| Power Supply | 24 VDC (supplied via C300 chassis backplane) |
| Power Consumption | ≤ 12 W typical |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% – 95% non-condensing |
| Dimensions (H × W × D) | Chassis-mount card; standard C300 form factor |
| Weight | Approx. 150 g |
| Certifications | CE, UL, cUL, FM Class I Div 2 |
| Firmware | Experion PKS R500 and above compatible |
| Country of Origin | USA |
Proven Application Environments
- Oil & Gas: Upstream wellhead automation, midstream pipeline SCADA integration, downstream refinery unit control
- Petrochemical & Chemical: Continuous reactor control, distillation column sequencing, batch process management
- Power Generation: Boiler management systems (BMS), turbine governor interfacing, balance-of-plant automation
- Pulp & Paper: Digester control, recovery boiler management, machine drive coordination
- Pharmaceuticals: FDA 21 CFR Part 11 compliant batch control, clean-room HVAC automation
- Water & Wastewater: Pump station control, chemical dosing, SCADA-linked remote telemetry
Engineering Advantages
- Deterministic Control: Hardware-enforced scan-cycle guarantees eliminate jitter in time-critical loops
- Seamless Redundancy: Bumpless switchover (< 1 scan cycle) in hot-standby configuration protects process continuity
- FTE Network Resilience: Dual-port Fault Tolerant Ethernet provides path redundancy without additional switches
- Scalable I/O: Supports up to 2,000 I/O points per C300 controller via IOLINK-connected FIM modules
- Unified Engineering: Fully configured within Honeywell Control Builder – no third-party programming tools required
- Long Lifecycle: Honeywell’s 20-year product lifecycle commitment reduces obsolescence risk for capital-intensive plants
System Architecture & Signal Flow
The CC-PCNT01 resides in the C300 controller chassis and communicates upstream to the Experion PKS server via the FTE network (standard 100/1000 Mbps Ethernet infrastructure). Downstream, the IOLINK bus connects to Field Interface Modules (FIMs) such as the CC-FIM01, which in turn interface with FOUNDATION Fieldbus, HART, Profibus DP, or hardwired I/O termination assemblies. Control strategies are downloaded from Control Builder and executed locally on the module, ensuring continued operation during server or network interruptions.
Sourcing & Quality Verification
- All units sourced through verified industrial automation channels with full traceability documentation
- Pre-shipment inspection: visual, dimensional, and firmware-version verification
- Functional power-on test performed prior to dispatch
- Original manufacturer labeling and holographic seals intact
- Packaging: anti-static ESD bag + foam-lined carton; humidity indicator card included
- Warranty: 12-month replacement warranty against manufacturing defects
Procurement Process
- Submit your RFQ via support@konmask.com or WhatsApp +86 198-5928-8691
- Receive quotation with lead time, stock status, and shipping options within 24 hours
- Confirm order – proforma invoice issued; T/T, L/C, and PayPal accepted
- Dispatch within 1–3 business days; DHL / FedEx / UPS express available worldwide
- Tracking number and commercial invoice provided upon shipment
Technical FAQ
Q: Is the CC-PCNT01 compatible with Experion PKS R400 systems?
A: The 51405046-175 revision is optimized for R500 and above. Backward compatibility with R400 should be verified against your site’s Experion release notes before installation.
Q: Can this module operate in simplex (non-redundant) mode?
A: Yes. A single CC-PCNT01 operates fully in simplex mode. A second module is only required to enable hot-standby redundancy.
Q: What is the maximum number of control loops per module?
A: Honeywell specifies up to 300 PID loops per C300 controller, subject to scan-cycle loading and I/O count.
Q: Do you provide configuration backup files or factory defaults?
A: Modules ship in factory-default state. Configuration is performed via Honeywell Control Builder by the end-user’s engineering team.
Q: What export documentation is available?
A: We provide commercial invoice, packing list, certificate of origin, and ECCN classification documentation upon request.
