Honeywell TK-FXX102 – 10-Slot I/O Rack | Experion PKS / TPS FX Series
Engineering Background

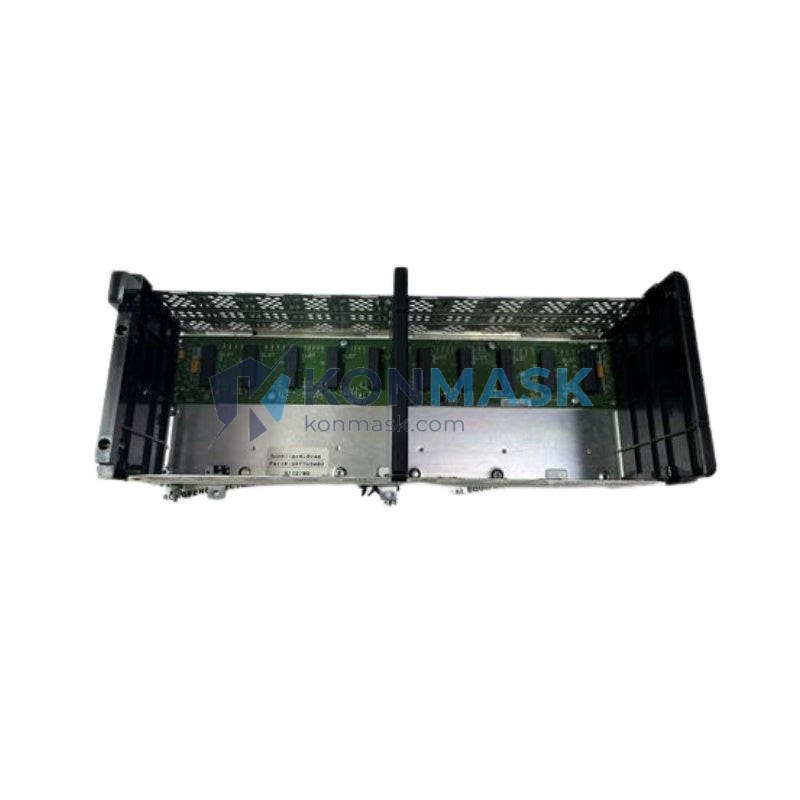

The Honeywell TK-FXX102 is a 10-slot I/O rack designed for the Honeywell TotalPlant Solution (TPS) and Experion PKS distributed control system platforms. As a core structural component of the FX Series I/O subsystem, this rack provides the physical and electrical backplane infrastructure required to mount and interconnect field I/O modules, power conditioners, and communication interfaces in process-critical environments.
Product Positioning
Targeted at process automation engineers and MRO procurement teams, the TK-FXX102 is the preferred rack solution for brownfield DCS expansions, system redundancy upgrades, and spare-parts inventory programs in refining, petrochemical, power generation, and continuous manufacturing facilities. Konmask.com supplies both new-surplus and factory-refurbished units with full traceability documentation.
Complete Technical Specifications
| Part Number | TK-FXX102 |
| Manufacturer | Honeywell Process Solutions |
| Platform | Experion PKS / TotalPlant Solution (TPS) – FX Series |
| Rack Slots | 10 I/O module slots |
| Backplane Type | Passive backplane with integrated power and signal bus |
| Mounting | 19-inch DIN rail / panel mount compatible |
| Power Input | 24 VDC (via dedicated power supply module) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Weight | Approx. 700 g (bare rack) |
| Certifications | CE, UL listed (per Honeywell system certification) |
| Country of Origin | United States |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA, downstream refinery DCS expansion
- Petrochemical & Chemical: Reactor control loops, batch process automation, safety instrumented system (SIS) integration
- Power Generation: Turbine control, boiler management, plant-wide DCS modernization
- Pulp & Paper / Mining: Continuous process control, conveyor automation, environmental monitoring
- Pharmaceutical: FDA-compliant batch manufacturing, clean-room process control
Engineering Advantages
- 10-slot capacity maximizes I/O density per rack unit, reducing cabinet footprint
- Passive backplane architecture eliminates active backplane failure modes, improving MTBF
- Hot-swap module support (with compatible I/O modules) enables maintenance without process shutdown
- Seamless integration with Honeywell Experion PKS C300/C200 controllers and TPS HPM nodes
- Standardized form factor simplifies spare-parts management across multi-rack DCS cabinets
- Wide thermal tolerance supports installation in non-air-conditioned auxiliary rooms
System Architecture & Signal Flow
In a typical Experion PKS or TPS FX Series cabinet, the TK-FXX102 rack is mounted vertically or horizontally within a 19-inch enclosure. Field wiring terminates at I/O termination assemblies (FTA/ITA), which connect via marshalling cables to I/O modules seated in the rack slots. The rack backplane distributes 24 VDC power and the FX Series serial communication bus to each module slot. The controller node (C300 or HPM) communicates with I/O modules via the Control Firewall Bus (CFB) or FTE Ethernet backbone, depending on system generation. Redundant power supply modules can occupy dedicated slots to ensure continuous operation during PSU maintenance.
Sourcing & Quality Verification
- Source: Authorized surplus distributors, decommissioned plant buybacks, and factory-refurbished stock
- Inspection: Each unit undergoes visual inspection, connector integrity check, and backplane continuity test prior to shipment
- Documentation: Certificate of conformance (CoC) and test report available upon request
- Warranty: 12-month replacement warranty on all units shipped from Konmask.com
- Traceability: Serial number and firmware revision recorded for every unit
Procurement Process
- Submit your RFQ via konmask.com or email support@konmask.com
- Receive stock confirmation, lead time, and formal quotation within 24 hours
- Approve purchase order — payment via T/T, PayPal, or credit card accepted
- Unit ships with inspection report, CoC, and commercial invoice within 1–3 business days
- Post-delivery technical support available via email or WhatsApp: +0086 19859288691
Technical FAQ
Q: Is the TK-FXX102 compatible with both TPS and Experion PKS systems?
A: Yes. The FX Series rack is used across both TPS (legacy) and Experion PKS (current generation) platforms. Verify your I/O module part numbers to confirm slot compatibility.
Q: Can I mix analog and digital I/O modules in the same rack?
A: Yes, subject to Honeywell’s I/O module placement rules. Consult the Experion PKS I/O Module Installation Guide (document EP-DS-0003) for slot assignment constraints.
Q: Does the rack support redundant power supply modules?
A: Yes, when paired with compatible Honeywell FX Series power supply modules. Redundant PSU configuration is recommended for SIL-rated loops.
Q: What is the lead time for new-surplus units?
A: Typically 1–5 business days for in-stock units. Contact us for real-time availability.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoice, packing list, CoC, and ECCN classification documentation for all international orders.
