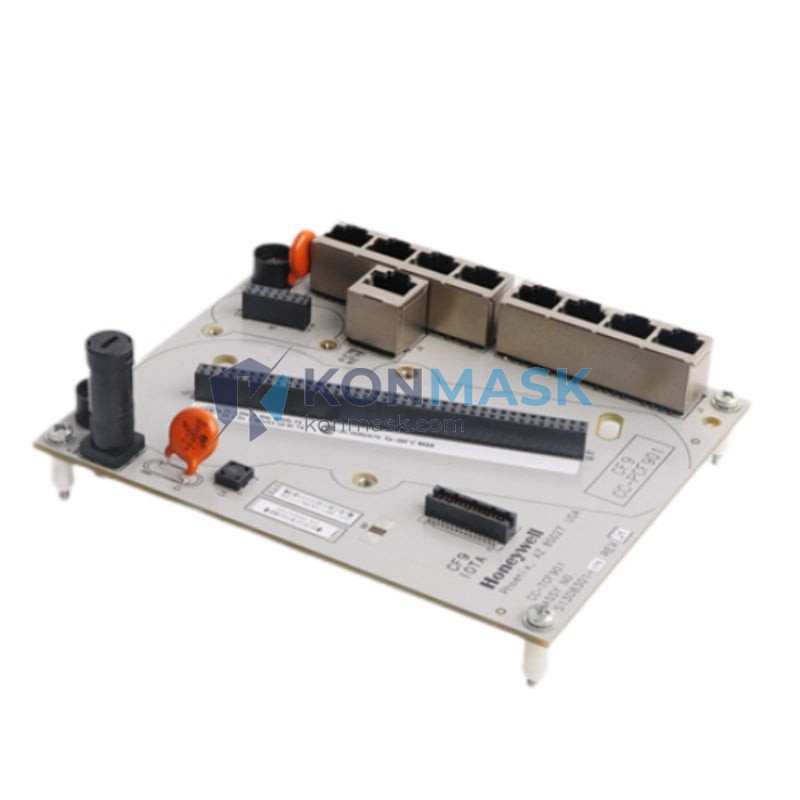

Honeywell DC-TCF901 (51307593-176) — 9-Port Control Firewall IOTA | Experion PKS / TotalPlant Solution
Engineering Background
The DC-TCF901 is Honeywell’s dedicated hardware firewall engineered for the Control Network (CN) layer within Experion PKS and legacy TotalPlant Solution (TPS/TDC 3000) distributed control architectures. Designed to enforce strict Layer 2/3 traffic segmentation between the plant supervisory network and the real-time control bus, it prevents unauthorized lateral movement while sustaining deterministic scan-cycle performance. Part number 51307593-176 identifies the 9-port IOTA (I/O Termination Assembly) variant, which integrates directly into the standard Honeywell card file without additional wiring panels.
Product Positioning
Targeted at process industries — refining, petrochemical, power generation, and pharmaceutical — where IEC 62443 / ISA-99 zone-and-conduit compliance is mandatory. The DC-TCF901 serves as the primary enforcement point between the Supervisory Control Network (SCN) and the Control Network (CN), replacing legacy software-only filtering with dedicated silicon-based packet inspection. It is the OEM-specified replacement for aging network boundary devices in brownfield Experion R400–R501 and TPS environments.
Complete Technical Specifications
- Part Number: DC-TCF901 / 51307593-176
- Module Type: 9-Port Control Firewall IOTA
- Platform Compatibility: Honeywell Experion PKS (R400, R410, R430, R501), TotalPlant Solution (TPS), TDC 3000
- Network Ports: 9 × 10/100BASE-TX Ethernet (RJ-45)
- Firewall Architecture: Stateful packet inspection, Layer 2/3 filtering
- Mounting: IOTA card-file direct mount (standard Honeywell Universal Control Network chassis)
- Power Supply: Supplied via card-file backplane (24 VDC nominal)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Humidity: 5–95% RH, non-condensing
- Certifications: CE, UL 508, IEC 61131-2 (environmental)
- Weight: ~300 g (module only)
- Dimensions: Standard Honeywell IOTA form factor
- Firmware: Field-upgradeable via Honeywell Control Builder / Experion Engineering Tools
Proven Application Environments
- Oil & Gas upstream/downstream control rooms requiring ISA-99 zone segmentation
- Refinery DCS modernization projects retaining existing Experion PKS card files
- Power plant turbine control networks with strict latency budgets (<1 ms CN scan)
- Pharmaceutical batch control systems under FDA 21 CFR Part 11 network audit requirements
- Chemical plant safety-instrumented system (SIS) boundary enforcement per IEC 61511
- Brownfield TPS → Experion migration projects requiring interim network boundary protection
Engineering Advantages
- Hardware-enforced segmentation: Dedicated ASIC-based filtering eliminates software firewall latency jitter on the control bus.
- 9-port density: Single IOTA supports up to 8 CN device connections + 1 uplink, reducing rack space vs. external managed switches.
- OEM form factor: Plugs directly into existing Honeywell card-file chassis — no additional DIN rail, panel cutout, or external power wiring required.
- Transparent to control traffic: Operates in bridge mode; Experion controllers see no change in network topology or addressing.
- Centralized policy management: Rule sets configurable via Experion Engineering Tools with audit-log export for compliance reporting.
- Hot-swap capable: Supports live replacement in redundant CN configurations without process interruption.
System Architecture & Signal Flow
In a typical Experion PKS deployment, the DC-TCF901 IOTA is installed at the boundary between the Supervisory Control Network (SCN) and the Control Network (CN). Upstream (SCN side): Experion Server / Operator Stations connect via standard Ethernet. Downstream (CN side): C300 Controllers, FIM modules, and I/O Link interfaces connect through the 8 filtered ports. All inter-zone traffic is inspected against a stateful rule table; only authorized Honeywell FTE (Fault Tolerant Ethernet) protocol frames are forwarded. Unauthorized broadcast storms, ARP spoofing, and non-FTE unicast traffic are dropped and logged.
Sourcing & Quality Verification
- Origin: Genuine Honeywell OEM hardware — not aftermarket or refurbished unless explicitly stated.
- Traceability: Each unit ships with original Honeywell part label (P/N 51307593-176) and date code visible on the module housing.
- Pre-shipment testing: Power-on self-test (POST) verified; port link integrity confirmed on all 9 ports.
- Packaging: ESD-safe anti-static bag + foam-lined carton; humidity indicator card included.
- Warranty: 12-month Konmask operational warranty covering DOA and early-life failure.
Procurement Process
- Submit RFQ via konmask.com/pages/contact or email support@konmask.com.
- Receive formal quotation with lead time, unit price (HKD/USD), and shipping options within 1 business day.
- Confirm PO — we accept T/T wire transfer, PayPal, and major credit cards.
- Shipment via DHL Express / FedEx International Priority with full tracking and commercial invoice for customs clearance.
- Post-delivery technical support available via email and WhatsApp (+86 198-5928-8691).
Technical FAQ
Q: Is the DC-TCF901 compatible with Experion R501.x and later?
A: The DC-TCF901 IOTA is qualified for Experion R400 through R501. For R510 and later, consult Honeywell’s Experion Network Architecture Guide (Doc. EP-DS-0001) to confirm compatibility with your specific CN topology.
Q: Can this module replace a failed DC-TCF901 in a live system without a full CN shutdown?
A: Yes, in redundant CN configurations the module supports hot-swap. In simplex CN deployments, a brief CN interruption (<30 seconds) is required during physical swap; controller memory retention prevents process upset in most applications.
Q: What firmware version is pre-loaded?
A: Units are shipped with the firmware version present at time of manufacture. Konmask recommends verifying the firmware revision against your site’s Experion release baseline and upgrading via Honeywell Control Builder if required.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A Konmask CoC is included with every shipment. Honeywell OEM CoC is available upon request for units sourced directly from authorized Honeywell distribution channels.
Q: What is the typical lead time?
A: In-stock units ship within 2–3 business days. For out-of-stock items, typical sourcing lead time is 2–4 weeks depending on global availability.
