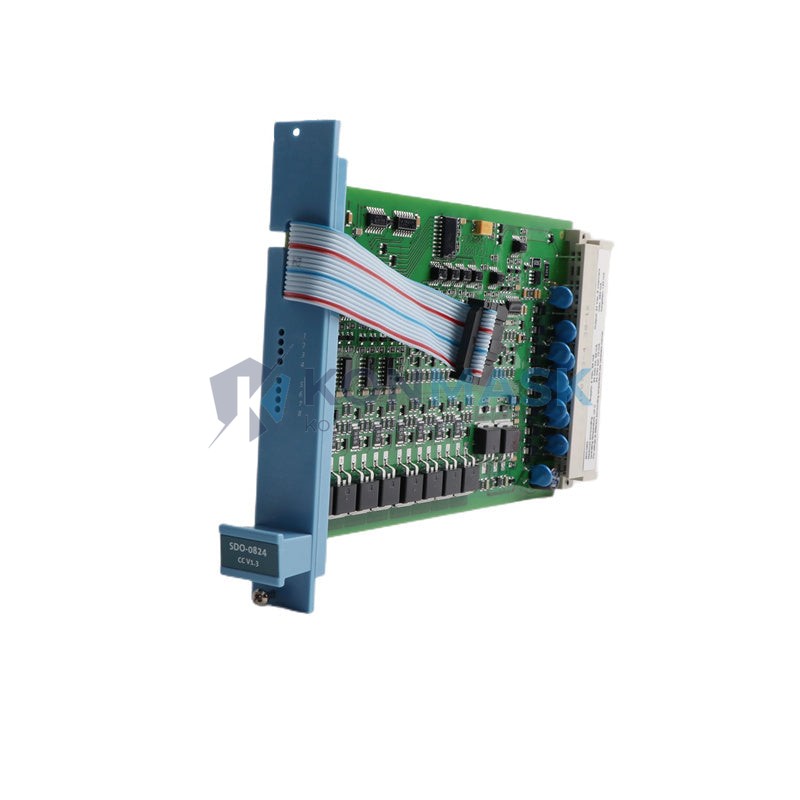

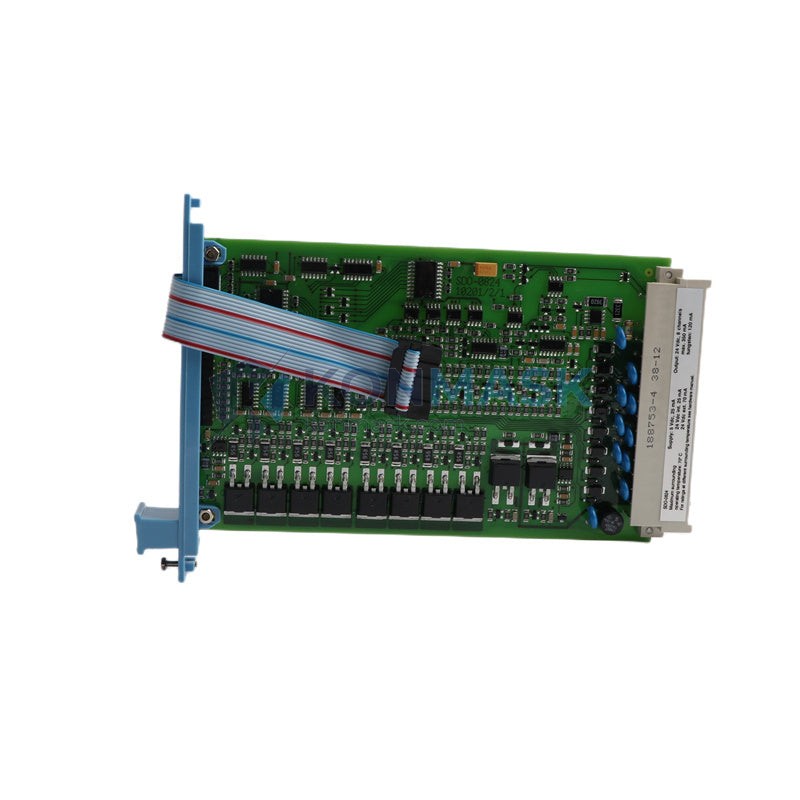

Honeywell FC-SDO-0824 – 8-Channel 24 VDC Digital Output Module | Safety Manager SC Platform
Engineering Background: The Honeywell Safety Manager SC (formerly Safety Manager) is a dedicated Safety Instrumented System (SIS) controller deployed across critical process industries where IEC 61511 / IEC 61508 compliance is mandatory. Within the Safety Manager SC architecture, the FC-SDO-0824 occupies the field-side output layer: it receives validated logic commands from the safety CPU and drives final control elements—solenoid valves, motor starters, shutdown relays—with the deterministic, fault-tolerant behavior required for SIL 2 safety loops. Without a correctly specified output module at this layer, the entire safety function chain is broken.
Product Positioning: The FC-SDO-0824 provides 8 discrete 24 VDC sourcing output channels in a single slot, distinguishing it from the 16-channel FC-SDO-1624 (higher density, larger footprint) and the relay-output FC-SRO series (for dry-contact loads). The FC-SDO-0824 is the preferred choice when channel count per slot is moderate, load currents are within 0.5 A per channel, and the application demands per-channel diagnostics with online replacement capability. It is not suitable for AC loads, high-inrush motor circuits without external interface relays, or applications requiring SIL 3 without architectural redundancy.
Complete Technical Specifications
Electrical
- Output Channels: 8 × discrete digital output (sourcing, 24 VDC)
- Output Voltage: 24 VDC nominal (18–30 VDC operating range)
- Output Current: 0.5 A per channel continuous; 4 A total module load
- Output Type: Solid-state transistor (PNP sourcing)
- Short-Circuit Protection: Per-channel electronic current limiting with diagnostic reporting
- Leakage Current (OFF state): < 1 mA
- Voltage Drop (ON state): < 1.5 V at rated current
- Backplane Bus: Safety Manager SC proprietary I/O bus
- Power Consumption: ≤ 6 W (module only, excluding field load)
Mechanical
- Form Factor: Single-slot Safety Manager SC I/O module
- Connector: 40-pin field wiring connector (front-access, removable)
- Weight: ~120 g (module only)
- Mounting: DIN rail via Safety Manager SC chassis; hot-swap capable
- Dimensions: Per Safety Manager SC I/O module standard envelope
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5–95% RH, non-condensing
- Vibration: IEC 60068-2-6 compliant
- EMC: CE marked; IEC 61000-4 series immunity
- Protection Class: IP20 (module); IP54 achievable with appropriate enclosure
Certifications
- Functional Safety: IEC 61508 SIL 2 (single module); SIL 3 achievable in 1oo2D architecture
- Process Safety: IEC 61511 compliant for use in SIS applications
- Hazardous Area: Suitable for Zone 2 / Class I Div 2 with appropriate barriers
- CE / UL / FM listings per Honeywell Safety Manager SC system certification
Data sourced from Honeywell Safety Manager SC System Manual (Doc. No. EP-SM-SC-SYS) and FC-SDO-0824 module datasheet. Verify against current Honeywell documentation for your revision level.
Proven Application Environments
- Petrochemical / Refinery: Crude distillation unit emergency shutdown (ESD) — driving solenoid valves on high-pressure isolation loops under continuous SIL 2 demand mode
- Offshore Oil & Gas: Wellhead control panel (WCP) — actuating subsea tree valve pilots where module hot-swap is required during live production without process interruption
- Power Generation: Gas turbine fuel gas trip system — commanding fast-acting shutoff valves with < 100 ms response time from safety CPU command to field output
- Water / Wastewater Treatment: Chlorine dosing interlock — controlling pump motor starters and isolation valves in chemical containment safety functions
- Chemical Processing: Reactor runaway prevention — driving quench valve solenoids in exothermic batch reactor SIS, with per-channel diagnostics confirming valve energization
- LNG / Gas Terminal: Loading arm emergency release system — actuating ESD valves across multiple berths from a centralized Safety Manager SC cabinet with redundant output voting
Engineering Advantages
- For high-availability SIS loops requiring zero-downtime maintenance, this output module supports hot-swap replacement under live backplane power, because the Safety Manager SC chassis maintains I/O bus integrity during single-slot removal.
- For applications with tight cabinet space budgets, this 8-channel module delivers a compact channel-per-slot ratio, because the single-slot form factor allows mixed I/O configurations without dedicating a full chassis to output-only functions.
- For engineers troubleshooting field wiring faults, this output module provides per-channel short-circuit and open-load diagnostics reported to the safety CPU, because each channel has independent electronic monitoring that distinguishes load faults from logic faults.
- For SIL 2 safety functions requiring architectural flexibility, this output module supports 1oo1 and 1oo2D voting configurations, because the Safety Manager SC system controller manages redundancy logic at the CPU layer without requiring duplicate field wiring.
- For installations in electrically noisy environments (VFD-heavy plants, switchgear rooms), this output module maintains signal integrity, because the solid-state PNP output stage and CE-certified EMC design suppress conducted and radiated interference up to IEC 61000-4 levels.
- For procurement teams managing long-term asset lifecycles, this module carries a documented Honeywell part number with traceable revision history, because Safety Manager SC is an actively supported platform with published obsolescence roadmaps and spare parts availability commitments.
System Architecture & Signal Flow
Signal Flow: Safety CPU (FC-SCPU-0100 / FC-SCPU-0200) → Safety Manager SC I/O backplane bus → FC-SDO-0824 output driver logic → field terminal block → solenoid valve / relay coil / motor starter contactor. The module receives a validated digital command word from the CPU, performs internal self-test, then energizes or de-energizes the corresponding output channel transistor. Diagnostic status (channel ON/OFF state, fault flags) is returned to the CPU on the same bus cycle.
Compatible Modules & Chassis:
- FC-SCPU-0100 / FC-SCPU-0200 — Safety Manager SC CPUs; direct backplane compatibility confirmed
- FC-PSU-0024 — 24 VDC power supply module; provides field-side power rail for output loads
- FC-SDI-0824 — 8-channel digital input module; paired in ESD loop architectures for input/output symmetry
- FC-SMSC-0001 chassis — standard Safety Manager SC I/O chassis; all slots accept FC-SDO-0824
Substitution Conditions: The FC-SDO-1624 (16-channel variant) is a functional substitute when channel density must increase and a full slot is available; field wiring connector pinout differs and must be reverified. The FC-SRO relay output modules are not pin-compatible and require a different chassis slot assignment. Cross-platform substitution (e.g., Experion Safety Manager modules) is not supported without a formal Honeywell engineering change order.
Sourcing & Quality Verification
Konmask.com sources FC-SDO-0824 modules through established industrial automation distribution channels, prioritizing units with documented provenance and intact Honeywell serialization. All modules undergo a 4-step incoming inspection before dispatch:

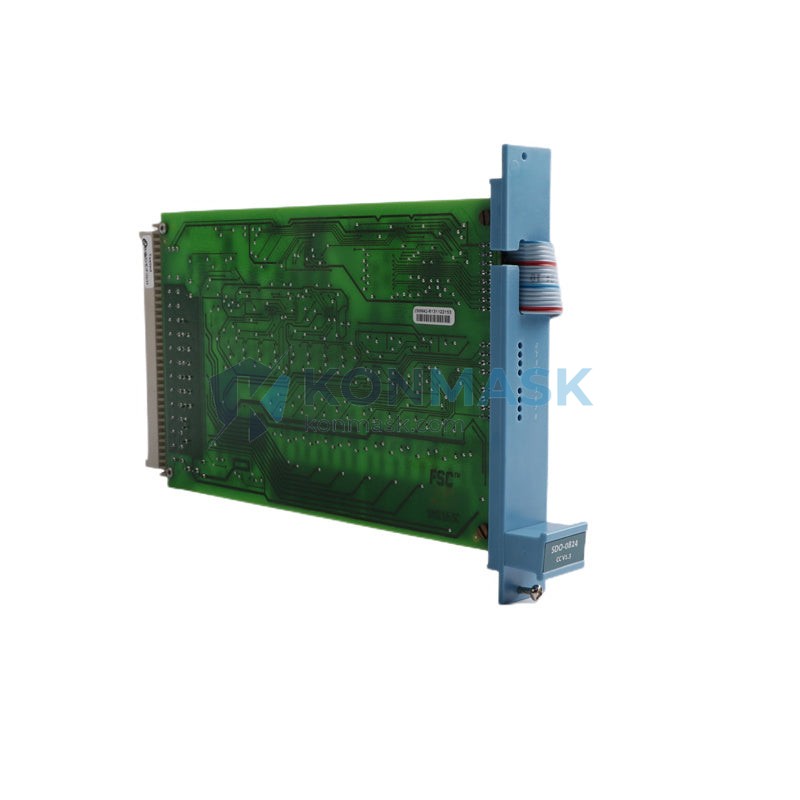

- Visual & Label Inspection: Honeywell part number label, revision marking, and serial number verified against Honeywell’s published label format; counterfeit indicators (font inconsistency, label adhesive bleed, incorrect logo geometry) checked against reference units.
- Connector & PCB Integrity Check: 40-pin field connector inspected for bent pins, corrosion, and reflow evidence; PCB edge connector examined for wear patterns inconsistent with stated service history.
- Firmware / Revision Verification: Where accessible, module revision code confirmed against Honeywell compatibility matrix for the target CPU firmware version.
- Functional Smoke Test: Module powered in a Safety Manager SC test chassis; backplane communication confirmed, channel output states verified, no fault flags present at power-on.
Documentation available upon request: Honeywell original datasheet (current revision), module inspection report, test chassis power-on log, certificate of conformance (CoC), and export compliance classification (ECCN / HTS).
Procurement Process
- Submit Inquiry: Email support@konmask.com or call +0086 19859288691 with your required part number (FC-SDO-0824), quantity, target delivery date, and any revision-level constraints. Attach your system’s CPU firmware version if known.
- Receive Quotation & Stock Confirmation: A response with pricing, available stock, lead time, and inspection report summary will be provided within 24 hours on business days. Expedited same-day response available for urgent shutdown situations.
- Order Confirmation & Dispatch: Upon purchase order receipt, modules are re-inspected, packed in anti-static ESD shielding with desiccant, and dispatched with full tracking. Technical support for installation and commissioning questions is available post-delivery via email or scheduled video call with an automation specialist.
Technical FAQ
- Q: Is the FC-SDO-0824 compatible with the original Honeywell Safety Manager (non-SC) platform?
- A: No. The FC-SDO-0824 is designed exclusively for the Safety Manager SC chassis and backplane bus. The original Safety Manager platform uses a different I/O bus protocol and physically different module form factor. Attempting cross-platform installation will result in no communication and potential chassis fault. Confirm your chassis part number (FC-SMSC-xxxx series) before ordering.
- Q: Can the FC-SDO-0824 substitute for the FC-SDO-1624 in an existing installation?
- A: Partial substitution is possible only if the application requires 8 or fewer output channels per slot and the field wiring is re-terminated to match the FC-SDO-0824 connector pinout. The 16-channel module uses a different terminal assignment; direct pin-for-pin swap is not supported. A Honeywell-approved configuration change and updated SIS validation test are required before returning the safety function to service.
- Q: What SIL level is achievable with the FC-SDO-0824, and does it require proof testing?
- A: The FC-SDO-0824 is IEC 61508 certified for SIL 2 in a 1oo1 architecture. SIL 3 is achievable in a 1oo2D voted configuration with two modules driving the same final element. Proof testing interval (PTI) is defined in the Honeywell Safety Manual for the module; typical PTI for SIL 2 demand-mode applications is 1–2 years depending on PFD target. The module’s internal diagnostics (DC > 90%) contribute to reducing the required proof test frequency. Consult the Honeywell FC-SDO-0824 Safety Manual for PFD calculation inputs.
