Honeywell FC-TSAOH-0220m Safe Analog Output | Replacement, Equivalent & Selection Guide

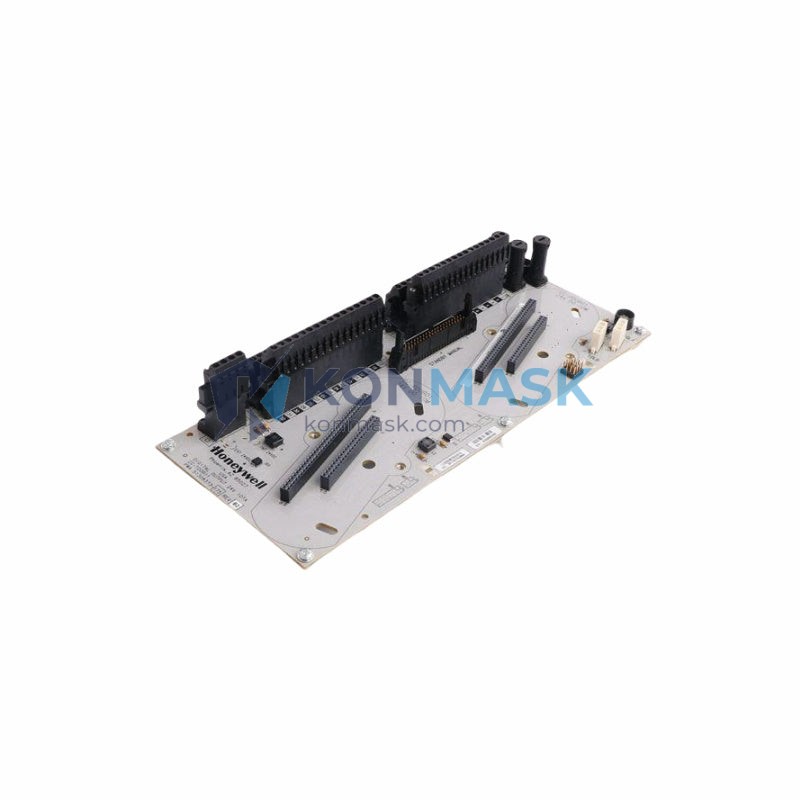

The Honeywell FC-TSAOH-0220m is a Safety Analog Output module designed for use within Honeywell’s Safety Manager and Experion PKS safety systems. It delivers SIL-rated analog output signals for critical process control applications in oil & gas, petrochemical, power generation, and industrial automation environments. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Part Number: FC-TSAOH-0220m
- Manufacturer: Honeywell Process Solutions
- Module Type: Safe Analog Output (SAO)
- Series: Safety Manager / Experion PKS FSC Series
- Output Channels: 2 channels (0–20 mA / 4–20 mA configurable)
- Output Signal: 4–20 mA current loop (HART-compatible)
- Safety Integrity Level: SIL 2 / SIL 3 capable (IEC 61508)
- Isolation: Channel-to-channel and channel-to-bus galvanic isolation
- Power Supply: 24 VDC (via backplane)
- Operating Temperature: 0°C to +60°C
- Humidity: 5%–95% RH, non-condensing
- Mounting: DIN rail / rack-mount via FSC chassis
- Certifications: TÜV, IEC 61508, ATEX (zone 2 compatible)
- Weight: Approx. 2,000 g (module + housing)
- Communication: Proprietary Honeywell FSC backplane bus
Compatible Replacement & Equivalent Models
When the FC-TSAOH-0220m is unavailable or end-of-life, the following models may serve as functional replacements or equivalents depending on system configuration. Always verify compatibility with your system integrator before substitution.
- Honeywell FC-TSAOH-0224m — 4-channel variant; same series, higher channel density
- Honeywell FC-SAO-0824 — 8-channel safe analog output; suitable for expanded I/O requirements
- Honeywell FC-TSAIH-0202m — Safe Analog Input counterpart for paired I/O architectures
- Triconex 3805E — Schneider Electric SIL 3 analog output module; cross-platform alternative for TMR architectures
- HIMA F3 AO 8/4 01 — HIMA SIL 3 analog output module; compatible with HIMax/HIMatrix safety systems
- Pilz PSSu E F 4AO — Pilz safe analog output for PSSuniversal multi systems
Note: Cross-brand replacements require full system re-validation per IEC 61511. Konmask.com recommends consulting your safety engineer before substitution.
Why Choose the Original FC-TSAOH-0220m
- Certified SIL 2/3 Performance: Factory-validated safety integrity level eliminates re-certification overhead in existing FSC installations.
- Seamless FSC Integration: Plug-and-play compatibility with Honeywell Safety Manager and Experion PKS without firmware changes.
- Proven Field Reliability: Widely deployed in upstream oil & gas, LNG terminals, and refinery safety instrumented systems (SIS).
- Long Service Life: Designed for 10+ year operational cycles with minimal maintenance requirements.
- OEM Traceability: Full factory documentation, test certificates, and serialized traceability available.
Typical Applications
- Safety Instrumented Systems (SIS) — ESD, F&G, and HIPPS loops
- Oil & gas upstream / midstream / downstream process control
- LNG liquefaction and regasification terminals
- Petrochemical and refinery DCS/SIS integration
- Power generation turbine and boiler safety systems
- Offshore platform safety and control systems
- Chemical plant emergency shutdown systems
System Compatibility
- Honeywell Safety Manager SC (primary platform)
- Honeywell Experion PKS (integrated SIS architecture)
- Honeywell FSC (Fail-Safe Controller) legacy systems
- Honeywell TotalPlant Solution (TPS) — via gateway integration
Not compatible with: Honeywell HC900, Honeywell PlantScape (without gateway), or third-party DCS platforms without engineering adaptation.
Selection Guide
Use the following criteria to confirm the FC-TSAOH-0220m is the correct module for your application:
- Channel Count: Requires exactly 2 analog output channels per module slot → FC-TSAOH-0220m ✓
- Output Range: 4–20 mA current loop required → FC-TSAOH-0220m ✓
- Safety Level: SIL 2 or SIL 3 loop requirement → FC-TSAOH-0220m ✓
- Platform: Honeywell Safety Manager or FSC chassis → FC-TSAOH-0220m ✓
- Need 4 channels? → Consider FC-TSAOH-0224m
- Need 8 channels? → Consider FC-SAO-0824
- Non-Honeywell platform? → Contact Konmask for cross-platform engineering support
Quality Assurance & Sourcing
- All modules sourced through authorized distribution channels or verified surplus with full traceability documentation.
- Pre-shipment functional testing available upon request.
- Original OEM packaging and serialization preserved where applicable.
- Certificate of Conformance (CoC) and test reports provided with each unit.
- Anti-counterfeit verification: Konmask.com performs visual inspection, serial number validation, and functional bench testing on all safety-critical modules.
How to Order
- Part Number: FC-TSAOH-0220m
- Minimum Order Quantity: 1 unit
- Lead Time: In-stock units ship within 3–5 business days; sourced units 2–4 weeks
- Shipping: DHL / FedEx international express; EXW Xiamen available
- Payment: T/T, PayPal, credit card accepted
- RFQ: Email support@konmask.com with quantity, delivery location, and required documentation
Replacement & Compatibility FAQ
Q: Can I replace FC-TSAOH-0220m with FC-TSAOH-0224m directly?
A: Yes, in most FSC chassis configurations. The 0224m offers 4 channels vs. 2; unused channels can be left unconfigured. Verify slot compatibility in your system’s I/O assignment table.
Q: Is the FC-TSAOH-0220m still in production?
A: Honeywell has transitioned some FSC-series modules to Safety Manager SC platform. Contact Konmask to confirm current availability and recommended migration path.
Q: Can this module be used in a non-safety (standard DCS) application?
A: Technically possible but not recommended. The module is optimized and certified for SIL-rated safety loops; using it in standard DCS wastes safety-rated capacity and may complicate maintenance documentation.
Q: What documentation is included with purchase?
A: Certificate of Conformance, functional test report, and original Honeywell datasheet reference. Full factory test certificates available for new/unused units.
Q: Do you offer repair or exchange services?
A: Yes. Konmask.com offers module exchange and third-party repair services for select Honeywell FSC I/O modules. Contact us for evaluation.
