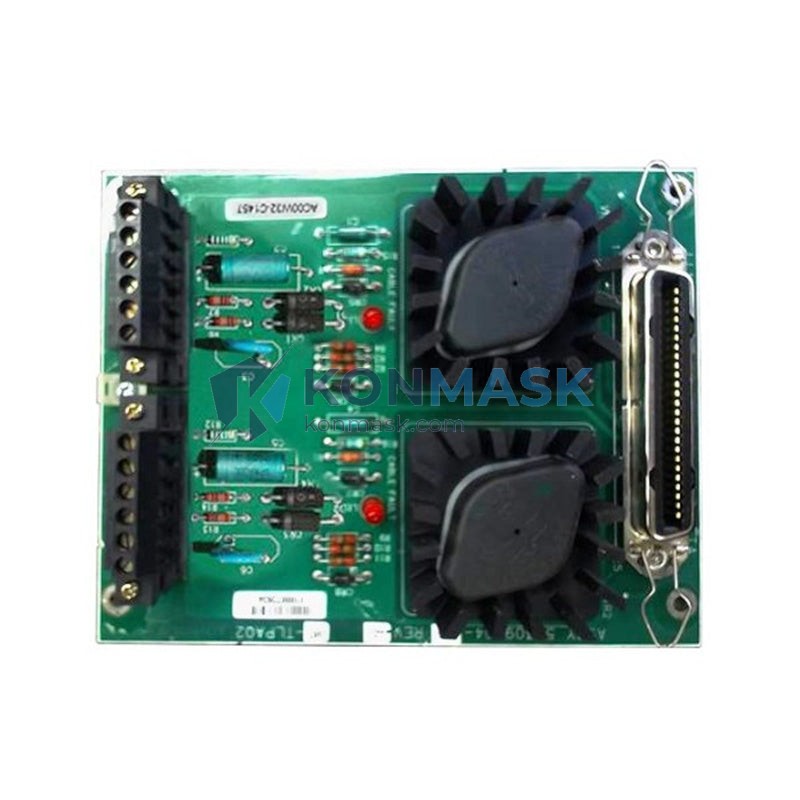

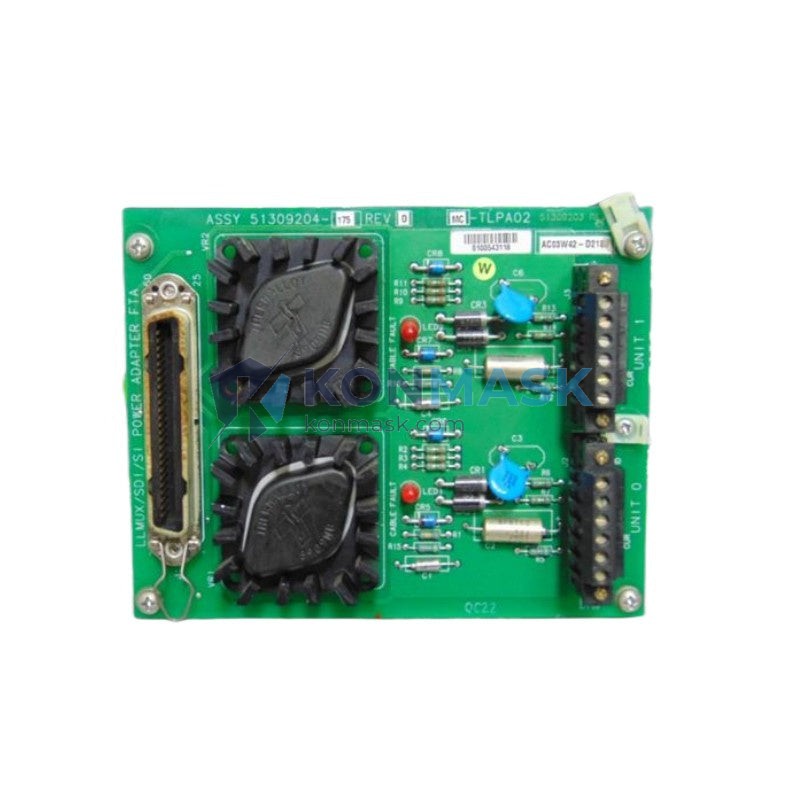

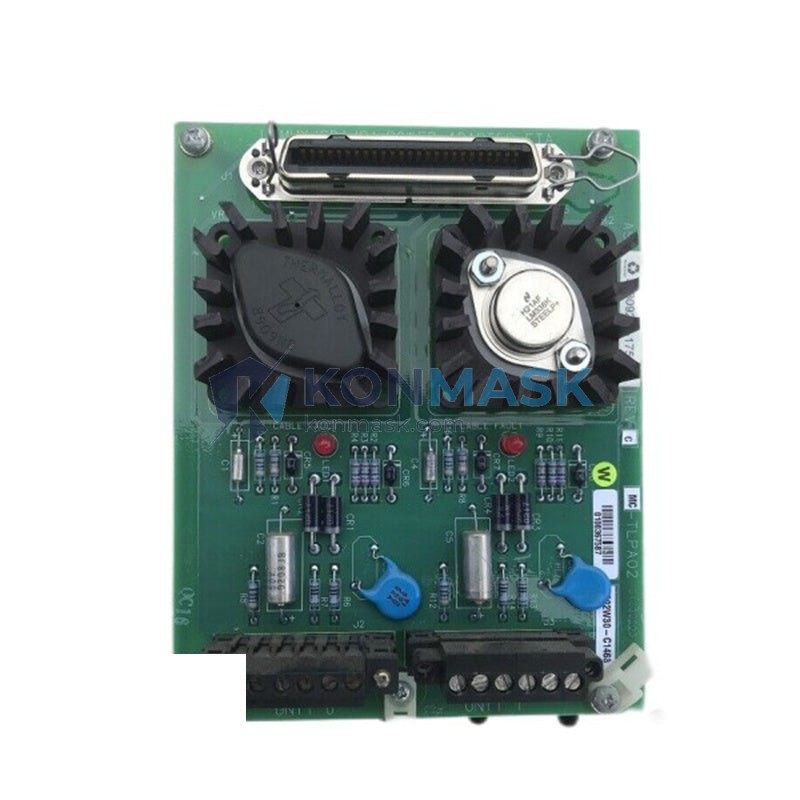

Honeywell MC-TLPA02 51309204-175 Power Adapter | Replacement, Equivalent & Selection Guide
The Honeywell MC-TLPA02 (P/N: 51309204-175) is a dedicated power adapter designed for use within Honeywell’s Experion PKS and TotalPlant Solution (TPS) distributed control system (DCS) platforms. It provides stable, regulated power to I/O termination assemblies and field interface modules, ensuring reliable operation in demanding industrial environments.
Technical Specifications
| Manufacturer | Honeywell Process Solutions |
| Model / Part Number | MC-TLPA02 / 51309204-175 |
| Series | Experion PKS / TotalPlant Solution (TPS) |
| Function | Power Adapter for I/O Termination Assembly |
| Input Voltage | 24 VDC (nominal) |
| Output | Regulated DC power to termination modules |
| Mounting | DIN rail / panel mount compatible |
| Weight | 550 g (approx.) |
| Operating Temperature | 0°C to 60°C |
| Certifications | CE, UL (refer to official datasheet for full listing) |
| Condition Available | New, Surplus New, Refurbished |
Compatible Replacement & Equivalent Models
When the MC-TLPA02 is unavailable or discontinued, the following models may serve as functional equivalents or drop-in replacements depending on your system revision. Always verify compatibility with your system integrator before substitution.
| Model | Brand | Notes |
|---|---|---|
| 51309204-175 | Honeywell | Same unit, alternate P/N reference |
| MC-TLPA01 | Honeywell | Earlier revision; verify firmware compatibility |
| MC-TLPA03 | Honeywell | Later revision; check mechanical fit |
| 51304485-100 | Honeywell | TPS-era equivalent; confirm I/O bus compatibility |
Note: Cross-referencing should be confirmed against Honeywell’s official compatibility matrix or with a certified system integrator.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-matched to Experion PKS and TPS I/O termination assemblies with no firmware or hardware modification required.
- Stable Power Delivery: Precision-regulated output minimizes noise and voltage fluctuation that can affect analog signal integrity.
- Long Service Life: Industrial-grade components rated for continuous 24/7 operation in process control environments.
- OEM Support: Eligible for Honeywell service contracts and firmware updates.
- Reduced Risk: Avoids integration risk associated with third-party substitutes in safety-critical DCS applications.
Typical Applications
- Honeywell Experion PKS C300 controller cabinets
- TotalPlant Solution (TPS) I/O link termination panels
- Process industries: oil & gas, refining, petrochemical, power generation
- Pharmaceutical and specialty chemical batch control systems
- Pulp & paper and water treatment DCS installations
System Compatibility
| Platform | Compatible | Notes |
|---|---|---|
| Experion PKS R400+ | ✅ Yes | Primary target platform |
| Experion PKS R300 | ✅ Yes | Verify revision suffix |
| TotalPlant Solution (TPS) | ✅ Yes | Legacy TPS I/O termination |
| Experion LX / LS | ⚠️ Verify | Confirm with Honeywell BOM |
| Safety Manager / FSC | ❌ No | Different power architecture |
Selection Guide
Use the following criteria to confirm the MC-TLPA02 is the correct part for your application:
- Identify your DCS platform: Confirm Experion PKS or TPS — not Safety Manager or Experion LX.
- Check the termination assembly model: The MC-TLPA02 pairs with specific MC-series I/O termination assemblies. Cross-reference your cabinet BOM.
- Verify the P/N suffix: 51309204-175 denotes a specific hardware revision. Confirm this matches your existing installed base.
- Assess condition requirements: For critical loops, specify New or Surplus New. Refurbished units are suitable for non-critical or spare applications.
- Quantity & lead time: Contact us for bulk pricing and availability on short lead-time requirements.
Quality Assurance & Sourcing
All Honeywell modules sourced through Konmask.com undergo the following quality process:
- Visual inspection and label verification against OEM markings
- Functional power-on test where applicable
- Anti-static packaging and climate-controlled storage
- Traceability documentation available on request
- 90-day warranty on surplus and refurbished units; new units carry OEM warranty
We source from authorized distributors, controlled surplus channels, and decommissioned plant inventories with full chain-of-custody records.
How to Order
- Add the MC-TLPA02 to your cart or submit a Request for Quote (RFQ) via our contact form.
- Specify required condition (New / Surplus New / Refurbished) and quantity.
- Our team will confirm availability, lead time, and pricing within 1 business day.
- Payment via T/T bank transfer, PayPal, or credit card. Export documentation available for international orders.
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the MC-TLPA02 replace the MC-TLPA01 directly?
A: In most cases yes, but the hardware revision suffix must be verified. Some earlier TPS cabinets require the -100 or -150 suffix variant. Confirm with your system documentation.
Q: Is this module compatible with Honeywell Safety Manager?
A: No. The Safety Manager uses a separate power architecture. Do not substitute MC-TLPA series adapters in SIL-rated safety loops.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes, CoC and test reports are available for new and surplus new units upon request.
Q: What is the lead time for new units?
A: Surplus stock ships within 3–5 business days. New OEM orders may require 4–12 weeks depending on Honeywell’s current production schedule.
Q: Can I return a module if it doesn’t fit my system?
A: Yes, within 30 days of receipt in original condition. Please contact support before returning.
