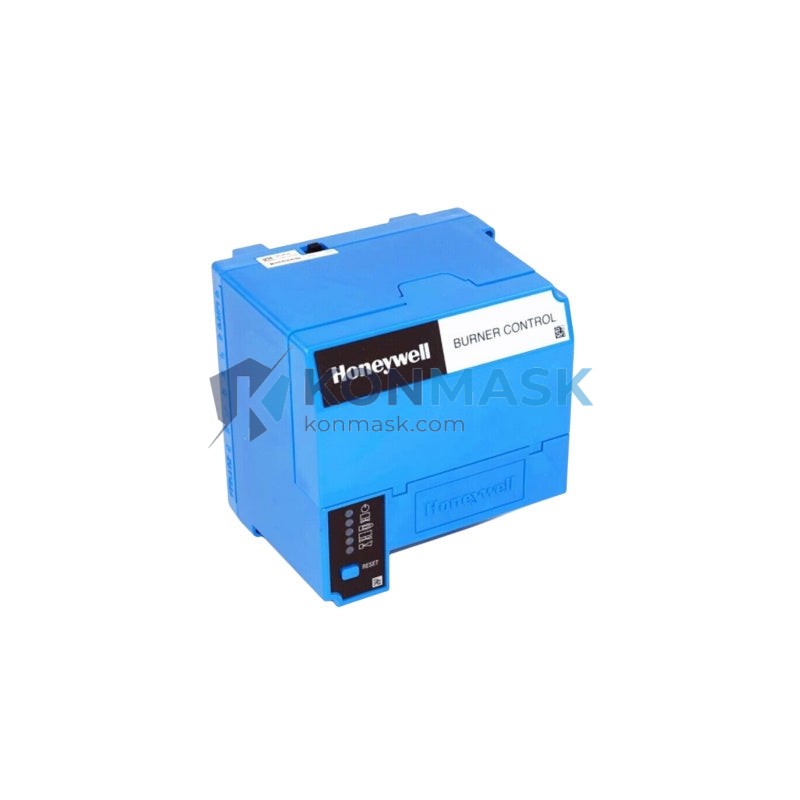

Honeywell RM7830A1003 Burner Control | Replacement, Equivalent & Selection Guide
The Honeywell RM7830A1003 is a microprocessor-based programmable primary flame safeguard control designed for industrial and commercial burner management systems. This page provides a comprehensive selection guide, compatible replacement models, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: Honeywell (Resideo / Honeywell Process Solutions)
- Model / Part Number: RM7830A1003
- Series: RM7830 Relay Module Series
- Function: Programmable Burner Primary Control / Flame Safeguard Relay
- Supply Voltage: 120 VAC, 60 Hz
- Flame Detector Compatibility: UV, IR, and Rectification flame detectors
- Purge Timing: Programmable (via plug-in Purge Timer Card)
- Trial for Ignition (TFI): Programmable
- Recycling: Programmable (recycle or non-recycle on flame failure)
- Operating Temperature: -40°C to +60°C (–40°F to +140°F)
- Enclosure: Plug-in module, DIN-rail compatible base
- Approvals: UL Listed, CSA Certified, CE Marked
- Weight: Approx. 2.6 kg (with base and accessories)
Compatible Replacement & Equivalent Models
When the RM7830A1003 is unavailable or discontinued, the following models may serve as functional equivalents or replacements depending on application requirements. Always verify electrical and timing compatibility before substitution.
- Honeywell RM7840L1018 – Next-generation RM7840 series; enhanced diagnostics, same base footprint
- Honeywell RM7840G1014 – Gas/oil burner variant with expanded I/O
- Honeywell RM7838B1013 – Compact equivalent for smaller burner systems
- Fireye E110 – Third-party equivalent; verify flame detector and timing compatibility
- Siemens LME73 – European-standard equivalent for CE-only applications
- Autoflame MM – Advanced replacement with modulating burner control capability
⚠ Note: Replacement models may require different wiring bases, purge timer cards, or configuration. Consult Konmask technical support before ordering a substitute.
Why Choose the Original RM7830A1003
- Proven Reliability: Millions of units deployed globally in industrial boiler and burner systems
- Exact OEM Fit: Drop-in replacement for existing RM7830-series bases — no rewiring required
- Programmable Flexibility: Purge time, TFI, and recycle behavior configurable via plug-in cards
- Multi-Detector Support: Compatible with UV, IR, and rectification flame sensors
- Regulatory Compliance: UL, CSA, and CE certified for North American and international installations
- Long Service Life: Designed for continuous duty in demanding combustion environments
Typical Applications
- Industrial boiler burner management systems (BMS)
- Commercial heating plant flame safeguard control
- Process heater and fired equipment control panels
- Thermal oxidizer and incinerator burner sequencing
- Power generation auxiliary boiler controls
- Food processing and pharmaceutical steam generation
System Compatibility
- Bases: Honeywell Q7800A, Q7800B wiring bases
- Purge Timer Cards: Honeywell Q7800C (30 s, 60 s, 90 s, 120 s, 180 s options)
- Amplifiers: Honeywell R7847, R7848, R7849, R7851 flame amplifiers
- Display Modules: Honeywell S7800A1001 Keyboard Display Module (KDM)
- Annunciators: Compatible with Honeywell RA890F and RA7800 series
- BMS Integration: Supports Modbus RTU via optional communication module
Selection Guide
Use the following criteria to determine whether the RM7830A1003 is the right choice — or to identify the best alternative:
- Voltage: Confirm 120 VAC / 60 Hz supply. For 240 VAC or 50 Hz, consider RM7830A1004 or RM7840 variants.
- Flame Detector Type: UV → R7847/R7849 amplifier; IR → R7848; Rectification → R7851. Verify amplifier compatibility.
- Purge Time Requirement: Select appropriate Q7800C purge timer card (30–180 s).
- Recycle vs. Non-Recycle: RM7830A1003 supports both modes via programming — confirm with your safety engineer.
- Regulatory Jurisdiction: UL/CSA for North America; CE for EU. For ATEX zones, consult Konmask for certified variants.
- Budget vs. OEM: If cost is a constraint, Fireye E110 or Siemens LME73 may offer savings — contact us for a comparison quote.
Quality Assurance & Sourcing
- ✅ Genuine OEM Stock: Sourced directly from Honeywell-authorized distributors and verified supply chains
- ✅ Inspection Protocol: Each unit inspected for physical integrity, label authenticity, and date code verification
- ✅ Traceability: Full lot traceability documentation available on request
- ✅ Warranty: 12-month warranty against manufacturing defects
- ✅ Global Shipping: DHL / FedEx / UPS express worldwide; export documentation included
How to Order
- Confirm Part Number: Verify RM7830A1003 matches your existing unit’s label and base type
- Request a Quote: Email support@konmask.com with quantity and delivery requirements
- Receive Proforma Invoice: We issue PI within 1 business day with lead time and shipping options
- Payment & Dispatch: T/T, PayPal, or credit card accepted; ships within 3–5 business days of payment
- Track & Receive: Tracking number provided; typical transit 5–10 business days internationally
Replacement & Compatibility FAQ
Q: Can I replace RM7830A1003 with RM7840L1018 directly?
A: The RM7840 series uses the same Q7800 wiring base, making it a common upgrade path. However, purge timer cards and amplifiers must be re-verified. Contact us for a compatibility check.
Q: Is the RM7830A1003 still in production?
A: Honeywell has transitioned to the RM7840 series as the primary product line. RM7830A1003 units are available as new-old-stock (NOS) or refurbished. We maintain stock — inquire for availability.
Q: Do you supply the wiring base separately?
A: Yes. Honeywell Q7800A and Q7800B bases are available. Please specify when ordering.
Q: Can Konmask provide a cross-reference for my existing control?
A: Absolutely. Send us your existing part number, nameplate photo, and application details — we will provide a verified cross-reference within 24 hours.
Q: What is the lead time for out-of-stock units?
A: Typical sourcing lead time is 2–4 weeks for NOS units. Expedited sourcing available for urgent requirements.
