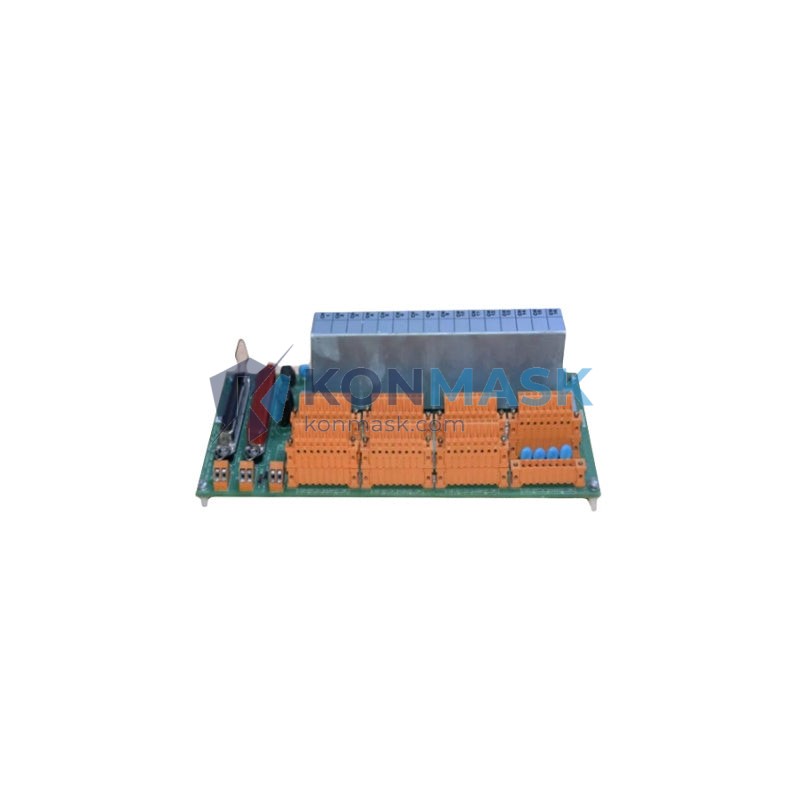

HONEYWELL MC-TAIH22 51204170-250 – High Level Analog Input Module | TotalPlant Solution (TPS) Platform
Engineering Background
The MC-TAIH22 (part number 51204170-250) is a high-level analog input module designed for Honeywell’s TotalPlant Solution (TPS) and TDC 3000 distributed control system platforms. It serves as a critical signal acquisition node, converting field-level process signals into digital values for the process controller. Deployed across refineries, chemical plants, and power generation facilities worldwide, this module represents Honeywell’s commitment to precision measurement and long-term platform continuity.
Product Positioning
Targeted at maintenance engineers and procurement specialists managing legacy TPS/TDC 3000 infrastructure, the MC-TAIH22 provides a direct drop-in replacement path without requiring controller reconfiguration or I/O mapping changes. Konmask.com supplies this module from verified industrial surplus and authorized distribution channels, ensuring functional integrity for critical process environments.
Complete Technical Specifications
| Manufacturer | Honeywell Process Solutions |
| Model / Part Number | MC-TAIH22 / 51204170-250 |
| Module Type | High Level Analog Input (HLAI) |
| Platform Compatibility | TotalPlant Solution (TPS), TDC 3000, HPM, APM |
| Number of Input Channels | 16 channels (differential) |
| Input Signal Range | 1–5 V DC (standard HLAI), 4–20 mA (with external resistor) |
| Input Impedance | > 1 MΩ (voltage mode) |
| Resolution | 12-bit A/D conversion |
| Accuracy | ±0.1% of full scale |
| Scan Rate | Configurable per controller cycle |
| Isolation | Channel-to-bus optical isolation |
| Power Consumption | Supplied via IOP backplane (5 VDC, 24 VDC) |
| Operating Temperature | 0°C to +60°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | IOP card cage / backplane slot |
| Dimensions | Standard Honeywell IOP card form factor |
| Weight | Approx. 500 g |
| Certifications | CE, UL listed (per platform certification) |
| Country of Origin | USA |
Proven Application Environments
- Oil & Gas Refining: Continuous monitoring of temperature, pressure, and flow transmitters across distillation and cracking units.
- Petrochemical Plants: Multi-loop analog acquisition for reactor temperature profiling and feed-forward control.
- Power Generation: Boiler and turbine analog signal collection in HPM-based control architectures.
- Pulp & Paper: Process variable monitoring in TDC 3000 legacy installations requiring long-term spare availability.
- Pharmaceutical Manufacturing: Validated process environments where module traceability and documentation are mandatory.
Engineering Advantages
- Direct Backward Compatibility: Plug-and-play replacement within existing TPS/TDC 3000 IOP card cages — no firmware or database changes required.
- High Channel Density: 16 differential analog inputs per module minimizes card cage slot consumption and reduces wiring complexity.
- Optical Isolation: Channel-to-bus isolation protects the controller backplane from field-side transients and ground loops.
- Proven Long-Term Reliability: Honeywell’s IOP module family is field-proven across 30+ years of continuous industrial deployment.
- Simplified Spare Management: Single module type covers a wide range of HLAI applications, reducing spare parts inventory complexity.
System Architecture & Signal Flow
The MC-TAIH22 resides in the I/O Processor (IOP) card cage and communicates with the High-Performance Process Manager (HPM) or Advanced Process Manager (APM) via the IOP backplane bus. Field transmitters (1–5 V or 4–20 mA with shunt resistor) connect to the module’s terminal assembly. The module performs A/D conversion, applies engineering unit scaling configured in the TPS database, and passes process values to the controller for closed-loop execution. Redundant IOP configurations are supported for critical loops.
Sourcing & Quality Verification
- All MC-TAIH22 modules supplied by Konmask.com are sourced from verified industrial surplus, authorized distributors, or decommissioned plant inventories with documented service history.
- Each unit undergoes visual inspection, label verification (part number, revision, date code), and functional pre-shipment checks where test equipment is available.
- Certificates of conformance and original Honeywell documentation are provided upon request.
- Konmask.com does not supply counterfeit, remarked, or unverified components — all sourcing is traceable.
Procurement Process
- Confirm Part Number: Verify MC-TAIH22 / 51204170-250 matches your TPS database configuration and IOP cage revision.
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for current stock availability and lead time.
- Submit Purchase Order: Provide your billing/shipping details and any required documentation (COC, test reports).
- Shipment & Tracking: Orders are dispatched with full tracking. Export documentation (commercial invoice, packing list) included for international shipments.
- Incoming Inspection: Recommended — verify part number label, revision marking, and physical condition upon receipt before installation.
Technical FAQ
Q: Is the MC-TAIH22 compatible with both TPS and TDC 3000 systems?
A: Yes. The module is designed for Honeywell’s IOP architecture used across TPS, TDC 3000, HPM, and APM platforms. Confirm your IOP cage revision for full compatibility.
Q: Can this module accept 4–20 mA inputs directly?
A: The HLAI module is natively configured for 1–5 V inputs. 4–20 mA signals require a 250 Ω shunt resistor at the terminal assembly to convert to voltage. Consult your TPS I/O configuration documentation.
Q: What is the lead time for this module?
A: Lead time depends on current stock levels. Contact Konmask.com directly for real-time availability. In-stock units typically ship within 1–3 business days.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all supplied modules. Extended warranty options are available upon request.
Q: Can you supply the associated terminal assembly or cable?
A: Yes. Associated Honeywell IOP terminal assemblies and field termination accessories can be quoted separately. Please specify your requirements when contacting us.
