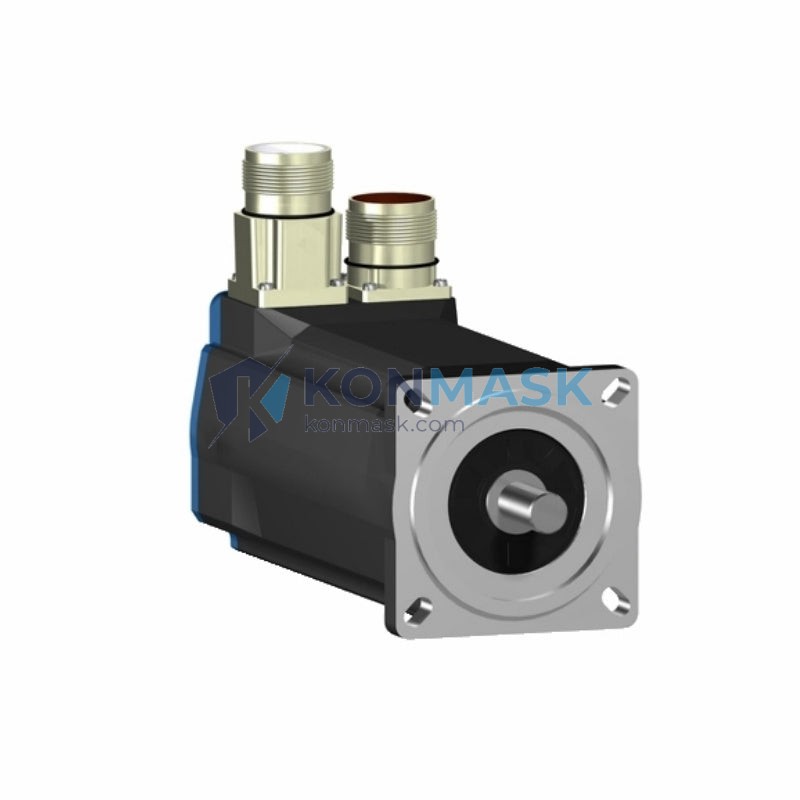

Jetter JL4-0530-32-3RVP AC Servo Motor – JL4 Series Compact Precision Drive
When a servo motor fails on a high-speed packaging line or a CNC machining center, the entire production cell stops. Unplanned downtime in industrial automation can cost thousands of dollars per hour — and sourcing an exact OEM replacement quickly is the difference between a brief interruption and a catastrophic production loss. The Jetter JL4-0530-32-3RVP is the precision-engineered replacement that restores your system to full specification without compromise.
Within the Jetter JL4 servo motor series, the JL4-0530-32-3RVP occupies the compact, high-dynamic segment — designed for applications demanding precise torque delivery, low cogging, and seamless integration with Jetter JetControl and JX series servo drives. Jetter AG, headquartered in Ludwigsburg, Germany, is a globally recognized specialist in motion control and automation technology, with JL4 series motors deployed across Europe, Asia, and North America in demanding OEM machinery.
Technical Specifications
- Part Number / SKU: JL4-0530-32-3RVP
- Brand: Jetter AG (Germany)
- Series: JL4 Servo Motor Series
- Motor Type: AC Synchronous Servo Motor
- Encoder: Resolver / Encoder (per model suffix -3RVP)
- Protection Class: IP65 (shaft seal standard)
- Flange Size: 80 mm (Frame Size 3)
- Weight: Approx. 13.6 kg
- Cooling: Natural convection (self-cooled)
- Mounting: Flange mount, IEC standard
- Compatibility: Jetter JetControl, JX2, JX3 servo drive series
Note: Full electrical specifications (rated torque, speed, power) are available upon request. Contact our technical team for the official datasheet.
Key Features & Benefits
- High Dynamic Response: Low rotor inertia enables rapid acceleration and deceleration cycles, critical for high-throughput automation.
- Precision Feedback: Integrated resolver/encoder (-3RVP suffix) delivers accurate position and speed feedback for closed-loop control.
- Compact Footprint: 80 mm flange frame allows installation in space-constrained machine cabinets and robotic end-effectors.
- Robust Construction: IP65-rated housing withstands coolant splash, dust, and industrial wash-down environments.
- OEM-Grade Quality: Manufactured to Jetter AG factory specifications — direct drop-in replacement for existing JL4 installations.
- Long Service Life: Premium bearings and winding insulation rated for continuous industrial duty cycles.
Industry & Equipment Applications
- Packaging Machinery: Form-fill-seal machines, cartoners, case packers requiring precise indexing.
- Printing & Converting: Web tension control, register mark tracking, slitter-rewinders.
- CNC Machine Tools: Axis drives for milling centers, lathes, and grinding machines.
- Robotics & Handling: Articulated robot joints, SCARA arms, pick-and-place systems.
- Textile Machinery: Yarn feed control, warp beam drives, knitting machine axes.
- Semiconductor & Electronics: PCB handling, wafer transport, precision dispensing systems.
System Integration & Compatible Parts
The JL4-0530-32-3RVP is designed for native integration with the Jetter JetControl motion controller platform and the JX2 / JX3 servo drive family. Compatible accessories and related components include:
- Jetter JX2 / JX3 Series Servo Drives
- Jetter JetControl 300 / 500 Motion Controllers
- Jetter motor power and feedback cables (shielded, drag-chain rated)
- Jetter JL4 series gearboxes and planetary reducers
- Jetter brake resistors and line filters
Contact our engineering team if you need assistance selecting compatible drive and cable assemblies for your specific machine configuration.
Our Quality Assurance Process
- Source Verification: All units are sourced from authorized distributors or directly from OEM-certified supply chains.
- Incoming Inspection: Each unit undergoes visual inspection, label verification, and packaging integrity check upon receipt.
- Functional Testing: Where applicable, motors are bench-tested for insulation resistance and encoder signal integrity before dispatch.
- Traceability: Full lot traceability maintained — serial numbers and batch records available on request.
- Warranty: 12-month warranty against manufacturing defects under normal operating conditions.
How to Order
- Submit an inquiry via the “Get a Quote” button or email support@konmask.com.
- Provide your machine model, current motor serial number, and required quantity.
- Our technical team will confirm compatibility, availability, and lead time within 24 hours.
- Receive a formal quotation with EXW / FOB / CIF pricing options.
- Confirm order and arrange payment via T/T, L/C, or other agreed terms.
- Shipment with full documentation: commercial invoice, packing list, COO, and test report.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo, and motion control components — not a generalist marketplace.
- Global Sourcing Network: Access to new, surplus, and refurbished stock from verified suppliers worldwide.
- Fast Response: Dedicated B2B inquiry team responds within 24 hours with technical confirmation and pricing.
- Export Documentation: Full export compliance support — commercial invoice, packing list, certificate of origin, and customs documentation.
- Trusted by Engineers: Serving maintenance engineers, procurement managers, and OEM builders across 30+ countries.
Frequently Asked Questions
- Q: Is the JL4-0530-32-3RVP a new or refurbished unit?
- A: We supply both new OEM units and professionally refurbished units depending on availability. The condition will be clearly stated in your quotation.
- Q: Can this motor be used with non-Jetter servo drives?
- A: The JL4-0530-32-3RVP is optimized for Jetter JX series drives. Use with third-party drives requires careful parameter matching — contact our team for technical guidance.
- Q: What is the lead time for this part?
- A: Lead time varies by stock availability. In-stock units ship within 3–5 business days. Out-of-stock items typically have a 2–6 week lead time. Confirm with our team at inquiry.
- Q: Do you provide a datasheet or technical documentation?
- A: Yes. Official Jetter datasheets and wiring diagrams are available upon request with your inquiry.
- Q: What shipping methods are available?
- A: We ship via DHL, FedEx, UPS, and sea freight. EXW, FOB Shenzhen, and CIF terms are available. All shipments include full export documentation.
