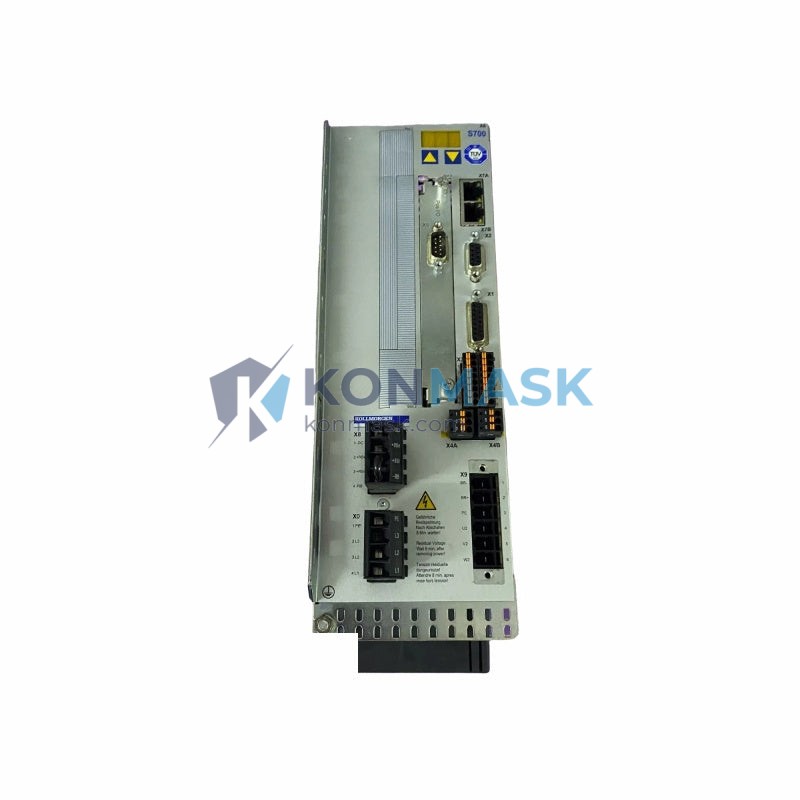

CNC & Motion Control Solution — Kollmorgen S7240S-NANAPM | S700 Series
Where This Product Is Used
The Kollmorgen S7240S-NANAPM is a high-performance brushless AC servo amplifier from the S700 Series, engineered for demanding motion control applications across multiple industries:
- CNC Machining Centers — Precision axis control for milling, turning, and grinding machines requiring tight velocity and position loops.
- Industrial Robotics — Multi-axis coordinated motion in articulated and SCARA robot arms where dynamic response is critical.
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and labeling lines demanding synchronised servo motion.
- Semiconductor & Electronics Assembly — Ultra-precise positioning stages in wafer handling and PCB drilling equipment.
- Printing & Converting — Web tension control and register correction on high-speed press lines.
- Material Handling & Conveyors — Servo-driven indexing tables, gantries, and automated storage/retrieval systems (AS/RS).
Technical Specifications
| Part Number (SKU) | S7240S-NANAPM |
| Manufacturer | Kollmorgen |
| Series | S700 Servo Amplifier Series |
| Drive Type | Brushless AC Servo Amplifier |
| Continuous Output Current | 24 A (rms) |
| Peak Output Current | 48 A (rms) |
| Supply Voltage | 3-phase 200–480 VAC, 50/60 Hz |
| Feedback Supported | Resolver, EnDat, Hiperface, SinCos, Incremental Encoder |
| Communication Interface | CANopen, EtherCAT (model-dependent), RS-232/485 |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +45 °C (ambient) |
| Weight | 3.9 kg |
| Certifications | CE, UL |
Note: Specifications are provided for reference. Always verify against the official Kollmorgen S700 datasheet for your application.
Why Engineers Specify This Model
- Wide Voltage Range — Accepts 200–480 VAC three-phase input, making it compatible with both North American and international power grids without additional transformers.
- Universal Feedback Compatibility — Supports resolver, EnDat 2.1/2.2, Hiperface, SinCos, and incremental encoders, reducing the need for separate interface cards.
- High Peak-to-Continuous Current Ratio (2:1) — Delivers 48 A peak for aggressive acceleration profiles while maintaining thermal stability at 24 A continuous.
- Integrated Safety Functions — STO (Safe Torque Off) compliant with IEC 61800-5-2, reducing external safety relay hardware.
- Compact DIN-Rail / Panel-Mount Form Factor — Optimised for tight cabinet layouts common in OEM machine designs.
- Kollmorgen WorkBench Software — Intuitive commissioning, auto-tuning, and diagnostics via PC, shortening machine startup time.
Complete System Bill of Materials
For a fully operational servo axis using the S7240S-NANAPM, engineers typically specify:
- Kollmorgen S7240S-NANAPM Servo Amplifier (this unit)
- Compatible Kollmorgen AKM or CD/CDR Series Brushless Servo Motor
- Feedback cable (resolver or encoder, shielded, application-length)
- Power cable (motor phase + brake, if applicable)
- 24 VDC control power supply (min. 2 A)
- EMC line filter (per CE installation requirements)
- Braking resistor (for high-inertia or vertical-axis loads)
- PLC or motion controller with CANopen / EtherCAT master port
Contact support@konmask.com for bundle pricing on complete axis kits.
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL Listed — Recognised for use in North American industrial control panels
- IEC 61800-5-2 — Functional Safety: STO (Safe Torque Off, SIL 2 / PLd)
- IEC 61800-3 — EMC requirements for adjustable speed electrical power drive systems
- RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU
Quality Assurance & Sourcing
Konmask.com specialises in industrial automation components for global B2B buyers. Every unit we supply undergoes the following process:
- Authenticity Verification — Parts are sourced from authorised distributors or verified surplus channels; counterfeit screening on arrival.
- Functional Inspection — Visual and electrical pre-shipment checks; firmware version documented where applicable.
- Secure Packaging — ESD-safe packaging with moisture barrier bags and foam cushioning for international freight.
- Traceability — Lot/date codes and serial numbers recorded for full supply-chain traceability.
- Warranty — 12-month warranty against manufacturing defects; DOA replacement policy.
How to Source This Part
- Request a Quote — Email support@konmask.com with your required quantity and delivery timeline.
- Confirm Availability — Our team will confirm stock status, lead time, and pricing within 1 business day.
- Place Order — Secure checkout via Konmask.com or proforma invoice for bank transfer / L/C.
- Shipping — DHL / FedEx / UPS express worldwide; sea freight available for bulk orders. Export documentation (CO, packing list, commercial invoice) provided.
- After-Sales Support — Technical assistance for installation and commissioning available via email or WhatsApp.
Application-Specific FAQ
Q: Is the S7240S-NANAPM compatible with Siemens or Fanuc PLCs?
A: Yes. The S700 series supports CANopen and EtherCAT fieldbus protocols, which are compatible with most major PLC brands including Siemens, Beckhoff, Omron, and Mitsubishi via standard motion function blocks.
Q: Can this drive operate a linear servo motor?
A: Yes, with appropriate feedback configuration. Contact us to confirm compatibility with your specific linear motor model.
Q: What is the difference between S7240S-NANAPM and other S700 variants?
A: The S7240S-NANAPM designates a 24 A continuous / 48 A peak single-axis amplifier with specific option codes (NA = no fieldbus card fitted at factory; PM = panel-mount). Confirm your exact requirements before ordering.
Q: Do you provide the Kollmorgen WorkBench software?
A: WorkBench is freely available from Kollmorgen’s website. We can assist with configuration file templates for common applications.
Q: Can I order a replacement for a failed unit urgently?
A: Yes. We maintain stock for expedited orders. Contact us via WhatsApp (+0086 19859288691) for same-day response on urgent requirements.
