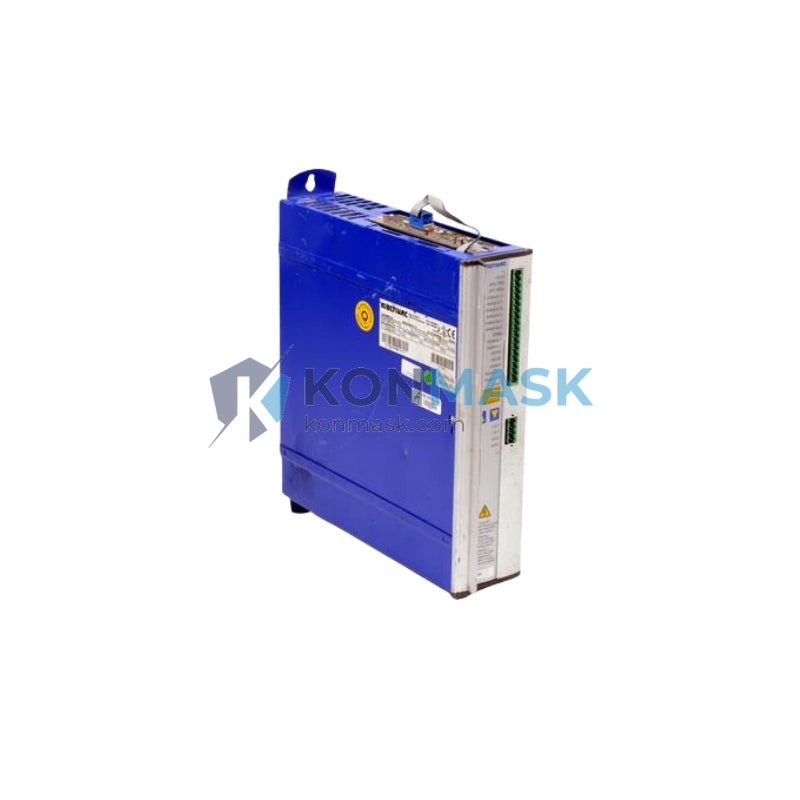

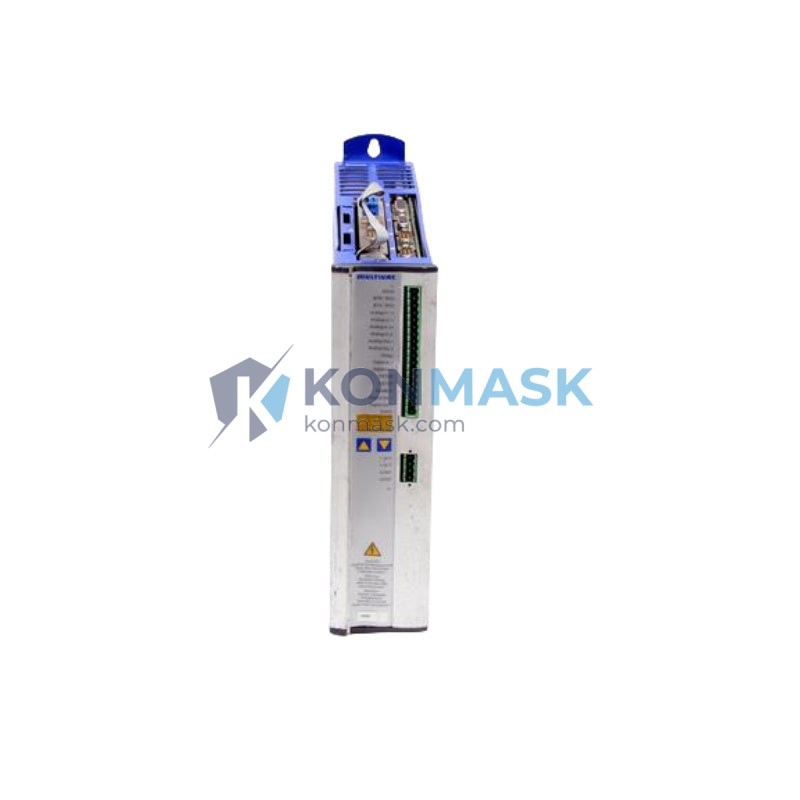

Motion Control Solution — KOLLMORGEN SERVOSTAR 610-AS | SERVOSTAR 600 Series
Where This Product Is Used
The KOLLMORGEN SERVOSTAR 610-AS digital servo amplifier is deployed across demanding industrial motion control environments where precision, dynamic response, and reliability are non-negotiable. Typical application sectors include:
- CNC Machining Centers & Grinding Machines — Axis positioning and spindle control requiring sub-micron repeatability.
- Packaging & Labeling Lines — High-speed indexing, registration control, and synchronized multi-axis coordination.
- Semiconductor & Electronics Assembly — Pick-and-place, wafer handling, and precision dispensing systems.
- Robotics & Collaborative Arms — Joint torque control and smooth velocity profiling for articulated robot axes.
- Printing & Converting Equipment — Web tension control, register correction, and nip-roll drives.
- Medical & Laboratory Automation — Diagnostic instrument actuators, surgical robot axes, and sample handling stages.
- Test & Measurement Rigs — Dynamic load simulation, fatigue testing, and force-controlled actuators.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SERVOSTAR 610-AS |
| Brand | KOLLMORGEN |
| Series | SERVOSTAR 600 |
| Drive Type | Digital AC Servo Amplifier |
| Continuous Output Current | 10 A (rms) |
| Peak Output Current | 20 A (rms) |
| Supply Voltage | 230 / 400 / 480 V AC, 3-phase |
| Control Modes | Torque / Velocity / Position |
| Feedback Supported | Resolver, Encoder (SinCos, TTL, EnDat, Hiperface) |
| Communication Interface | RS-232 / RS-485; optional CANopen / PROFIBUS / EtherCAT |
| I/O | Digital & Analog I/O configurable via DriveGUI |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +45 °C (ambient) |
| Storage Temperature | −25 °C to +70 °C |
| Humidity | ≤ 85 % RH, non-condensing |
| Mounting | Panel / DIN rail (vertical) |
| Certifications | CE, UL, cUL |
| Part Number / SKU | SERVOSTAR 610-AS |
Why Engineers Specify This Model
- Unified Multi-Mode Control — Seamlessly switch between torque, velocity, and position loops within a single drive, eliminating the need for separate amplifier variants per axis type.
- Wide Feedback Compatibility — Native support for resolver, SinCos, EnDat 2.1/2.2, Hiperface, and TTL encoders allows direct integration with KOLLMORGEN AKM, Goldline, and third-party servo motors.
- Safe Torque Off (STO / AS Function) — The “-AS” suffix denotes the integrated Safe Torque Off safety function (SIL 2 / PLd), enabling compliant machine safety architectures without external contactors.
- DriveGUI Software — Intuitive PC-based commissioning, auto-tuning, oscilloscope, and parameter management reduce setup time from hours to minutes.
- Fieldbus Flexibility — Optional plug-in communication cards support CANopen, PROFIBUS-DP, DeviceNet, and EtherCAT, protecting investment across evolving network architectures.
- Compact Footprint — Slim panel-mount form factor maximizes cabinet density in multi-axis systems.
Complete System Bill of Materials
For a fully operational servo axis based on the SERVOSTAR 610-AS, engineers typically specify the following complementary components:
- KOLLMORGEN AKM or Goldline series servo motor (matched torque/inertia class)
- Motor power cable & feedback cable (shielded, drag-chain rated)
- 24 V DC control power supply
- EMC line filter (KOLLMORGEN or equivalent, matched to drive rating)
- Braking resistor (external, if regenerative energy exceeds internal capacity)
- DriveGUI commissioning software (free download, KOLLMORGEN website)
- RS-232 / USB-to-serial programming cable
- Optional: fieldbus communication card (CANopen / PROFIBUS / EtherCAT)
- Optional: Safe Torque Off wiring kit and safety relay module
Compliance & Industry Standards
- CE Marking — Compliant with EU Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU.
- UL / cUL Listed — Recognized for use in North American industrial control panels.
- Safe Torque Off (STO) — Meets IEC 62061 SIL 2 and ISO 13849-1 PLd for functional safety.
- RoHS Compliant — Manufactured in accordance with EU Directive 2011/65/EU on restriction of hazardous substances.
- IEC 61800-5-1 — Adjustable speed electrical power drive systems — safety requirements.
Quality Assurance & Sourcing
Konmask.com sources KOLLMORGEN SERVOSTAR 610-AS units exclusively through verified industrial distribution channels. Every unit offered is subject to the following quality controls:
- Visual and mechanical inspection upon receipt
- Firmware version verification and documentation
- Traceability records retained for each serial number
- Original manufacturer packaging preserved where available
- 30-day functional warranty on all tested surplus units
We do not list units with unknown provenance, counterfeit risk, or missing safety labels. If you require a factory-new unit with full OEM warranty, please contact us — we can advise on lead times and authorized channel pricing.
How to Source This Part
- Add to Cart — Proceed directly if your application specs match the datasheet above.
- Request a Quote — For volume orders (3+ units), OEM pricing, or project-based procurement, email support@konmask.com with your project BOM.
- Technical Pre-Sales — Unsure if this model fits your motor or fieldbus? Contact our engineering team with your motor nameplate data and control architecture — we will confirm compatibility before you order.
- Expedited Shipping — Same-day dispatch available for in-stock units. DHL Express, FedEx International Priority, and sea freight options available.
Application-Specific FAQ
Q: Is the SERVOSTAR 610-AS compatible with third-party servo motors?
A: Yes. The drive supports standard resolver and encoder feedback protocols. Compatibility depends on motor feedback type and winding parameters. Contact us with your motor datasheet for a pre-sales compatibility check.
Q: What does the “-AS” suffix indicate?
A: The “-AS” designates the integrated Safe Torque Off (STO) safety function, compliant with SIL 2 / PLd. This allows the drive to be used in safety-rated machine stop circuits without an external power contactor.
Q: Can this drive be used on a 480 V supply?
A: Yes. The SERVOSTAR 600 series supports 230 V, 400 V, and 480 V AC three-phase input. Verify the specific input voltage range on the unit’s nameplate before installation.
Q: Is DriveGUI software included?
A: DriveGUI is available as a free download from KOLLMORGEN’s official website. A USB-to-RS-232 adapter and the appropriate cable are required for PC connection.
Q: Do you provide a warranty?
A: All units sold by Konmask.com carry a 30-day functional warranty. Extended warranty and repair services are available — please inquire at the time of order.
Q: Can you supply the matching KOLLMORGEN servo motor?
A: Yes. We stock a range of AKM and Goldline series motors. Provide your torque, speed, and feedback requirements and we will recommend a matched motor-drive pair.
