KUKA 00-291-556 – Robot Teach Pendant Kit Parts | KRC5 / smartPAD Platform
Engineering Background
The KUKA KRC5 controller generation introduced the smartPAD teach pendant as the primary human-machine interface for KUKA industrial robots. The smartPAD integrates a high-resolution touchscreen, enabling operators to program, jog, and monitor robot motion with precision. Over time, mechanical wear, cable fatigue, and connector stress can degrade pendant performance — making access to genuine OEM kit parts critical for minimizing unplanned downtime in production environments.
Product Positioning

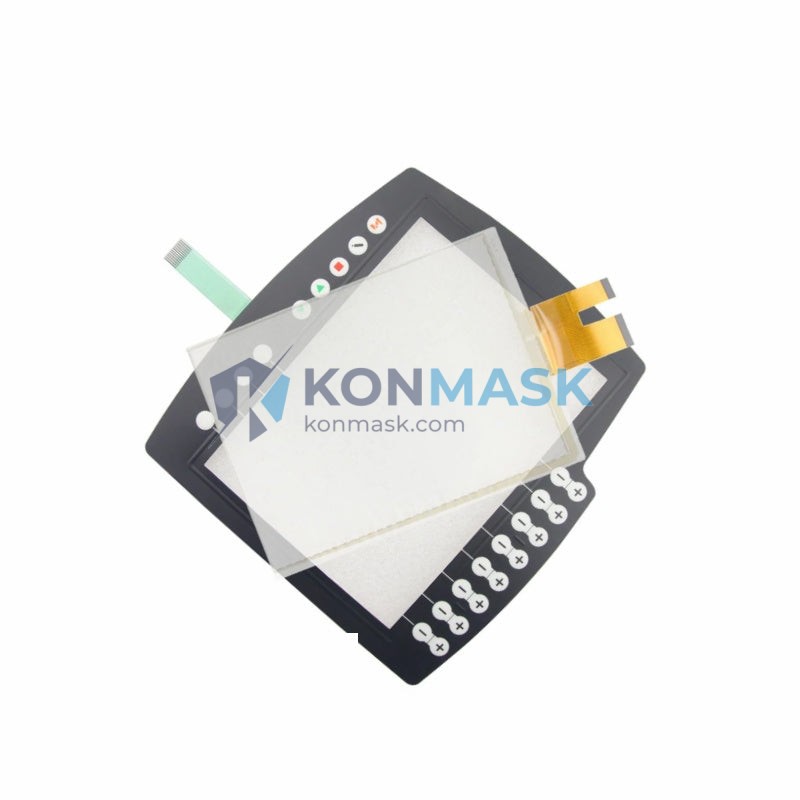

Part number 00-291-556 (cross-reference: C500-291-556) is an OEM-sourced teach pendant kit parts assembly for the KUKA KRC5 / KRC5 micro controller platform. Konmask.com supplies this component to MRO teams, system integrators, and OEM service engineers who require traceable, specification-compliant replacement parts without the lead times of direct factory orders.
Complete Technical Specifications
| Manufacturer Part Number | 00-291-556 |
| Cross-Reference / Alias | C500-291-556 |
| Compatible Controller | KUKA KRC5, KRC5 micro |
| Compatible Pendant | KUKA smartPAD (KRC5 generation) |
| Component Category | Teach Pendant Kit Parts / Repair Assembly |
| OEM Brand | KUKA Robotics |
| Weight | 420 g |
| Condition | New / Refurbished (specify at inquiry) |
| Warranty | 12 months (Konmask standard) |
| Export Classification | Available upon request |
Proven Application Environments
- Automotive body-in-white welding and assembly lines using KUKA KRC5 cells
- Palletizing and material handling systems with smartPAD operator interfaces
- Collaborative robot (LBR iisy) workcells requiring KRC5 micro pendant servicing
- Aerospace and precision manufacturing facilities with KUKA robot fleets
- MRO depots maintaining multi-robot KUKA installations
- System integrators performing robot refurbishment and resale
Engineering Advantages
- OEM Traceability: Part sourced from authorized KUKA supply channels — full documentation available on request.
- Drop-in Compatibility: Designed to factory specification for KRC5 / smartPAD — no field modification required.
- Reduced MTTR: Stocking this kit part reduces mean-time-to-repair for pendant failures from days to hours.
- Dual Part Number Coverage: Covers both 00-291-556 and C500-291-556 references, eliminating cross-reference ambiguity.
- Global Logistics: Ships from bonded warehouse with DHL Express, FedEx, and UPS options; export documentation included.
System Architecture & Signal Flow
The KUKA KRC5 teach pendant (smartPAD) communicates with the KRC5 cabinet via a proprietary KUKA smartPAD cable interface, transmitting operator inputs (motion commands, program selection, safety enable) and receiving real-time robot status feedback. The pendant kit parts covered by 00-291-556 support the mechanical and electrical integrity of this interface, ensuring signal continuity and operator safety compliance per EN ISO 10218-1.
Replacement of pendant kit components should be performed by a qualified KUKA-certified service technician following KUKA Service Manual procedures for the KRC5 platform.
Sourcing & Quality Verification
- All parts are inspected upon receipt against KUKA OEM specifications.
- Batch traceability records maintained for 5 years.
- Anti-static packaging (ESD-safe) for all electronic sub-assemblies.
- Certificate of Conformance (CoC) available upon request.
- Counterfeit-prevention: Konmask does not source from unauthorized grey-market channels.
Procurement Process
- Confirm your KRC5 controller serial number and smartPAD firmware version before ordering.
- Submit your PO or inquiry to support@konmask.com with your delivery timeline.
- Receive proforma invoice with lead time confirmation within 1 business day.
- Payment via T/T, PayPal, or credit card (Shopify Payments).
- Shipment with tracking number and export documents within 2–5 business days.
Technical FAQ
Q: Is 00-291-556 the same as C500-291-556?
A: Yes. C500-291-556 is an alternate KUKA internal reference for the same assembly. Both numbers refer to the identical part.
Q: Is this part compatible with KRC4 controllers?
A: No. This kit is specific to the KRC5 / smartPAD platform. For KRC4 teach pendant parts, please contact us separately.
Q: Can I install this part myself?
A: KUKA recommends installation by a certified service technician. Improper installation may void robot warranty and create safety risks.
Q: What is the lead time?
A: In-stock units ship within 2–5 business days. Out-of-stock lead time is 2–4 weeks. Contact us to confirm current availability.
Q: Do you provide a warranty?
A: Yes — 12 months from shipment date under Konmask standard warranty terms.
