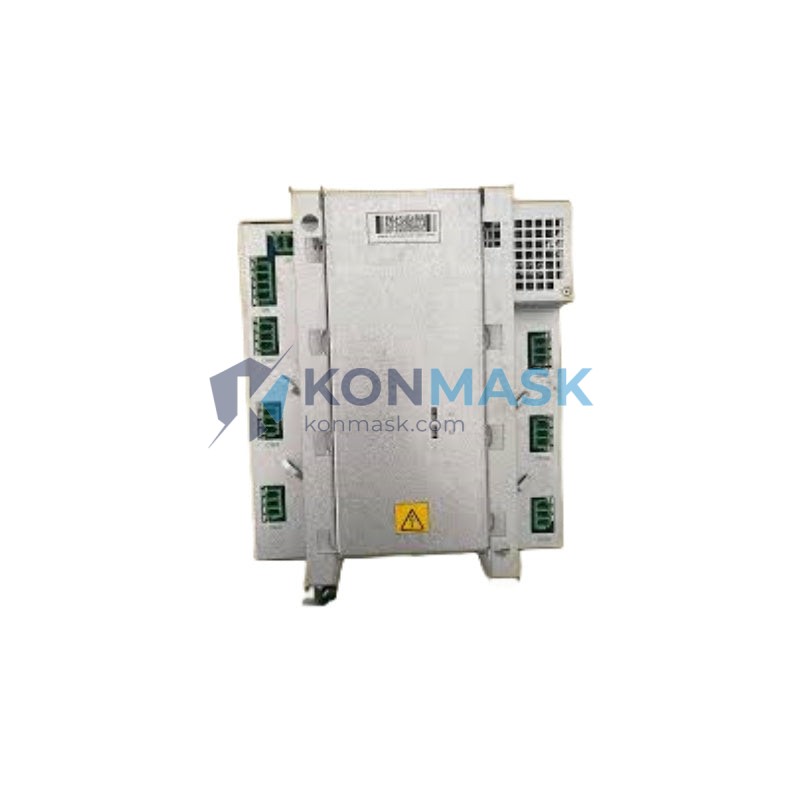

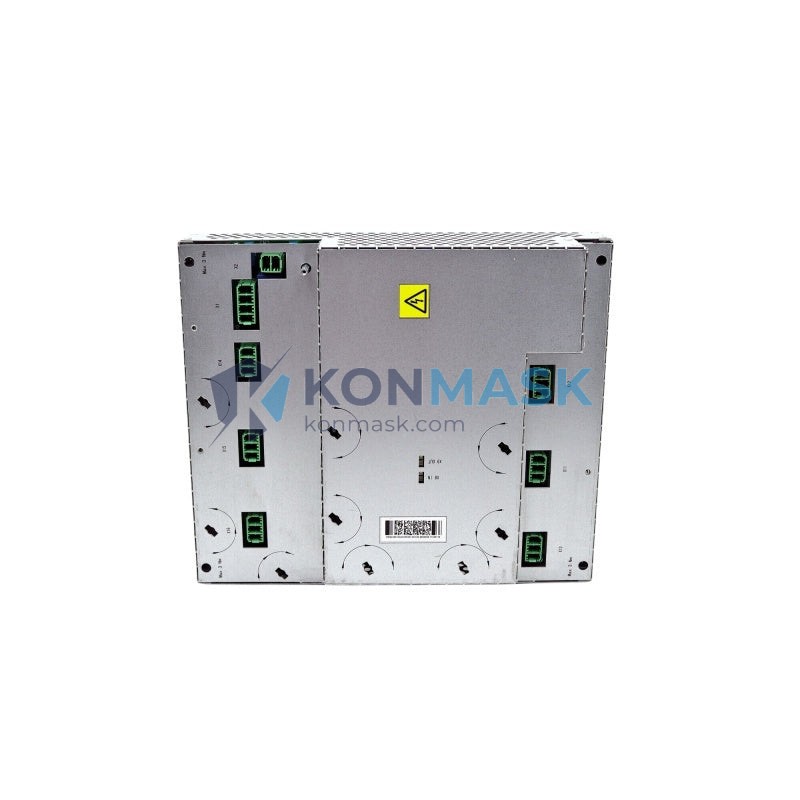

Industrial Robot Control Solution – KUKA IRC4X00-171-602 | IRC4 Series
Where This Product Is Used
The KUKA IRC4X00-171-602 control cabinet module is a core component deployed across demanding industrial automation environments. Typical application scenarios include:
- Automotive Body-in-White (BIW) Lines – Controls KUKA KR QUANTEC and KR AGILUS robots in spot welding, seam sealing, and press-tending cells where cycle-time precision is critical.
- Palletizing & Material Handling – Manages high-payload robots (KR 120–500 range) in end-of-line palletizing, depalletizing, and heavy-part transfer stations.
- Arc Welding Workcells – Provides stable power distribution and I/O management for continuous-duty MIG/TIG welding robots operating 24/7.
- Machine Tending & CNC Integration – Interfaces with Siemens SINUMERIK and Fanuc CNC controllers via PROFINET/EtherNet IP for lights-out machining cells.
- Semiconductor & Electronics Assembly – Used in cleanroom-adjacent environments requiring low-vibration, thermally stable cabinet electronics.
- Food & Beverage Processing – Deployed in hygienic-zone robot cells where cabinet reliability directly impacts OEE (Overall Equipment Effectiveness).
Technical Specifications
| Part Number | IRC4X00-171-602 |
| Manufacturer | KUKA Roboter GmbH |
| Series | IRC4 (IRC4 / IRC4 Compact / IRC4 Panel Mounted) |
| Country of Origin | Germany |
| Weight | 560 g |
| Compatible Robot Families | KR AGILUS, KR QUANTEC, KR CYBERTECH, KR IONTEC |
| Communication Interfaces | PROFINET, EtherNet/IP, DeviceNet (option-dependent) |
| Operating Temperature | 0 °C to +45 °C (cabinet ambient) |
| Protection Class | IP54 (cabinet-level) |
| Power Supply | 3-phase 200–480 V AC, 50/60 Hz |
| Condition | New / Refurbished OEM (specify at inquiry) |
Why Engineers Specify This Model
- OEM Part Number Accuracy – IRC4X00-171-602 is the exact KUKA factory reference, eliminating cross-reference errors during MRO procurement.
- Plug-and-Play Compatibility – Designed exclusively for the IRC4 platform; no firmware patching or hardware adaptation required.
- Reduced Downtime Risk – Stocking this module as a critical spare reduces unplanned downtime from hours to minutes in the event of cabinet failure.
- Thermal & EMC Robustness – German-engineered to withstand the electromagnetic noise and thermal cycling typical of heavy industrial environments.
- Long Service Life – Designed for the IRC4 platform lifecycle, ensuring availability of matching firmware and support documentation.
Complete System Bill of Materials
For a fully operational IRC4 control cabinet, engineers typically specify the following alongside this module:
- KUKA KPS 600 / KPS 1500 – Servo power supply unit
- KUKA KSP 600 – Servo drive module (axis-specific)
- KUKA CCU (Cabinet Control Unit) – Central control board
- KUKA smartPAD / KCP4 – Teach pendant
- KUKA RDC (Resolver Digital Converter) – Encoder interface board
- KUKA MFC3 / MFC4 – Multi-function card
- KUKA SIB / SIB Extended – Safety interface board
- 24 V DC PSU (Puls, Phoenix Contact, or KUKA OEM)
Contact support@konmask.com for bundled BOM pricing.
Compliance & Industry Standards
- CE Marking – Compliant with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.
- ISO 10218-1 – Robots and robotic devices – Safety requirements for industrial robots.
- IEC 61800-5-2 – Adjustable speed electrical power drive systems – Safety requirements.
- RoHS 2 (2011/65/EU) – Restriction of hazardous substances compliant.
- UL / cUL Listed – Available on select configurations for North American installations.
Quality Assurance & Sourcing
All KUKA components listed on Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes:
- Visual and dimensional inspection against OEM drawings
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator cards
- Traceable lot documentation retained for 5 years
We do not list grey-market or counterfeit parts. All inventory is backed by our 30-day return policy for DOA (Dead on Arrival) units.
How to Source This Part
- Add to Cart – For standard in-stock units, proceed directly to checkout.
- Request a Quote – For volume orders (5+ units), OEM bundle pricing, or lead-time confirmation, email support@konmask.com.
- Urgent MRO – Call or WhatsApp +0086 19859288691 for same-day shipping confirmation on critical breakdown situations.
- Export & Customs – We provide full commercial invoices, packing lists, and HS code documentation (HS: 8537.10) for international shipments.
Application-Specific FAQ
Q: Is IRC4X00-171-602 compatible with the IRC4 Compact cabinet?
A: Compatibility depends on the specific sub-assembly position. Please share your cabinet serial number and we will confirm fitment before shipment.
Q: Can this module be used with KUKA System Software (KSS) 8.x?
A: Yes. The IRC4 platform supports KSS 8.2 through 8.7. Firmware version compatibility should be verified against your CCU revision.
Q: Do you offer exchange / core return pricing?
A: Yes, for refurbished units we offer a core-exchange program. Contact us with your defective unit’s serial number for a credit evaluation.
Q: What is the lead time for out-of-stock units?
A: Standard lead time from KUKA distribution is 4–8 weeks. We maintain safety stock for high-velocity SKUs — contact us to check real-time availability.
Q: Can you provide a Certificate of Conformance (CoC)?
A: Yes. CoC and material traceability documents are available upon request for all new OEM units.
