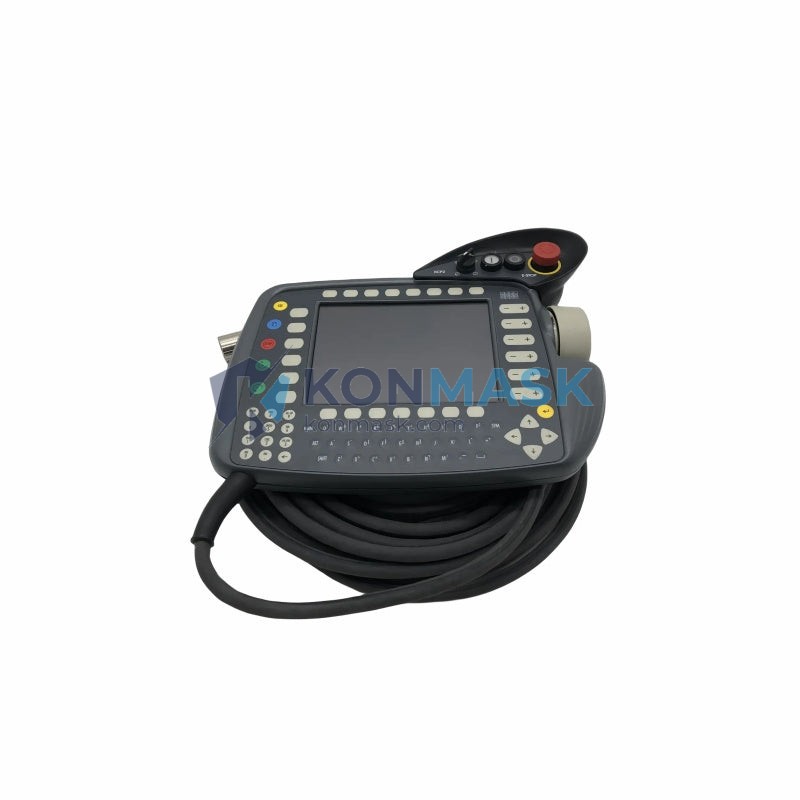

KUKA KCP2-00-154-293 Teach Pendant – KR C2 Robot Controller Programming Panel
When a KUKA robot’s teach pendant fails on the production floor, the entire robotic cell comes to a standstill. Operators lose the ability to jog axes, modify programs, or perform safety-critical overrides — halting automotive welding lines, palletizing stations, and precision assembly cells without warning. The KUKA KCP2-00-154-293 Teach Pendant is the direct human-machine interface that keeps your KR C2-based robot system operational, responsive, and safe.
The KCP2 (KUKA Control Panel 2) is the standard teach pendant for KUKA’s KR C2 controller generation — one of the most widely deployed industrial robot controllers in the world. Part number 00-154-293 identifies the specific hardware revision used across KR 6, KR 16, KR 30, KR 60, KR 100, KR 150, KR 200, and KR 210 robot families. With millions of KR C2 systems still active in global manufacturing, the KCP2 remains a mission-critical spare part for automotive OEMs, tier-1 suppliers, and general industrial integrators worldwide.
Technical Specifications
- Part Number: KCP2-00-154-293
- Manufacturer: KUKA Roboter GmbH
- Compatible Controller: KUKA KR C2 (all variants)
- Display: Color LCD touchscreen with backlight
- Interface: Proprietary KCP2 connector to KR C2 cabinet
- Safety Features: Integrated enabling device (3-position), emergency stop button
- Operating Mode Selector: T1 (manual reduced speed), T2 (manual high speed), AUT, AUT EXT
- Weight: Approx. 380 g
- Cable: Spiral cable with KCP2 connector (length varies by configuration)
- Software Compatibility: KUKA System Software (KSS) 5.x
- Condition: New / Refurbished (specify on inquiry)
Key Features & Benefits
- Direct Axis Jogging: 6-axis manual motion control with configurable speed override (0–100%)
- Program Management: Load, edit, start, and stop KRL robot programs directly from the pendant
- 3-Position Enabling Device: Compliant with ISO 10218-1 safety requirements for collaborative and manual modes
- Integrated E-Stop: Hardwired emergency stop for immediate robot halt in any operating mode
- Status Display: Real-time feedback on robot position, program state, I/O status, and fault messages
- Ergonomic Design: Balanced grip layout for extended use in T1/T2 teaching sessions
- Plug-and-Play Replacement: Direct drop-in replacement for existing KR C2 installations — no controller reconfiguration required
Industry & Equipment Applications
- Automotive Manufacturing: Spot welding, MIG/MAG welding, body-in-white assembly, sealing
- Metal Fabrication: Arc welding, plasma cutting, press tending
- Logistics & Warehousing: Palletizing, depalletizing, case packing
- Electronics Assembly: PCB handling, component placement, inspection
- Food & Beverage: Pick-and-place, packaging, hygienic handling lines
- General Industrial Automation: Machine tending, material handling, quality inspection
System Integration & Compatible Parts
The KCP2-00-154-293 is designed exclusively for the KUKA KR C2 controller platform. Ensure compatibility by verifying your controller generation before ordering. Related components and commonly paired spare parts include:
- KUKA KR C2 Main Computer (PC board)
- KUKA KR C2 Power Supply Unit (PSU)
- KUKA KCP2 Connecting Cable (various lengths)
- KUKA KR C2 Drive Module (servo amplifier)
- KUKA SmartPAD (for KR C4 — next-generation replacement platform)
Note: The KCP2 is NOT compatible with KUKA KR C4 controllers. For KR C4 systems, the KUKA SmartPAD is required.
Our Quality Assurance Process
- Source Verification: All units sourced from authorized distributors or directly from KUKA-certified channels
- Visual Inspection: Housing, connector pins, cable, display, and keypad checked for physical integrity
- Functional Testing: Power-on test, display verification, button response, and enabling device function confirmed
- Packaging: Anti-static ESD packaging with foam protection for safe international transit
- Documentation: Certificate of conformity and test report available on request
How to Order
- Submit an inquiry via the Contact / Quote Request form on this page
- Provide your robot model, controller serial number, and required quantity
- Our technical team will confirm compatibility and provide a formal quotation within 24 hours
- Payment via T/T bank transfer, PayPal, or trade assurance (Alibaba)
- Shipping via DHL, FedEx, or UPS Express — worldwide delivery in 3–7 business days
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, robot, and drive components — not a general electronics marketplace
- Global B2B Supply: Serving manufacturers, integrators, and MRO teams in 50+ countries
- Technical Pre-Sales Support: Our engineers verify compatibility before every order
- Fast Emergency Sourcing: Priority handling for production-down situations
- Competitive Pricing: Direct sourcing relationships enable below-market pricing on genuine parts
- Secure Transactions: Trade assurance, escrow, and verified payment channels
Frequently Asked Questions
Q: Is the KCP2-00-154-293 compatible with KUKA KR C4 controllers?
A: No. The KCP2 series is exclusively designed for KR C2 controllers. KR C4 systems require the KUKA SmartPAD (part number 00-168-334 or equivalent). Always verify your controller generation before ordering.
Q: Can I use a refurbished KCP2 on a production robot?
A: Yes, provided the unit has passed full functional testing including enabling device and E-stop verification. All refurbished units from Konmask.com include a test report. We recommend a bench test before installation on a live system.
Q: What is the lead time for the KCP2-00-154-293?
A: In-stock units ship within 1–2 business days. For sourced units, typical lead time is 5–10 business days. Contact us for real-time stock status.
Q: Do you provide a warranty on this teach pendant?
A: Yes. New units carry the manufacturer’s warranty. Refurbished units carry a 90-day Konmask.com functional warranty covering defects in materials and workmanship.
Q: Can you supply the KCP2 connecting cable separately?
A: Yes. We stock KCP2 spiral cables in multiple lengths. Please specify your required cable length when submitting your inquiry.
