KUKA KCP2 / VKCP2 – Robot Teach Pendant Control Panel | KR C2 Platform
Engineering Background

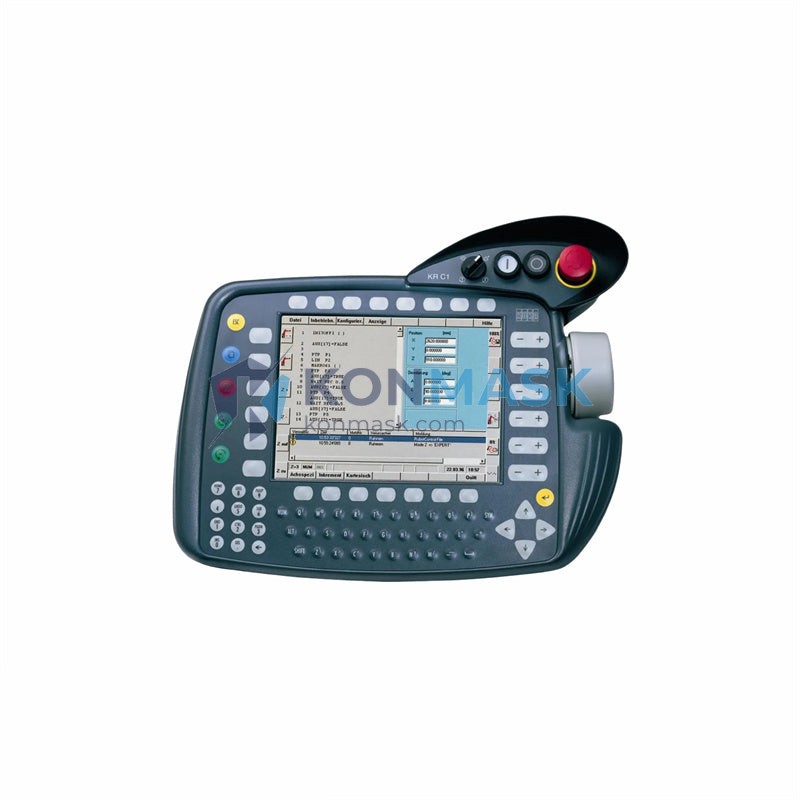

The KCP2 (KUKA Control Panel 2) and its variant VKCP2 are the primary human-machine interface devices designed for KUKA’s KR C2 robot controller generation. Introduced as part of KUKA’s second-generation controller architecture, these teach pendants provide operators with direct, real-time command authority over six-axis industrial robots across welding, assembly, material handling, and precision automation applications.
Product Positioning
As an authorized distributor and technical reseller, Konmask.com supplies verified OEM KCP2 and VKCP2 units to maintenance engineers, system integrators, and automation OEMs requiring certified replacement or expansion hardware. Each unit is sourced through traceable supply channels and undergoes functional verification prior to dispatch.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | KCP2 / VKCP2 |
| Manufacturer | KUKA Roboter GmbH |
| Compatible Controller | KUKA KR C2 Series |
| Interface Type | Teach Pendant / Operator Control Unit |
| Display | Color LCD with backlight |
| Input Devices | Membrane keypad, 6D Space Mouse (VKCP2), enabling switch |
| Emergency Stop | Integrated dual-channel E-Stop button (IEC 60204-1 compliant) |
| Enabling Switch | 3-position enabling device (ISO 10218-1) |
| Connection | Proprietary KCP connector to KR C2 cabinet |
| Cable Length | Approx. 10 m (standard) |
| Operating Temperature | 0 °C to +45 °C |
| Storage Temperature | -25 °C to +70 °C |
| Protection Rating | IP 54 (pendant body) |
| Weight | 2.19 kg |
| Compliance | CE, EN ISO 10218-1, IEC 60204-1 |
| Condition | New / Refurbished OEM (specify on inquiry) |
Proven Application Environments
- Automotive Body-in-White (BIW): Spot welding and seam sealing lines using KUKA KR 150/210 robots with KR C2 controllers
- General Assembly: Screw-driving, press-fitting, and component placement cells requiring precise jog and teach operations
- Material Handling & Palletizing: High-cycle pick-and-place applications where operator intervention and re-teaching are routine
- Foundry & Die Casting: High-temperature environments where IP54 protection and robust keypad design are critical
- MRO & Retrofit: Replacement of damaged or end-of-life KCP2 units in existing KR C2 installations without controller upgrade
Engineering Advantages
- Direct OEM Compatibility: Plug-and-play replacement for any KR C2 installation — no firmware patching or parameter reconfiguration required
- Dual Safety Architecture: Independent E-Stop and 3-position enabling switch channels meet SIL 2 / PLd safety requirements
- VKCP2 6D Mouse: The VKCP2 variant integrates a 6D Space Mouse for intuitive Cartesian jogging, reducing teach time by up to 40% versus standard keypad jogging
- Robust Industrial Design: Shock-resistant housing with IP54 sealing withstands coolant splash, weld spatter, and factory floor handling
- Long Service Life: Membrane keypad rated for >1,000,000 actuations; LCD backlight designed for continuous 24/7 operation
System Architecture & Signal Flow
The KCP2 connects to the KR C2 controller cabinet via a dedicated KCP interface port. Communication is handled over a proprietary serial bus embedded in the pendant cable. The controller’s safety PLC monitors the enabling switch and E-Stop channels independently of the main CPU, ensuring that safety-critical signals cannot be masked by software faults. The VKCP2 variant adds a USB-based 6D mouse module that interfaces with the KR C2’s HMI subsystem for enhanced Cartesian motion control.
Signal Path Summary:
- Operator Input → KCP2 Membrane Keypad / 6D Mouse → KCP Serial Bus → KR C2 HMI CPU
- E-Stop / Enabling Switch → Dedicated Safety PLC Channel → Drive Enable / Brake Release
- Display Output ← KR C2 HMI CPU → KCP2 LCD Controller
Sourcing & Quality Verification
- Traceable Supply Chain: All units sourced from authorized KUKA distributors or certified MRO channels with full documentation
- Functional Test Protocol: Each KCP2/VKCP2 undergoes power-on verification, keypad actuation test, E-Stop channel continuity check, and display function test before shipment
- Warranty: 12-month limited warranty against manufacturing defects; replacement or refund within warranty period
- Counterfeit Prevention: Serial number and firmware version verified against KUKA OEM records on request
Procurement Process
- Inquiry: Submit your KCP2 or VKCP2 requirement via email or phone with your robot model, controller serial number, and required quantity
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation: Issue PO or complete online checkout; payment via T/T, PayPal, or credit card
- Dispatch: Units shipped via DHL / FedEx Express with full tracking; typical lead time 3–7 business days
- After-Sales: Technical support available via email for installation, compatibility, and commissioning queries
Technical FAQ
Q: Is the KCP2 compatible with KR C3 or KR C4 controllers?
A: No. The KCP2 and VKCP2 are exclusively designed for the KR C2 controller platform. KR C3 uses the KCP3, and KR C4 uses the smartPAD. Cross-generation compatibility is not supported.
Q: What is the difference between KCP2 and VKCP2?
A: The VKCP2 (Virtual KCP2) integrates a 6D Space Mouse module for Cartesian jogging in addition to all standard KCP2 functions. Both units are otherwise electrically and mechanically identical.
Q: Can I replace just the cable without replacing the pendant?
A: Yes. The KCP2 cable is a field-replaceable assembly. Contact us with your cable length requirement for a separate quotation.
Q: Do you provide installation support?
A: Yes. Our engineering team provides remote commissioning guidance. On-site support can be arranged for volume orders.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing is available for orders of 5 units or more.
