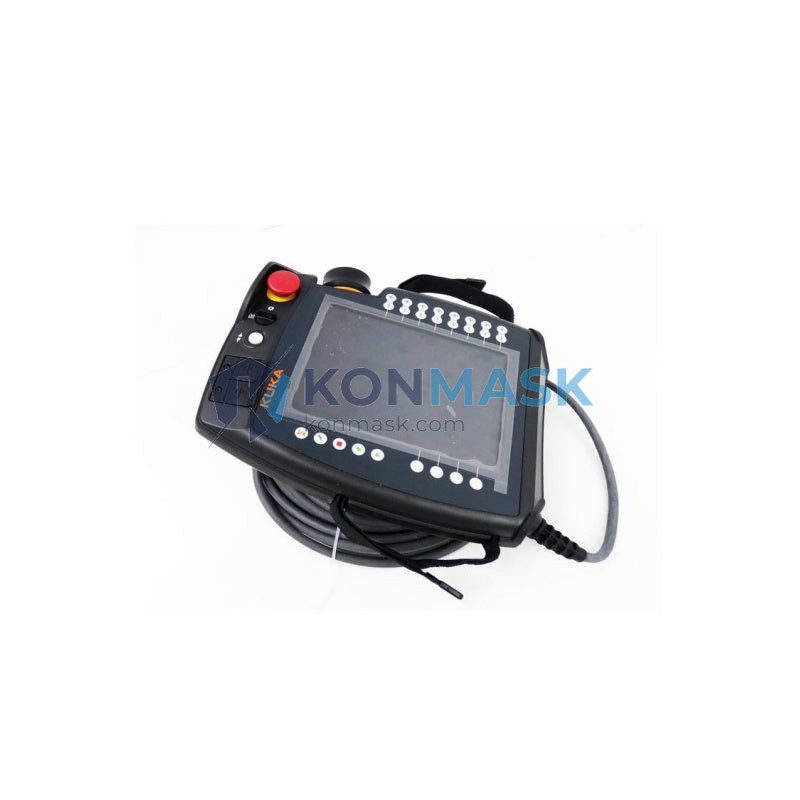

KUKA Smartpad Teach Pendant KRC2 00-228-934 / KRC4EMD 00-228-936 / 00-168-334 – KUKA KR C Series Robot Controller Interface
Imagine a robotic welding cell on an automotive production line suddenly going offline because the operator cannot communicate with the robot controller. Without a functioning teach pendant, engineers are unable to jog axes, modify programs, or diagnose faults — every minute of downtime translates directly into lost production and escalating costs. The KUKA Smartpad Teach Pendant is the sole human-machine interface between the operator and the KUKA robot controller, making it an absolutely mission-critical component in any KUKA-based automation system.
The KUKA Smartpad — available under part numbers 00-228-934 (KRC2 variant), 00-228-936 (KRC4EMD variant), and 00-168-334 — represents KUKA’s flagship handheld programming device for the KR C2 and KR C4 controller families. Widely deployed across automotive, aerospace, metal fabrication, and logistics automation globally, the Smartpad is the industry benchmark for ergonomic, high-reliability robot teach pendants. Its multi-generation compatibility and intuitive touchscreen interface have made it the preferred choice for system integrators and end-users operating KUKA robot fleets worldwide.
Technical Specifications
- Part Numbers: 00-228-934 (KRC2) / 00-228-936 (KRC4EMD) / 00-168-334
- Brand: KUKA Robotics
- Series: Smartpad – KR C Series
- Compatible Controllers: KUKA KR C2, KR C4, KR C4 EMD
- Display: Color touchscreen with backlight
- Interface: Ethernet-based connection to KRC controller
- Safety Features: Integrated enabling device (3-position), emergency stop button
- Operating System Support: KUKA System Software (KSS)
- Ingress Protection: Suitable for industrial shop-floor environments
- Cable: Spiral cable with controller-side connector
- Weight: Approx. 1.1 kg (pendant only)
- Condition: New / Refurbished / Used (specify on inquiry)
Note: All specifications are based on KUKA published documentation. Konmask.com does not fabricate or alter OEM specifications.
Key Features & Benefits
- Intuitive Touchscreen Interface: Large color display enables fast program editing, axis jogging, and fault diagnosis without specialized tooling.
- Multi-Controller Compatibility: A single Smartpad platform covers both KR C2 and KR C4 controller generations, reducing spare-parts inventory complexity.
- Integrated Safety Devices: Three-position enabling switch and dedicated E-stop meet ISO 10218 robot safety standards, ensuring compliant operation.
- Ergonomic Design: Balanced grip and lightweight construction reduce operator fatigue during extended programming sessions.
- Hot-Swap Capable: Designed for quick disconnection and reconnection without powering down the controller in supported configurations.
- Durable Construction: Robust housing withstands the vibration, dust, and temperature variations typical of industrial manufacturing environments.
- KUKA KSS Software Integration: Seamlessly interfaces with KUKA System Software for full access to robot programs, I/O monitoring, and diagnostic logs.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding, spot welding, and assembly lines using KUKA KR series robots.
- Aerospace & Defense: Precision drilling, riveting, and composite layup cells requiring high-accuracy robot programming.
- Metal Fabrication: Arc welding, plasma cutting, and press-tending applications with KR C2/C4 controllers.
- Logistics & Palletizing: High-throughput palletizing and depalletizing systems in food, beverage, and consumer goods industries.
- Foundry & Die Casting: High-temperature environments where robust teach pendant hardware is essential for reliable operation.
- General Industrial Automation: Any facility operating KUKA robots requiring a replacement or spare Smartpad unit.
System Integration & Compatible Parts
The KUKA Smartpad is designed to integrate directly with the following KUKA controller and robot platforms:
- KUKA KR C2 Controller (all variants)
- KUKA KR C4 Controller (standard, compact, and EMD variants)
- KUKA KR 6, KR 16, KR 30, KR 60, KR 120, KR 150, KR 210, KR 240, KR 360 series robots
- Compatible Smartpad cable assemblies and connector kits
- KUKA KSS 5.x (KRC2) and KSS 8.x (KRC4) software versions
When sourcing a replacement Smartpad, always verify the controller generation (KRC2 vs KRC4) and software version to ensure full compatibility. Our technical team at Konmask.com can assist with compatibility verification prior to order confirmation.
Our Quality Assurance Process
At Konmask.com, every KUKA Smartpad unit undergoes a structured quality verification process before shipment:
- Visual Inspection: Housing, display, cable, and connectors checked for physical damage.
- Functional Verification: Where applicable, units are powered on and tested for display, button, and communication functionality.
- Part Number Confirmation: OEM labels and part numbers verified against customer order specifications.
- Secure Packaging: Anti-static and shock-absorbing packaging to prevent transit damage.
- Documentation: Packing list and inspection record included with every shipment.
How to Order
- Submit an inquiry via the Contact / Request a Quote form on this page.
- Provide your required part number(s): 00-228-934, 00-228-936, or 00-168-334, along with quantity and required delivery timeline.
- Our team will confirm availability, condition, and pricing within 1 business day.
- Upon agreement, we issue a proforma invoice and arrange shipment via your preferred carrier or our recommended logistics partner.
- Tracking information is provided upon dispatch.
For urgent requirements or large-quantity orders, please contact us directly at support@konmask.com or +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control and automation components — PLC modules, DCS parts, robot controllers, and HMI devices.
- Global Supply Network: Access to new, refurbished, and hard-to-find KUKA parts through our verified supplier network.
- Technical Expertise: Our team includes engineers with hands-on experience in KUKA robot systems, ensuring accurate part identification and compatibility advice.
- Fast Response: Inquiries answered within 1 business day; urgent requests handled with priority.
- Secure Transactions: Professional B2B procurement process with full documentation and traceability.
- Worldwide Shipping: Export-ready logistics to customers in Europe, Asia, the Americas, and beyond.
Frequently Asked Questions
- Q: What is the difference between part numbers 00-228-934 and 00-228-936?
- A: Part number 00-228-934 is the Smartpad variant designed for the KUKA KR C2 controller, while 00-228-936 is the variant for the KR C4 EMD (Energy Monitoring Device) controller. Always confirm your controller model before ordering.
- Q: Is the KUKA Smartpad compatible with KR C4 compact controllers?
- A: Compatibility depends on the specific KRC4 variant and KSS software version. Please contact our team with your controller serial number for a definitive compatibility check.
- Q: Can I use a KRC4 Smartpad on a KRC2 controller?
- A: No. The KRC2 and KRC4 Smartpad variants use different communication protocols and connectors. Cross-generation use is not supported by KUKA.
- Q: Do you supply new or refurbished units?
- A: We supply both new OEM units and professionally refurbished units depending on availability. The condition will be clearly stated in your quotation.
- Q: What is the lead time for delivery?
- A: Lead time varies by stock availability and destination. In-stock items typically ship within 3–5 business days. Please inquire for current availability.
- Q: Do you provide a warranty?
- A: Yes. All units come with a limited warranty covering manufacturing defects. Warranty terms are specified in the sales agreement.
