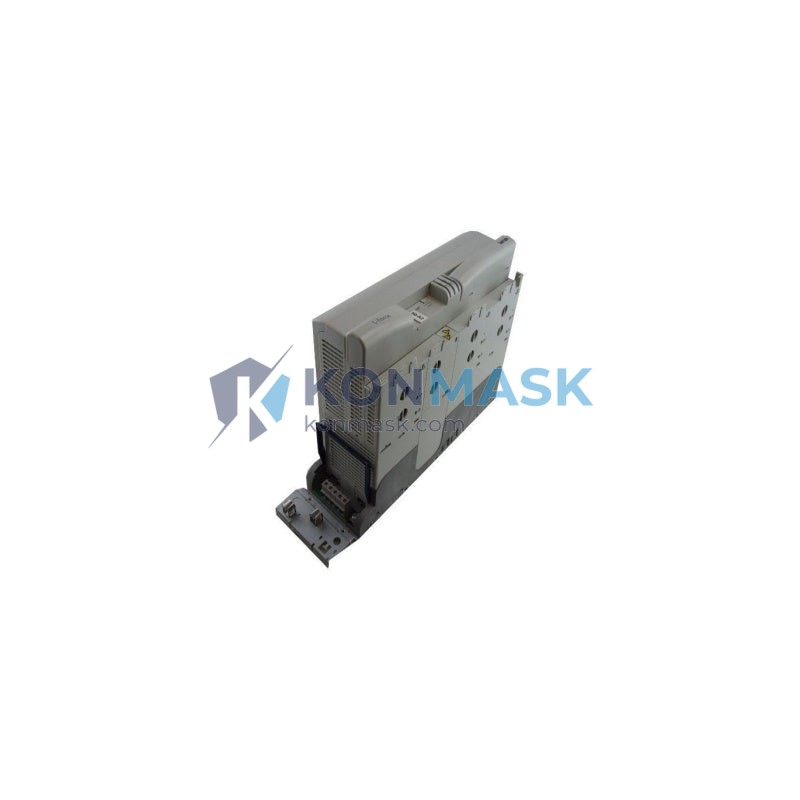

Packaging & Motion Control Solution – Lenze E94APNE03641C | 8400 Series Servo Drive
Where This Product Is Used
The Lenze E94APNE03641C is a high-performance servo drive from the 8400 Series, engineered for precision motion control in demanding industrial environments. Engineers and system integrators specify this drive across a wide range of applications:
- Packaging Machinery – High-speed pick-and-place, form-fill-seal machines, and cartoning lines requiring precise torque and velocity control.
- Conveyor & Material Handling – Synchronised multi-axis conveyor systems in automotive assembly and logistics centres.
- CNC & Machine Tool – Spindle and feed-axis control in milling, turning, and grinding machines.
- Printing & Converting – Register control and tension management in web-fed printing presses and slitter-rewinders.
- Robotics & Handling – Articulated arm and gantry robot joint drives requiring fast dynamic response.
- Textile Machinery – Winding, unwinding, and draw-roll control in yarn and fabric production lines.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | E94APNE03641C |
| Brand | Lenze |
| Series | 8400 (E94AP) |
| Drive Type | Servo Drive (AC Servo Inverter) |
| Rated Output Power | 3.0 kW |
| Supply Voltage | 3-phase 400 V AC (±10%), 50/60 Hz |
| Output Current (Rated) | ~8.0 A |
| Control Mode | Servo vector (closed-loop), V/f, sensorless vector |
| Feedback Interface | Resolver, EnDat 2.1/2.2, SinCos, TTL encoder |
| Communication | CANopen, PROFIBUS DP, EtherCAT (option card) |
| Protection Class | IP20 (panel-mount) |
| Ambient Temperature | 0 °C to +40 °C (derate above 40 °C) |
| Weight | Approx. 0.5 kg |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Compact Footprint – Slim bookshelf design minimises cabinet space while delivering full 3.0 kW servo performance.
- Universal Feedback Compatibility – Supports resolver, EnDat, SinCos, and TTL encoders without additional hardware adapters.
- Fast Dynamic Response – Current loop bandwidth up to 3 kHz enables tight position and torque control for high-cycle applications.
- Flexible Fieldbus – Native CANopen with optional PROFIBUS/EtherCAT cards integrates into virtually any PLC or motion controller ecosystem.
- Safe Torque Off (STO) – Integrated SIL 2 / PLd safety function reduces external safety relay costs.
- Lenze EASY Starter Software – Rapid commissioning via USB with pre-configured application templates for common machine types.
Complete System Bill of Materials
For a fully operational servo axis using the E94APNE03641C, engineers typically specify the following complementary components:
- Lenze MCS / MQA Series Servo Motor (matched 3.0 kW frame)
- Lenze E94AZMS / E94AZMP Mains Filter (EMC Class C2)
- Lenze E94AZEB Braking Resistor (for high-inertia or frequent deceleration cycles)
- Lenze E94AZCAS CANopen / PROFIBUS Communication Module
- Lenze EASY Starter USB Commissioning Cable
- 24 V DC Control Power Supply (min. 2 A)
- Shielded servo motor cable (IEC 60204-1 compliant)
Compliance & Industry Standards
- CE Marking – Complies with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
- UL / cUL Listed – Recognised for use in North American industrial control panels.
- IEC 61800-5-1 – Adjustable speed electrical power drive systems safety requirements.
- IEC 61800-3 – EMC requirements for power drive systems.
- EN ISO 13849-1 / IEC 62061 – Functional safety: STO function rated PLd / SIL 2.
- RoHS Compliant – Restriction of Hazardous Substances Directive 2011/65/EU.
Quality Assurance & Sourcing
At Konmask, every Lenze E94APNE03641C unit is subject to a rigorous incoming inspection process before dispatch:
- Visual inspection for physical damage, label integrity, and firmware version verification.
- Functional power-on test confirming display, communication, and I/O response.
- Cross-referenced against Lenze factory serial number database where applicable.
- Sourced exclusively from authorised distributors, certified resellers, or verified surplus channels with full traceability documentation.
- Packed in anti-static ESD shielding bags with foam cushioning for safe international transit.
How to Source This Part
Konmask maintains global sourcing networks to fulfil both single-unit and bulk orders of the Lenze E94APNE03641C:
- In-Stock Orders – Add to cart and check out directly. Most orders ship within 1–3 business days.
- Bulk / Project Quotes – Contact support@konmask.com with your BOM quantity and required delivery date for a competitive project price.
- Urgent / Emergency Supply – Call or WhatsApp +0086 19859288691 for same-day sourcing assistance on critical production downtime situations.
- OEM / System Integrator Accounts – Ask about volume pricing tiers and NET payment terms for qualified accounts.
Application-Specific FAQ
Q: Can the E94APNE03641C control a third-party servo motor?
A: Yes. With the correct encoder feedback card and motor data parameterisation via EASY Starter, the drive can operate non-Lenze servo motors. Provide motor nameplate data for configuration guidance.
Q: Is EtherCAT supported natively?
A: EtherCAT requires the optional E94AZCEC communication module. CANopen is available on-board without additional hardware.
Q: What is the difference between E94APNE and E94APPE variants?
A: The E94APNE series is the standard servo inverter variant; E94APPE includes an integrated positioning controller (IPC) for standalone motion tasks without an external PLC.
Q: Can this drive be used in a multi-axis synchronised system?
A: Yes. Via CANopen or EtherCAT, multiple E94AP drives can be synchronised under a Lenze L-force Controller or third-party motion PLC for electronic gearing and cam profiling.
Q: What spare parts should be stocked alongside this drive?
A: Recommended spares include the mains filter (E94AZMS), braking resistor (E94AZEB), and a replacement control board. Contact us for a tailored spare-parts recommendation based on your machine duty cycle.
