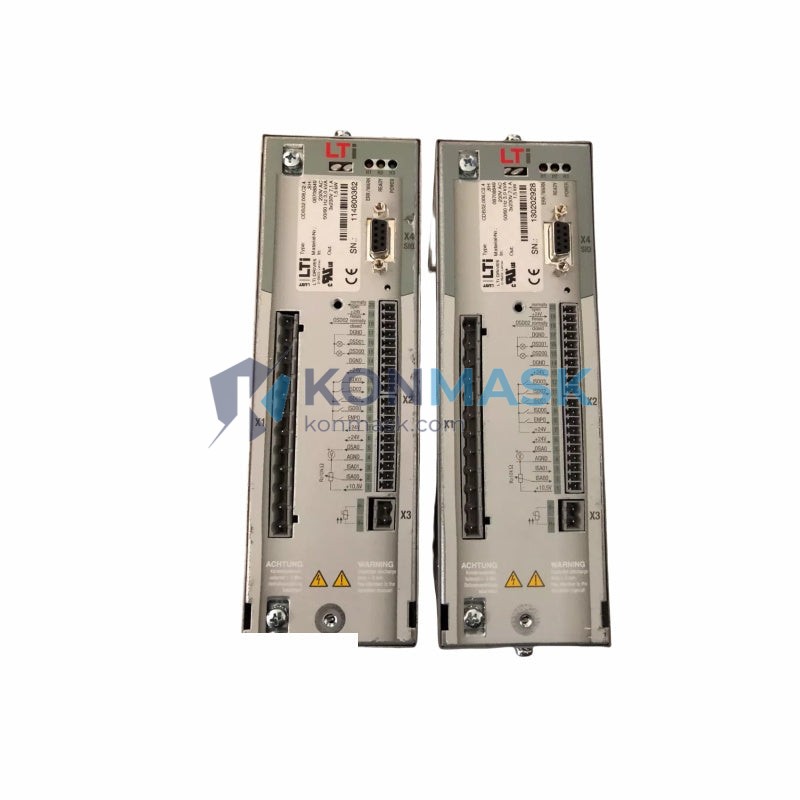

LUST CDB32.008.C2.4 – Compact AC Servo Amplifier | CDB32 Series
Engineering Background: The LUST CDB32 series represents LUST Antriebstechnik’s (now part of KEB Automation) precision servo drive platform, engineered for demanding single-axis motion control applications in industrial automation. The CDB32.008.C2.4 is a compact, high-performance AC servo amplifier rated at 0.8 A continuous output current, designed to deliver accurate torque, velocity, and position control in space-constrained control cabinet installations.
Product Positioning: Targeted at OEM machine builders, system integrators, and maintenance engineers requiring a reliable, drop-in replacement or new-build servo amplifier for CNC, packaging, textile, and general factory automation machinery. The CDB32.008.C2.4 is a proven component in European-engineered motion systems and remains widely deployed across global industrial installations.
Complete Technical Specifications
- Manufacturer: LUST Antriebstechnik (KEB Automation)
- Part Number / SKU: CDB32.008.C2.4
- Series: CDB32
- Drive Type: AC Servo Amplifier (Single-Axis)
- Continuous Output Current: 0.8 A
- Control Modes: Torque / Velocity / Position (closed-loop)
- Feedback Interface: Encoder (incremental / resolver depending on variant)
- Supply Voltage: Single-phase / Three-phase AC (refer to nameplate)
- Communication: CANopen / RS-232 / Fieldbus options (variant-dependent)
- Protection Class: IP20 (panel-mount)
- Mounting: DIN rail / panel mount
- Weight: 3.9 kg
- Compliance: CE marked; designed to EN 61800 series
Proven Application Environments
- CNC machine tool axes (milling, turning, grinding)
- Packaging and labeling machinery
- Textile and winding equipment
- Conveyor and material handling systems
- Robotics and pick-and-place automation
- Printing and converting machinery
- Semiconductor and electronics assembly equipment
Engineering Advantages
- Compact Form Factor: Optimized for high-density control cabinet layouts without sacrificing performance.
- Closed-Loop Precision: Full servo loop closure ensures sub-millisecond response to load disturbances.
- Multi-Mode Operation: Seamlessly switchable between torque, velocity, and position control modes via parameter configuration.
- Robust EMC Design: Integrated EMC filtering reduces interference in sensitive industrial environments.
- Wide Motor Compatibility: Compatible with LUST servo motors and third-party AC servo motors with appropriate feedback devices.
- Fieldbus Ready: Supports CANopen and optional fieldbus modules for integration into distributed control architectures.
System Architecture & Signal Flow
The CDB32.008.C2.4 operates as a standalone single-axis servo amplifier within a centralized or distributed motion control architecture. The control hierarchy flows from the master PLC or motion controller → fieldbus (CANopen/RS-232) → CDB32 drive → servo motor with encoder feedback. The drive closes the current, velocity, and position loops internally, offloading computational burden from the master controller. Safe Torque Off (STO) or enable inputs provide hardware-level safety interlocking compliant with machine safety standards.
Sourcing & Quality Verification
- Source: Sourced from authorized distributors, decommissioned OEM equipment, and verified surplus channels.
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-check prior to dispatch.
- Authenticity: Serial number and firmware version documented; counterfeit screening applied.
- Condition: New surplus or refurbished units clearly indicated in listing; original packaging where available.
- Warranty: 90-day operational warranty against manufacturing defects; extended warranty available on request.
Procurement Process
- Confirm part number CDB32.008.C2.4 matches your existing drive label and system documentation.
- Verify supply voltage, feedback type, and fieldbus requirements against your machine specification.
- Submit purchase order or inquiry via Konmask.com or contact support@konmask.com for volume pricing.
- Receive proforma invoice with lead time confirmation (typically 1–5 business days for in-stock units).
- Unit dispatched with inspection report and tracking number.
- On-site commissioning support available via remote consultation.
Technical FAQ
Q: Is the CDB32.008.C2.4 compatible with third-party servo motors?
A: Yes, provided the motor’s feedback device (encoder/resolver) matches the drive’s feedback interface and motor parameters are correctly configured via the LUST commissioning software.
Q: What software is used to configure the CDB32 series?
A: LUST DriveManager or the KEB COMBIVIS studio suite (post-acquisition) is used for parameterization, diagnostics, and firmware updates via RS-232 or USB interface.
Q: Can this drive replace a CDB32.008.C2.3 or other sub-variants?
A: Sub-variant suffixes denote firmware, feedback, or communication options. Cross-compatibility must be verified against the original machine documentation. Contact our technical team for confirmation.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock units are sourced within 5–15 business days depending on global availability.
Q: Do you provide a test report or inspection certificate?
A: Yes. A pre-shipment inspection report is available upon request for all units.
