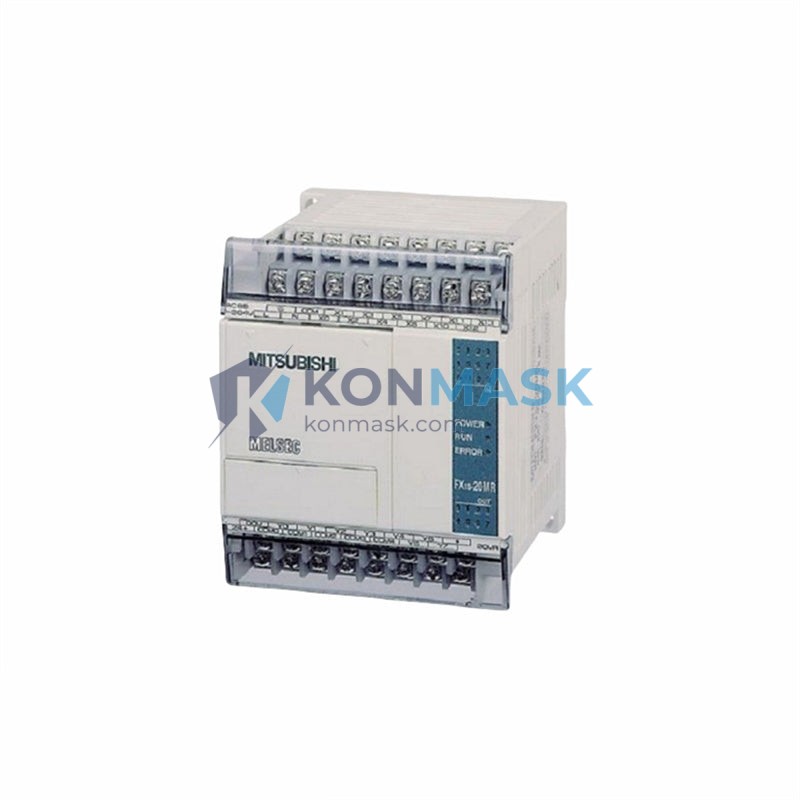

Mitsubishi FX1S-30MT-001 – 30-Point Transistor Output PLC | MELSEC FX1S Series
Engineering Background: The MELSEC FX1S is Mitsubishi Electric’s ultra-compact, high-performance PLC platform engineered for space-constrained machine control applications. Launched as part of the FX family, the FX1S series delivers industrial-grade reliability in a DIN-rail-mountable body, making it the preferred choice for OEM machine builders and system integrators worldwide.
Product Positioning: The FX1S-30MT-001 is the 30-point main unit of the FX1S series, featuring 18 DC sink/source inputs and 12 transistor (NPN sink) outputs. It is purpose-built for high-speed discrete control tasks including conveyor sequencing, packaging machinery, HVAC control panels, and small robotic cells where compact footprint and deterministic scan times are non-negotiable.
Complete Technical Specifications
- Part Number / SKU: FX1S-30MT-001
- Series / Platform: MELSEC FX1S
- Manufacturer: Mitsubishi Electric Corporation
- Country of Origin: Japan
- I/O Configuration: 30 Points Total — 18 Inputs / 12 Outputs
- Input Type: DC Sink/Source (24 VDC, 7 mA)
- Output Type: Transistor NPN Sink, 0.5 A per point, 0.8 A per common
- Output Voltage Range: 5–30 VDC
- Program Memory: 2,000 Steps (EEPROM, battery-free)
- Processing Speed: 0.55–0.7 µs / basic instruction
- High-Speed Counters: 6 channels, up to 60 kHz (single-phase)
- Built-in Pulse Output: 2 axes, up to 100 kHz (Y0, Y1)
- Communication Port: RS-422 (mini-DIN 8-pin, programming port)
- Power Supply: 100–240 VAC, 50/60 Hz
- Power Consumption: 30 VA max
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −20 °C to +70 °C
- Humidity: 35–85% RH (non-condensing)
- Vibration Resistance: 10–57 Hz, 0.075 mm; 57–150 Hz, 9.8 m/s²
- Shock Resistance: 147 m/s², 3 times each direction
- Enclosure Rating: IP20
- Mounting: DIN Rail (35 mm) or direct panel mount
- Dimensions (W×H×D): 150 × 90 × 75 mm
- Weight: Approx. 1,120 g
- Certifications: CE, UL, cUL
- HS Code: 8537.10
Proven Application Environments
- Conveyor and material handling systems
- Packaging and labeling machinery
- HVAC and building automation control panels
- Small-scale robotic and pick-and-place cells
- Injection molding machine sequencing
- Pump and motor starter control
- Food and beverage processing lines
- Elevator and escalator safety logic
Engineering Advantages
- Battery-Free EEPROM Memory: Program retention without battery maintenance — eliminates field service calls caused by memory loss.
- Built-in Pulse Output (100 kHz): Enables direct stepper motor positioning without an external motion controller, reducing BOM cost.
- High-Speed Counter (60 kHz): Supports encoder feedback for closed-loop position verification in compact axes.
- Compact DIN-Rail Form Factor: 150 mm width fits standard 300 mm control panels alongside contactors and drives.
- Wide AC Power Input (100–240 VAC): Universal voltage acceptance simplifies global machine deployment.
- GX Works2 / GX Developer Compatible: Seamless integration with Mitsubishi’s standard programming environment; reuse existing ladder logic libraries.
System Architecture & Signal Flow
The FX1S-30MT-001 operates as a standalone main unit. The 18 DC inputs accept 24 VDC field signals from pushbuttons, proximity sensors, and limit switches. The CPU executes the ladder/SFC program stored in EEPROM and drives the 12 transistor outputs to actuators, solenoids, and variable-frequency drives via 24 VDC logic signals. The RS-422 port connects to GX Works2 for programming, monitoring, and data logging. Optional FX2N-series expansion modules can extend I/O capacity via the right-side expansion connector.
Sourcing & Quality Verification
- All units sourced from authorized Mitsubishi Electric distributors or verified surplus channels.
- Each unit undergoes incoming inspection: visual check, label verification, and power-on functional test.
- Firmware version and production date code recorded at receipt.
- Original Mitsubishi Electric packaging and documentation supplied where available.
- Counterfeit-risk assessment performed per IEC 62239-1 guidelines.
Procurement Process
- Confirm Part Number: Verify FX1S-30MT-001 matches your BOM and I/O count requirements.
- Request Quote: Contact [email protected] for volume pricing, lead time, and availability confirmation.
- Place Order: Add to cart and complete checkout, or submit a purchase order via email for NET terms.
- Shipping: DHL / FedEx express available; EXW Xiamen or CIF destination port options.
- Documentation: Commercial invoice, packing list, and test report provided with every shipment.
Technical FAQ
Q: Can the FX1S-30MT-001 expand I/O beyond 30 points?
A: Yes. Up to 8 FX2N-series expansion modules can be connected, extending the system to a maximum of 128 I/O points.
Q: Is the transistor output NPN or PNP?
A: The -001 suffix designates NPN (sink) transistor outputs, compatible with most Asian and European sensor/actuator standards.
Q: What programming software is required?
A: GX Works2 (recommended) or GX Developer. Both support Ladder Diagram (LD), Instruction List (IL), and SFC programming languages.
Q: Does this unit support analog I/O?
A: The base unit is digital only. Analog capability requires an FX2N-2AD or FX2N-2DA expansion module.
Q: What is the warranty?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty available upon request.
