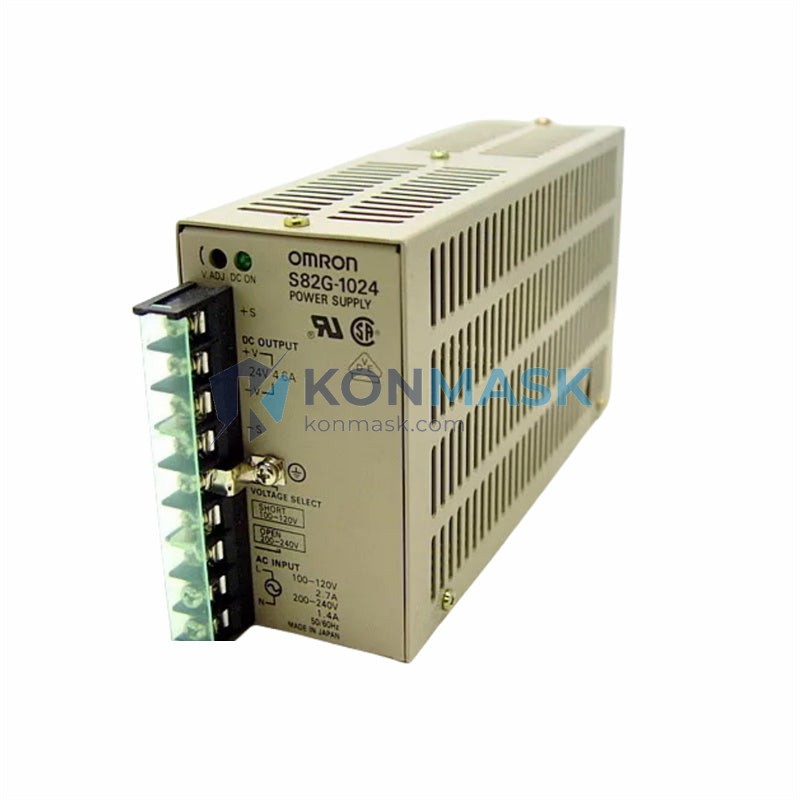

OMRON S82G-1024 – Switch Mode Power Supply | S82G Series Platform
Engineering Background
The OMRON S82G Series represents OMRON’s flagship line of industrial switch mode power supplies, engineered for demanding automation environments where stable, regulated DC power is non-negotiable. Designed to IEC/EN 61558 and UL 508 standards, the S82G-1024 delivers 24VDC at 10A (240W continuous) with wide-range AC input, making it the preferred PSU choice for PLC control panels, distributed I/O racks, and safety relay systems across manufacturing, process control, and building automation sectors.
Product Positioning
The S82G-1024 is purpose-built for procurement engineers who require a certified, DIN-rail-mountable power supply with predictable hold-up time, high efficiency, and proven MTBF in 24/7 industrial duty cycles. As an authorized distributor, Konmask.com supplies genuine OMRON S82G-1024 units with full traceability documentation, supporting both OEM panel builders and MRO replacement requirements.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | S82G-1024 |
| Brand / Manufacturer | OMRON Corporation |
| Product Series | S82G |
| Output Voltage | 24 VDC (adjustable ±10%) |
| Output Current | 10 A |
| Output Power | 240 W |
| Input Voltage Range | 100–240 VAC (wide range, auto-switching) |
| Input Frequency | 50 / 60 Hz |
| Efficiency | ≥ 86% (typical at full load) |
| Hold-Up Time | ≥ 20 ms at 100 VAC full load |
| Ripple & Noise | ≤ 150 mVp-p |
| Output Voltage Regulation | ±1% (line & load combined) |
| Inrush Current | ≤ 30 A (cold start, 230 VAC) |
| Overcurrent Protection | 105–150% of rated current (auto-recovery) |
| Overvoltage Protection | 28–34 VDC (latch-off, manual reset) |
| Mounting | DIN Rail (35 mm, EN 60715) |
| Operating Temperature | -10°C to +60°C (derating above 50°C) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 20–90% RH (non-condensing) |
| Cooling Method | Natural convection (fanless) |
| Dimensions (W×H×D) | Approx. 55 × 125 × 125 mm |
| Weight | Approx. 900 g |
| Safety Certifications | UL 508, CE (LVD + EMC), cULus |
| EMC Standards | EN 55011 Class B, EN 61000-4 series |
| MTBF | > 300,000 hours (MIL-HDBK-217F) |
| Isolation | Input–Output: 3,000 VAC; Input–FG: 2,000 VAC |
| Parallel Operation | Supported (with diode OR-ing) |
| Status Indicator | Green LED (DC OK) |
| Output Terminals | Screw terminal, 2.5 mm² wire capacity |
Proven Application Environments
- PLC Control Panels – Primary 24VDC rail supply for OMRON CJ2, NX, NJ series PLCs and distributed I/O modules
- Safety Systems – Powers OMRON G9SP / G9SX safety controllers and safety relay modules requiring stable 24VDC
- Servo & Motion Control – Logic-side power for OMRON Accurax G5 / 1S servo drives and encoder interfaces
- Process Instrumentation – Supplies field transmitters, pressure sensors, and 4–20 mA loop-powered devices
- Building Automation (BAS) – HVAC controllers, access control panels, and fire alarm auxiliary circuits
- Semiconductor & Electronics Manufacturing – Clean-room automation panels requiring low-ripple, high-stability DC power
- Food & Beverage / Packaging – IP54-rated panel installations with fanless PSU for washdown-adjacent environments
- MRO Replacement – Direct drop-in replacement for aging S82G-1024 units in legacy OMRON control architectures
Engineering Advantages
- Fanless Convection Cooling – Eliminates fan failure as a maintenance point; ideal for sealed or dusty enclosures
- Wide-Range AC Input – Single unit supports 100–240 VAC globally without manual voltage selection
- High Efficiency ≥86% – Reduces heat dissipation and enclosure thermal load, enabling smaller panel designs
- Parallel Redundancy Ready – Supports N+1 redundant configurations via diode OR-ing for high-availability systems
- Adjustable Output Voltage – ±10% trim allows fine-tuning for long cable runs or specific load requirements
- Compact DIN Rail Form Factor – 55 mm width minimizes panel real estate; compatible with standard 35 mm DIN rail
- UL 508 / CE Dual Certification – Satisfies both North American and European panel builder certification requirements
- DC OK Signal Output – Enables PLC-monitored power health status for predictive maintenance integration
System Architecture & Signal Flow
The S82G-1024 employs a forward converter topology with active power factor correction (PFC) on the AC input stage, ensuring compliance with EN 61000-3-2 harmonic current limits. The regulated 24VDC output is derived through a high-frequency transformer (switching frequency ~100 kHz), followed by synchronous rectification and LC output filtering to achieve the specified ≤150 mVp-p ripple.
Typical Panel Wiring Architecture:
- AC Input → Circuit Breaker (6A MCB) → S82G-1024 AC Terminals (L / N / PE)
- S82G-1024 DC Output (+24V / 0V) → 24VDC Bus Bar → PLC CPU / I/O Modules / Field Devices
- DC OK Relay Contact → PLC Digital Input (DI) for power health monitoring
- Parallel units connected via Schottky diode OR-ing module for redundancy
Ground the PE terminal directly to the panel chassis. Maintain minimum 25 mm clearance above and below the unit for convection airflow. Derate output current linearly from 10A at 50°C to 6A at 60°C.
Sourcing & Quality Verification
- Genuine OMRON Origin – All S82G-1024 units sourced through authorized OMRON distribution channels with full supply chain traceability
- Batch Inspection – Each unit undergoes incoming inspection: output voltage verification, load regulation test, and label/serial number authentication
- Counterfeit Prevention – OMRON holographic labels, date codes, and PCB markings verified against OMRON’s genuine product database
- Warranty – 12-month warranty against manufacturing defects from date of shipment
- Documentation Available – OMRON datasheet, CE Declaration of Conformity, and UL certificate of compliance available upon request
Procurement Process
- Confirm Quantity & Lead Time – Contact Konmask.com with required quantity; in-stock units ship within 1–3 business days
- Request Quotation – Email [email protected] or call +0086 19859288691 for volume pricing and OEM discounts
- Order Placement – Purchase directly via this product page (secure checkout) or via purchase order for B2B accounts
- Shipping & Logistics – DHL Express / FedEx international shipping available; EXW Xiamen or CIF destination terms negotiable
- Post-Sale Support – Technical application support and warranty claims handled by Konmask engineering team
Technical FAQ
Q: Can the S82G-1024 replace an S82G-1024D or S82G-1024J?
A: The base S82G-1024 is the standard 24VDC/10A model. Suffix variants (D, J) may indicate regional certifications or connector options — confirm the exact suffix requirement with your panel documentation before ordering.
Q: Is parallel operation supported without additional hardware?
A: Parallel operation requires external Schottky diode OR-ing (e.g., OMRON S82V-ORG) to prevent reverse current flow between units. Direct parallel connection without OR-ing is not recommended.
Q: What is the derating curve above 50°C?
A: Output current must be linearly derated from 10A at 50°C to 6A at 60°C. Operation above 60°C is not permitted.
Q: Does the S82G-1024 support 48VDC output?
A: No. The S82G-1024 is fixed at 24VDC output (adjustable ±10%, i.e., 21.6–26.4 VDC). For 48VDC requirements, refer to the OMRON S8FS-C or S8VK-G series.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit for standard orders. Volume pricing available for orders of 5 units or more.
