Machine & Process Automation Solution — OMRON C200H-PR027-E | C200H Series
Where This Product Is Used

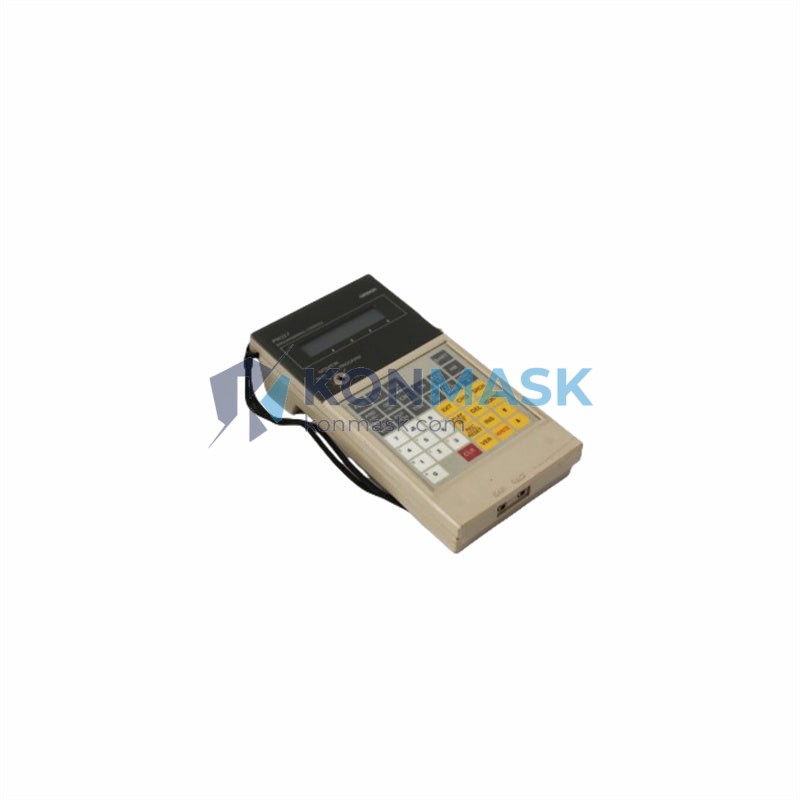

The OMRON C200H-PR027-E hand-held programming console is purpose-built for engineers and technicians who need direct, portable access to OMRON C200H series programmable controllers. Typical deployment environments include:
- Machine Tool Automation — On-site ladder logic editing and I/O monitoring during commissioning of CNC-adjacent control panels.
- Packaging & Conveyor Lines — Real-time program modification and fault diagnosis without a PC or dedicated workstation.
- Water Treatment & Process Plants — Field-level parameter adjustment in environments where laptop access is impractical.
- Automotive Assembly — Rapid program upload/download during line changeovers to minimize downtime.
- Food & Beverage Processing — Hygienic-zone maintenance tasks requiring a compact, handheld interface.
- OEM Panel Builders — Factory acceptance testing (FAT) and end-of-line verification of C200H-based control systems.
Technical Specifications
| Part Number | C200H-PR027-E |
| Manufacturer | OMRON Corporation |
| Series | C200H |
| Product Type | Hand-Held Programming Console |
| Compatible CPUs | OMRON C200H, C200HS, C200HE, C200HG, C200HX series CPUs |
| Display | LCD with backlight, multi-line alphanumeric |
| Keypad | Dedicated function keys for mnemonic programming |
| Programming Method | Mnemonic (instruction list) entry |
| Functions | Program entry/edit, I/O monitoring, data memory read/write, forced set/reset, error display |
| Connection Interface | Direct peripheral port connection to C200H CPU |
| Weight | Approx. 4,560 g (unit + cable) |
| Operating Temperature | 0 °C to 55 °C |
| Standards | CE, UL/cUL listed (refer to OMRON datasheet for current certifications) |
Why Engineers Specify This Model
- No PC Required — Fully self-contained; eliminates dependency on laptops or CX-Programmer licenses for basic field tasks.
- Instant Connectivity — Plugs directly into the C200H peripheral port — no adapter or communication module needed.
- Mnemonic Programming — Experienced OMRON technicians can write and edit ladder logic faster via mnemonic keys than through graphical software in time-critical situations.
- Rugged Field Form Factor — Designed for industrial environments; withstands vibration and temperature variation typical of factory floors.
- Legacy System Support — Indispensable for maintaining installed C200H systems where modern software tools may lack full backward compatibility.
Complete System Bill of Materials
For a fully operational C200H programming and control system, consider the following complementary components:
- OMRON C200H CPU unit (e.g., C200H-CPU42-E, C200HG-CPU43-ZE)
- OMRON C200H Power Supply (e.g., C200H-PS221)
- OMRON C200H I/O Modules (digital input/output, analog)
- OMRON C200H Backplane / Rack (e.g., C200H-BC051-V2)
- Peripheral port cable (supplied with PR027-E or available separately)
- CX-Programmer software (for PC-based programming and full project management)
Compliance & Industry Standards
- CE Marking — EMC Directive compliance for European markets
- UL/cUL Listed — North American safety certification
- RoHS Compliant — Restriction of Hazardous Substances
- Manufactured under OMRON’s ISO 9001-certified quality management system
Always verify current certification status against the official OMRON product datasheet prior to system design submission.
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for B2B buyers globally. Every unit offered through our platform is:
- Sourced from authorized distributors or verified surplus channels
- Inspected for physical integrity and label authenticity prior to listing
- Shipped with original manufacturer packaging where available
- Supported by our technical team for pre-sale specification queries
How to Source This Part
- Add to Cart — Click the purchase button above to place an order directly.
- Request a Quote — For volume orders (>5 units) or project BOM sourcing, contact [email protected].
- Lead Time — In-stock units ship within 1–3 business days. Out-of-stock items are subject to sourcing lead time; contact us for ETA.
- Export & Customs — We support international shipments with full commercial invoice and HS code documentation.
Application-Specific FAQ
Q: Is the C200H-PR027-E compatible with C200HS and C200HX CPUs?
A: Yes. The PR027-E is compatible with the full C200H family including C200HS, C200HE, C200HG, and C200HX series CPUs via the peripheral port.
Q: Can I use this console to upload/download full programs?
A: Yes. The PR027-E supports full program upload and download to/from the CPU memory, as well as online monitoring and editing.
Q: Is CX-Programmer still needed if I have the PR027-E?
A: For basic field tasks — monitoring, forced I/O, minor edits — the PR027-E is sufficient. CX-Programmer is recommended for full project documentation, offline simulation, and structured program management.
Q: What cable is required to connect the PR027-E to the CPU?
A: The PR027-E connects via the C200H peripheral port using the cable supplied with the unit. Confirm cable inclusion when ordering; replacement cables are available separately.
Q: Do you supply a warranty or return policy?
A: Please refer to our store policies page or contact [email protected] for warranty terms applicable to your order.
