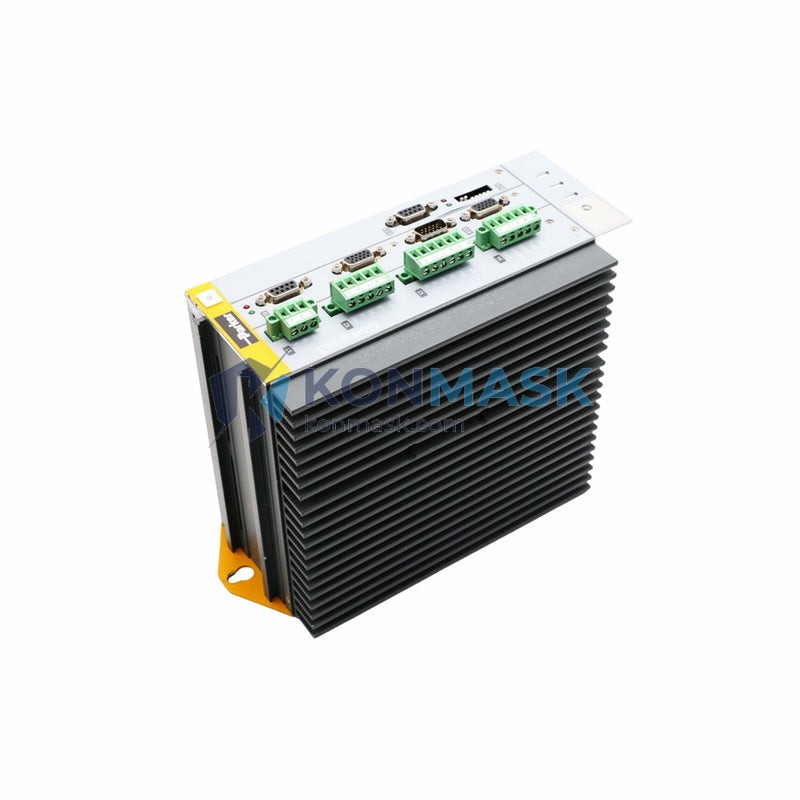

Parker C3S075V4F10 I20 T40 M11 – Compax3 Single-Axis Servo Drive | High-Performance Motion Control Platform
Engineering Background
The Parker Compax3 series represents Parker Hannifin’s flagship compact servo drive platform, engineered for demanding single-axis motion control applications across industrial automation, semiconductor manufacturing, packaging machinery, and precision robotics. The Compax3 architecture integrates advanced DSP-based current control, flexible fieldbus connectivity, and a modular option-card system into a DIN-rail-mountable package that scales from laboratory prototypes to high-volume production lines.
Product Positioning
The C3S075V4F10 I20 T40 M11 is a 7.5 A continuous-current, 400 V AC three-phase variant equipped with the I20 multi-encoder interface card, the T40 technology function module (IEC 61131-3 onboard PLC), and the M11 PROFIBUS-DP communication module. This configuration is purpose-built for OEM machine builders and system integrators who require deterministic fieldbus control, onboard motion sequencing, and universal feedback compatibility in a single compact unit.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | C3S075V4F10 I20 T40 M11 |
| Manufacturer | Parker Hannifin Corporation |
| Series / Platform | Compax3 |
| Drive Type | Single-Axis AC Servo Drive |
| Continuous Output Current | 7.5 A RMS |
| Peak Output Current | 15 A (200% for 2 s) |
| Supply Voltage | 3 × 400–480 V AC ±10%, 50/60 Hz |
| DC Bus Voltage | 565–680 V DC |
| Continuous Power Output | ≈ 5.2 kW (at 400 V) |
| Control Loop Bandwidth | Current: ≥ 3 kHz; Velocity: ≥ 500 Hz; Position: ≥ 200 Hz |
| PWM Switching Frequency | 8 kHz (default); 4 / 16 kHz selectable |
| Feedback Interface (I20) | Resolver, SinCos, EnDat 2.1/2.2, Hiperface, TTL/HTL incremental encoder |
| Technology Module (T40) | Onboard IEC 61131-3 PLC, cam tables, electronic gearing, homing routines |
| Communication Module (M11) | PROFIBUS-DP V1, up to 12 Mbit/s, GSD file available |
| Digital Inputs | 8 × 24 V DC (configurable, 4 high-speed ≤ 5 µs) |
| Digital Outputs | 4 × 24 V DC, 500 mA source |
| Analog Inputs | 2 × ±10 V, 14-bit resolution |
| Analog Outputs | 2 × ±10 V, 12-bit resolution |
| Safe Torque Off (STO) | SIL 2 / PLd per IEC 62061 / EN ISO 13849-1 |
| Operating Temperature | 0 °C to +45 °C (derating above 40 °C) |
| Storage Temperature | −25 °C to +70 °C |
| Humidity | 5–85% RH, non-condensing |
| Protection Class | IP20 (front panel) |
| Mounting | DIN rail or panel mount |
| Dimensions (H × W × D) | 270 × 70 × 195 mm (approx.) |
| Weight | 1.58 kg |
| Certifications | CE (LVD + EMC), UL 508C, cUL, RoHS |
| Programming Software | Parker C3 ServoManager (free download) |
Proven Application Environments
- Packaging Machinery – High-speed pick-and-place, form-fill-seal, and labeling lines requiring deterministic PROFIBUS-DP synchronization and onboard cam profiles (T40).
- Semiconductor & Electronics Manufacturing – Wafer handling, PCB drilling, and SMT gantry axes where SinCos / EnDat feedback (I20) delivers sub-micron positioning repeatability.
- Printing & Converting – Register control and tension management leveraging electronic gearing and high-bandwidth current loops.
- Robotics & Handling – Articulated arm joints and SCARA axes with resolver feedback for harsh-environment reliability.
- Machine Tools – Spindle orientation and auxiliary axis control integrated into Siemens / Beckhoff PLC architectures via PROFIBUS-DP (M11).
- Test & Measurement – Force-controlled actuator rigs exploiting the ±10 V analog torque command interface.
Engineering Advantages
- Universal Feedback Compatibility (I20) – A single drive supports resolver, SinCos, EnDat, Hiperface, and incremental encoders without hardware changes, reducing spare-parts inventory.
- Onboard IEC 61131-3 PLC (T40) – Eliminates an external motion controller for single-axis applications; cam tables and electronic gearing execute autonomously at drive level.
- PROFIBUS-DP V1 (M11) – Acyclic parameter access (DPV1) enables online drive diagnostics and parameter backup without interrupting production.
- SIL 2 Safe Torque Off – Integrated safety function meets EN ISO 13849-1 PLd, simplifying CE machinery directive compliance.
- Compact Footprint – 70 mm wide profile allows high-density cabinet layouts; side-by-side mounting with shared DC bus reduces wiring and energy costs.
- Auto-Tuning – C3 ServoManager one-click inertia identification and gain scheduling cuts commissioning time to under 30 minutes for standard servo motors.
System Architecture & Signal Flow
The C3S075V4F10 I20 T40 M11 follows a three-tier control hierarchy:
- Fieldbus Layer (M11 / PROFIBUS-DP) – The host PLC (e.g., Siemens S7-300/400/1500) sends cyclic position, velocity, or torque setpoints via PROFIdrive profile. The M11 module handles all DP telegram framing at up to 12 Mbit/s.
- Motion Sequencer Layer (T40) – The onboard IEC 61131-3 runtime executes stored motion programs, cam tables, and conditional branching independently of the fieldbus cycle, enabling sub-millisecond response to local I/O events.
- Servo Loop Layer (C3S core) – A 3 kHz current loop, 500 Hz velocity loop, and 200 Hz position loop close around the motor feedback signal decoded by the I20 interface card. The DSP outputs PWM signals to the IGBT power stage at 8 kHz.
Motor feedback cables connect to the I20 sub-D connector; the M11 PROFIBUS connector uses a standard 9-pin D-sub with integrated termination resistor switch. 24 V DC logic power is supplied separately from the 400 V AC main power, ensuring control availability during main power cycling.
Sourcing & Quality Verification
- Origin: Sourced from authorized Parker Hannifin distribution channels and verified OEM surplus with full traceability documentation.
- Inspection Protocol: Each unit undergoes visual inspection (connector integrity, label authenticity, housing condition), functional power-on test, and firmware version verification against Parker’s official release matrix.
- Warranty: 12-month Konmask operational warranty covering manufacturing defects; DOA replacement within 7 business days.
- Counterfeit Prevention: Serial numbers cross-referenced against Parker’s authorized product database. Holographic labels and date codes verified.
- Packaging: Anti-static foam insert, moisture barrier bag, and double-wall carton. ESD-safe handling throughout fulfillment.
Procurement Process
- Confirm Compatibility – Verify motor feedback type (resolver / SinCos / EnDat) matches I20 wiring; confirm PROFIBUS-DP master GSD file version with your PLC vendor.
- Request Quote – Contact [email protected] or call +0086 19859288691 for volume pricing, lead time, and export documentation (CO, packing list, commercial invoice).
- Place Order – Purchase via Konmask.com secure checkout. Payment terms: T/T, PayPal, credit card. LC available for orders > USD 5,000.
- Shipping – DHL Express (3–5 days worldwide), FedEx International Priority, or sea freight for bulk orders. Export-controlled items shipped with EAR99 classification confirmation.
- Commissioning Support – Free pre-sales technical consultation; C3 ServoManager configuration files available on request.
Technical FAQ
Q: Can the C3S075V4F10 drive a linear motor?
A: Yes. The Compax3 supports linear motor commutation when paired with a compatible linear encoder on the I20 interface. Parker’s C3 ServoManager includes a linear motor commissioning wizard.
Q: Is the T40 module compatible with Codesys?
A: The T40 uses Parker’s proprietary IEC 61131-3 runtime within C3 ServoManager, not a standalone Codesys environment. Function blocks for cam, gearing, and homing are pre-built.
Q: What PROFIBUS-DP profile does the M11 use?
A: PROFIdrive V3.1 (profile 3 – speed control; profile 4 – position control). The GSD file (PARK0B3F.GSD) is available free from Parker’s website and from Konmask on request.
Q: Can I replace only the M11 module with an EtherCAT option?
A: Yes. Parker’s Compax3 modular architecture allows field replacement of the M11 with an M12 (EtherCAT) or M13 (CANopen) module without replacing the base drive, provided firmware is updated accordingly.
Q: What is the minimum order quantity?
A: MOQ is 1 unit. Volume discounts apply at 3, 5, and 10+ units.
