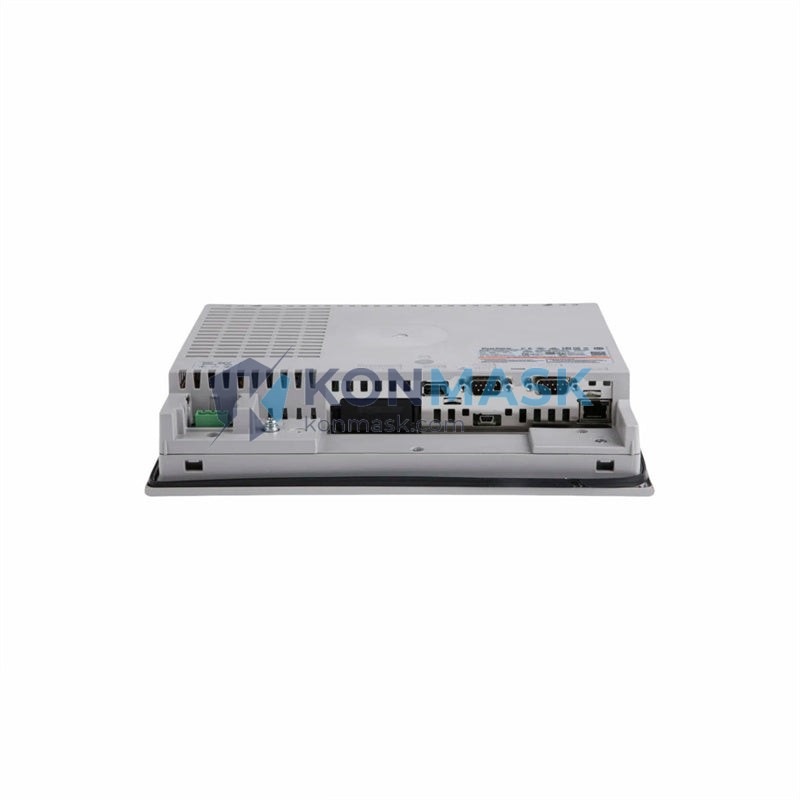

Pro-face PFXGP4501TAD – 10.4″ TFT Color Touch Panel HMI | GP4000 Series
Engineering Background
The PFXGP4501TAD is part of Pro-face’s GP4000 series — one of the most widely deployed HMI platforms in discrete and process manufacturing globally. Engineered by Digital Electronics Corporation (now a Schneider Electric brand), the GP4000 line was designed to meet the rigorous demands of factory-floor environments where uptime, readability, and seamless PLC integration are non-negotiable.
Product Positioning
This unit targets mid-to-large panel builders and OEM machine integrators who require a reliable, high-resolution operator interface with broad PLC compatibility. The PFXGP4501TAD delivers a 10.4-inch TFT color display with analog resistive touch, making it suitable for both new installations and direct replacement of legacy GP2000/GP3000 panels.
Complete Technical Specifications
| Part Number | PFXGP4501TAD |
| Brand / Manufacturer | Pro-face (Schneider Electric) |
| Series | GP4000 |
| Display Size | 10.4 inch (diagonal) |
| Display Type | TFT Color LCD |
| Resolution | 640 × 480 (VGA) |
| Touch Screen Type | Analog Resistive |
| Backlight | LED |
| Display Colors | 65,536 colors |
| CPU | Freescale i.MX515 (ARM Cortex-A8, 800 MHz) |
| Memory (RAM) | 256 MB |
| Flash Memory | 512 MB |
| Operating System | Windows CE 6.0 |
| Communication Ports | RS-232C × 2, RS-422/485 × 1, USB Host × 2, USB Device × 1, Ethernet (10/100BASE-T) × 1 |
| CF Card Slot | 1 × CompactFlash (Type II) |
| SD Card Slot | 1 × SD/SDHC |
| Power Supply | 24 VDC (±10%) |
| Power Consumption | Approx. 25 W |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Humidity | 10% to 90% RH (non-condensing) |
| Protection Rating | IP65f (front panel) |
| Vibration Resistance | 10–57 Hz: 0.075 mm amplitude; 57–150 Hz: 9.8 m/s² |
| Panel Cutout | Refer to Pro-face installation manual |
| Unit Weight | Approx. 1.74 kg |
| Country of Origin | Japan |
| HS Code | 8537.10.99 |
| Software | GP-Pro EX (screen creation software) |
Proven Application Environments
- Automotive Assembly Lines – Real-time process monitoring and alarm management on robotic welding and stamping cells.
- Food & Beverage Processing – IP65-rated front panel withstands washdown environments; supports HACCP-compliant data logging.
- Pharmaceutical Manufacturing – Audit-trail and recipe management via GP-Pro EX; compatible with 21 CFR Part 11 workflows.
- Water & Wastewater Treatment – Wide temperature tolerance and robust Ethernet connectivity for SCADA integration.
- Packaging Machinery (OEM) – Compact panel-mount form factor; direct replacement for GP2501/GP3501 legacy units.
- Energy & Power Distribution – Multi-protocol support enables integration with IEC 61850 and Modbus TCP devices.
Engineering Advantages
- Universal PLC Connectivity – Native driver library supports 2,800+ PLC/device protocols including Mitsubishi MELSEC, Siemens S7, Allen-Bradley DF1/EtherNet/IP, Omron FINS, Keyence, Panasonic, and more — no third-party gateway required.
- GP-Pro EX Ecosystem – Unified screen creation, simulation, and remote monitoring software; project files are forward/backward compatible across the GP4000 series.
- LED Backlight Longevity – Rated for 50,000+ hours MTBF, significantly reducing maintenance intervals versus CCFL predecessors.
- Dual Storage Expansion – CF + SD card slots enable simultaneous recipe storage, data logging, and firmware backup without network dependency.
- IP65f Front Sealing – Gasket-sealed bezel prevents ingress of dust and water jets, meeting IEC 60529 requirements for industrial panel installation.
- Compact Footprint – Optimized panel cutout dimensions reduce enclosure size requirements for space-constrained machine cabinets.
System Architecture & Signal Flow
The PFXGP4501TAD operates as a standalone HMI node within a PLC-centric control architecture. The ARM Cortex-A8 processor runs Windows CE 6.0, executing GP-Pro EX runtime to render operator screens and manage tag communication. Data exchange with field controllers occurs via serial (RS-232C/RS-422/485) or Ethernet, with polling cycles configurable per device driver. Operator inputs are captured by the analog resistive touch layer, processed by the CE runtime, and written back to PLC registers in real time. Alarm events, trend data, and recipe parameters are logged to CF/SD media or transmitted to a SCADA host via Ethernet TCP/IP.
Sourcing & Quality Verification
- All units sourced through authorized industrial distribution channels or verified surplus with full traceability documentation.
- Pre-shipment inspection includes power-on functional test, display uniformity check, touch calibration verification, and communication port continuity test.
- Original manufacturer packaging, labels, and serial numbers preserved; no remarking or refurbishment without explicit disclosure.
- Certificate of Conformance (CoC) available upon request for regulated procurement environments.
- Country of Origin: Japan — compliant with standard import/export documentation requirements.
Procurement Process
- Confirm Part Number – Verify PFXGP4501TAD matches your BOM or legacy panel specification. Cross-reference with Pro-face GP4501T series datasheet if substituting.
- Request Quote – Contact [email protected] for volume pricing, lead time, and availability confirmation.
- Place Order – Secure checkout via Konmask.com; B2B invoicing and wire transfer available for qualified accounts.
- Shipping & Documentation – Export documentation (commercial invoice, packing list, CoC) prepared within 1 business day of payment confirmation.
- After-Sales Support – Technical assistance for GP-Pro EX configuration and driver setup available post-delivery.
Technical FAQ
Q: Is PFXGP4501TAD compatible with GP-Pro EX version 4.x and later?
A: Yes. The GP4000 series is fully supported by GP-Pro EX from version 3.0 onward. Projects created on earlier versions can be migrated using the built-in conversion wizard.
Q: Can this unit replace a GP2501-TC41-24V or GP3501-TC41-24V?
A: In most cases, yes — the GP4000 series maintains backward compatibility with GP2000/GP3000 screen projects after conversion. Panel cutout dimensions should be verified against the installation manual before mechanical substitution.
Q: What is the maximum number of tags/devices supported?
A: GP-Pro EX supports up to 32,000 tags per project on GP4000 hardware, with multi-device communication enabling simultaneous connection to multiple PLCs.
Q: Does the unit support remote monitoring?
A: Yes. Pro-face Remote HMI (optional software) enables screen mirroring and remote operation over Ethernet. VNC server functionality is also supported natively.
Q: What warranty applies to units purchased through Konmask.com?
A: All units carry Konmask’s standard 90-day functional warranty. Extended warranty and service contracts available upon request.
