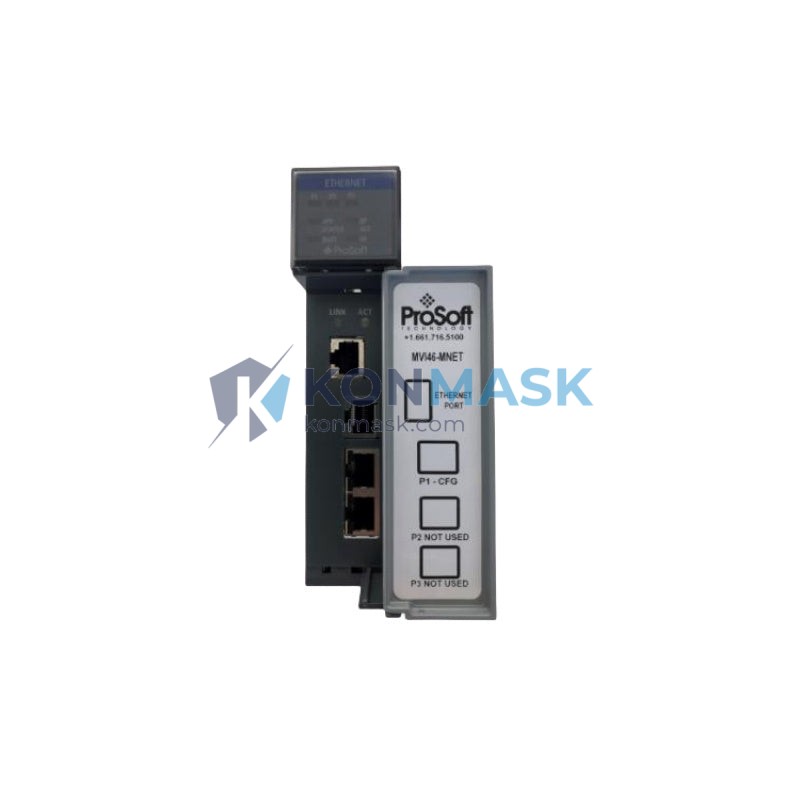

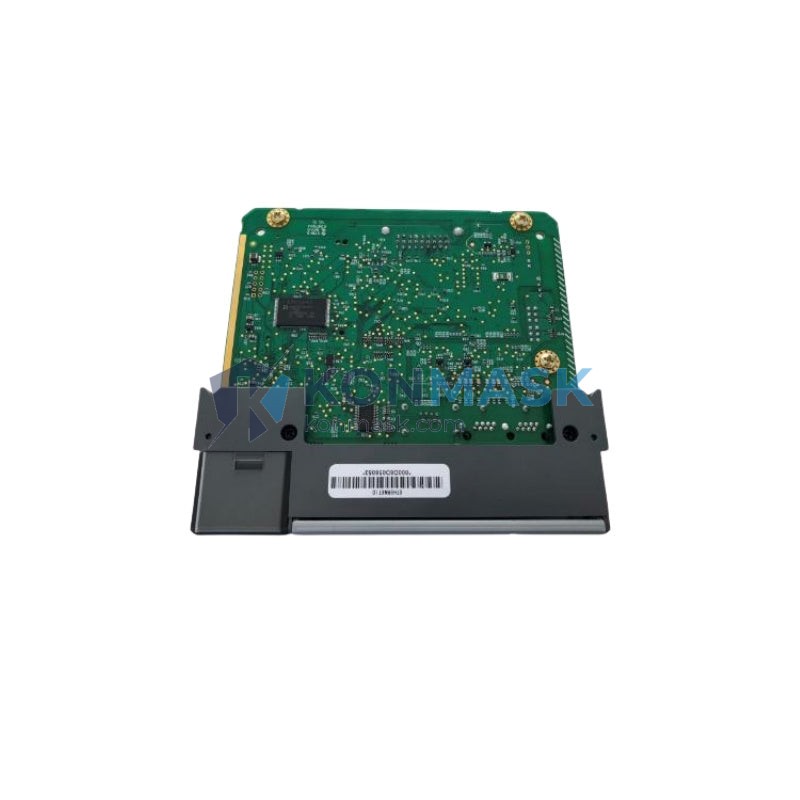

PROSOFT MVI46-MNET TCP/IP Communication Module | Replacement, Equivalent & Selection Guide
The PROSOFT MVI46-MNET is a high-performance TCP/IP Modbus communication module designed for Allen-Bradley SLC 500 backplane systems. It enables seamless Modbus TCP/IP client and server communication between SLC 500 PLCs and Ethernet-based devices, SCADA systems, and HMIs. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: MVI46-MNET
- Manufacturer: ProSoft Technology
- Platform: Allen-Bradley SLC 500
- Communication Protocol: Modbus TCP/IP (Client & Server)
- Network Interface: 10/100 Mbps Ethernet (RJ-45)
- Backplane Interface: SLC 500 I/O chassis (1746 series)
- Max Connections: Up to 10 simultaneous TCP connections
- Data Table Size: Up to 5,000 registers (configurable)
- Power Consumption: 800 mA @ 5 VDC (from backplane)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Dimensions: Standard SLC 500 single-slot module
- Weight: Approx. 1,500 g (packaged)
- Certifications: CE, UL, cUL
- Configuration Tool: ProSoft Configuration Builder (PCB) software
- Firmware: Field-upgradeable via Ethernet
Compatible Replacement & Equivalent Models
The following modules are functionally compatible or serve as direct/near-direct replacements for the MVI46-MNET in SLC 500 or equivalent PLC environments:
- MVI46-MNET-H (ProSoft) – Conformal-coated version for harsh environments; drop-in hardware replacement
- MVI46E-MNET (ProSoft) – Enhanced version with dual Ethernet ports; backward-compatible configuration
- 1747-AENTR (Allen-Bradley) – Native AB EtherNet/IP adapter; requires protocol gateway if Modbus TCP is needed
- HMS Anybus X-gateway AB7072 – Third-party Modbus TCP ↔ EtherNet/IP gateway; suitable for migration projects
- Moxa MGate MB3480 – Serial-to-Modbus TCP gateway; applicable when replacing legacy serial Modbus with TCP/IP
- Hilscher CIFX 50-RE (Modbus TCP) – PC-based alternative for soft-PLC or SCADA-direct architectures
Note: Always verify backplane slot compatibility, firmware version, and data table mapping before substituting modules in live systems.
Why Choose the Original MVI46-MNET
- Proven field reliability – Deployed in thousands of industrial installations across manufacturing, water treatment, and energy sectors
- Native SLC 500 integration – Communicates directly via backplane; no external wiring or gateway hardware required
- Dual-role operation – Functions simultaneously as Modbus TCP Client and Server, reducing module count
- Rich diagnostics – Built-in LED status indicators and ProSoft Configuration Builder diagnostics for rapid fault isolation
- Long product lifecycle – ProSoft maintains firmware and software support for legacy SLC 500 platforms
- Extensive documentation – Comprehensive user manual, sample ladder logic, and application notes available
Typical Applications
- Connecting SLC 500 PLCs to SCADA/HMI systems over Ethernet using Modbus TCP
- Integrating legacy SLC 500 systems with modern Modbus TCP-capable drives, meters, and sensors
- Building distributed I/O networks where Modbus TCP is the plant-standard protocol
- Data acquisition from energy meters, flow computers, and RTUs in oil & gas facilities
- Water/wastewater treatment plant automation with centralized Modbus TCP supervisory control
- Factory automation lines requiring real-time data exchange between SLC 500 and Ethernet devices
System Compatibility
- PLC Platform: Allen-Bradley SLC 500 (1746 chassis series)
- Compatible Chassis: 1746-A4, 1746-A7, 1746-A10, 1746-A13
- Power Supply: 1746-P1, 1746-P2, 1746-P3, 1746-P4, 1746-P7
- Processor Compatibility: SLC 5/03, 5/04, 5/05 (with MSG instruction support)
- Software: RSLogix 500 (ladder logic), ProSoft Configuration Builder (module setup)
- Network: Standard 10/100 Ethernet switch or managed switch with VLAN support
- Not compatible with: MicroLogix 1100/1400 backplane, ControlLogix 1756 chassis (see MVI56-MNET for ControlLogix)
Selection Guide
Use the following criteria to determine whether the MVI46-MNET is the right module for your application:
- ✅ Choose MVI46-MNET if: Your PLC is SLC 500 series, you need Modbus TCP Client and/or Server, and you require backplane-native communication without external gateways
- 🔄 Consider MVI46E-MNET if: You need dual Ethernet ports for network redundancy or device isolation
- 🔄 Consider MVI46-MNET-H if: Your installation environment involves vibration, moisture, or chemical exposure requiring conformal coating
- 🔄 Consider MVI56-MNET if: Your system uses ControlLogix (1756 chassis) instead of SLC 500
- 🔄 Consider MVI69-MNET if: Your system uses CompactLogix (1769 chassis)
- ❌ Do not use if: Your application requires EtherNet/IP (CIP) protocol — use 1747-AENTR or MVI46-DFNT instead
Quality Assurance & Sourcing
- Authenticity: All MVI46-MNET units sourced by Konmask.com are verified-original ProSoft Technology products with traceable supply chain documentation
- Condition options: New (factory-sealed), Surplus New (unused, original packaging), and Tested Refurbished available — clearly labeled on each listing
- Testing: Refurbished units undergo full functional testing including Ethernet communication, backplane interface, and firmware verification
- Warranty: 12-month warranty on new units; 90-day warranty on refurbished units
- Counterfeit prevention: We do not source from unverified gray-market channels; all units include serial number verification upon request
- Export compliance: Orders subject to applicable export control regulations; contact us for cross-border shipment requirements
How to Order
- Confirm your SLC 500 chassis model and available slot count
- Verify processor type (SLC 5/03, 5/04, or 5/05) for MSG instruction compatibility
- Select condition: New, Surplus New, or Refurbished
- Add to cart or contact us for volume pricing and lead time
- For urgent requirements, email support@konmask.com with your project timeline
- International orders: provide destination country for export compliance review
Replacement & Compatibility FAQ
Q: Can the MVI46-MNET replace a 1747-KE or 1747-KFC15 serial module?
A: No. The MVI46-MNET is an Ethernet/Modbus TCP module. For serial Modbus RTU/ASCII, consider the MVI46-MCM instead.
Q: Is the MVI46-MNET compatible with SLC 5/01 or 5/02 processors?
A: No. The module requires MSG instruction support available only on SLC 5/03 and above.
Q: Can I use MVI46-MNET in a ControlLogix system?
A: No. For ControlLogix (1756), use the MVI56-MNET. For CompactLogix (1769), use the MVI69-MNET.
Q: Does the MVI46-MNET support Modbus RTU over TCP (encapsulated)?
A: Yes. The module supports both standard Modbus TCP and Modbus RTU encapsulated over TCP.
Q: What is the lead time for a new MVI46-MNET?
A: Surplus and refurbished units typically ship within 1–3 business days. New factory units may have 2–6 week lead times depending on ProSoft availability. Contact us for current stock status.
Q: Can I get a datasheet or user manual?
A: Yes. Contact support@konmask.com and we will provide the official ProSoft MVI46-MNET user manual and wiring diagrams.
