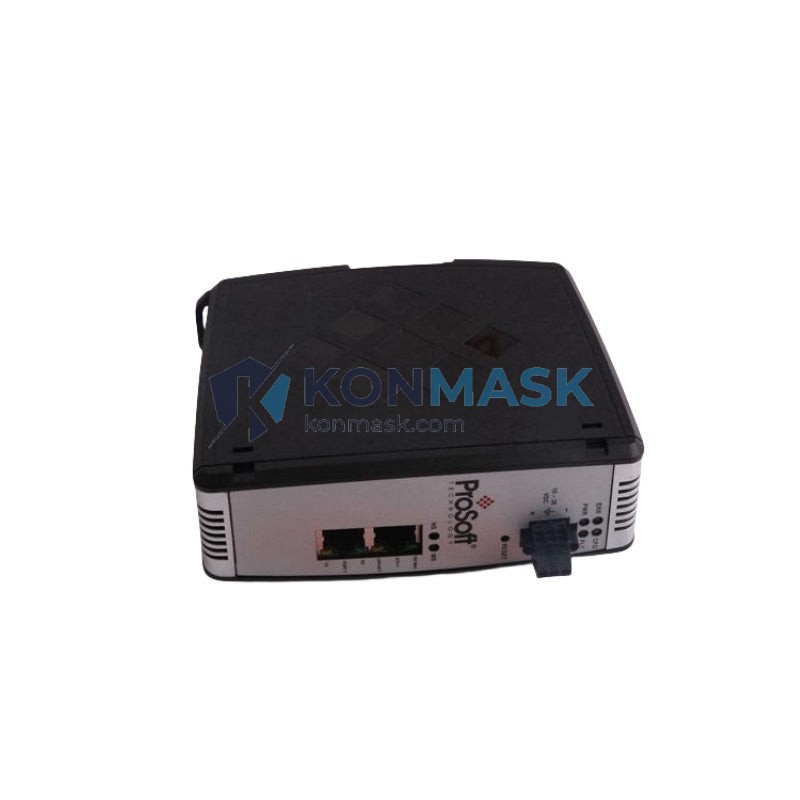

PROSOFT AN-X2-AB-DHRIO Ethernet Interface

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

SKU: AN-X2-AB-DHRIO Category: Prosoft

Description

Legacy Network Gateway Solution — PROSOFT AN-X2-AB-DHRIO | AN-X2 Series

Where This Product Is Used

The PROSOFT AN-X2-AB-DHRIO is deployed wherever modern Ethernet/IP infrastructure must communicate with legacy Allen-Bradley Data Highway Plus (DH+) and Remote I/O (RIO) networks. Typical deployment environments include:

Automotive assembly lines — bridging PLC-5 and SLC 500 controllers still running DH+ to plant-wide MES/SCADA systems over Ethernet.
Oil & gas processing facilities — integrating legacy RIO racks into modern DCS or historian platforms without replacing field hardware.
Food & beverage plants — enabling remote monitoring and recipe management over Ethernet while preserving existing DH+ wiring infrastructure.
Water/wastewater treatment — connecting aging Allen-Bradley RIO I/O drops to SCADA systems for centralized supervisory control.
Discrete manufacturing — supporting phased modernization projects where full PLC replacement is deferred but Ethernet visibility is required immediately.
Mining & metals — ruggedized plant environments where DH+ cabling is already in place and replacement is cost-prohibitive.

Technical Specifications

Part Number	AN-X2-AB-DHRIO
Manufacturer	ProSoft Technology
Series	AN-X2
Primary Function	Ethernet/IP ↔ Allen-Bradley DH+ & Remote I/O Gateway
Ethernet Port	10/100 Mbps, RJ-45, auto-negotiate
DH+ Port	3-pin Phoenix connector, 57.6 / 115.2 / 230.4 kbps
RIO Port	3-pin Phoenix connector, 57.6 / 115.2 / 230.4 kbps
Supported Protocols	Ethernet/IP (EtherNet/IP), DH+, Allen-Bradley Remote I/O
Power Supply	24 VDC (±10%), 250 mA typical
Operating Temperature	0 °C to +60 °C
Storage Temperature	-40 °C to +85 °C
Humidity	5–95% RH, non-condensing
Dimensions (W × H × D)	Approx. 35 × 120 × 100 mm (DIN-rail mount)
Weight	300 g
Certifications	CE, UL Listed, RoHS
Configuration Interface	Web browser (built-in HTTP server), AnxInit utility
Firmware Update	Via Ethernet (TFTP)

Why Engineers Specify This Model

Non-disruptive integration: Connects to existing DH+ and RIO networks without modifying PLC programs or replacing field wiring — zero downtime during commissioning.
Dual-network support in one unit: Simultaneously bridges both DH+ and RIO on a single gateway, reducing panel space and BOM cost versus two separate converters.
Transparent messaging: Supports explicit and implicit Ethernet/IP messaging, allowing Logix controllers to read/write DH+ nodes as if they were native EtherNet/IP devices.
Web-based configuration: No proprietary software license required — configure via any browser using the built-in HTTP server.
Proven field reliability: AN-X2 platform has extensive installed base in North American and global industrial facilities since 2010.
DIN-rail form factor: Fits standard control panel layouts; compact footprint minimizes enclosure requirements.

Complete System Bill of Materials

A typical AN-X2-AB-DHRIO installation requires the following components:

AN-X2-AB-DHRIO gateway module (this item)
24 VDC DIN-rail power supply (e.g., Phoenix Contact QUINT or equivalent), 5 W minimum
Shielded twisted-pair cable for DH+ segment (Belden 9463 or equivalent)
3-pin Phoenix connector plugs (included with unit)
RJ-45 Cat5e/Cat6 Ethernet patch cable
DIN rail (35 mm TS-35) and end brackets
Ethernet switch or managed switch port (if integrating into plant LAN)
PC or HMI with web browser for initial configuration (temporary, commissioning only)

Compliance & Industry Standards

CE Marking — Compliant with EU EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.
UL Listed — Recognized under UL 508 (Industrial Control Equipment).
RoHS Compliant — Restriction of Hazardous Substances Directive 2011/65/EU.
EtherNet/IP Conformance — Designed to ODVA EtherNet/IP specification.
Allen-Bradley DH+ Protocol — Compatible with Rockwell Automation DH+ network standard (1770-KF2, 1784-KTx equivalent functionality).

Quality Assurance & Sourcing

Konmask.com sources the AN-X2-AB-DHRIO exclusively through verified distribution channels and authorized surplus networks. Every unit offered is subject to the following quality controls:

Visual and mechanical inspection upon receipt
Firmware version verification against ProSoft Technology release notes
Functional power-on test with Ethernet link confirmation
Anti-static packaging and humidity-indicator card for transit protection
Traceability documentation available upon request for regulated industries

We do not list units with unknown provenance, missing labels, or unverifiable firmware. If a unit does not pass our intake checks, it is not offered for sale.

How to Source This Part

Add to cart directly from this page if stock is shown as available.
Request a quote for volume orders (3+ units) or project-based procurement — email [email protected] with your project timeline and quantity.
Lead time inquiry: If out of stock, contact us — we maintain supplier relationships that often allow us to source within 5–15 business days.
Export/cross-border orders: We ship internationally. Contact us for HS code documentation, commercial invoice templates, and freight options.

Application-Specific FAQ

Q: Can the AN-X2-AB-DHRIO replace a 1784-KTX or 1784-PKTX card?
A: Yes. The AN-X2-AB-DHRIO provides equivalent DH+ node access over Ethernet, eliminating the need for ISA/PCI DH+ cards in modern PCs. RSLinx Classic can communicate to DH+ nodes via the AN-X2 Ethernet driver.

Q: Can it connect to both DH+ and RIO simultaneously?
A: Yes. The unit supports concurrent DH+ and RIO operation on separate ports, managed through a single Ethernet/IP interface.

Q: Is it compatible with ControlLogix and CompactLogix?
A: Yes. Logix5000 controllers can use MSG instructions over EtherNet/IP to communicate with DH+ nodes through the AN-X2-AB-DHRIO.

Q: Does it require a ProSoft license or subscription?
A: No. The AN-X2-AB-DHRIO is a standalone hardware gateway. Configuration is performed via a free web browser interface or the AnxInit utility — no recurring software fees.

Q: What is the maximum number of DH+ nodes supported?
A: The DH+ network supports up to 64 nodes (addresses 0–63). The AN-X2-AB-DHRIO occupies one node address on the DH+ segment.

Q: Can I use this for data logging or historian integration?
A: Yes. SCADA platforms and historians (e.g., Ignition, FactoryTalk Historian, OSIsoft PI) that support EtherNet/IP or OPC-DA/UA can poll DH+ data through the AN-X2-AB-DHRIO using an intermediate OPC server or direct driver.
