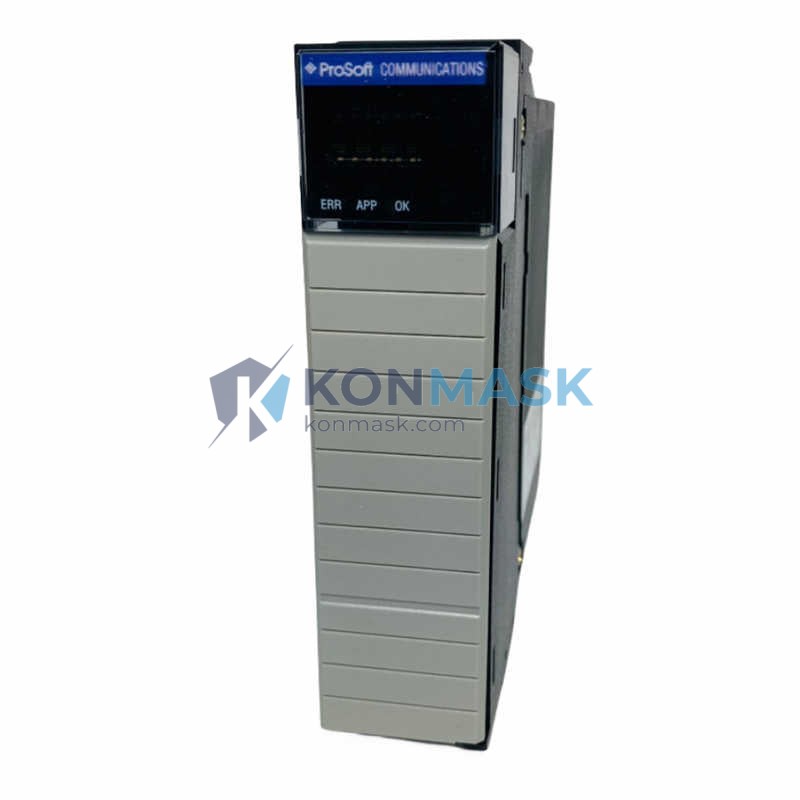

Genuine PROSOFT MVI56E-MCM Multi-Communication Module | MVI56E Series – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine, traceable PLC and DCS hardware. The PROSOFT MVI56E-MCM is a high-performance multi-protocol communication module designed for Allen-Bradley ControlLogix® platforms, enabling seamless integration of legacy serial protocols into modern Ethernet-based control architectures.
Technical Specifications
| Part Number | MVI56E-MCM |
| Manufacturer | ProSoft Technology |
| Series | MVI56E (Enhanced) |
| Compatible Platform | Allen-Bradley ControlLogix® (1756 chassis) |
| Supported Protocols | Modbus RTU/ASCII Master & Slave, DF1 Master & Slave, ASCII |
| Serial Ports | 2 × RS-232/422/485 configurable |
| Backplane Interface | ControlLogix 1756 backplane |
| Configuration Tool | ProSoft Configuration Builder (PCB) |
| Power Consumption | 800 mA @ 5 VDC (backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions | Standard 1756 single-slot module |
| Weight | 330 g |
| Certifications | CE, UL, cUL |
Our 4-Step Quality Verification Process
Every unit shipped from Konmask.com passes through our rigorous internal verification protocol before dispatch:
- Step 1 – Source Traceability Check: We verify the supply chain origin of each unit, cross-referencing manufacturer batch codes and distributor documentation to confirm authentic provenance.
- Step 2 – Physical Inspection: Trained technicians inspect housing integrity, label authenticity, connector condition, and firmware version markings against OEM reference standards.
- Step 3 – Functional Bench Test (where applicable): Modules are powered and communication ports are tested for signal integrity and protocol response prior to packaging.
- Step 4 – Documentation Package: Each shipment includes a packing list, inspection record, and available OEM datasheet or manual link for your engineering team.
Key Features & Benefits
- ✅ Multi-Protocol Flexibility: Simultaneously supports Modbus RTU/ASCII and DF1 on independent serial ports — eliminating the need for multiple gateway devices.
- ✅ Enhanced Diagnostics: Built-in web server and LED status indicators for real-time port monitoring and rapid fault isolation.
- ✅ Seamless ControlLogix Integration: Native backplane communication with RSLogix 5000 / Studio 5000 Add-On Instructions (AOI) for fast commissioning.
- ✅ Configurable Serial Ports: RS-232, RS-422, and RS-485 selectable per port — adaptable to virtually any legacy field device.
- ✅ Proven Industrial Reliability: Designed for 24/7 continuous operation in demanding manufacturing and process environments.
- ✅ Reduced Engineering Time: Pre-built sample ladder logic and configuration templates accelerate deployment.
Typical Applications
- Integrating Modbus RTU field instruments (flow meters, analyzers, drives) into ControlLogix systems
- Bridging legacy DF1 devices (PLC-5, SLC 500) with modern ControlLogix architectures during plant upgrades
- Oil & gas SCADA serial device integration
- Water/wastewater treatment plant automation
- Pharmaceutical and food & beverage process control
- Power generation and utilities monitoring
- Building automation and HVAC control systems
Compatible System Components
- Chassis: Allen-Bradley 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75
- Controllers: 1756-L61, 1756-L62, 1756-L63, 1756-L71, 1756-L72, 1756-L73, 1756-L74, 1756-L75, 1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E
- Software: RSLogix 5000 v16+, Studio 5000 Logix Designer v21+, ProSoft Configuration Builder (PCB) v4.x+
- Related ProSoft Modules: MVI56E-MNET, MVI56E-DFNT, MVI56E-PBMNET
Global Sourcing & Shipping Capabilities
Konmask.com maintains established procurement channels across Asia-Pacific, Europe, and North America, enabling us to source and fulfill orders for both standard and end-of-life (EOL) industrial components. Our logistics capabilities include:
- Shipping Regions: Worldwide — including China, Southeast Asia, Middle East, Europe, North America, and Australia
- Lead Time: In-stock items typically ship within 1–3 business days; sourced items within 5–15 business days (confirmed at order)
- Carriers: DHL Express, FedEx International Priority, UPS Worldwide, SF Express (domestic CN)
- Export Documentation: Commercial invoice, packing list, certificate of origin available upon request
- Customs Support: HS Code 8537.10 — we assist with standard export documentation for smooth customs clearance
- Minimum Order: 1 unit (bulk pricing available for 5+ units — contact us)
Certifications & Compliance Statement
The PROSOFT MVI56E-MCM is manufactured by ProSoft Technology and carries the following certifications:
- CE Marking — Compliant with EU Machinery Directive and EMC Directive
- UL / cUL Listed — Recognized for use in North American industrial installations
- RoHS Compliant — Restriction of Hazardous Substances (EU Directive 2011/65/EU)
Konmask.com does not manufacture or modify OEM hardware. All products are sourced as-is from verified supply channels. We make no warranty claims beyond those provided by the original manufacturer. Customers are advised to verify firmware and hardware revision compatibility with their specific application prior to installation.
How to Order
- Confirm Part Number: Verify MVI56E-MCM matches your BOM or replacement requirement. Check hardware revision if critical.
- Add to Cart & Checkout: Proceed through our secure Shopify checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Receive Order Confirmation: You will receive an email confirmation with estimated ship date within 1 business day.
- Shipment & Tracking: Tracking number provided upon dispatch. Typical transit: 3–7 business days internationally.
- Need a Quote or PO? Email [email protected] with your quantity and delivery requirements. We respond within 24 hours.
Authenticity & Trust FAQ
Q: Are these units genuine OEM products?
A: Yes. We source exclusively from traceable supply channels. We do not sell counterfeit, cloned, or unauthorized reproductions. Each unit is inspected before shipment.
Q: Can you provide documentation or test reports?
A: We provide available inspection records and OEM documentation with each order. For specific certification requests, contact us before purchasing.
Q: What if the unit is DOA or damaged on arrival?
A: Contact us within 7 days of receipt with photos and your order number. We will arrange replacement or refund per our returns policy.
Q: Do you offer warranty?
A: We offer a 90-day functional warranty on all units shipped from Konmask.com, covering defects present at time of shipment. This does not cover damage from incorrect installation or misuse.
Q: Can I order in bulk or request a custom sourcing quote?
A: Yes. We regularly fulfill B2B orders of 10–100+ units. Contact us at [email protected] for volume pricing.
Q: Is my payment secure?
A: All transactions are processed through Shopify’s PCI-DSS compliant payment infrastructure. We never store card data.
