Genuine Schneider Electric BCH1304N32A1C Lexium BCH1 - Industrial Automation Part

Schneider BCH1304N32A1C Servo Motor | Lexium BCH1 Series 130mm Flange with Brake

Request a Fast Quote Email Directly

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

SKU: BCH1304N32A1C Category: Schneider Tags: BCH1304N32A1C, Industrial Automation, Lexium BCH1, Schneider Electric, servo-motor

Description

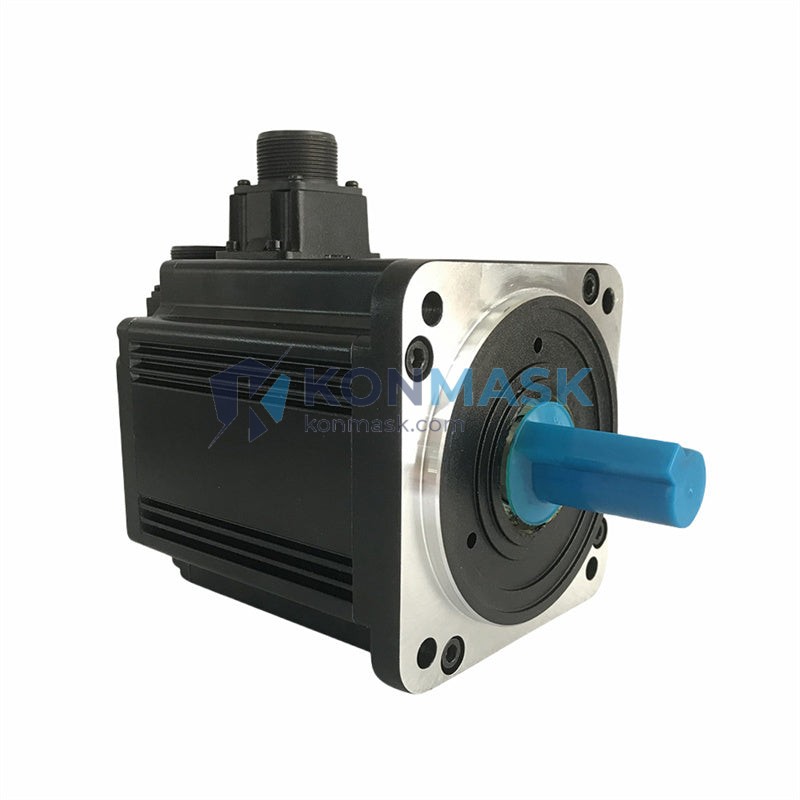

Schneider Electric BCH1304N32A1C Servo Motor – Lexium BCH1 Series 130mm Flange with Electromagnetic Brake

Imagine a high-speed packaging line suddenly losing position feedback mid-cycle — products scatter, the line halts, and every minute of downtime costs thousands. Or a CNC machining center that loses holding torque the moment power cuts, sending a precision workpiece crashing into the spindle. These are not hypothetical scenarios; they are the real consequences of running motion control systems without a reliable, spec-matched servo motor. The Schneider Electric BCH1304N32A1C is engineered precisely to eliminate these risks, delivering consistent torque, accurate positioning, and safe load holding in the most demanding industrial environments.

Within the Lexium BCH1 family — Schneider Electric’s flagship AC servo motor series for general-purpose and high-dynamic motion applications — the BCH1304N32A1C occupies a critical mid-range position. Its 130 mm flange frame (NEMA 34 equivalent), 3200 RPM rated speed, incremental encoder feedback, and integrated electromagnetic brake make it the preferred choice for axes that require both high dynamic response and secure load retention at standstill. Globally, the Lexium BCH1 series is deployed across hundreds of thousands of machine axes in packaging, semiconductor, textile, and precision machining industries, making it one of the most field-proven servo motor platforms available today.

Technical Specifications

Part Number / SKU: BCH1304N32A1C
Brand: Schneider Electric
Series: Lexium BCH1
Frame Size: 130 mm flange (NEMA 34 equivalent)
Stack Length Code: 04
Shaft Type: Standard (N – straight shaft, no key)
Rated Speed: 3200 RPM
Encoder Type: Incremental (A)
Encoder Resolution: Single-turn (1)
Brake: Electromagnetic holding brake (C)
Insulation Class: F
Protection Rating: IP65 (shaft end IP54)
Compatible Drive: Lexium 32 / Lexium 62 servo drives
Weight: Approx. 4.46 kg
Mounting: Flange mount (IEC 72-1)

Note: Detailed torque-speed curves and wiring diagrams are available upon request. Specifications are based on Schneider Electric published datasheets; always verify against the official product documentation for your application.

Key Features & Benefits

Electromagnetic Holding Brake (C suffix): Provides secure load retention when the drive is de-energized — essential for vertical axes, gravity-loaded slides, and safety-critical positioning stages.
3200 RPM Rated Speed: Delivers high throughput for fast-cycle applications such as pick-and-place, flying shear, and high-speed labeling without sacrificing torque linearity.
130 mm Flange Frame: Offers a substantial torque-to-frame ratio, enabling compact machine designs while handling medium-to-heavy load inertia.
Incremental Encoder Feedback: Provides reliable, cost-effective position and speed feedback compatible with the full Lexium drive ecosystem.
IP65 Body Protection: Resists dust ingress and low-pressure water jets, suitable for wash-down-adjacent environments and dusty factory floors.
Lexium Ecosystem Compatibility: Plug-and-play integration with Schneider Lexium 32 and Lexium 62 drives via pre-configured motor parameter files, reducing commissioning time significantly.
Class F Insulation: Supports continuous operation in high-ambient-temperature environments up to 155 °C winding temperature, extending motor service life.

Industry & Equipment Applications

Packaging Machinery: Servo-driven film wrapping, case erecting, and cartoning machines requiring precise cut-to-length and registration control.
CNC Machine Tools: Rotary table drives, tool-changer axes, and feed axes on milling centers and lathes where holding brake prevents drift during tool changes.
Semiconductor & Electronics Manufacturing: Wafer handling, PCB drilling, and SMT pick-and-place gantries demanding sub-millimeter repeatability.
Textile Machinery: Warp beam drives, rapier loom weft insertion, and yarn tension control systems.
Robotics & Handling: Joint drives for SCARA and Cartesian robots, palletizing systems, and automated guided vehicle steering axes.
Printing & Converting: Register control, tension control, and web guiding on flexographic and gravure printing lines.

System Integration & Compatible Parts

The BCH1304N32A1C is designed for seamless integration within the Schneider Electric Lexium motion control ecosystem. Typical compatible components include:

Servo Drives: Lexium 32A / 32M / 32C, Lexium 62 (verify current rating match)
Motion Controllers: Modicon M262, Modicon M241/M251 with SoMachine Motion
Power Cables: VW3M5101Rxx series motor power cables
Encoder Cables: VW3M8102Rxx series feedback cables
Brake Cables: VW3M5102Rxx series brake cables
Gearboxes: Lexium PGD / PGE planetary gearboxes with 130 mm flange adapter

Always confirm compatibility using Schneider Electric’s Lexium selection tool or contact our technical team for application-specific guidance.

Our Quality Assurance Process

At Konmask.com, every Schneider Electric BCH1304N32A1C unit we supply undergoes a rigorous multi-stage verification process before shipment:

Authenticity Verification: Serial number and date code cross-referenced against Schneider Electric’s authorized supply chain records.
Physical Inspection: Shaft runout, flange flatness, connector integrity, and brake engagement force checked against OEM tolerances.
Packaging Integrity: Original OEM packaging inspected for tampering; anti-static and moisture-barrier packaging applied for long-distance shipment.
Documentation: Certificate of conformity and test report available upon request for quality-critical procurement.

How to Order

Submit your inquiry via the Contact / RFQ form on this page or email [email protected].
Provide your required quantity, delivery timeline, and destination country.
Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
Upon PO confirmation, we arrange export documentation, freight, and customs clearance support as required.

We support T/T bank transfer, L/C, and other standard B2B payment terms. Minimum order quantity: 1 unit.

Why Choose Konmask.com?

Specialized Industrial Focus: We exclusively handle automation and motion control components — no consumer electronics, no distractions. Deep technical knowledge in every transaction.
Global Export Experience: Serving buyers in Europe, Southeast Asia, the Middle East, and the Americas with compliant export documentation and reliable logistics partners.
Genuine Parts Guarantee: 100% authentic Schneider Electric products sourced through verified supply channels. Counterfeit-free commitment backed by our QA process.
Responsive Technical Support: Pre-sales application engineering and post-sales commissioning guidance from engineers with hands-on Lexium system experience.
Competitive Lead Times: Extensive network of authorized distributors and bonded warehouse stock enables faster delivery than many alternatives.

Frequently Asked Questions

Q: What is the difference between BCH1304N32A1C and BCH1304N32A1A?: A: The suffix “C” indicates the motor is equipped with an electromagnetic holding brake, while “A” denotes no brake. All other specifications (frame, speed, encoder) are identical. Choose “C” for vertical or gravity-loaded axes.
Q: Is the BCH1304N32A1C compatible with Lexium 32A drives?: A: Yes, the BCH1 130mm frame motors are compatible with the Lexium 32A drive family. Always verify the drive current rating matches the motor’s rated current. Contact us for a compatibility confirmation for your specific drive model.
Q: Can you supply the matching power and encoder cables?: A: Yes. We can supply the complete cable set (VW3M5101R, VW3M8102R, VW3M5102R) alongside the motor. Please specify cable length when submitting your RFQ.
Q: What is the typical lead time for BCH1304N32A1C?: A: Lead time varies by stock availability. In-stock units ship within 3–5 business days. For out-of-stock items, standard lead time is 4–8 weeks. Contact us for a real-time availability check.
Q: Do you provide a warranty?: A: Yes. All units are supplied with a minimum 12-month warranty against manufacturing defects, consistent with Schneider Electric’s standard warranty policy for new components.
