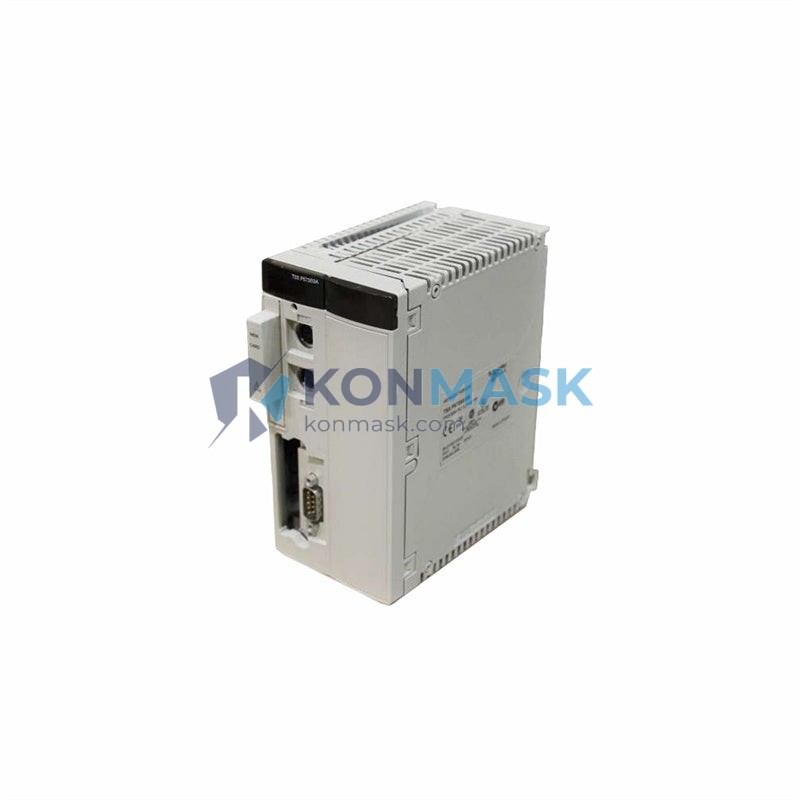

Schneider Electric TSXP57353M – High-Performance PLC Processor | TSX Premium Unity Platform
Engineering Background
The Schneider Electric TSXP57353M is a high-performance processor module from the TSX Premium series, designed for demanding industrial automation environments. Built on Schneider Electric’s Unity Pro programming platform, this module delivers deterministic real-time control with robust communication capabilities, making it the preferred choice for process engineers managing complex multi-axis and multi-network architectures.
Product Positioning
Positioned at the upper tier of the TSX Premium family, the TSXP57353M targets mid-to-large scale automation projects requiring high memory capacity, fast scan cycles, and native multi-protocol connectivity. It is a direct replacement and upgrade path for legacy TSX57 processors, fully compatible with existing TSX Premium racks and I/O infrastructure.
Complete Technical Specifications
| Part Number / SKU | TSXP57353M |
| Brand / Manufacturer | Schneider Electric |
| Series / Platform | TSX Premium / Unity Pro |
| Processor Type | PLC CPU Processor Module |
| Program Memory (RAM) | 512 KB |
| Data Memory | 512 KB |
| Max I/O Points | Up to 1,024 discrete I/O |
| Communication Ports | Modbus (RS-232/RS-485), Uni-Telway, Ethernet-ready via PCMCIA |
| Programming Software | Unity Pro (IEC 61131-3: LD, FBD, SFC, ST, IL) |
| Scan Time | < 1 ms/1K instructions (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 10% to 95% RH (non-condensing) |
| Power Supply | Via TSX Premium rack backplane |
| Weight | Approx. 4,460 g (module + packaging) |
| Certifications | CE, UL, cUL, IEC 61131-2 |
| Country of Origin | France / EU |
Proven Application Environments
- Discrete Manufacturing: Automotive assembly lines, stamping, and robotic welding cells requiring deterministic cycle control
- Process Industries: Chemical dosing, water treatment, and HVAC systems with multi-loop PID requirements
- Energy & Utilities: Substation automation, power distribution monitoring, and generator control panels
- Material Handling: Conveyor systems, palletizers, and warehouse sortation with high-speed I/O demands
- Oil & Gas: Wellhead control, pipeline monitoring, and compressor station automation
- Building Automation: Large-scale BMS integration via Modbus RTU/TCP networks
Engineering Advantages
- Large Memory Footprint: 512 KB RAM supports complex ladder logic, function block diagrams, and structured text programs without segmentation
- IEC 61131-3 Compliance: Full multi-language programming via Unity Pro — migrate legacy Concept/PL7 programs with built-in conversion tools
- Modular Rack Architecture: Hot-swap compatible with TSX Premium racks; supports local and remote I/O expansion via X-Bus and Fipio
- Integrated Diagnostics: Built-in self-test routines, watchdog timers, and LED status indicators for rapid fault isolation
- PCMCIA Expansion: Dual PCMCIA slots for Ethernet, Profibus-DP, or additional serial communication cards
- Battery-Backed RAM: Retains program and data memory during power loss; lithium battery with multi-year service life
System Architecture & Signal Flow
The TSXP57353M installs in Slot 00 of any TSX Premium rack (TSX RKY4/6/8/12). The processor communicates with local I/O modules via the high-speed X-Bus backplane (up to 32 MB/s). Remote I/O drops connect via Fipio fieldbus (up to 127 nodes, 1 Mbit/s). Supervisory SCADA systems interface through the integrated Uni-Telway port or optional Ethernet PCMCIA card. The Unity Pro IDE connects via USB programming port for online monitoring, forcing, and firmware updates without interrupting production.
Sourcing & Quality Verification
- OEM Authenticity: All TSXP57353M units sourced through verified Schneider Electric authorized distribution channels or certified refurbishers
- Pre-shipment Testing: Each module undergoes power-on self-test (POST), memory integrity check, and communication port verification before dispatch
- Traceability: Serial number and firmware version documented; original Schneider Electric labeling and holographic seals intact
- Warranty: 12-month replacement warranty against manufacturing defects; DOA policy within 7 days of receipt
- Packaging: ESD-safe anti-static bag, foam-lined carton, and moisture-barrier packaging for international freight
Procurement Process
- Inquiry: Submit your BOM or part number to support@konmask.com for availability confirmation and lead time
- Quotation: Receive a formal quotation within 24 business hours including unit price, freight, and estimated delivery
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for wire transfer or credit card payment
- Quality Inspection: Pre-shipment photos and test reports provided upon request before goods leave our facility
- Shipping: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders; tracking number provided within 24 hours of dispatch
- After-Sales: Technical support available via email and WhatsApp; replacement dispatched within 3 business days for confirmed warranty claims
Technical FAQ
Q: Is the TSXP57353M compatible with Unity Pro v13 and later?
A: Yes. The TSXP57353M is fully supported by Unity Pro v4.0 through the latest releases. Firmware updates are available via Schneider Electric’s Software Update portal.
Q: Can this processor replace a TSXP57303M or TSXP57453M?
A: The TSXP57353M is pin-compatible with all TSX Premium processors. Program migration requires Unity Pro’s built-in project conversion wizard; I/O configuration is preserved.
Q: What PCMCIA cards are compatible?
A: TSX ETY110, TSX ETY210 (Ethernet), TSX PBY100 (Profibus-DP), TSX SCY21601 (serial), and other Schneider Electric PCMCIA modules are supported.
Q: Do you supply the battery separately?
A: Yes. The compatible battery reference is TSXBATZ. It can be ordered separately or bundled with the processor module.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing is available for orders of 5 units or more.
