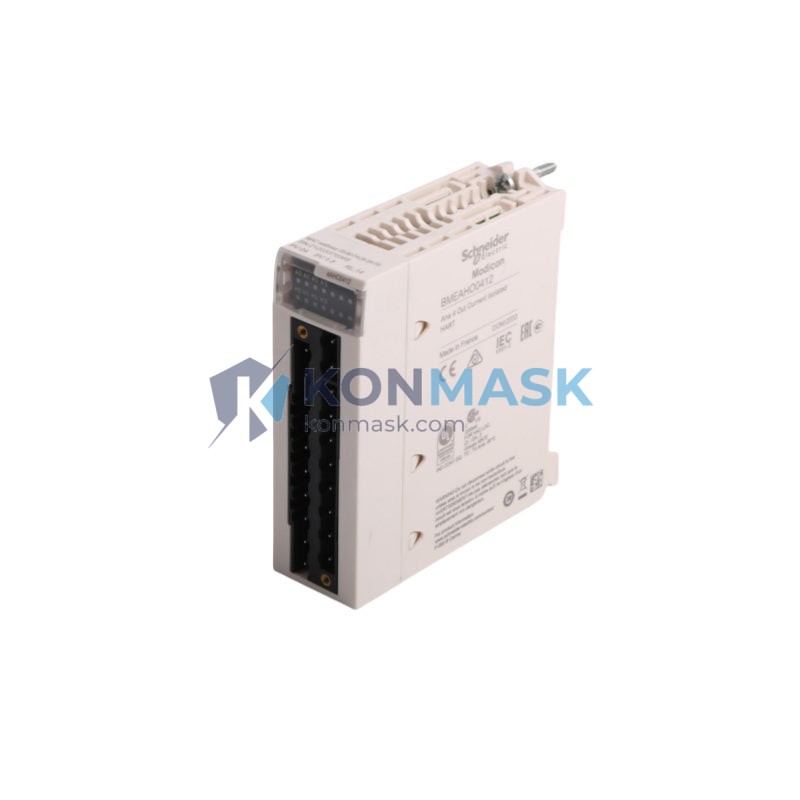

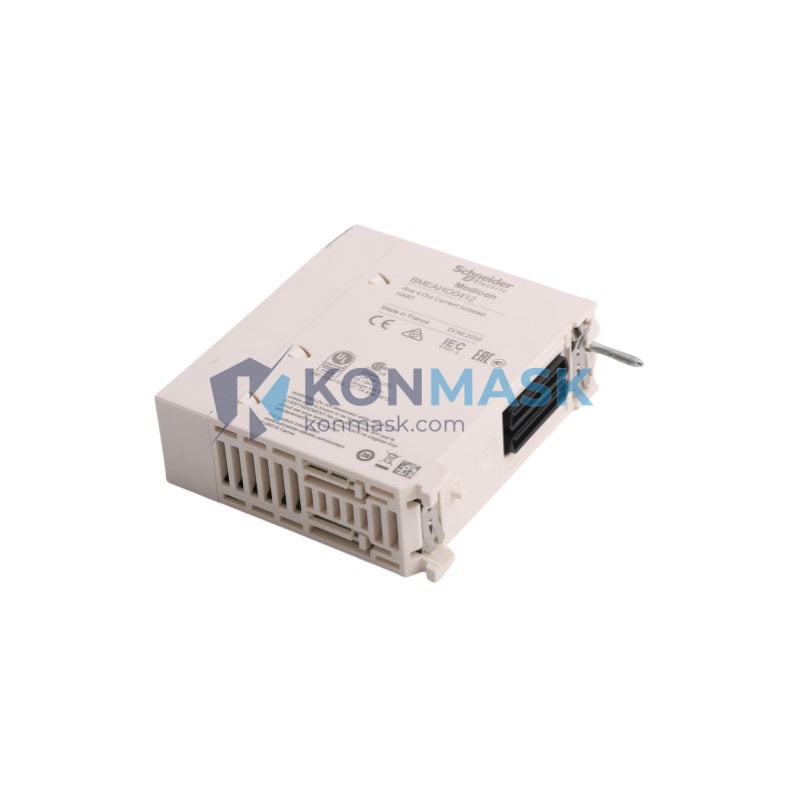

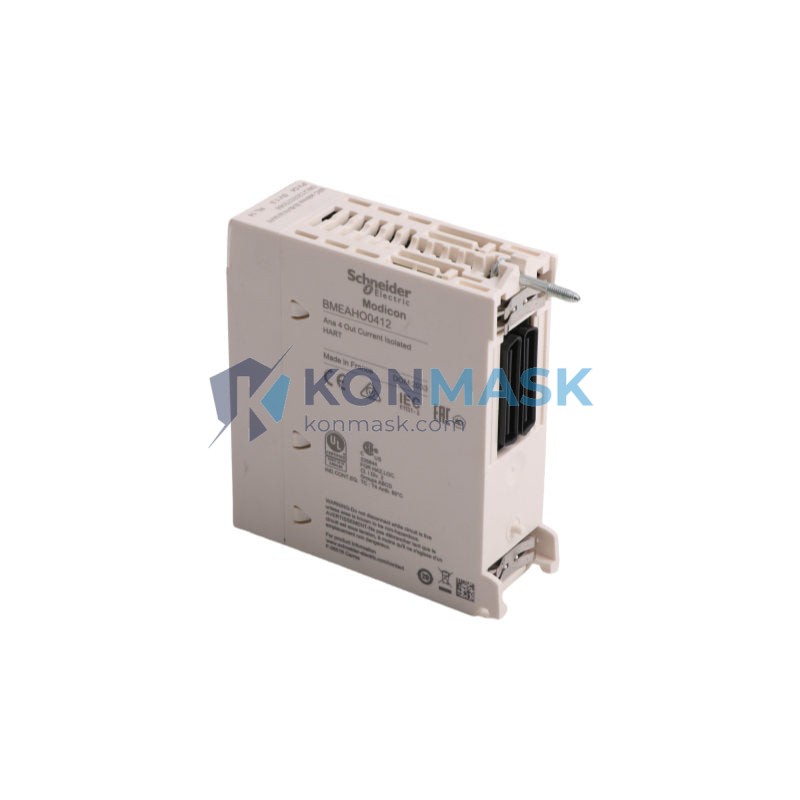

Schneider Electric BMEAHO0412 – 4-Channel Analog Output Module | Modicon M580 ePAC Platform
Engineering Background
The BMEAHO0412 is a high-precision analog output module engineered for the Schneider Electric Modicon M580 ePAC (Ethernet Programmable Automation Controller) platform — the industry benchmark for process-critical and safety-integrated control architectures. Designed to IEC 61131-3 standards, it delivers deterministic, low-drift analog signal conditioning for demanding continuous-process and discrete-manufacturing environments.
Product Positioning
Targeted at process engineers and system integrators requiring reliable multi-channel analog output in oil & gas, power generation, water treatment, and advanced manufacturing, the BMEAHO0412 integrates seamlessly into M580 Hot Standby (HSBY) and standard rack configurations. Konmask.com supplies verified OEM units with full traceability documentation.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | BMEAHO0412 |
| Manufacturer | Schneider Electric |
| Series / Platform | Modicon M580 ePAC |
| Module Type | Analog Output (AO) |
| Number of Channels | 4 isolated analog output channels |
| Output Signal Types | Voltage: ±10 V DC; Current: 0–20 mA / 4–20 mA |
| Resolution | 16-bit (65,536 steps) |
| Accuracy | ±0.1% of full scale at 25 °C |
| Load (Voltage Mode) | ≥ 1 kΩ |
| Load (Current Mode) | ≤ 600 Ω |
| Channel Isolation | Channel-to-channel and channel-to-bus galvanic isolation |
| Update Rate | Synchronous with M580 scan cycle |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5–95% non-condensing |
| Power Consumption | ≤ 3.5 W (from backplane bus) |
| Module Weight | 180 g |
| Country of Origin | France |
| Backplane Compatibility | Modicon M580 BME / BMX racks (with M580 CPU) |
| Certifications | CE, UL, cUL, RoHS, IEC 61131-2 |
| Programming Standard | IEC 61131-3 (Unity Pro / EcoStruxure Control Expert) |
| Hot Standby Support | Yes — compatible with BMEH58•040 HSBY CPU configurations |
Proven Application Environments
- Oil & Gas: Wellhead control, pipeline pressure regulation, compressor surge control
- Power Generation: Turbine governor analog setpoint, excitation control interfaces
- Water & Wastewater: Pump VFD speed reference, dosing pump control, valve positioner drives
- Chemical & Petrochemical: Reactor temperature setpoint, flow control loops, pressure letdown valves
- Discrete Manufacturing: CNC axis analog reference, servo amplifier command signals, tension control
- Building Automation: HVAC damper actuator control, chiller setpoint management
Engineering Advantages
- 16-bit resolution ensures sub-milliamp / sub-millivolt output precision for tight PID loop performance
- Full galvanic channel isolation eliminates ground loops and protects field instrumentation from backplane noise
- Dual output mode per channel (voltage or current selectable) reduces spare-parts inventory and simplifies BOM management
- Hot Standby compatibility enables bumpless transfer in redundant CPU architectures — zero process upset on CPU switchover
- EcoStruxure Control Expert integration provides auto-detected DDT (Derived Data Types), online diagnostics, and channel-level fault reporting
- Compact M580 form factor maximizes rack density in space-constrained marshalling cabinets
System Architecture & Signal Flow
The BMEAHO0412 occupies a standard M580 I/O slot and communicates via the high-speed Ethernet backplane bus (X80 bus). The CPU writes 16-bit integer setpoint values to the module’s output registers each scan cycle. Internal DAC circuitry converts digital values to the selected analog signal type. Each channel’s output driver is independently isolated, with a dedicated watchdog that drives outputs to a configurable safe state (hold last value or 0%) on CPU communication loss.
Wiring is via the BMXFTB2010 or equivalent screw-terminal block (sold separately). Field wiring shields should be terminated at the cabinet earth bar, not at the module terminal, to preserve isolation integrity.
Sourcing & Quality Verification
- All BMEAHO0412 units supplied by Konmask.com are genuine Schneider Electric OEM product sourced through authorized distribution channels
- Each unit ships with original manufacturer labeling, date code, and serial number intact
- Pre-shipment inspection includes visual, label authenticity, and functional power-on verification
- Certificate of Conformance (CoC) and test report available on request
- Traceability documentation retained for 5 years per ISO 9001 records requirements
Procurement Process
- Confirm part number — verify BMEAHO0412 against your M580 hardware catalog and rack layout drawing
- Check firmware compatibility — confirm your EcoStruxure Control Expert / Unity Pro version supports BMEAHO0412 DDT library
- Request quotation — contact support@konmask.com with quantity, required delivery date, and destination port
- Order confirmation — receive proforma invoice with lead time, shipping method, and Incoterms
- Shipment & tracking — DHL / FedEx express with full tracking; export documentation (commercial invoice, packing list, COO) included
- Incoming inspection — verify serial number, date code, and label integrity upon receipt before installation
Technical FAQ
Q: Can BMEAHO0412 be used in a Modicon M340 rack?
A: No. The BMEAHO0412 is exclusively designed for the M580 ePAC platform. For M340 systems, the equivalent module is BMX AMO 0410.
Q: Is channel-to-channel isolation provided?
A: Yes. Each of the 4 channels is galvanically isolated from all other channels and from the backplane bus, preventing ground loop interference between field devices.
Q: What happens to outputs on CPU fault or communication loss?
A: The module’s internal watchdog activates and drives outputs to the configured fallback state — either hold last value or 0% — as defined in the EcoStruxure Control Expert module configuration.
Q: Can voltage and current modes be mixed across channels?
A: Yes. Each channel is independently configurable for voltage (±10 V) or current (0–20 mA / 4–20 mA) output via software configuration in Control Expert.
Q: What terminal block is required?
A: The BMXFTB2010 20-pin screw terminal block is the standard accessory. Spring-clamp variants are also available from Schneider Electric.
Q: Is this module compatible with Hot Standby (HSBY) CPU configurations?
A: Yes. The BMEAHO0412 is fully supported in M580 HSBY architectures using BMEH58•040 series CPUs, with bumpless output transfer on CPU switchover.
