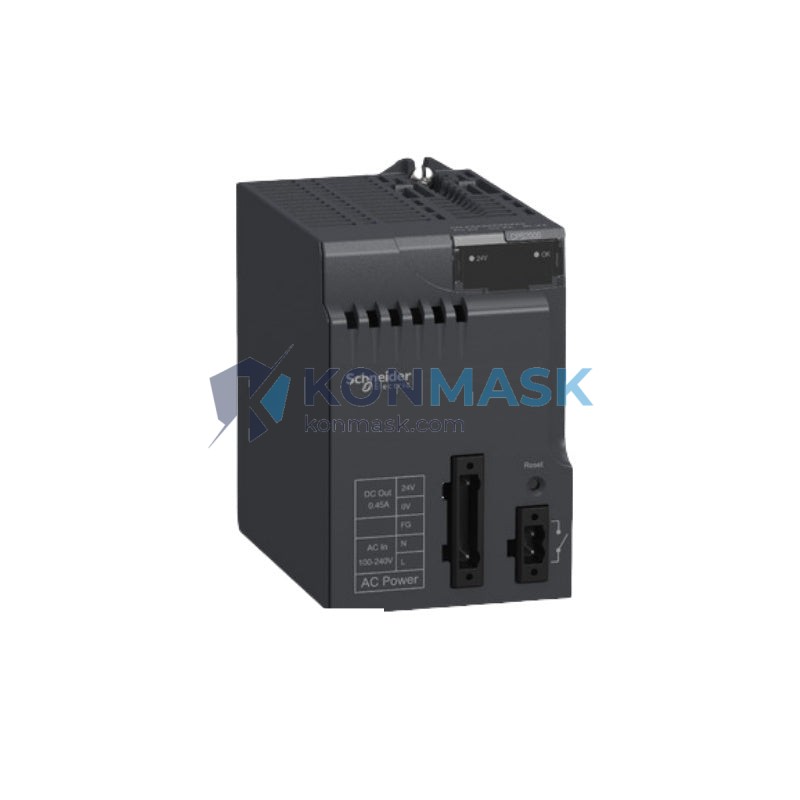

Schneider Electric BMXCPS3500 24VDC Power Supply Module – Modicon M340 Automation Platform
Imagine a critical production line — an automotive stamping press, a pharmaceutical batch reactor, or a water treatment SCADA node — suddenly losing its PLC power supply. Within milliseconds, the entire control rack goes dark: I/O modules lose state, communication buses drop, and the CPU cannot execute a single scan cycle. Without a reliable, correctly-rated power supply module, even the most sophisticated Modicon M340 configuration is nothing more than inert hardware. The Schneider Electric BMXCPS3500 exists precisely to prevent that scenario, delivering stable, conditioned 24 VDC power to every module on the backplane so your automation system never misses a beat.
Within the Modicon M340 family — Schneider Electric’s mid-range PLC platform trusted across more than 140 countries — the BMXCPS3500 occupies the role of the primary 24 VDC backplane power supply. It is engineered to power the full complement of M340 I/O and communication modules in demanding industrial environments, making it one of the most widely specified power supply references in the Modicon ecosystem. Procurement engineers across process, discrete, and hybrid manufacturing sectors rely on this module as a direct, catalog-verified replacement or expansion component.
Technical Specifications
- Part Number / SKU: BMXCPS3500
- Brand: Schneider Electric
- Series / Platform: Modicon M340
- Module Type: Backplane Power Supply Module
- Input Voltage: 24 VDC
- Compatible Racks: Modicon M340 BMX racks (4, 6, 8, 12 slot)
- Output: Internal backplane bus power for CPU, I/O, and communication modules
- Protection: Overvoltage, overcurrent, and short-circuit protection
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Relative Humidity: 10% to 95% non-condensing
- Mounting: DIN rail / panel mount via M340 rack
- Certifications: CE, UL, cUL (verify current marks on product label)
- Weight: Approx. 500 g
- Country of Origin: France / EU manufacturing
Note: Always cross-reference with the official Schneider Electric product datasheet for the most current specifications before engineering sign-off.
Key Features & Benefits
- Dedicated M340 Architecture: Designed exclusively for the Modicon M340 backplane — no adapters, no compatibility guesswork.
- 24 VDC Input Compatibility: Accepts standard industrial 24 VDC supply, simplifying integration with existing panel power distribution.
- Robust Protection Circuits: Built-in overvoltage, overcurrent, and short-circuit protection safeguard the entire rack from power anomalies.
- Wide Thermal Range: Rated for 0–60 °C operation, suitable for both climate-controlled control rooms and harsh factory-floor enclosures.
- Hot-swap Ready Rack Design: Supports M340 rack architecture that allows module-level maintenance without full system shutdown (subject to system configuration).
- Global Certifications: CE and UL/cUL marks facilitate deployment in North American, European, and international projects.
- Long Product Lifecycle: Schneider Electric’s commitment to long-term parts availability makes the BMXCPS3500 a safe investment for multi-year maintenance contracts.
Industry & Equipment Applications
- Oil & Gas: Wellhead control panels, pipeline SCADA, compressor station automation
- Water & Wastewater: Pump station PLCs, filtration process control, SCADA remote terminal units
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, press automation
- Food & Beverage: Filling and packaging lines, CIP (clean-in-place) systems, cold-chain monitoring
- Pharmaceutical: Batch process reactors, cleanroom HVAC control, serialization lines
- Building Automation: HVAC control panels, energy management systems, BMS integration nodes
- Power & Energy: Substation automation, renewable energy inverter control, UPS monitoring
System Integration & Compatible Parts
The BMXCPS3500 is designed to work within the broader Modicon M340 ecosystem. Commonly paired components include:
- CPUs: BMX P34 1000 / 2000 / 2010 / 2020 series processors
- Racks: BMX XBP 0400 / 0600 / 0800 / 1200 (4, 6, 8, 12 slot)
- Digital I/O: BMX DDI / BMX DDO / BMX DRA series modules
- Analog I/O: BMX AMI / BMX AMO / BMX ART series modules
- Communication: BMX NOE 0100 / 0110 Ethernet modules, BMX NOM serial modules
- Alternate Power Supply: BMXCPS2000 (100–240 VAC input variant) for AC-powered panels
When designing a new M340 rack, confirm total module power consumption against the BMXCPS3500 output budget using Schneider Electric’s SoMachine / EcoStruxure Machine Expert power budget calculator.
Our Quality Assurance Process
At Konmask.com, every BMXCPS3500 unit passes through a structured verification workflow before shipment:
- Source Verification: Units are sourced from authorized distributors, certified resellers, or directly from Schneider Electric’s supply chain. We do not knowingly stock counterfeit or grey-market goods.
- Visual Inspection: Label authenticity, housing integrity, connector condition, and firmware/revision markings are checked against known-good references.
- Functional Pre-check: Where applicable, modules are bench-tested for power-on behavior prior to packaging.
- Secure Packaging: Anti-static bags, foam inserts, and double-wall cartons protect modules during international transit.
- Documentation: Certificate of conformity and packing list provided with every shipment.
How to Order
- Submit your RFQ via the Contact / Inquiry form on this page or email support@konmask.com.
- Include your required quantity, delivery timeline, and destination country.
- Our technical sales team will respond within 1 business day with availability, lead time, and a formal quotation.
- Upon PO confirmation, we arrange export documentation (commercial invoice, packing list, COO) and ship via DHL / FedEx / UPS or sea freight as required.
Why Choose Konmask.com?
- ✅ B2B Industrial Focus: We serve OEMs, system integrators, MRO buyers, and EPC contractors — not retail consumers.
- ✅ Global Shipping: Export-ready logistics to 80+ countries with full customs documentation support.
- ✅ Technical Pre-sales Support: Our engineers can assist with compatibility checks, BOM reviews, and cross-reference queries.
- ✅ Competitive Lead Times: In-stock items ship within 3–5 business days; sourced items within 2–4 weeks.
- ✅ Transparent Sourcing: We disclose product condition (new, refurbished, surplus) clearly on every quotation.
Frequently Asked Questions
Q: Is the BMXCPS3500 compatible with all Modicon M340 racks?
A: Yes, it is designed for all standard BMX XBP rack sizes (4, 6, 8, and 12 slot). Always verify the power budget for your specific module configuration.
Q: What is the difference between BMXCPS3500 and BMXCPS2000?
A: The BMXCPS3500 accepts 24 VDC input, while the BMXCPS2000 accepts 100–240 VAC input. Both supply the M340 backplane; the choice depends on your panel’s available power source.
Q: Can I use this module in a redundant power supply configuration?
A: The M340 platform supports redundant power supply configurations using two power supply modules in compatible racks. Consult the Modicon M340 Hardware Reference Manual for wiring details.
Q: Do you supply new or refurbished units?
A: We supply both new (factory-sealed) and tested-refurbished units. Product condition is clearly stated on your quotation. Contact us to specify your preference.
Q: How long does international shipping take?
A: Express courier (DHL/FedEx) typically delivers within 3–7 business days to most destinations. Sea freight options are available for large orders.
