Servo Motion Control Solution — Schneider Electric VDM01D10AA00 | Lexium MC-4 Series
Where This Product Is Used

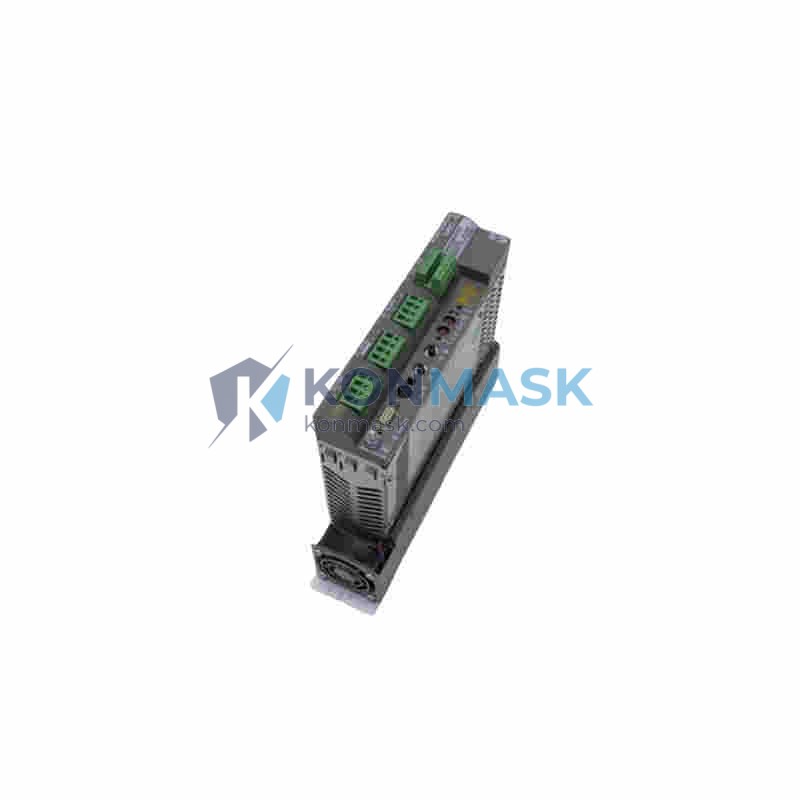

The Schneider Electric VDM01D10AA00 (MC-4/11/10/400) servo drive is deployed across demanding industrial motion control environments where precise speed, torque, and positioning are non-negotiable. Typical application scenarios include:
- Packaging Machinery — High-speed pick-and-place, form-fill-seal lines, and cartoning machines requiring sub-millisecond position repeatability.
- CNC & Machine Tool Axes — Feed axis and spindle control on milling centers, lathes, and grinding machines where dynamic stiffness is critical.
- Textile & Printing Equipment — Tension-controlled winding/unwinding and register control on web-fed presses and knitting frames.
- Conveyor & Sorting Systems — Synchronised multi-axis transport lines in e-commerce fulfilment and automotive body shops.
- Robotics & Gantry Systems — Cartesian and SCARA robot joint drives requiring smooth velocity profiles and fast settling times.
- Semiconductor & Electronics Assembly — SMT pick-and-place, wafer handling, and precision dispensing stages.
- Food & Beverage Processing — Hygienic-area conveyors and dosing pumps where IP-rated motor pairing and safe-torque-off (STO) are mandatory.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Part Number | VDM01D10AA00 |
| Series / Model Code | Lexium MC-4 / MC-4/11/10/400 |
| Drive Type | AC Servo Drive (single-axis) |
| Continuous Output Current | 11 A (rms) |
| Peak Output Current | 10 × In (short-term overload) |
| Supply Voltage | 3-phase 400 V AC (±10%), 50/60 Hz |
| Control Modes | Position / Speed / Torque (CSP, CSV, CST via CANopen DS402) |
| Fieldbus Interface | CANopen (integrated); optional PROFIBUS, DeviceNet |
| Encoder Feedback | Incremental / Absolute (SinCos, EnDat 2.1, Hiperface) |
| Safety Function | STO (Safe Torque Off) — IEC 62061 SIL 2 / EN 13849-1 PLd |
| Ambient Temperature | 0 °C to +45 °C (operating); −25 °C to +70 °C (storage) |
| Protection Degree | IP20 (panel-mount) |
| Cooling | Forced air (internal fan) |
| Weight | approx. 200 g (drive module) |
| Dimensions (H × W × D) | Refer to Schneider Electric installation drawing VDM01Dxx |
Why Engineers Specify This Model
- Compact Single-Axis Footprint — The MC-4 bookshelf form factor minimises cabinet space while delivering 11 A continuous current, ideal for multi-axis panels.
- Native CANopen DS402 — Plug-and-play integration with Schneider Electric Modicon M340/M580 PLCs and third-party CANopen masters without gateway hardware.
- Integrated STO (SIL 2 / PLd) — Eliminates external safety relays on the motor circuit, reducing BOM cost and wiring complexity on CE/machinery-directive-compliant machines.
- Wide Encoder Compatibility — Supports SinCos, EnDat 2.1, and Hiperface resolvers, allowing motor substitution without drive replacement.
- Auto-Tuning & Notch Filters — Lexium CT commissioning software provides one-click inertia identification and adaptive notch filtering for resonance-prone mechanical loads.
- Regenerative Braking Ready — Internal braking transistor with external resistor option for high-duty-cycle deceleration applications.
Complete System Bill of Materials
A fully operational servo axis based on the VDM01D10AA00 typically requires the following components:
- Servo Drive: Schneider Electric VDM01D10AA00 (this unit)
- Servo Motor: Schneider Electric BSH / BMH series (matched to 11 A drive rating)
- Power Supply / Mains Filter: Schneider Electric VW3A4601 EMC filter (recommended)
- Braking Resistor: VW3A7xxx series (application-dependent duty cycle)
- Feedback Cable: Schneider Electric VW3M5xxx (motor-to-drive encoder cable, shielded)
- Power Cable: VW3M5xxx motor power cable (pre-assembled, length to suit)
- CANopen Cable: Shielded twisted-pair, 120 Ω termination resistors at bus ends
- PLC / Motion Controller: Modicon M340 / M580 with CANopen master module
- Commissioning Software: Lexium CT (free download, Schneider Electric website)
Compliance & Industry Standards
- CE Marking — Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- Machinery Directive 2006/42/EC (STO safety function)
- IEC 61800-5-1 (Adjustable speed electrical power drive systems — safety)
- IEC 62061 SIL 2 / EN ISO 13849-1 PLd (functional safety)
- CANopen DS402 (CiA — drive profile)
- RoHS 2 Compliant (Directive 2011/65/EU)
Quality Assurance & Sourcing
Konmask.com sources industrial automation components through verified supply channels with full traceability. Every unit offered is:
- Inspected for original manufacturer labelling, date codes, and holographic seals
- Tested for power-on functionality and communication response prior to dispatch
- Packaged in anti-static ESD bags with foam-lined cartons to prevent transit damage
- Accompanied by a Konmask inspection report and, where available, original Schneider Electric documentation
We maintain stock of both new-surplus and factory-refurbished units. Condition is clearly stated on each listing. All refurbished units carry a 90-day Konmask warranty covering manufacturing defects and functional failure.
How to Source This Part
- Confirm your motor rating — Match the 11 A continuous current to your BSH/BMH motor nameplate current.
- Verify fieldbus topology — Confirm CANopen node address availability and bus termination before ordering.
- Request a quote — Contact support@konmask.com with your project quantity, required delivery date, and any IQ/OQ documentation needs.
- Lead time — In-stock units ship within 2 business days (Hong Kong warehouse). Ex-works lead time for sourced units is quoted individually.
- Payment & Export — We support T/T bank transfer, PayPal, and trade-finance terms for qualified accounts. Export documentation (CO, packing list, commercial invoice) provided for all international shipments.
Application-Specific FAQ
Q: Can the VDM01D10AA00 be used with non-Schneider motors?
A: Yes, provided the motor’s encoder protocol (SinCos, EnDat 2.1, or Hiperface) and current rating are compatible. Motor data must be entered manually in Lexium CT; auto-identification only works with Schneider BSH/BMH motors.
Q: Is PROFIBUS DP supported natively?
A: No. The base unit uses CANopen. PROFIBUS requires the optional VW3A3607 fieldbus card installed in the drive’s option slot.
Q: What is the maximum cable length between drive and motor?
A: Schneider Electric specifies a maximum of 50 m for standard shielded power and encoder cables. Longer runs require derating or signal repeaters — consult the MC-4 installation guide.
Q: Does this drive support multi-axis synchronisation?
A: Electronic gearing and cam synchronisation are available via CANopen DS402 interpolated position mode (IP mode). For deterministic EtherCAT-based synchronisation, consider the Lexium 32 or Lexium 62 series instead.
Q: What spare parts should be stocked alongside this drive?
A: Recommended spares: internal cooling fan (part of VDM01D series), braking resistor, and encoder cable assembly. Contact Konmask for a recommended spare-parts kit tailored to your machine duty cycle.
Q: Is this product available for export to the EU, USA, or Southeast Asia?
A: Yes. Konmask ships globally. Export classification and HS code documentation are provided. Customers are responsible for import duties and local compliance verification.
