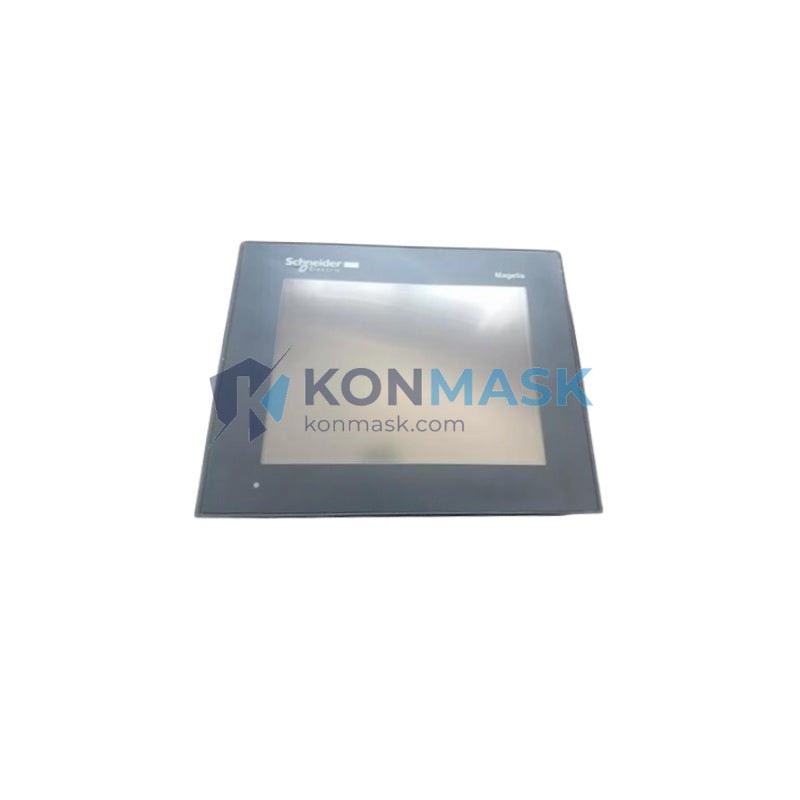

Machine Control & Process Automation Solution — Schneider Electric XBTGT340 | Magelis Advanced HMI Series
Where This Product Is Used
The Schneider Electric XBTGT340 Magelis touchscreen HMI panel is deployed across a wide range of industrial environments where reliable operator interface and real-time process visualization are critical:
- Discrete Manufacturing: Assembly lines, CNC machine tool control, robotic cell supervision
- Process Industries: Water & wastewater treatment plants, chemical dosing systems, HVAC control panels
- Building Automation: Energy management systems, pump station monitoring, BMS integration
- Food & Beverage: Filling line HMI, batch process control, recipe management terminals
- Material Handling: Conveyor system control, palletizer supervision, warehouse automation
- OEM Machine Builders: Embedded panel interface for custom machinery requiring compact, cost-effective HMI
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | XBTGT340 |
| Brand / Series | Schneider Electric / Magelis Advanced |
| Display Type | TFT Color Touchscreen |
| Display Size | 3.5 inch (320 × 240 px, QVGA) |
| Processor | 32-bit RISC |
| Memory | 8 MB Flash / 32 MB RAM |
| Communication Ports | RS-232C / RS-485 / USB Host & Device / Ethernet (RJ45) |
| Supported Protocols | Modbus RTU/TCP, Uni-Telway, CANopen, EtherNet/IP |
| Power Supply | 24 VDC (±20%) |
| Power Consumption | ≤ 10 W |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Protection Rating | IP65 (front panel) |
| Dimensions (W × H × D) | Approx. 130 × 100 × 45 mm |
| Weight | 240 g |
| Configuration Software | Vijeo Designer (Schneider Electric) |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Compact Footprint: 3.5″ form factor fits tight panel cutouts without sacrificing color display quality — ideal for space-constrained OEM enclosures.
- Multi-Protocol Connectivity: Native support for Modbus RTU/TCP, Uni-Telway, and EtherNet/IP eliminates the need for protocol converters in mixed-brand installations.
- IP65 Front Panel: Sealed against dust and water jets — suitable for wash-down environments in food processing and outdoor pump stations.
- Vijeo Designer Integration: Drag-and-drop screen design with built-in symbol libraries, alarm management, and data logging — reduces engineering time significantly.
- Proven Schneider Ecosystem: Seamless integration with Modicon M340, M580, Premium, and Quantum PLCs without additional configuration overhead.
- Long Product Lifecycle: Schneider Electric’s Magelis line is backed by long-term availability commitments, reducing obsolescence risk for OEM designs.
Complete System Bill of Materials
For a complete XBTGT340-based control station, engineers typically specify the following complementary components:
- PLC / Controller: Schneider Modicon M340 (BMX P34 series) or TM221 Logic Controller
- Communication Cable: XBTZ9980 (RS-485 cable for Magelis to Modicon) or standard RJ45 Ethernet patch cable
- Power Supply: Schneider ABL8REM24030 (24 VDC, 3 A) or equivalent DIN-rail PSU
- Panel Mounting Hardware: XBTZG935 mounting gasket kit (IP65 seal)
- Programming Software: Vijeo Designer 6.x (free download from Schneider Exchange)
- USB Programming Cable: Standard USB-A to USB-B for initial configuration upload
- DIN Rail & Enclosure: Schneider NSYCRN or equivalent IP54/IP65 enclosure
Compliance & Industry Standards
- CE Marking: Compliant with EU Low Voltage Directive (LVD) and EMC Directive — suitable for European machinery installations.
- UL / cUL Listed: Recognized for use in North American industrial control panels per UL 508A.
- RoHS Compliant: Manufactured without restricted hazardous substances per EU RoHS Directive 2011/65/EU.
- IEC 61131-2: Meets programmable controller equipment standards for industrial environments.
- IP65 (IEC 60529): Front panel protection verified against dust ingress and low-pressure water jets.
Quality Assurance & Sourcing
At Konmask.com, every XBTGT340 unit is subject to a rigorous pre-shipment verification process:
- ✅ Authenticity Verification: Units are sourced from authorized distributors and verified Schneider Electric supply chains. Counterfeit screening is performed on all incoming stock.
- ✅ Functional Inspection: Display, communication ports, and power input are bench-tested prior to dispatch.
- ✅ Original Packaging: Shipped in OEM packaging with original documentation where available.
- ✅ Traceability: Batch and serial number records maintained for full supply chain traceability.
- ✅ Warranty: 12-month warranty against manufacturing defects. Replacement or refund policy applies.
How to Source This Part
- Add to Cart — Select quantity and proceed to checkout directly on this page.
- Request a Quote — For orders of 5+ units, contact support@konmask.com for volume pricing and lead time confirmation.
- Urgent Requirements — Call or WhatsApp +0086 19859288691 for same-day stock confirmation and expedited shipping options.
- Customs & Export — We handle export documentation, HS code classification, and commercial invoices for international B2B buyers.
- Payment Terms — T/T bank transfer, PayPal, and credit card accepted. Net-30 terms available for approved corporate accounts.
Application-Specific FAQ
Q: Can the XBTGT340 communicate directly with a Siemens S7-300 PLC?
A: Yes, via the Modbus RTU protocol over RS-485, or through a third-party Profibus/MPI gateway. Native Siemens S7 driver is not built-in but can be configured using Vijeo Designer’s custom driver framework.
Q: Is the XBTGT340 suitable for outdoor installations?
A: The front panel is IP65-rated, but the unit requires a weatherproof enclosure (minimum IP54) for outdoor deployment. Operating temperature range is 0–50 °C; additional thermal management may be needed in high-ambient environments.
Q: What is the maximum number of tags/variables supported?
A: The XBTGT340 supports up to 2,000 variables in Vijeo Designer, sufficient for most compact machine HMI applications.
Q: Can I upgrade the firmware on-site?
A: Yes. Firmware updates are performed via USB or Ethernet using the Vijeo Designer runtime update utility. No special tools required.
Q: Do you supply the Vijeo Designer software license?
A: Vijeo Designer is available as a free download from the Schneider Electric Exchange portal. A runtime license is embedded in the XBTGT340 hardware — no additional software purchase is required for standard HMI operation.
Q: What is the typical lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock scenarios, lead time is typically 2–4 weeks depending on Schneider Electric’s regional distribution. Contact us for real-time availability.
